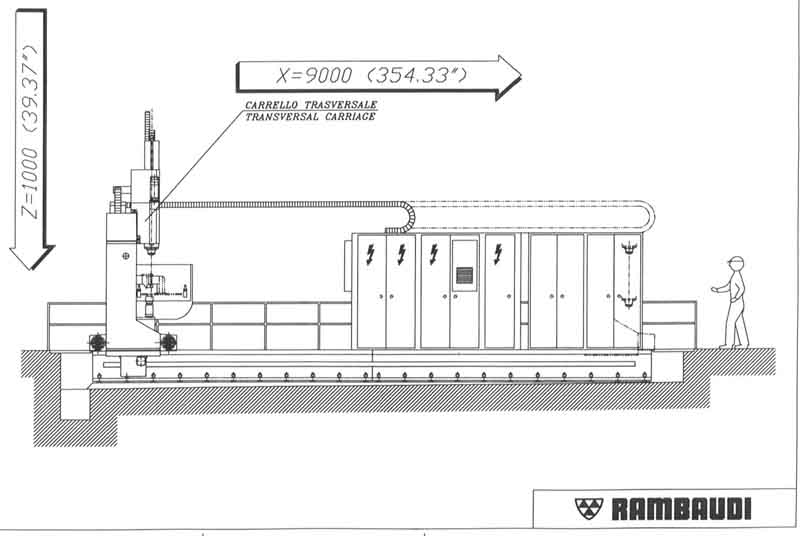

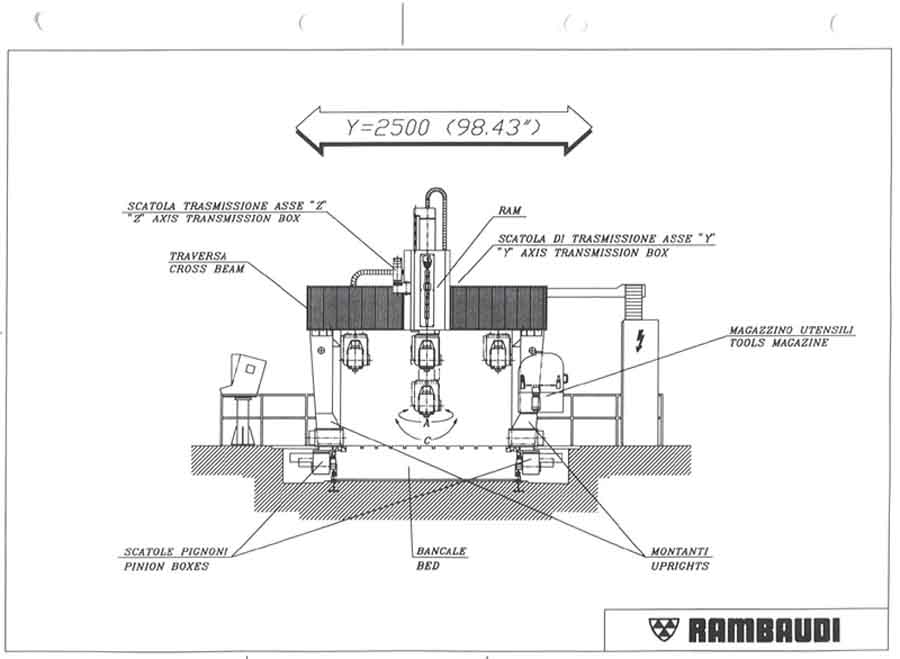

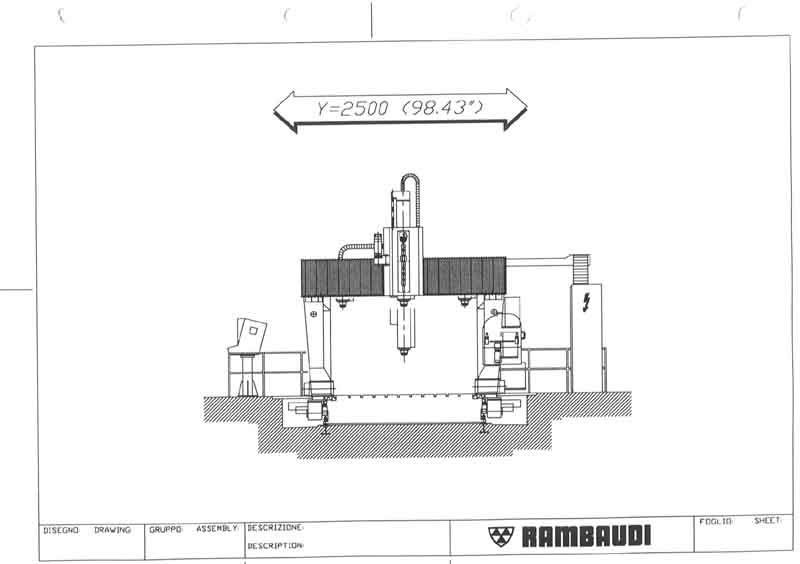

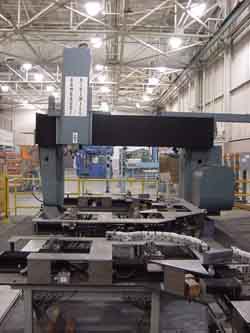

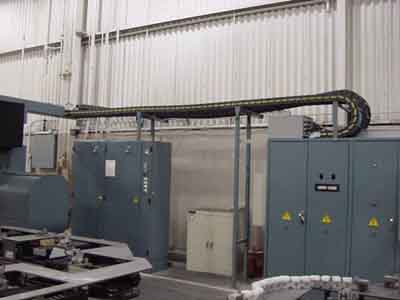

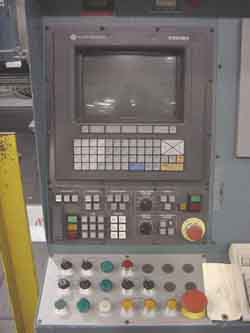

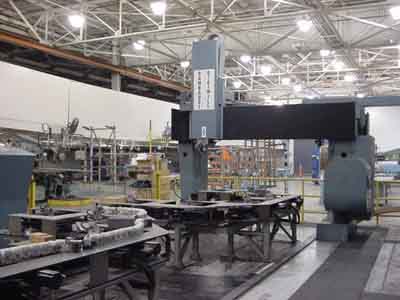

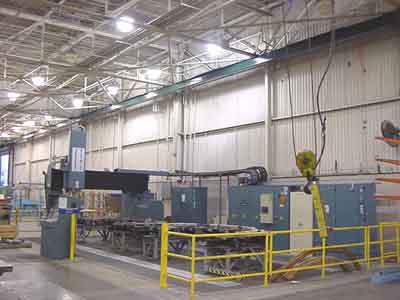

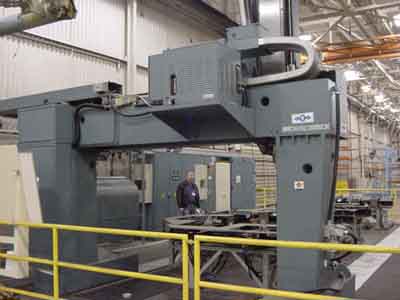

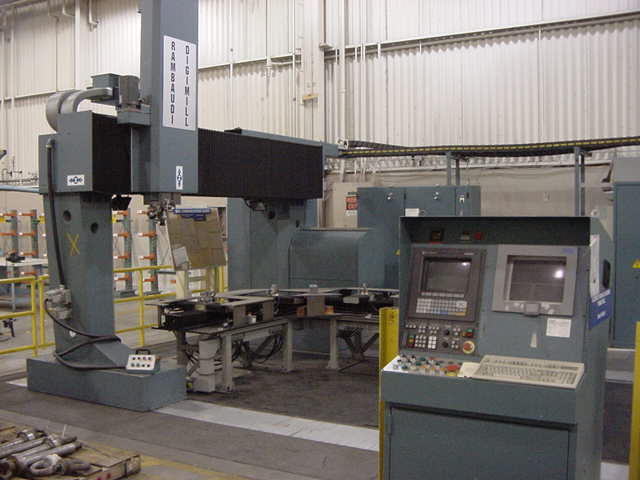

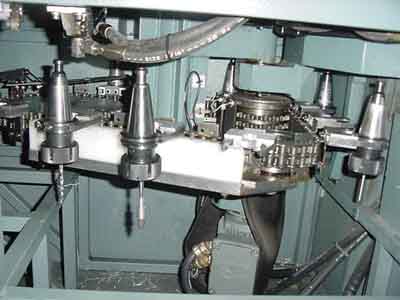

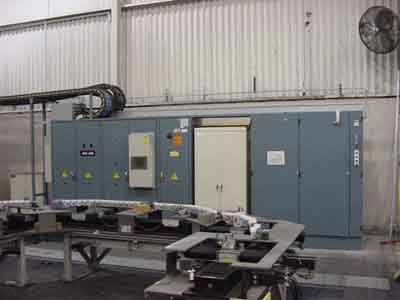

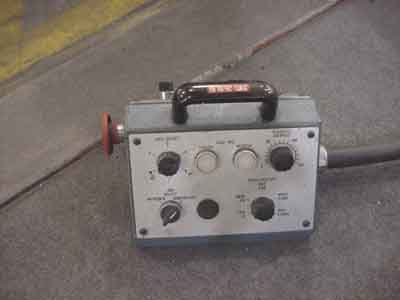

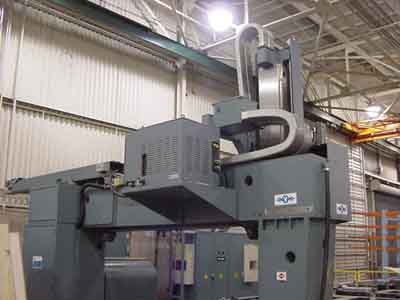

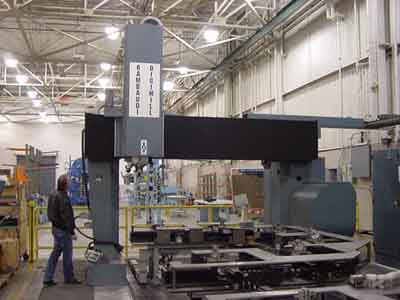

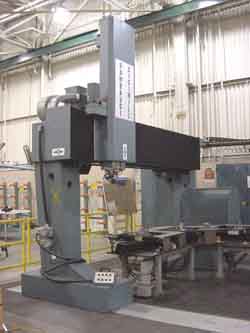

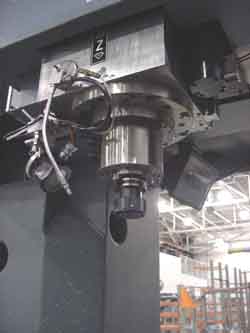

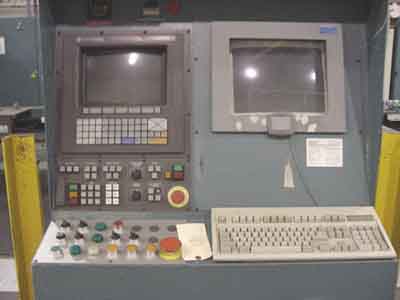

RAMBAUDI Digimill 3-Axis CNC Vertical Gantry Mill Serial No.- DG 101 Model- 90 L Year- 1995 Useful Resting Surface on Machine Bed- 10,500 mm Long x 2,800 mm Width Maximum Load on Machine Bed- 9,800 Kg. Distance Between Spindle Nose and Table- Min. 805 mm (31.7") Max. 1,805 mm (71.06") Working Travel Controlled by NC- X-Axis (Longitudinal) 9,000 mm (354.3") Y-Axis (Transversal) 2,500 mm (98.43") Z-Axis (Vertical) 1,000 mm (39.37") Speed of Displacement- X-Axis (Longitudinal) 12m/1’ 5m/1’ after axes zero setting 2m/1’ before Y-Axis (Transversal) 12m/1’ 5m/1’ after axes zero setting 2m/1’ before Z-Axis (Vertical) 12m/1’ 5m/1’ after axes zero setting 2m/1’ before Maximum Recommended Accelerations- X-Axis (Longitudinal) Max. speed in rapid 16m/1’ Acceleration Time 0,3 sec. Acceleration 48.000 mm/min sec. Y-Axis (Transversal) Max. speed in rapid 16m/1’ Acceleration Time 0,3 sec. Acceleration 48.000 mm/min sec. Z-Axis (Vertical) Max. speed in rapid 16m/1’ Acceleration Time 0,3 sec. Acceleration 48.000 mm/min sec. Axis Motors- X-Axis motor type SIEMENS 1FT5-074-OAF71-4 3,000 RPM, 4.4 KW, 600 Volt, 13 Amp. Y-Axis motor type INDRAMAT 1FT5-074-OAF71-4 3,000 RPM, 4.4 KW, 600 Volt, 13 Amp. Z-Axis motor type INDRAMAT 1FT5-074-OAF71-4 3,000 RPM, 4.4 KW, 600 Volt, 13 Amp. Spindle MOTORSPINDLE NUM MS180/127-4Y-3628 4 KW, 925 divided 3,700 RPM Spindle- Speed of Rotation 10,000 RPM Constant Power 14 KW Maximum Torque on Spindle 41 Nm da o a 925 RPM Spindle Taper- ISO 40 DIMENSION SENSORS- X-Axis Heidenhein OPT. Straight Edge Type LB 326 Y-Axis Heidenhein OPT. Straight Edge Type LS 706 C Z-Axis Heidenhein OPT. Straight Edge Type LS 706 C (1ea.) Extra Milling Spindle 20 or Maybe 24-Position Automatic Tool Changer No Cross Rail Vertical Adjustment Machine Manual and Drawings Available The present machine is a moving-portal milling machine with 5 simultaneous axes, complete with Allen-Bradley 9/620 Numeric Control. The work surface, obtained on the machine bed, is made of cast iron. The special casting process used ensures total absence of residual stresses in the castings. The machine bed has a modular structure and is made up of four interconnected modules equipped with levelers. Along the side, the machine bed is provided with interchangeable longitudinal guides to enable sliding of the two uprights. An amply-sized cross member rests on the two uprights; it is built in electric arc-welded steel. The set of the two uprights and cross member forms the moving portal, which slides longitudinally (X-Axis). A traverse carriage slides on the cross member (Y-Axis); the milling head cross-piece is mounted on this carriage and slides vertically (Z-Axis). The linear slidings of the machine are obtained by means of recirculation roller runners. The slide guides are built of high-speed, core-hardened and ground steel. The displacement of the portal takes place by means of two moving assemblies, each controlled by a DC motor. The two motors are electronically synchronized. The screw governing the Z-Axis is equipped with a pneumatic-release spring brake to prevent the milling head cross-piece dipping when the axis drive is deactivated. The slide guides are lubricated with grease by means of a centralized lubrication system. The GAMFIOR electro spindle has a power of 14 kW and a maximum speed of 10,000 rpm. The spindle is equipped with a device for gripping and hydraulically releasing the milling tool. The spindle taper is ISO 40. The spindle is also arranged for mounting 5 vibration sensors to detect the temperature on the bearings. An electric cabinet, containing all the control equipment, is housed on the right of the machine in front of the tool magazine. The hydraulic power unit, pneumatic system, grease lubrication unit, and SPRAY MIST cooling device are housed on the right-hand upright. A tool magazine, located in the vicinity of the right-hand upright, enables choice of the new tool to be used by means of a clockwise and counterclockwise chain rotation device. Commands are sent to the machine from a special console located on a platform which forms an integral part of the left-hand upright.
