Specifications

Categories > Grinders, Surface, Rotary (Vertical Spindle)
Ask for quotation
Stock ref. # 0118

Manufacturer Mattison

Model HD-120

Year 1971

Grinder Cap. 120"

Under Wheel 54"

Motor 250 HP

Includes *

Price SOLD!

Other specifications

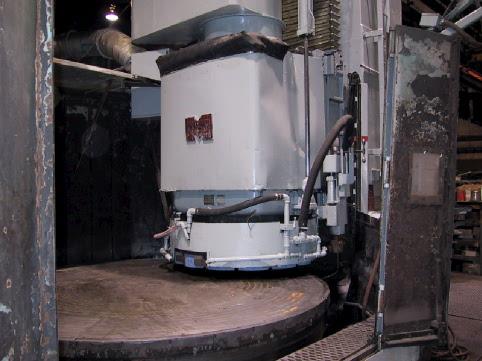

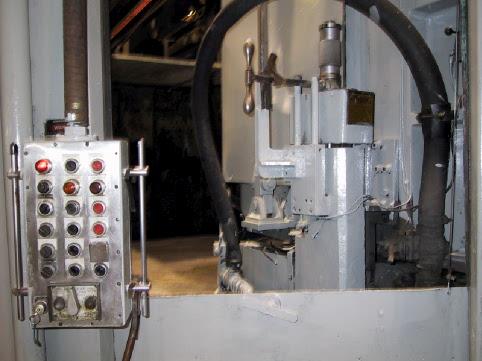

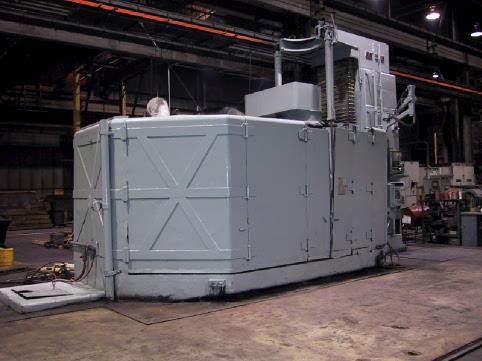

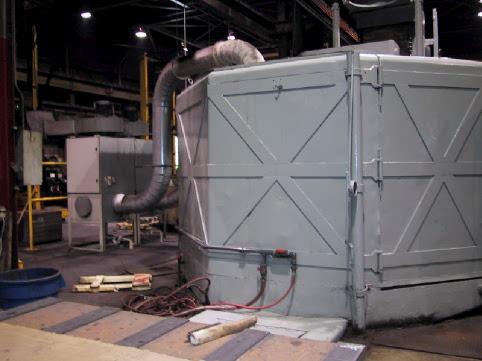

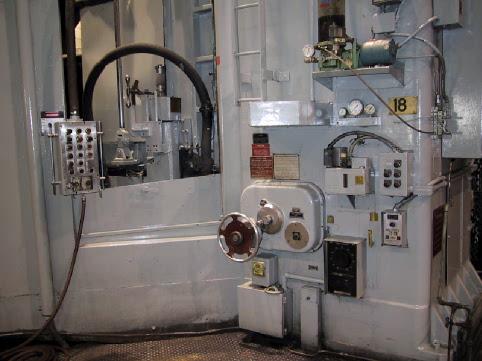

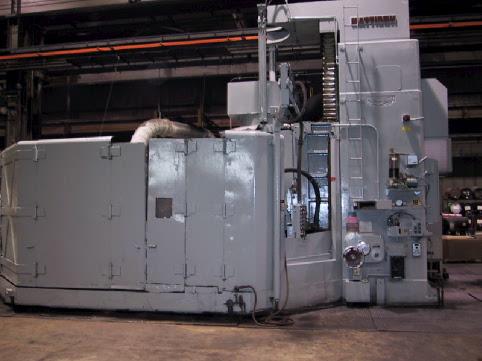

1971 Mattison Rotary Vertical Spindle Grinder, Model HD-120

Vintage Nov. 1, 1971,

120” Diameter Table, 135” Coverage to Center, 144” Swing with a Hole in the center of part

Table speeds, variable 2.5 to 14 rpm

Stone chuck is 60”, 14 Segments, Cortland CD Style

54” Maximum part height, under new segments

Table Part Load Capacity is 15 Tons

250 HP Spindle Motor, 480V-3-60

Spindle Speed is 317 RPM, 4959 Surface Feet/Minute

Maximum Downfeed .480” @ .005” - .165” per minute, Variable

Approximate footprint, 30’L x 15’W x 21’H

Approximate rigging cost to remove, $20,000

We encourage any interested parties to inspect it under power.
