Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 1231

Manufacturer TAKUMI-SEIKI

Model V32A

Year 2000

Axis_Travels(X;Y;Z) 126" x 42" x 30"

RPM 6000

HP 35

ATC 32

Control FANUC 18M

Price SOLD!

Other specifications

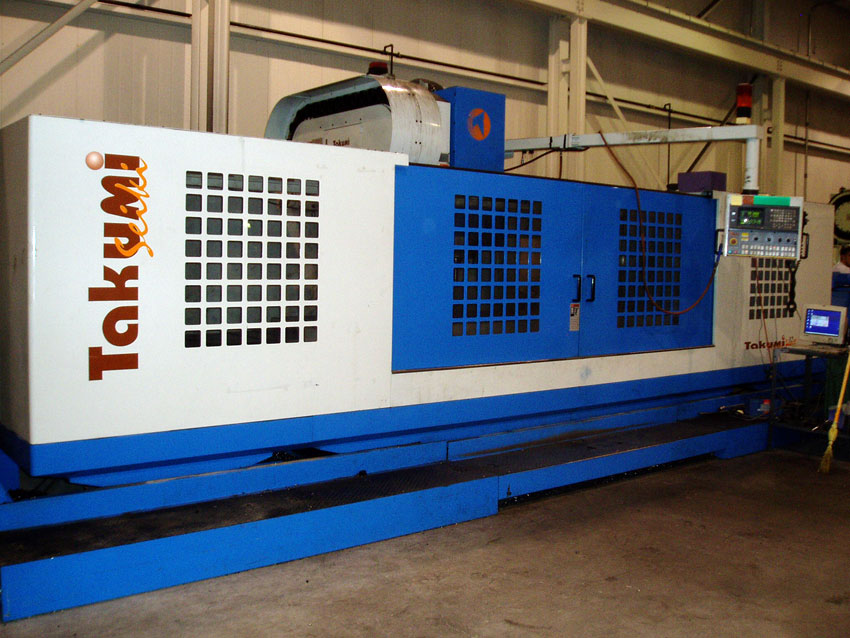

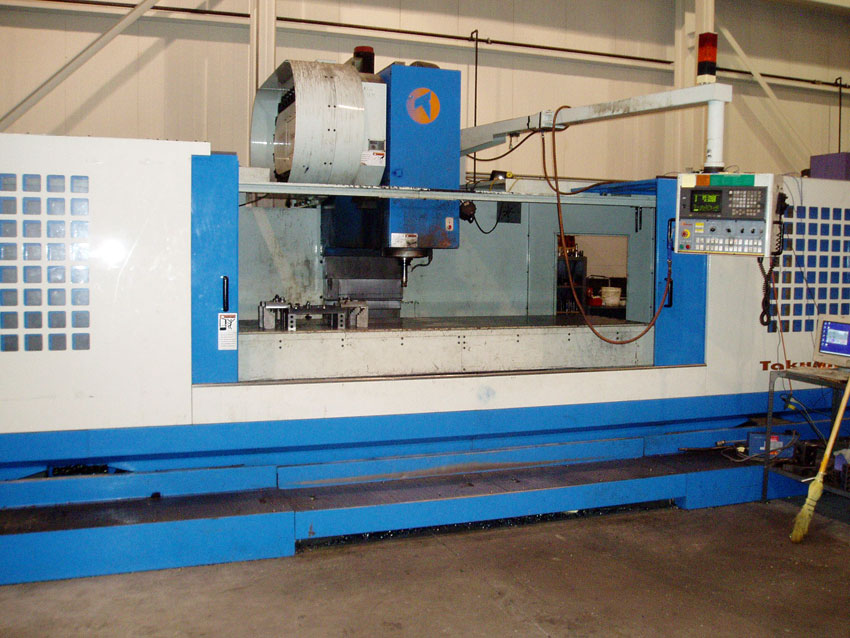

TAKUMI V32A VERTICAL MACHINING CENTER, 2000

YEAR: 2000

X Axis Travel mm / inch 3200 / 126"

Y Axis Travel mm / inch 1066 / 42"

Z Axis Travel mm / inch 750 / 30"

Table Size (L x W) mm / inch 3200 x 1025 / 126" x 40"

Max. Table Load kgs / lbs 4500 / 9900

Rapid Traverse (X x Y x Z) m/min / IPM 10 x 10 x 10 / 394 x 394 x 394

Cutting Feed Rate m/min / IPM 5 / 197

Spindle Speed Standard 6,000 rpm / 35 hp #50 - GEAR HEAD TYPE

Tool Capacity: 32

Fanuc 18M HPCC(1.2gb HD) CNC Control

(2) Chip Conveyor

Spindle Chiller

Ball screw Chiller

Machine Weight kgs / lbs 21590 / 47500

Floor Space (L x W x H) mm / inch 7500 x 4405 3350 / 295" x 173" x 132"

Photos
