Specifications
|
Categories > Mill, Planer - Plano Millers - Gantry - Manual/CNC | Ask for quotation |
| Stock ref. # 1305 |
|
|
Other specifications

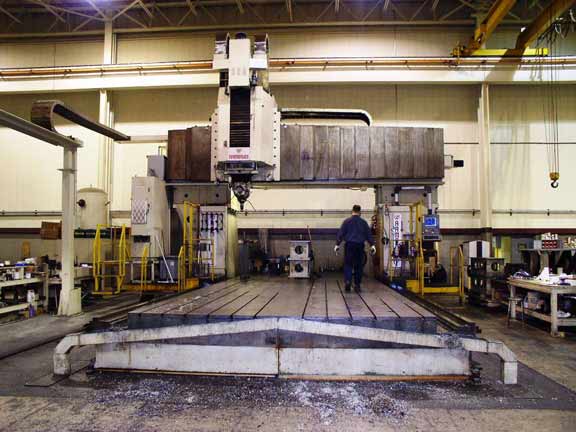

RAMBAUDI 5-Axis CNC Vertical Gantry Mill Age: 1987 CNC Retrofit In 2000 Model: Travelling Bridge Type Longitudingal Travel, X ....... 314.96" Head Travel, Y ................ 177.16" Ram Stroke, Z ................. 60.03" Head Ocillation, A ............ +/- 105 Degrees Head Rotation, C .............. 360 Degrees Height Under Cross Rail ....... 107" Distance Between Columns ...... 177.16" Ram Size ...................... 23.62" x 23.62" Table Size .................... 157.48" x 472.44" Rapid Traverse X & Y Axes ..... 394 IPM Spindle Taper ................. ISO 50 Spindle Speeds: ............... 20-3600 RPM Spindle Motor ................. 54.7 HP EQUIPPED WITH: Vega MLM 5-Axis CNC Control (New 2002) 2-Axis Articulating Head Ball Screws on Y & Z Axes Anti-Backlash Rack on X-Axis Dual 20 HP X-Axis AC Drive Motors Steel Way Covers on Cross Rail Coolant System Inspect Under Power Aerospace Tooling Mfg. Retrofit In 2000 With New CNC Controls
Photos
|
