Specifications

 Categories > Lathes, CNC - Turning Centers

Ask for quotation
  Stock ref. # 1317

  Manufacturer MAZAK
  Model MULTIPLEX 430N
  Year 1997
  Swing 22"
  Turning Length 19.45"
  Chuck Size 12"
  Spindle Bore 3.46"
  HP 30
  RPM 3000
  Control MAZATROL
  Price SOLD!



Other specifications

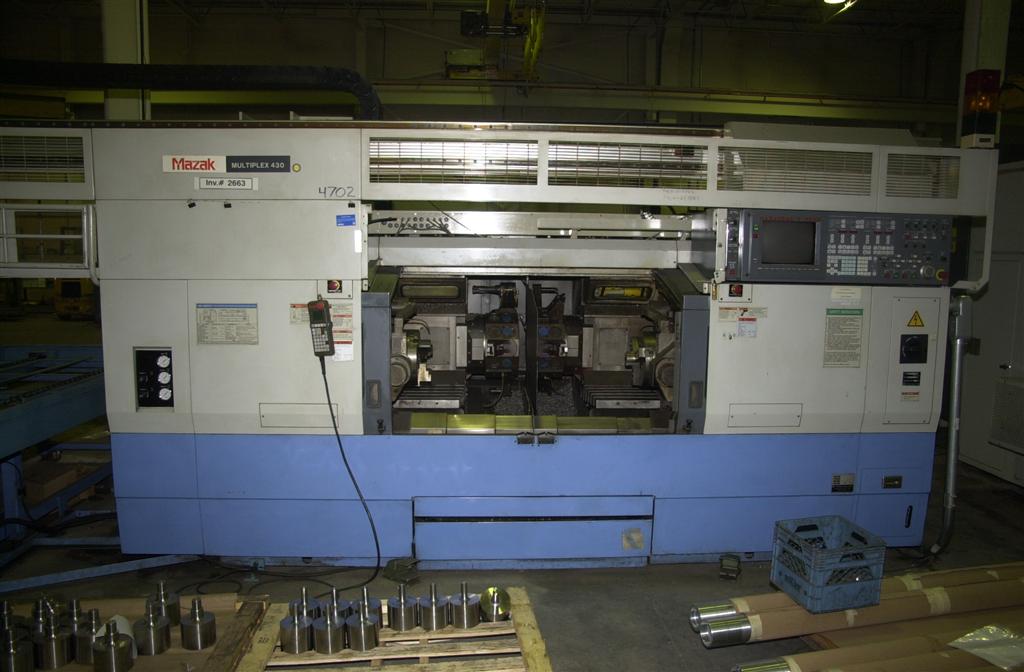

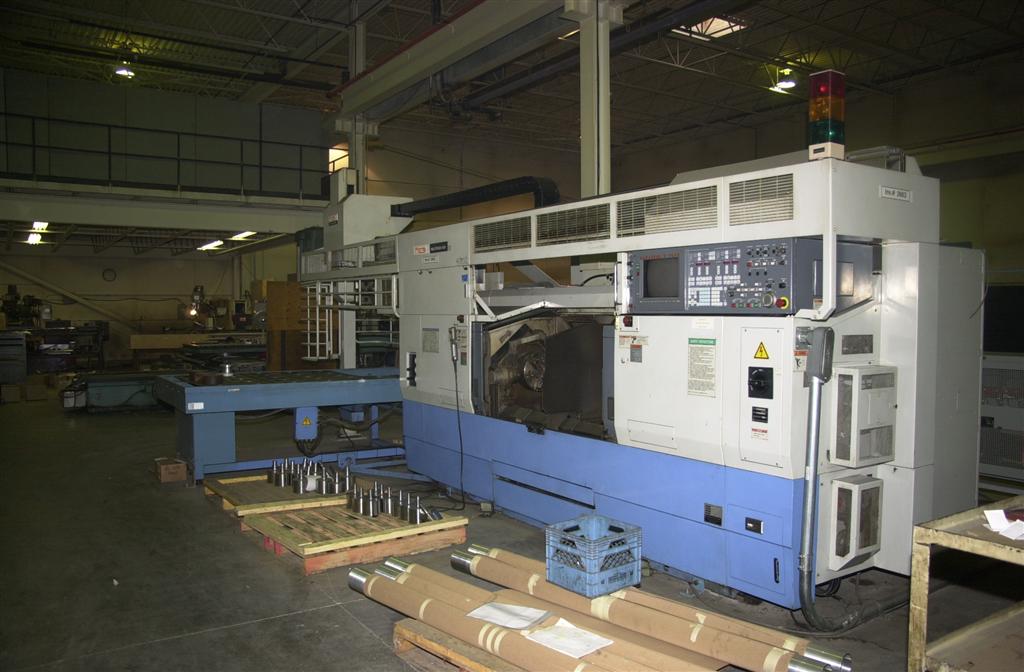

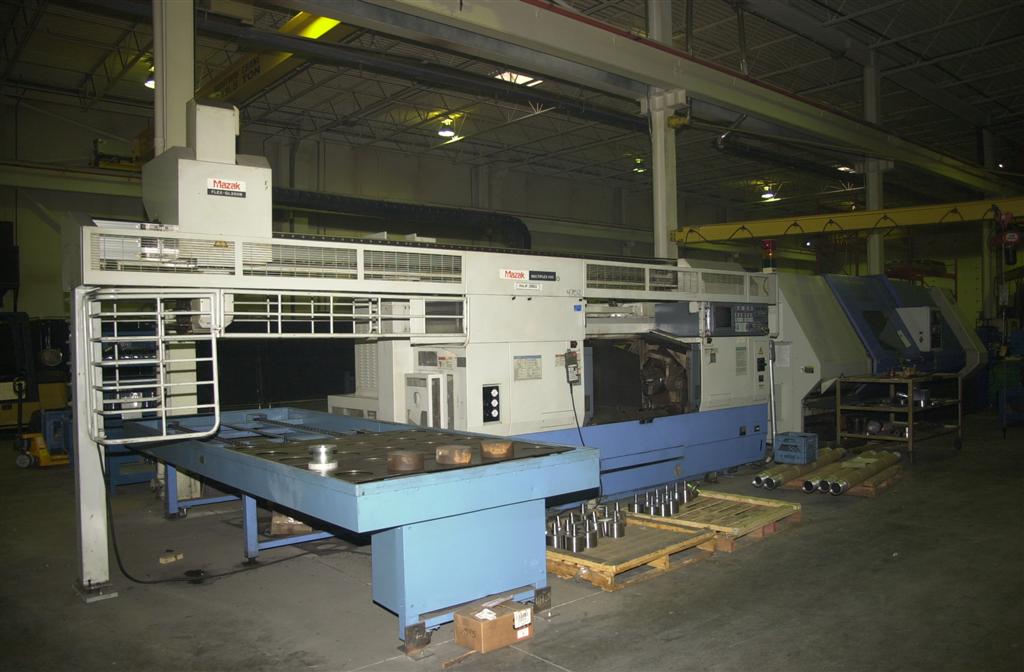

                  1997 Mazak Multiplex 430 Multitasking, Opposed Spindle, 4 Axis, CNC Lathe

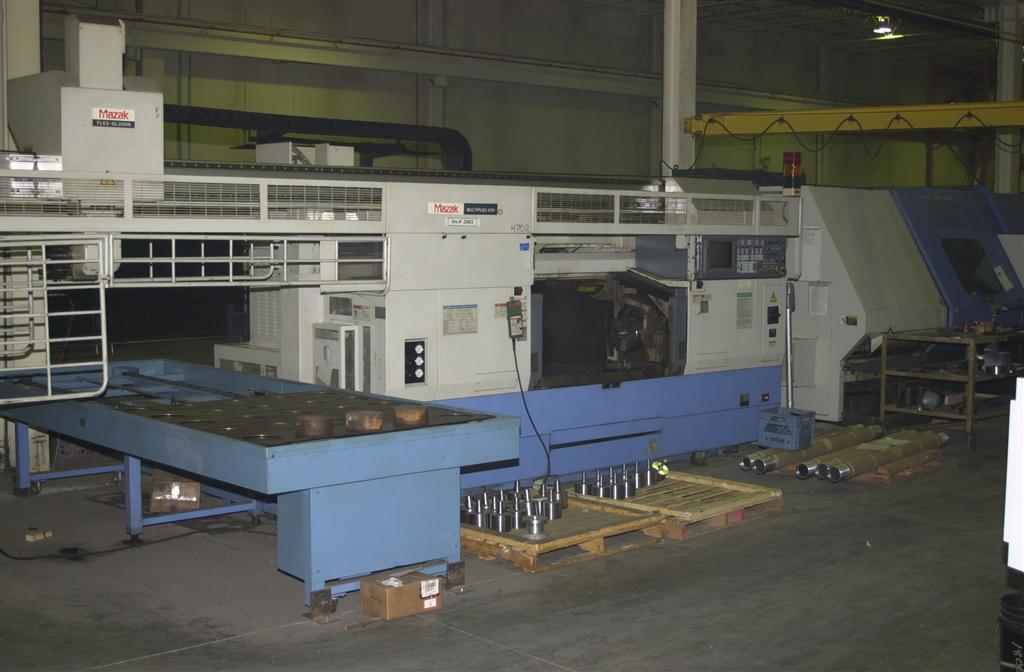

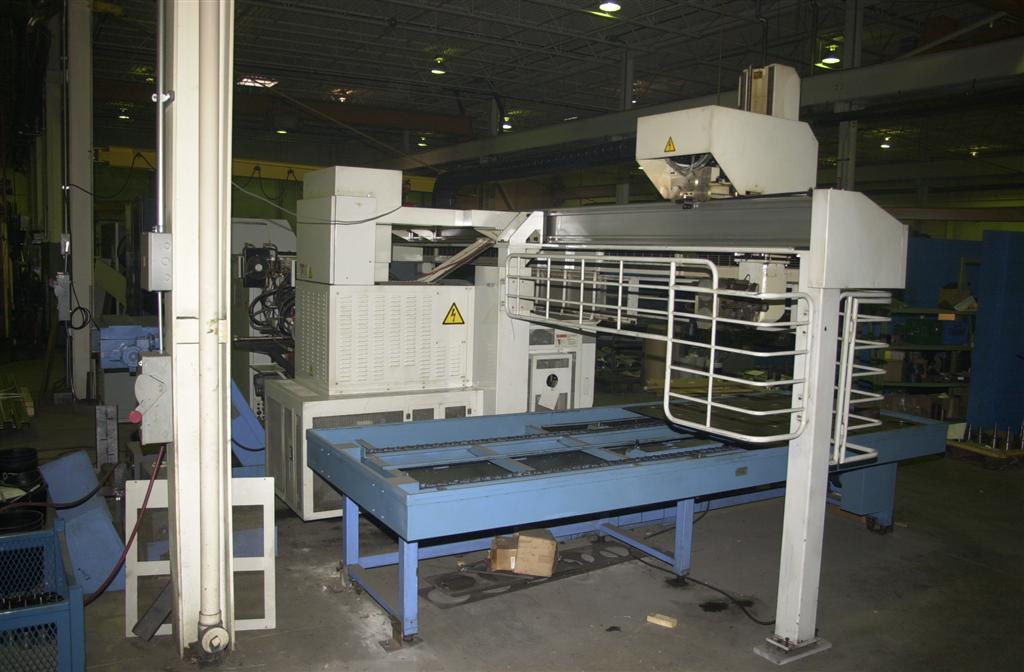

                  w/GL 200N Gantry Robot, Pitch Conveyor

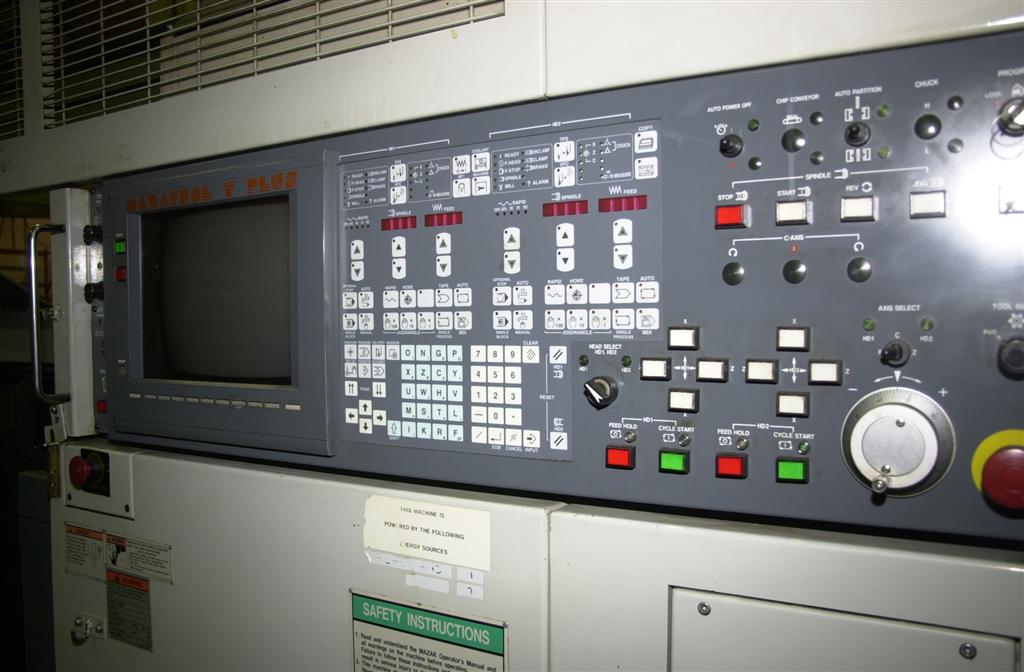

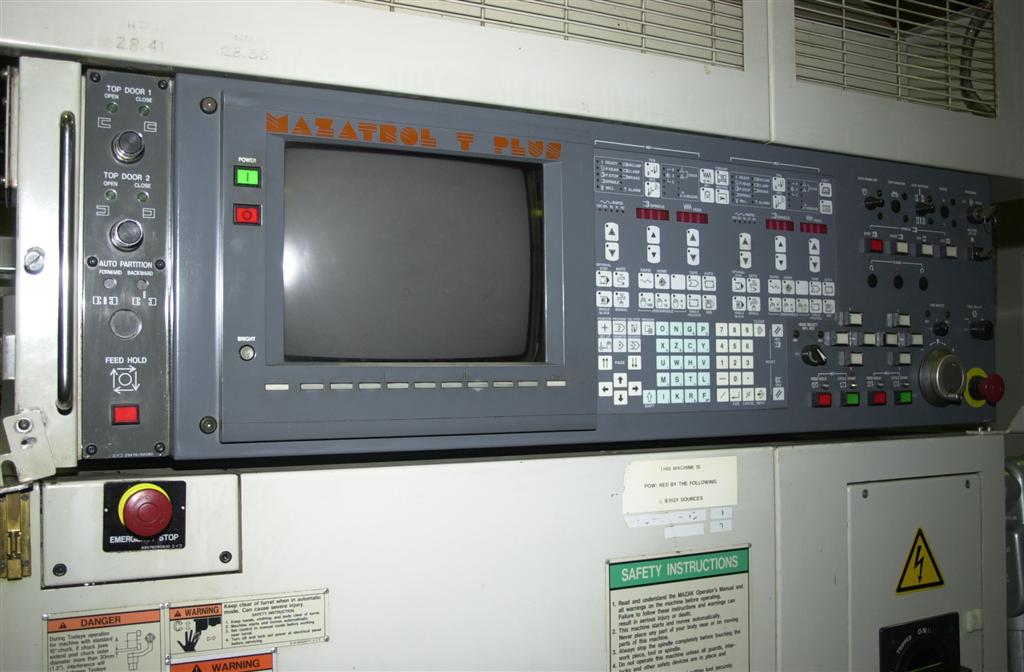

                  Mazatrol T Plus Control



                  Maximum Swing 22.04"

                  Maximum Cutting Diameter 12.99"

                  Maximum Bar Capacity 3.03"

                  Max. Cutting Length Chuck Work 8.86"

                  Max. Cutting Length Shaft Work 19.45"

                  Chuck Size (2) 12" Hydraulic

                  GL 200N Robot Work Capacity (2) 11.8" Dia x 7.8" x 44 lbs.

                  Distance, Spindle Faces Min./Max 9.842"/ 57.086"

                  X-Axis Travels Turrets1 & 2 12.2"

                  Z-Axis Travels Heads 1 & 2 .8"

                  X, Z Rapid Traverse 945 IPM

                  Spindle Nose / Spindle Bore A2 -8" / 3.46"

                  Spindle Speed 35 - 3,000 RPM

                  Spindle Motor 30 HP x 2

                  Turret Type 12 Positions x 2

                  Machine Dimensions (mach. Only) 175"x 77"x 82.2"

                  Machine Weight 24,000 Ibs.



                  Equipped With:



                  Mazatrol T-Plus Control Rear Chip Conveyor

                  Gl 200N Robot Chucking Cell Pitch Conveyor, D3 Hand

                  Automatic Partition Automatic Tool Eyes

                  (2) 12" 3 Jaw Hydraulic Chucks Chuck Air Blast

                  Auto Chuck Jaws Open/Close All AvailableManuals

                  All Available Tooling

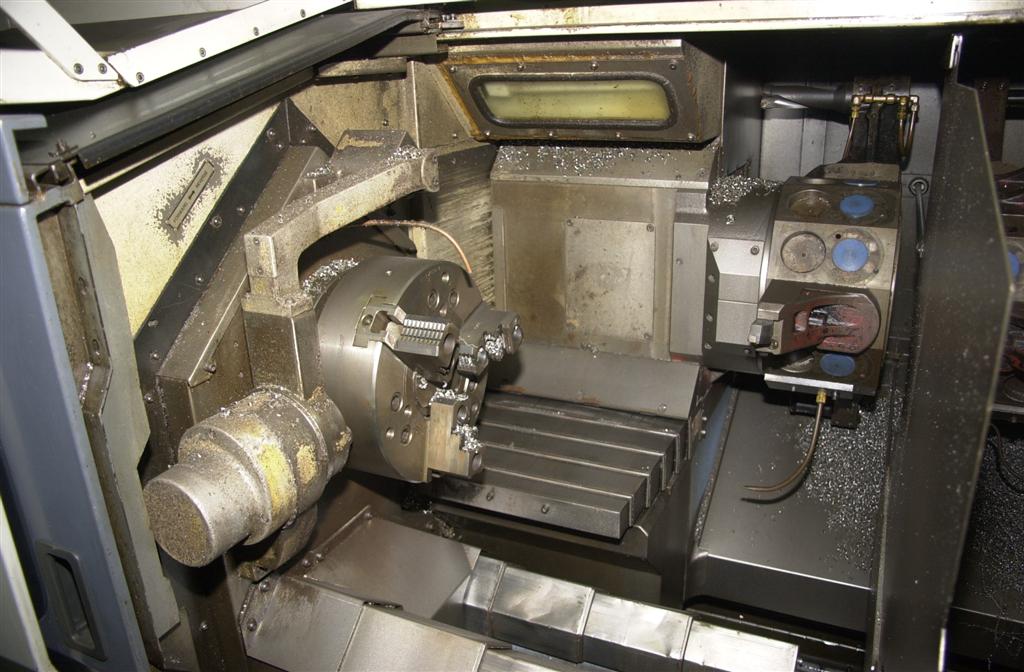

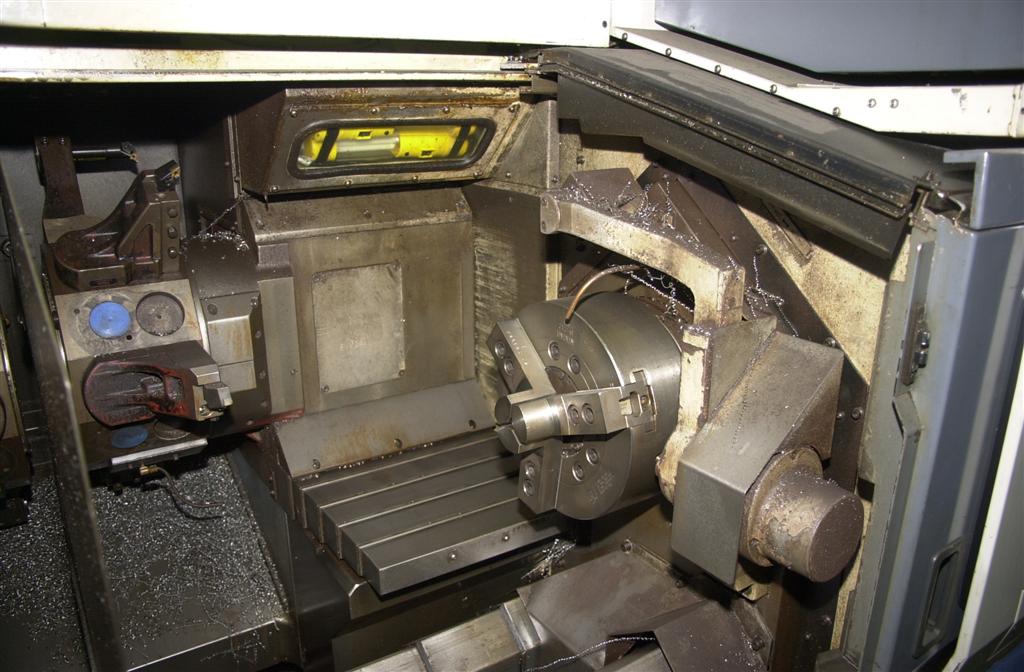

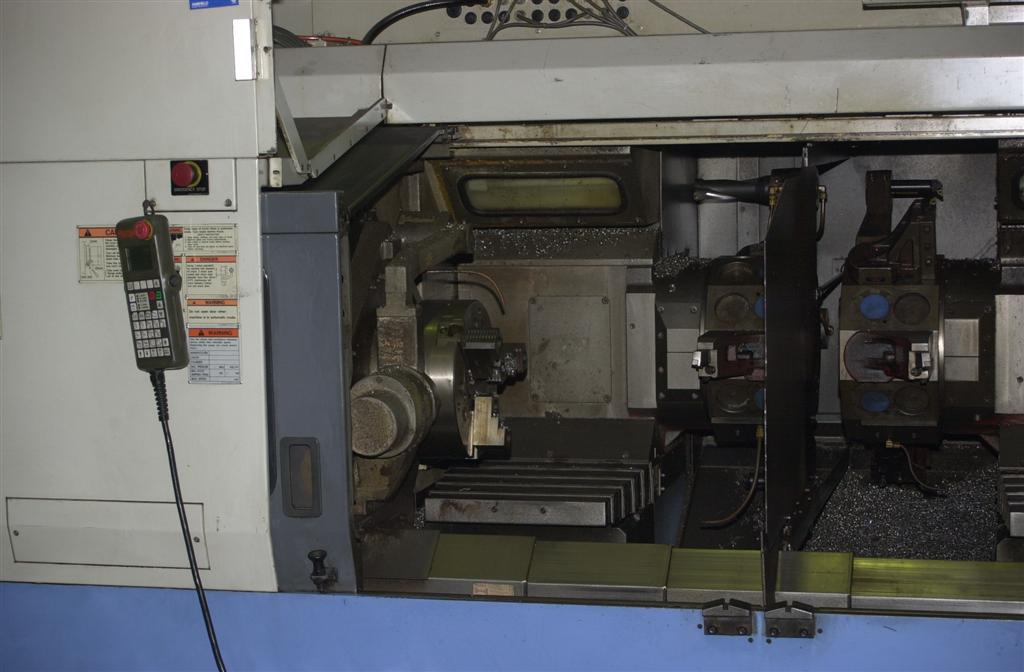

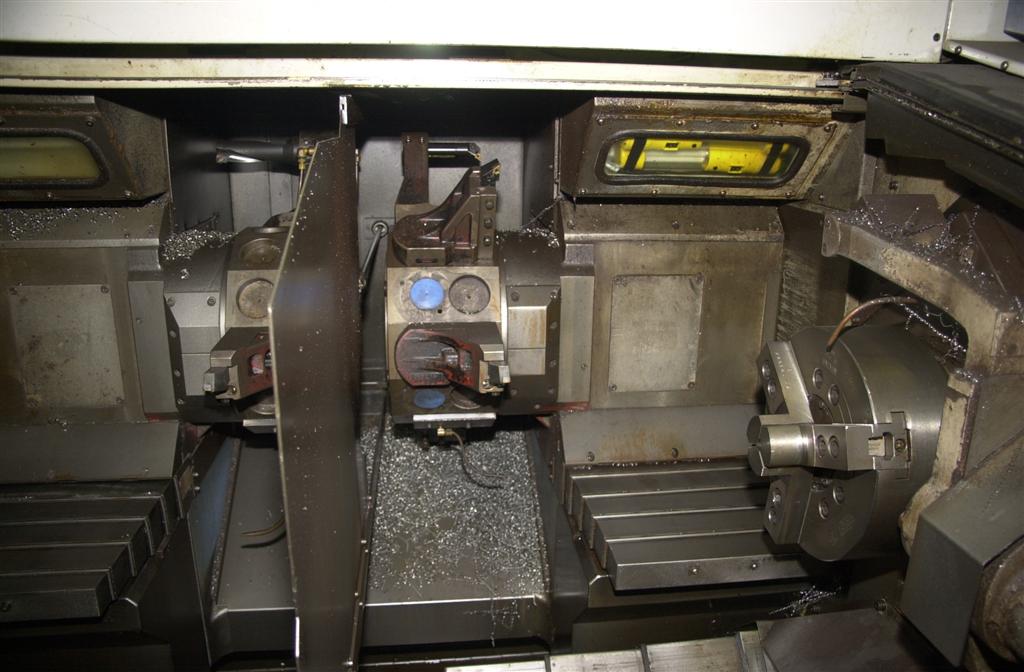

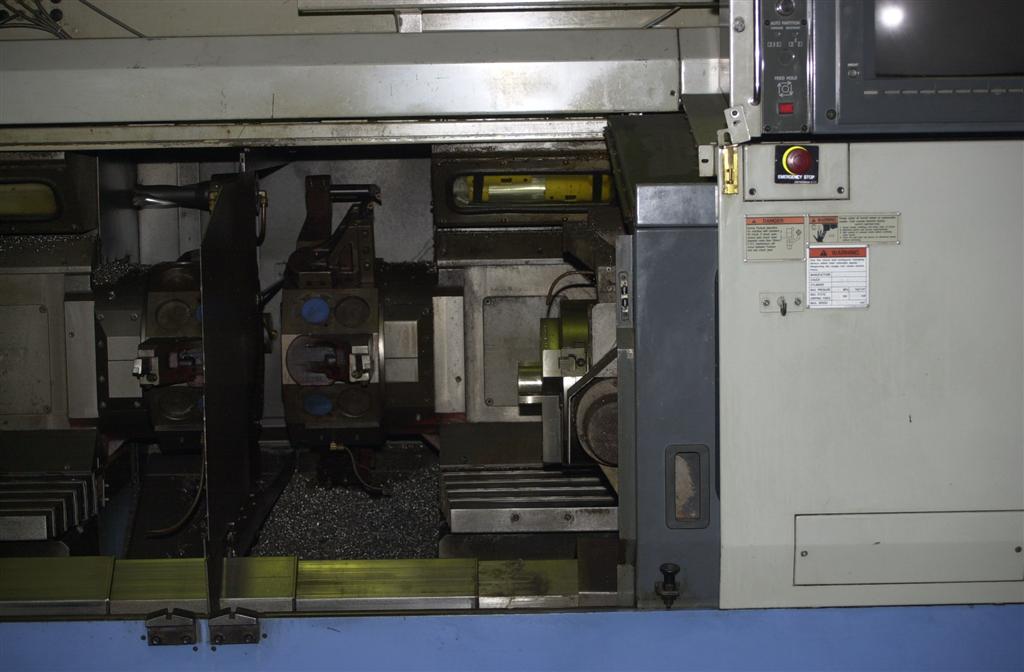

Photos
