Specifications

Categories > Boring Mills, Horizontal, Floor Type, CNC
Ask for quotation
Stock ref. # 1338

Manufacturer TOSHIBA

Model BSF-150B

Year 1996

Spindle Dia. 5.9"

X-Axis 295"

Y-Axis 118"

RPM 2000

Motor 50 HP

Control FANUC 15M

Includes *

Price SOLD!

Other specifications

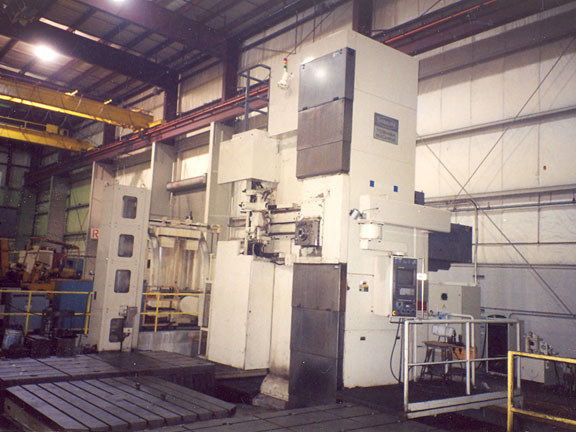

5.9" Toshiba BFS-150B Ram Type CNC Floor Type Horizontal Boring Mill

YEAR: 1996

Fanuc 15M CNC Control

60 Station Automatic Toolchanger

Spindle Diameter ..................... 5.9"

Milling Spindle Nose ................. 8.85"

Ram Size ............................. 14.96" x 14.96"

Spindle Taper ........................ #50

Vertical Head Travel, Y .............. 118.1"

Horizontal Column Travel, X .......... 295.28"

Boring Spindle Travel, Z-1 ........... 35.43"

Ram Travel, Z-2 ...................... 35.43"

Spindle Speeds ....................... 2000 RPM

Equipped With:

Fanuc 15M CNC Control

60 Position Automatic Tool Changer

78.74" x 98.41" CNC Rotary Table (.001 Degree)

Coolant Thru Spindle

Facing Head

Universal Head

Right Angle Milling Attachment

Hardened Ways With Way Covers

(2) 78.74" X 157.48" T-Slotted Floor Plates

Spindle Orientation

Chip Conveyor

50 HP Main Motor

Floor Space: 516" x 222" x 258"

Machine Weight: 104,500 Lbs.

Photos
