Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 1430

Manufacturer FIDIA

Model K197

Year 2003

Axis_Travels(X;Y;Z) 65" x 30" x 28"

Capacity 7 Ton

RPM 24000

HP 46

ATC 20

Control FIDIA

Price SOLD!

Other specifications

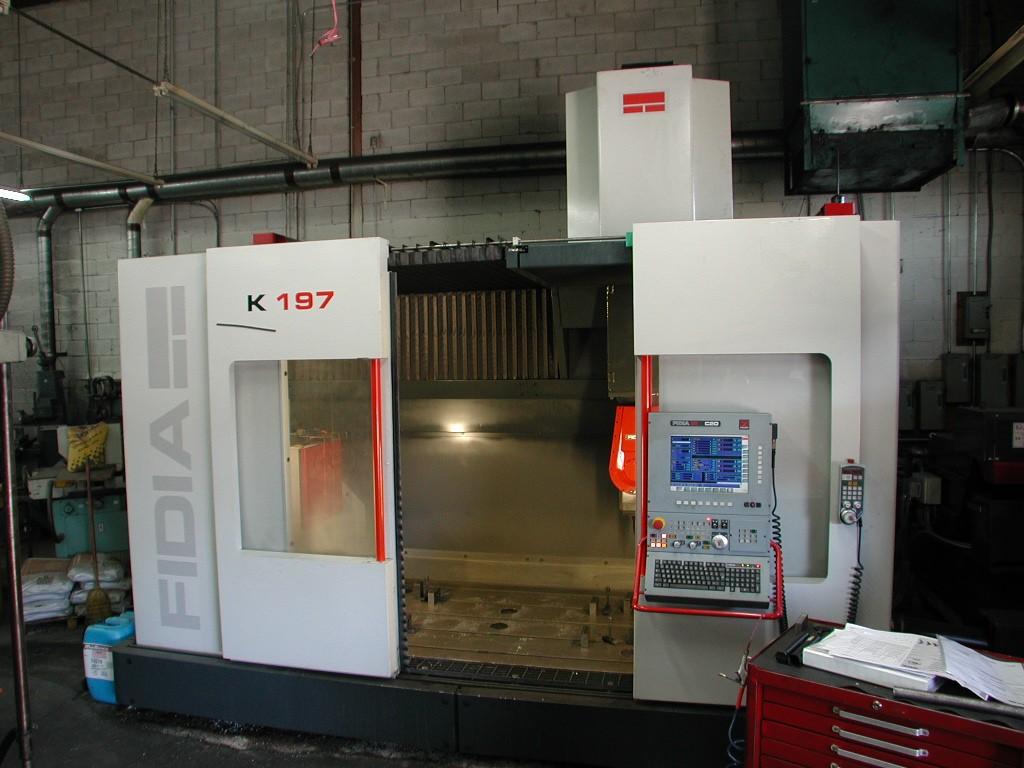

FIDIA K197 5 AXIS VERTICAL MACHINING CENTER, 2003

Manufacturer : FIDIA

Model : K197

Year : 2003

Travels(X;Y;Z) : 65" x 30" x 28"

Capacity : *

RPM : 24000

HP : 46

ATC : 20

Linear Axis Speed: 1181 IPM (30M/MIN)

POSITIONING ACCURACY:

LENGTH 2000 mm (79”)

WIDTH 1250 mm (49”)

T-SLOTS n° 5 - pitch 250 mm (10”)

MAXIMUM TABLE LOAD 7000 KG

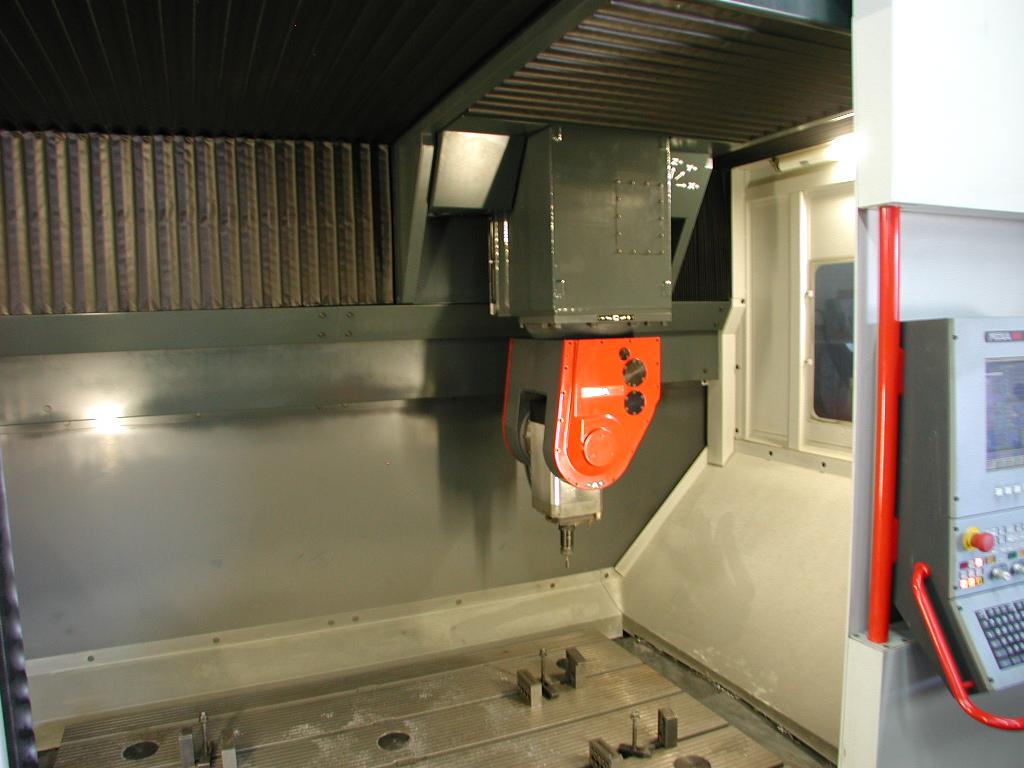

5 AXIS HEAD:

A AXIS TRAVEL +95° ÷ -110°

C AXIS TRAVEL +200° ÷ -200°

MAXIMUM SPINDLE SPEED 24000 rpm

MAXIMUM SPINDLE POWER 34 kW (46 HP)

CONSTANT POWER RANGE 6000 ÷ 24000 rpm

TOOLHOLDER HSK63A/E

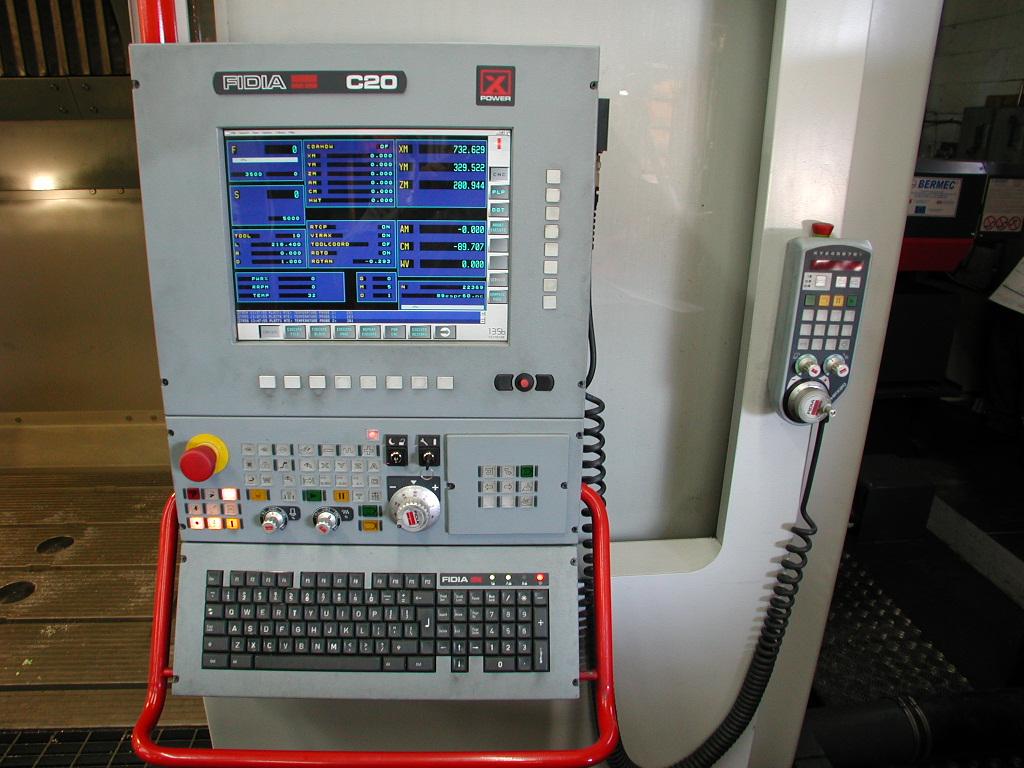

Control : FIDIA C20

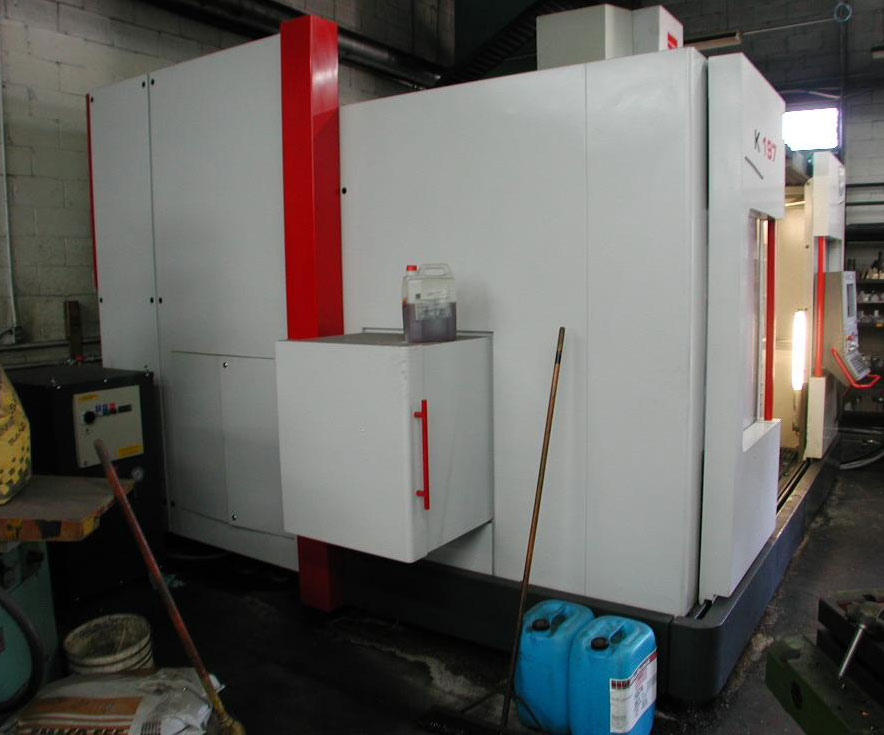

OVERALL DIMENSIONS: 203" WIDTH X 152" DEPTH X 155" HEIGHT - (5159MM WIDTH X 3860MM DEPTH X 3942MM HEIGHT)

WEIGHT: 17000 KG

Price : Call us!

Photos
