Stock ref. # 0145

Manufacturer IMUAB

Model SC 50/85-CNC

Year 1978

Table Dia. 197"

Swing 335"

Under Rail 197"

Capacity 200 Ton

RPM 32

Motor 537 HP

Control FANUC

Price SOLD!

Other specifications

HEAVY VERTICAL TURNING AND BORING LATHES

IMUAB/TOSHIBA MODEL : SC 50/85-CNC YEAR : 1978

Machine in very good condition, visible in function.

EQUIPMENT :

· CNC Fanuc 2 000 c on right sliding ring

· Left sliding ring equipped with a milling and drilling spindle, power : 55 kW, plus rib DRO

· Ball-screw

· Hydrostatic table and slide

· 2 return heads with SA60 and SA50 taper

CHARACTERISTICS :

Table Diameter 5 000 mm

Maximum machining diameter 8 500 mm

Maximum height of the part to be machined 5 000 mm

Slide vertical travel :

§ left hand rail head 1 250 mm

§ right hand rail head 2 600 mm

Rail vertical travel 4 000 mm

Tilting angle (right rail head) +/- 30°

Right ram cross section 350 x 350 mm

Left ram cross section 450 x 450 mm

Maximum load on the table 200 To

Table rotation (3 steps) for turning 0,32 – 32 rpm

Milling spindle speed 63 – 630 rpm

Working feed range 0,5 – 2 400 mm/min

Rapid traverse 2 400 mm/min

Table feed when milling 0,5 – 240 deg/min

Table indexing accuracy 6 ang. sec

Main drive motor 90 kW

Milling head driving motor 55 kW

Crossrail displacement motor 55 kW

Power supply capacity 400 kW

Weight 250 To

Required floor area 17 640 x 13 500 mm

Machine height above floor 13 150 mm

Machine height below floor 4 100 mm

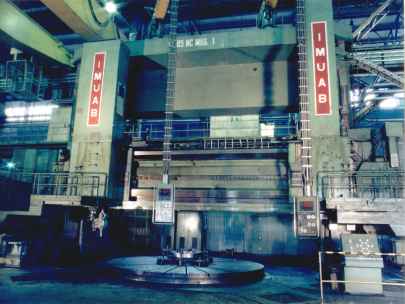

Photos
