Specifications

Categories > Boring Mills, Vertical, CNC
Ask for quotation
Stock ref. # 1499

Manufacturer PIETRO CARNAGHI

Model AC12

Year 1992

Table Dia. 49"

Swing 63"

Under Rail 49"

Capacity 6 Ton

RPM 333

Motor 80 HP

Control SIEMENS

Price SOLD!

Other specifications

49" PIETRO CARNAGHI AC12 CNC VERTICAL BORING MILL, 1992

YEAR:: 1992

Model: AC-12 w/ Live Milling & Drilling

Ram w/ Live Milling

C-Axis Table Milling

(8) 49" Pallets w/ Shuttle System

Table Diameter ........................ 49.21"

Maximum Swing ......................... 62.99"

Maximum Turning Height ................ 49.21"

Vertical Travel Of Ram ................ 47.24"

Table Speeds: Inf. Variable ........... 2.5-333 RPM

Live Milling Speeds: Inf. Var. ........ To 2000 RPM

Live Spindle Motor .................... 30 HP

Spindle Taper ......................... Cat 50

Rapid Traverse, X, Z & C Axes ......... 393.7 IPM

Maximum Weight of Workpiece ........... 13,200 LBS

EQUIPPED WITH:

Siemens 880T CNC Control

Ram W/ Live Spindle

8-Pallet Capacity (Machine Presently Using 1-Pallet)

60-Station Automatic Tool Changer for Milling

12-Station Automatic Tool Changer for Turning

13-Milling & Drilling Attachements

Full C-Axis Table

Automatic Pallet Changer, 8-Pallets

Pallet Loading and Unloading Station

Hardened & Ground Ways

Chip Conveyor

Full Chip Enclosure

Coolant System

Tool & Workpiece Porbes

Tool Monitoring

80 HP Spindle Drive

Additional Detailed Specifications on Request

Machine is Currently Set Up with Single Pallet Due to Space Restrictions.

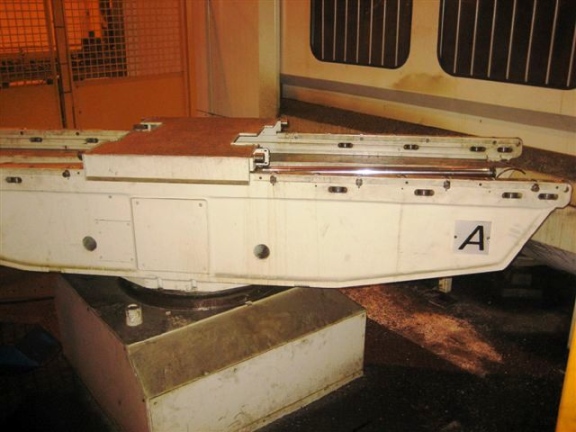

Photos
