Specifications

Categories > Boring Mills, Horizontal, Floor Type
Ask for quotation
Stock ref. # 1517

Manufacturer MITSUBISHI

Model MAF 200/135

Year 1969/95

Spindle Dia. 5.3"

X-Axis 393.7"

Y-Axis 118"

Motor *

RPM 810

Includes *

Price SOLD!

Other specifications

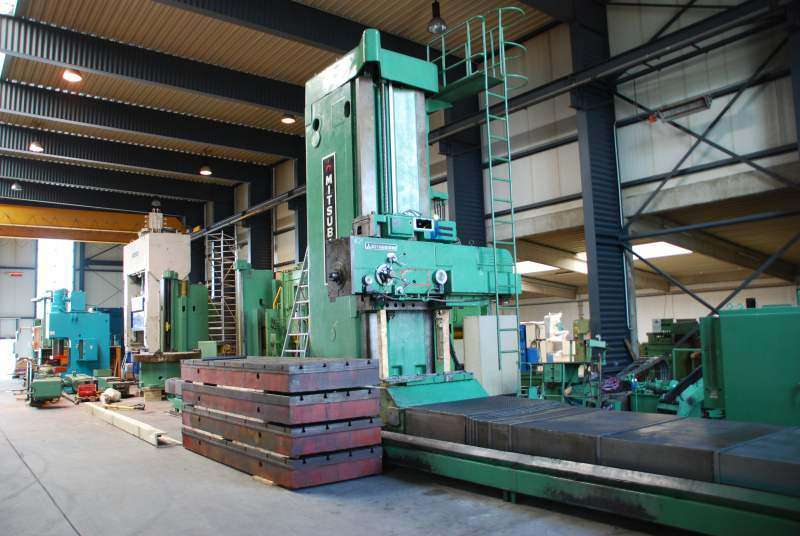

5.3" MITSUBISHI MAF 200/135 FLOOR TYPE HORIZONTAL BORING MILL, 1969/1995

Manufacturer: Mitsubishi

Type: MAF 200/135

New in: 1969 complete rebuilt in 1995 at a cost of approx $450,000 USD.

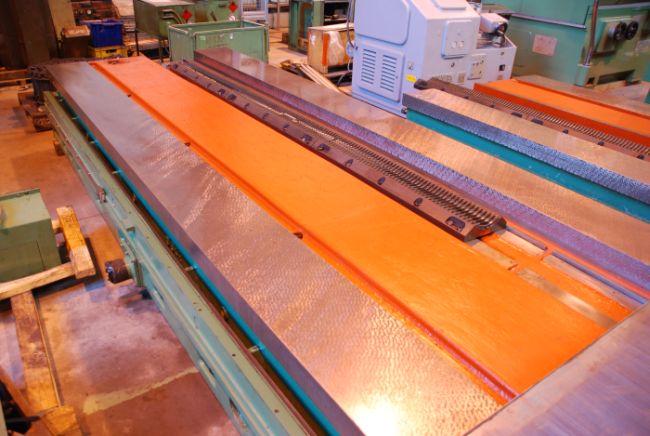

Travels X 10 000 mm

Y 3 000 mm

W (Boring Spindle) 1 000 mm

Z (Ram) 600 mm

Boring spindle dia. 135 mm

Milling spindle dia. 200 mm

Boring spindle taper ISO 50

Ram dimensions 580 x 760 mm

Feeds 1 - 2500 mm/min

Rapid traverse 3200 mm/min

Spindle rotation 4 – 810 rpm

Machine weight approx. 160 Ton

Machine dimensions approx. (table extra) 8.6 x 4.6 x 7.3 m

Accessories/Features:

- MITSUBISHI ROTARY TABLE: Clamping area 2100 x 3000mm

X-Travel 1 500 mm

Max. loading capacity 40 Ton

- Universal Angle Milling Head

- Facing Head

- 4 Floor Plates, 3650 x 1220 x 300 mm each

- Chip Conveyer

- Steel Cover

- 3 Axis Digital Read Out

- Point to Point ANILAM, Positioning System
