Specifications

Categories > Boring Mills, Vertical
Ask for quotation
Stock ref. # 1660

Manufacturer MORANDO

Model VS14

Year 1968

Table Dia. 57"

Swing 65"

Under Rail 47.2"

Capacity 8 Ton

RPM 150

Motor 65 HP

Includes DRO

Price CALL US!

Other specifications

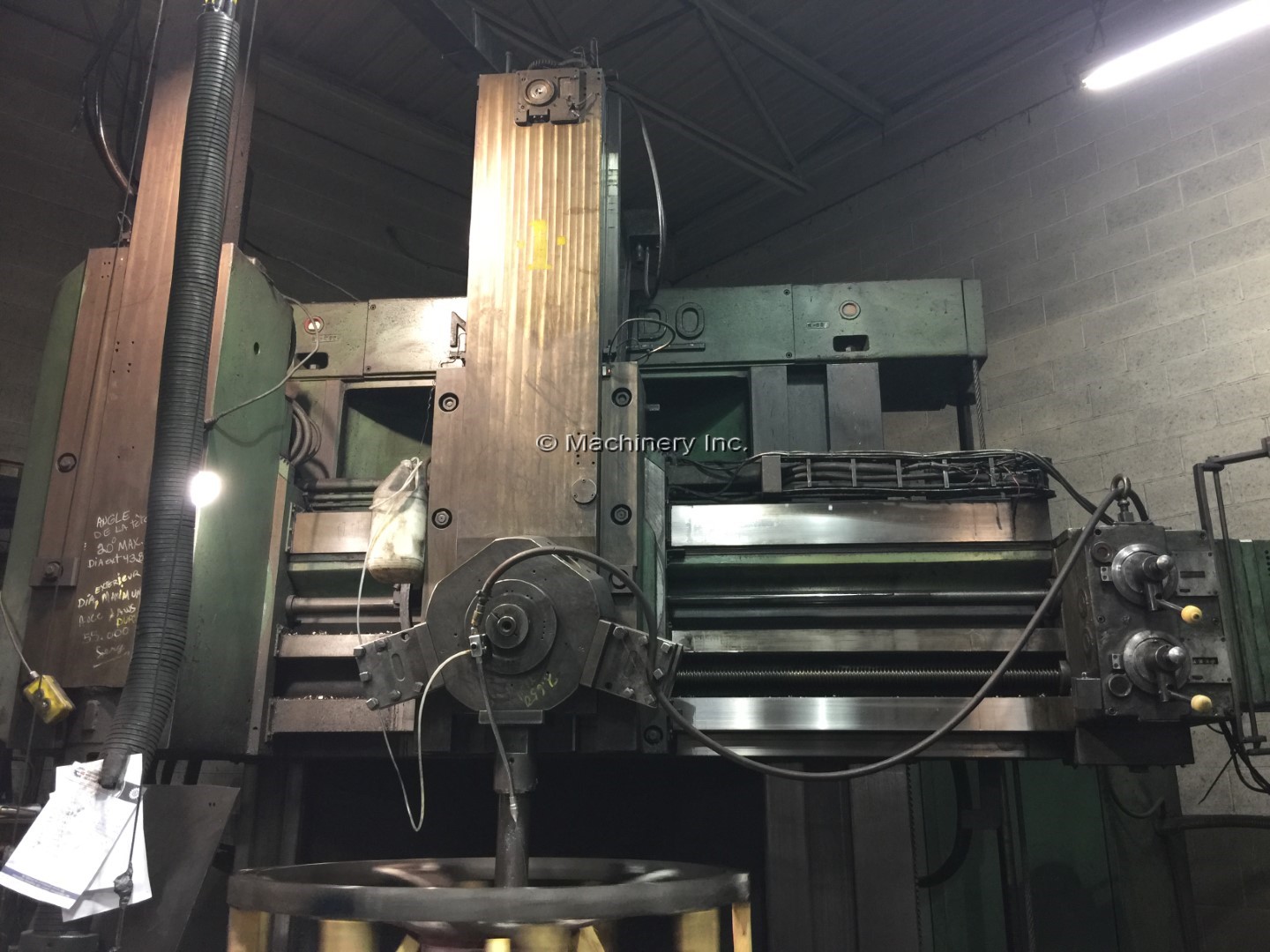

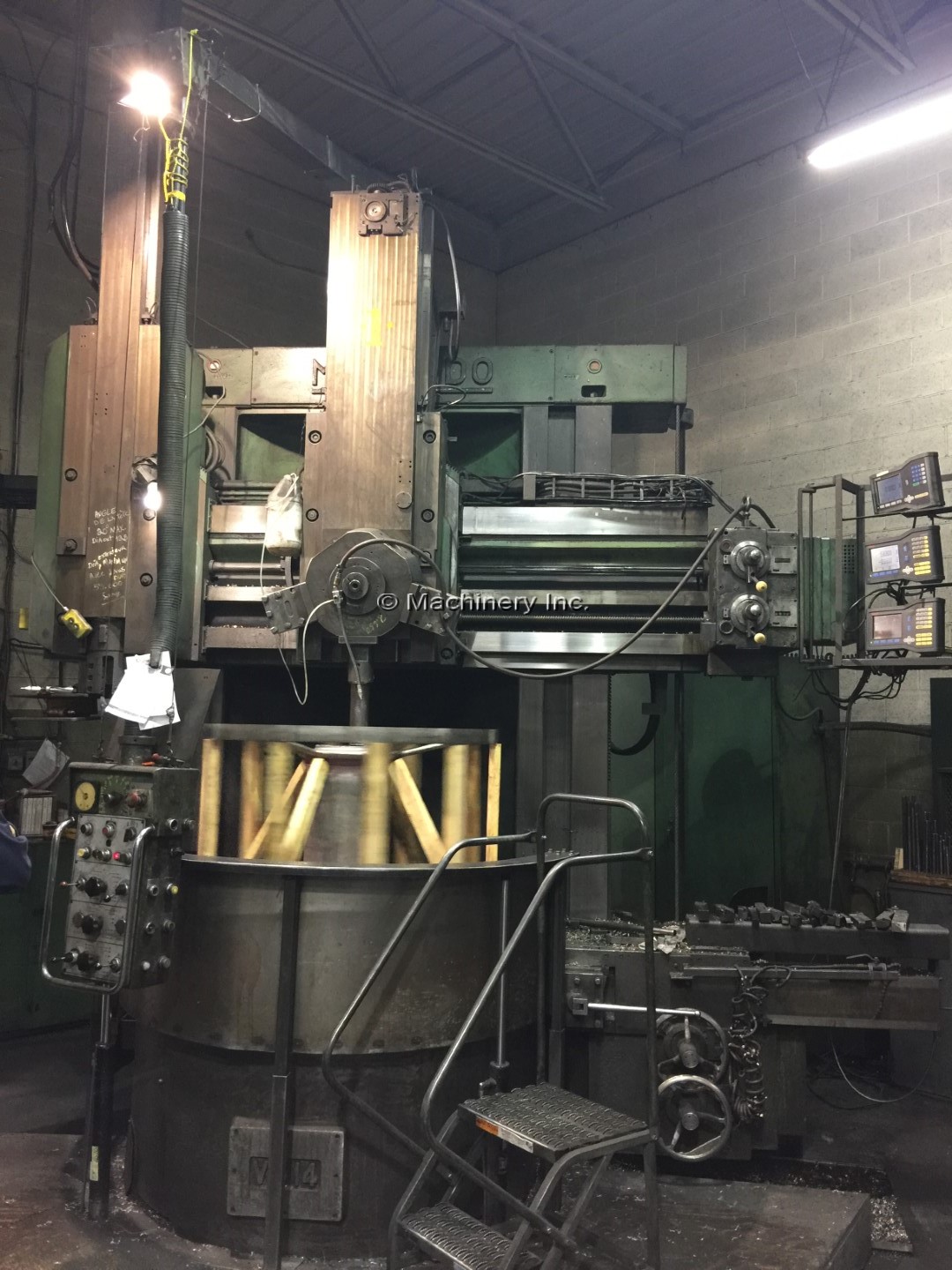

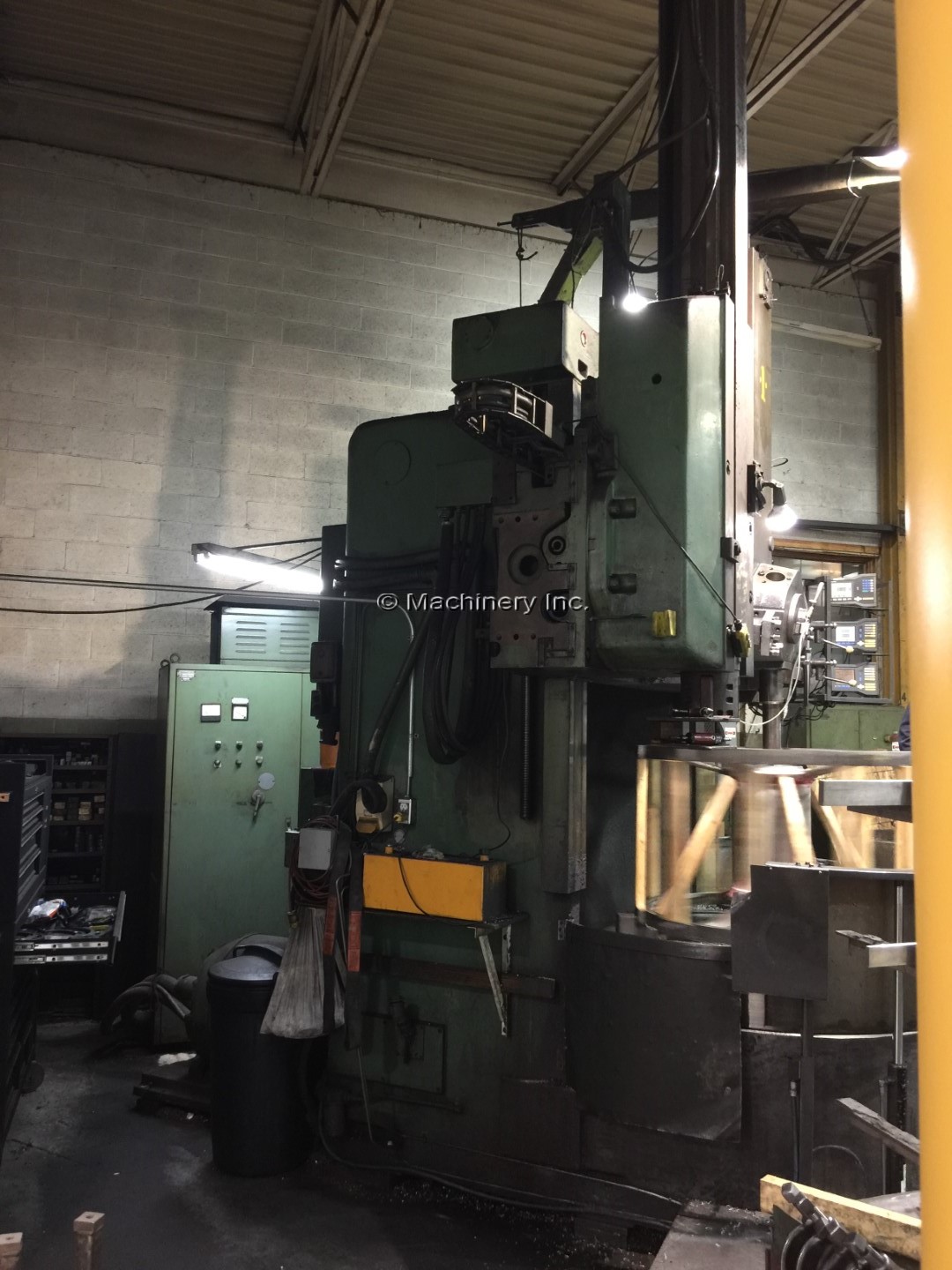

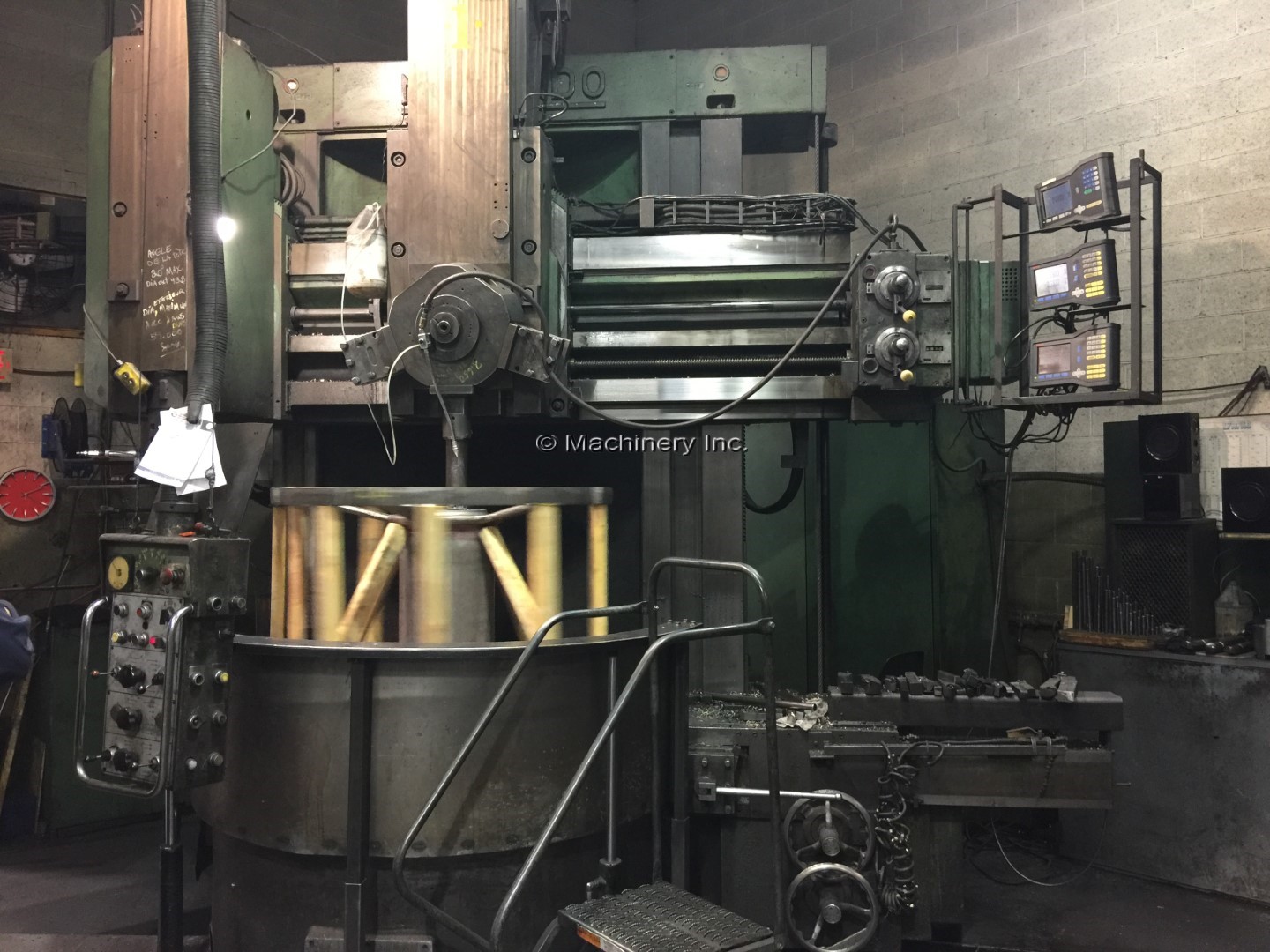

57"/65" MORANDO VS14 VERTICAL BORING MILL WITH TURRET HEAD AND SIDEHEAD

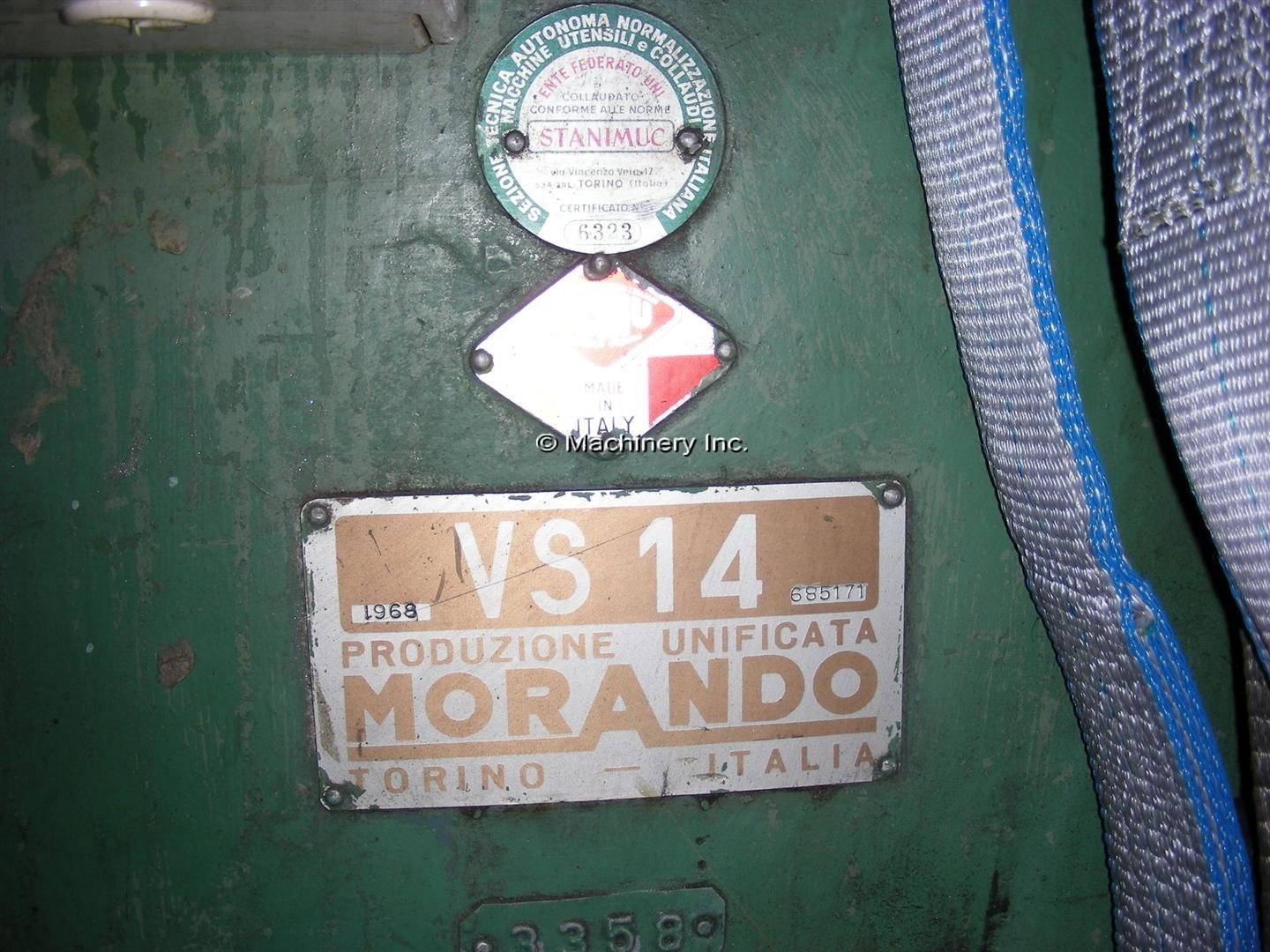

MANUFACTURER: MORANDO (MADE IN ITALY)

MODEL: VS14

YEAR: 1968 S/N: 685171

MACHINE CAPACITY:

MAX. SWING WITH SIDE HEAD: 61.02" (1550 MM)

MAX. SWING WITH NORMAL RAM HEAD AND SIDE HEAD IN LOWEST POSITION: 65" (1650 MM)

MAX. TURNING HEIGHT: 47.2" (1200 MM)

MAX. HEIGHT UNDER CROSS RAIL: 50.39" (1280 MM)

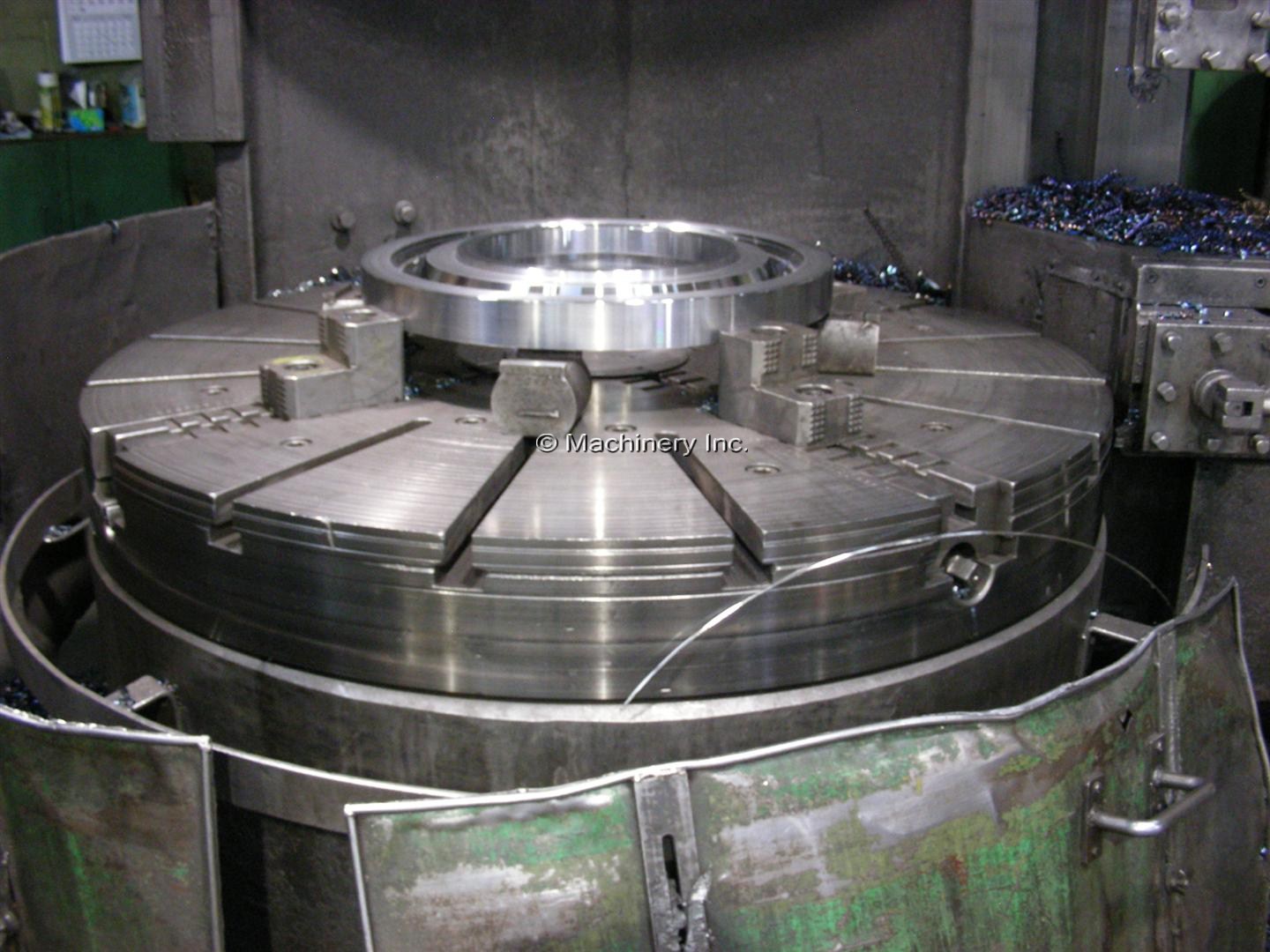

TABLE:

DIAMETER: 57" (1450 MM)

MAX. WEIGHT OF WORKPIECE: 8 TON

TABLE SPEED STEPS: N. 16

SPEED RANGE: 2.22-200 RPM

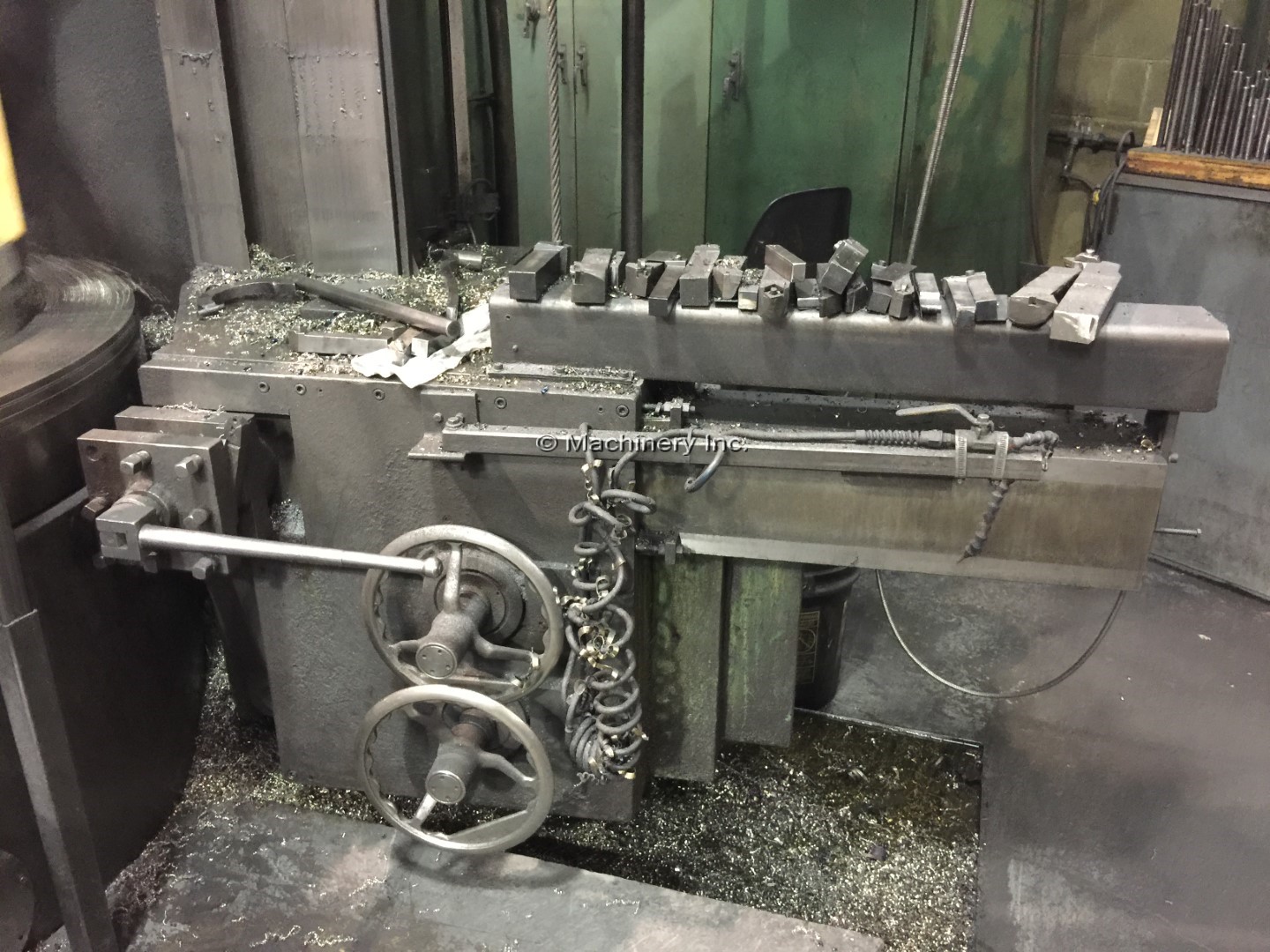

SIDE HEAD:

VERTICAL TRAVERSE ALONG COLUMN: 47.2" (1200 MM)

HORIZONTAL STROKE OF SLIDE: 27.5" (700 MM)

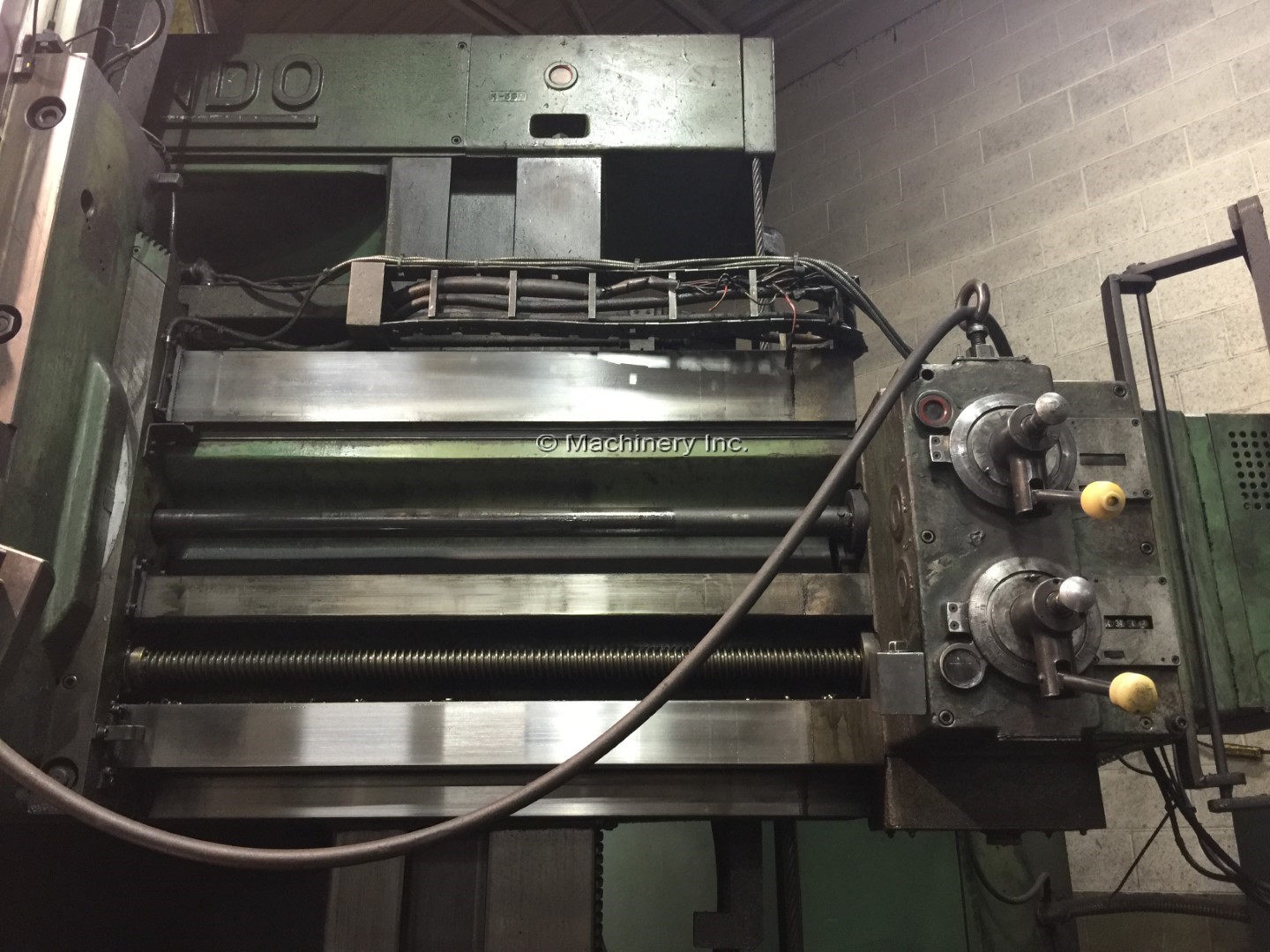

VERTICAL HEADS:

AMOUNT OF SWIVEL OF RAM AND TURRET HEAD: 35 DEGREE

STROKE OF SLIDE WITH PENTAGONAL TURRET: 29.9" (760 MM)

STROKE OF SLIDE WITH NORMAL SECTION: 39.3" (1000 MM)

STROKE OF SLIDE WITH OCTAGONAL SECTION: 39.3" (1000 MM)

DIAMETER OF BORES IN THE PENTAGONAL TURRET: 3.15"(80 MM)

DRIVING POWER: 65 HP SIEMENS MOTOR

EQUIPPED WITH:

- SIDE HEAD

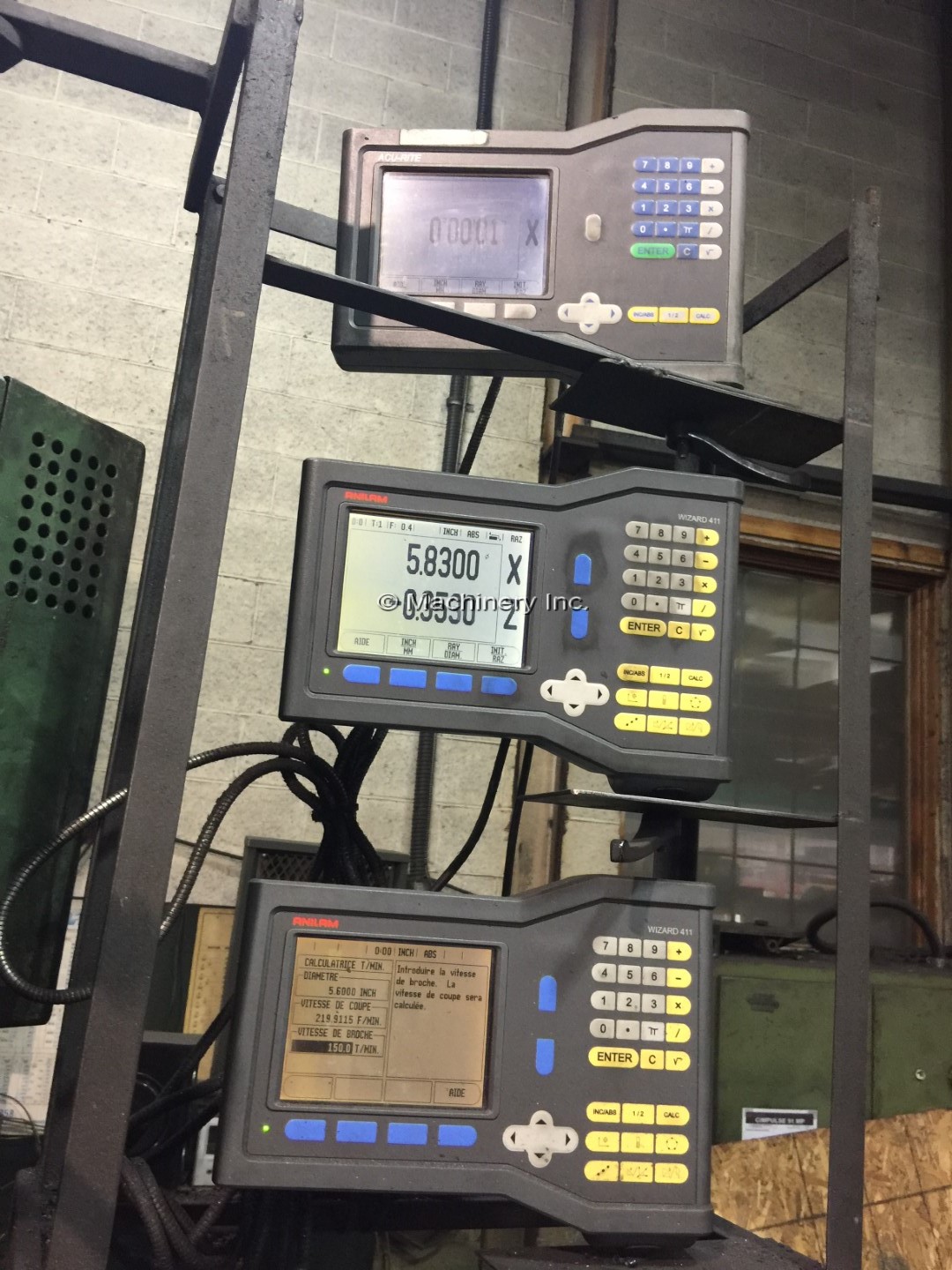

- (1) ACU-RITE DRO FOR THE DEGREE OF TILTING

- (2) ANILAM DRO FOR THE HORIZONTAL/VERTICAL TRAVELS OF TURRET HEAD

OVERALL DIMENSIONS:

WIDTH: 14.2'

DEPTH: 14.7'

HEIGHT: 140" WITHOUT PENDANT (WITH PENDANT 13'4")

NET WEIGHT: 22100 KGS

NOTE: RAM HEAD(LEFT SIDE) NOT WORKING BECAUSE OF MISSING GEARBOX & SCREW.

VIDEO AVAILABLE ON REQUEST.
