Specifications

Categories > Boring Mills, Vertical
Ask for quotation
Stock ref. # 1668

Manufacturer SCHIESS

Model 4/2 VKE 640/1200

Year 1968

Table Dia. 252"

Swing 468.5"

Under Rail 144"

Capacity 150 Ton

RPM 26

Motor *

Includes *

Price CALL US!

Other specifications

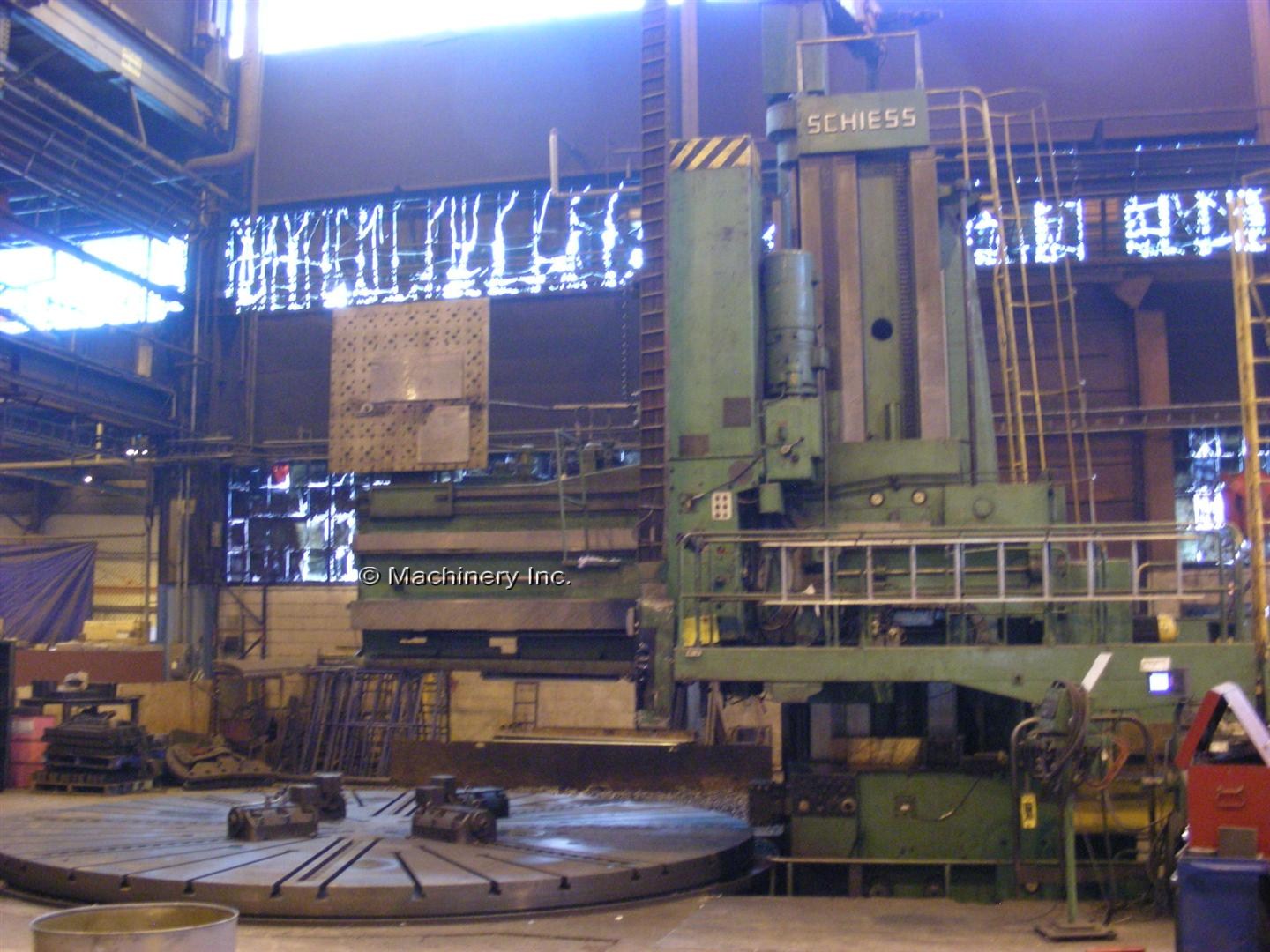

6400/12000 MM SCHIESS VERTICAL BORING MILL WITH LIVE SPINDLE, 1968

MANUFACTURER : SCHIESS

MODEL : 4/2 VKE 640/1200

YEAR : 1968 S/N: 73466

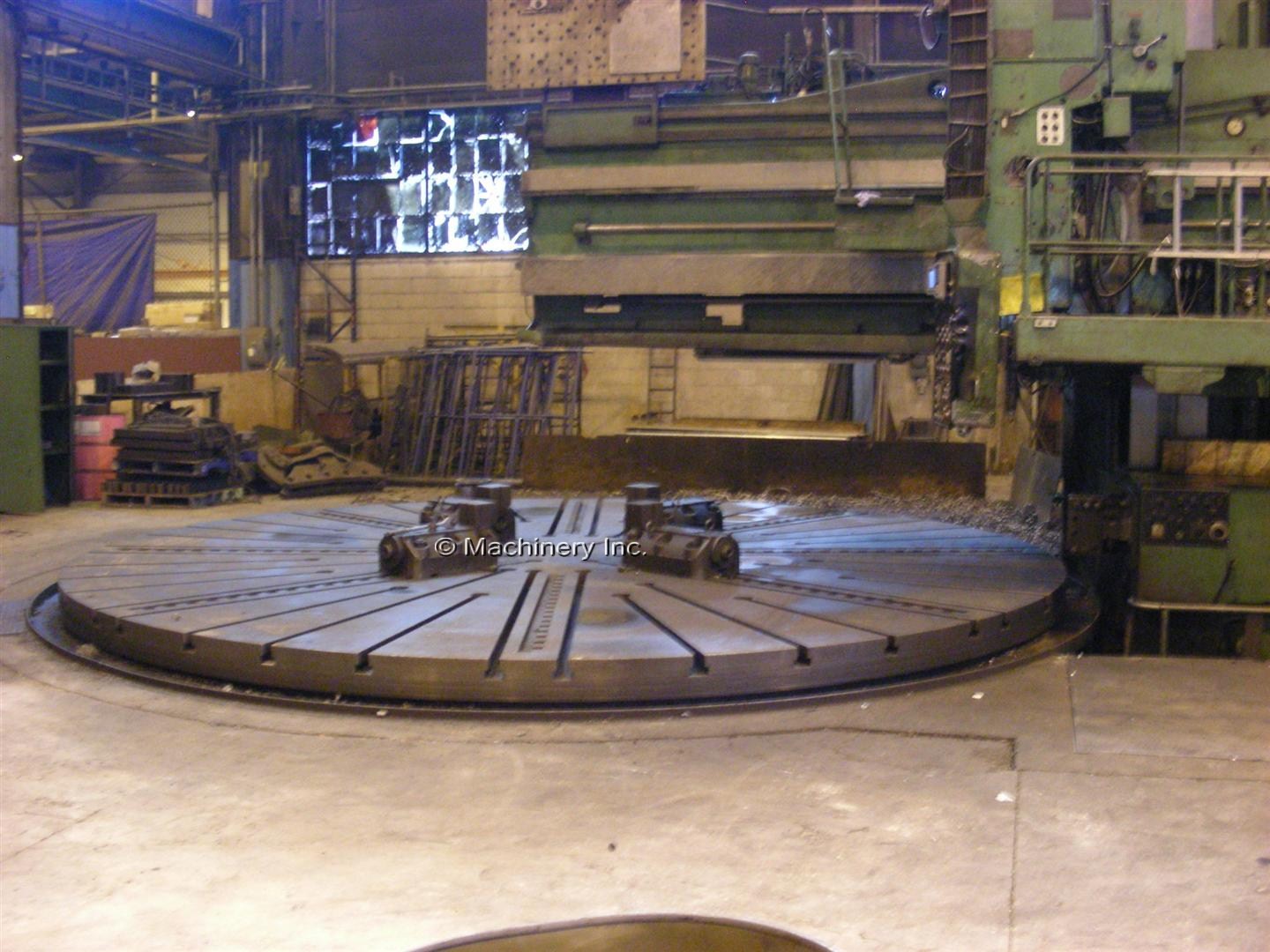

TABLE DIA. : 252" (6400 MM)

MAXIMUM TURNING DIAMETER : 468.5" (11900 MM)

MAXIMUM TURNING HEIGHT : 144" (3650 MM)

CAPACITY : 150 TON (135 TON METRIC)

RPM : 26

EQUIPPED WITH:

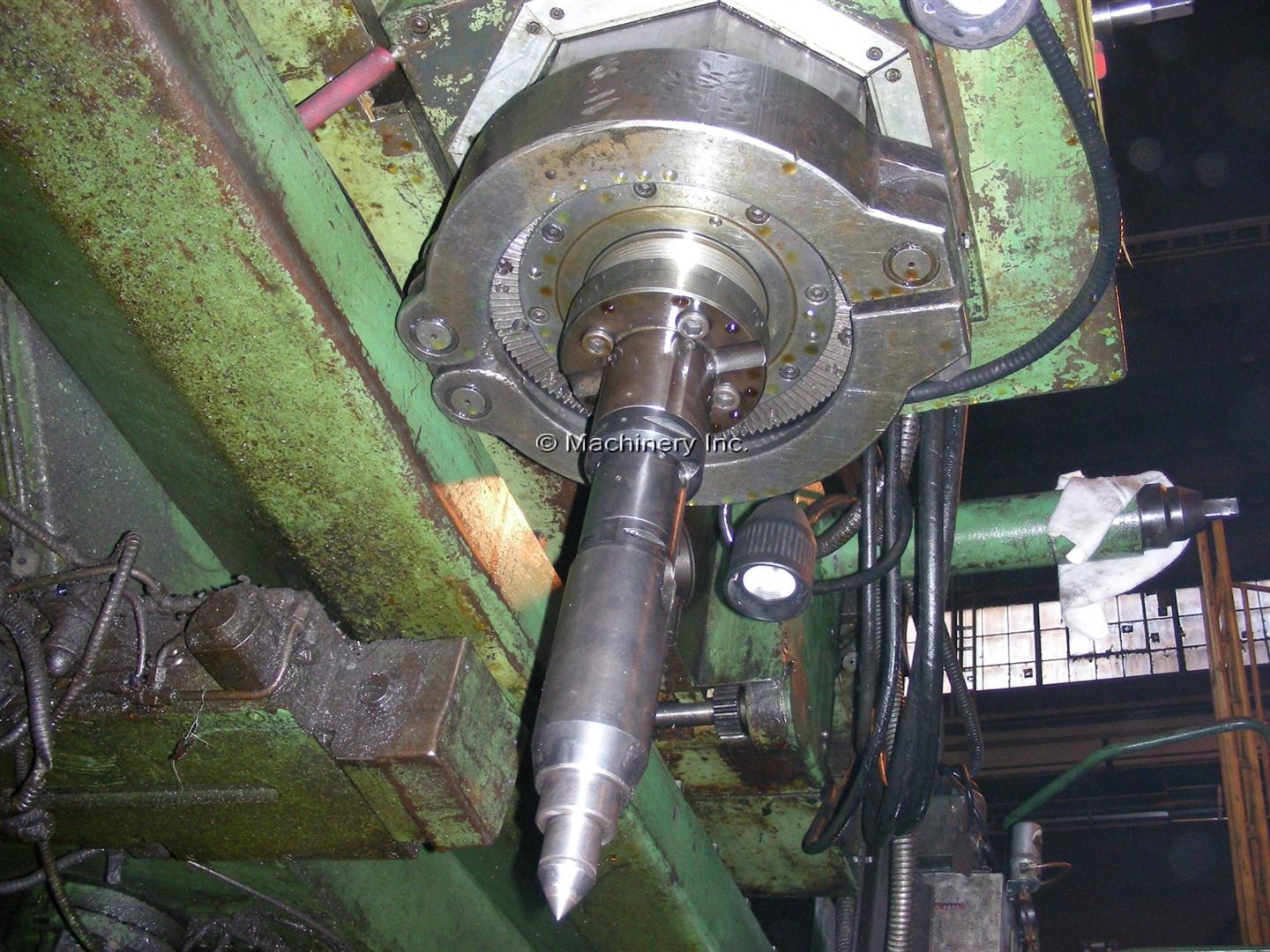

- *** LIVE SPINDLE ***

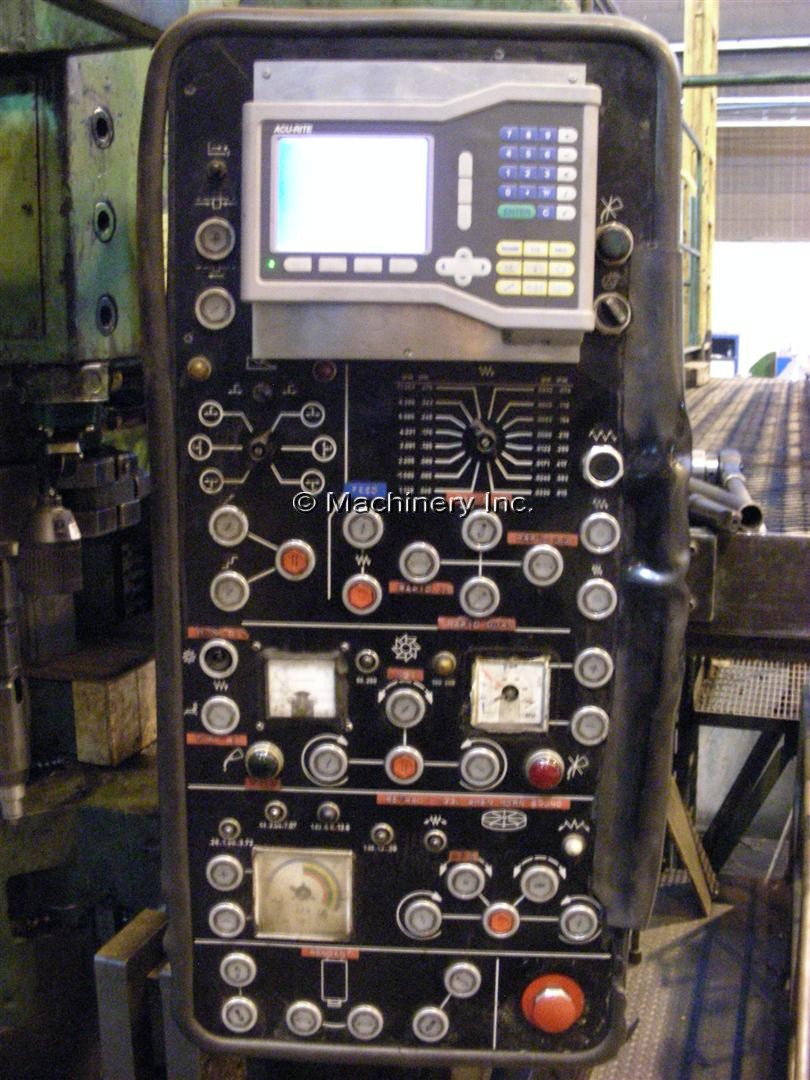

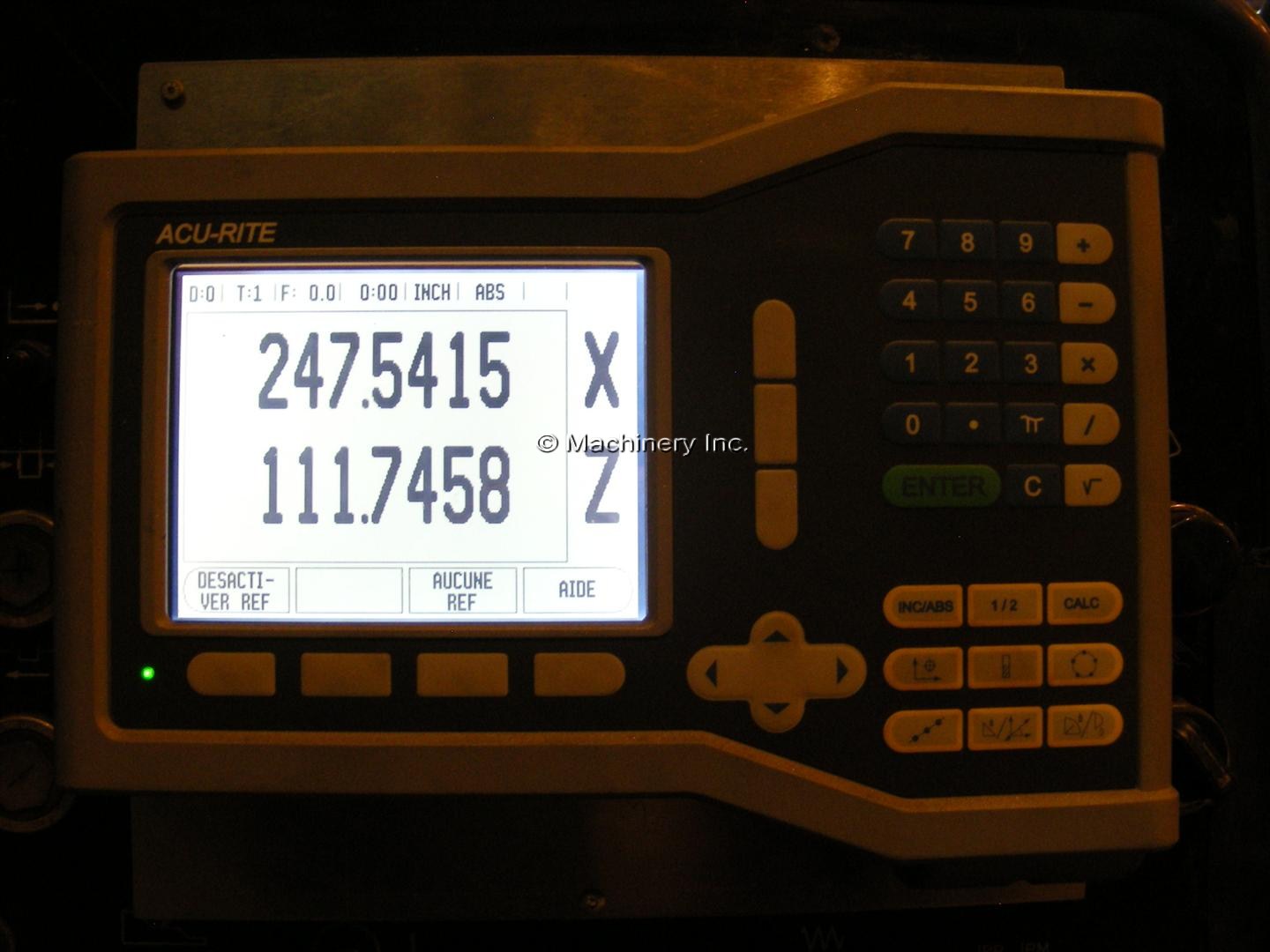

- 2 AXIS ACU-RITE D.R.O. (NEW IN 2011)

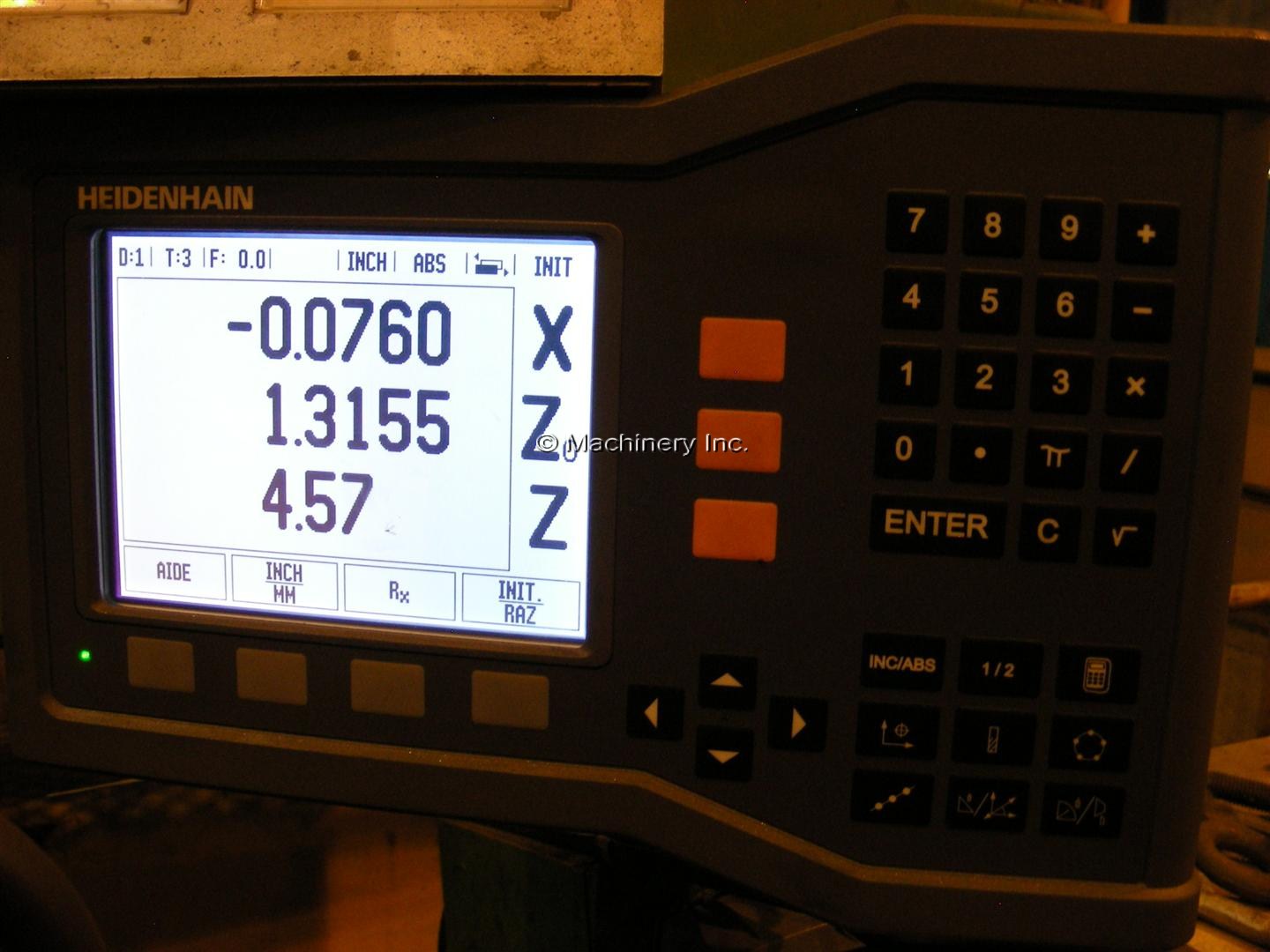

- 3 AXIS HEIDENHAIN D.R.O. (NEW IN 2011)

- (ROD 800 ENCODER) D.R.O. FOR INDEXATION OF THE TABLE

- PROFILING TRACER ATTACHMENT

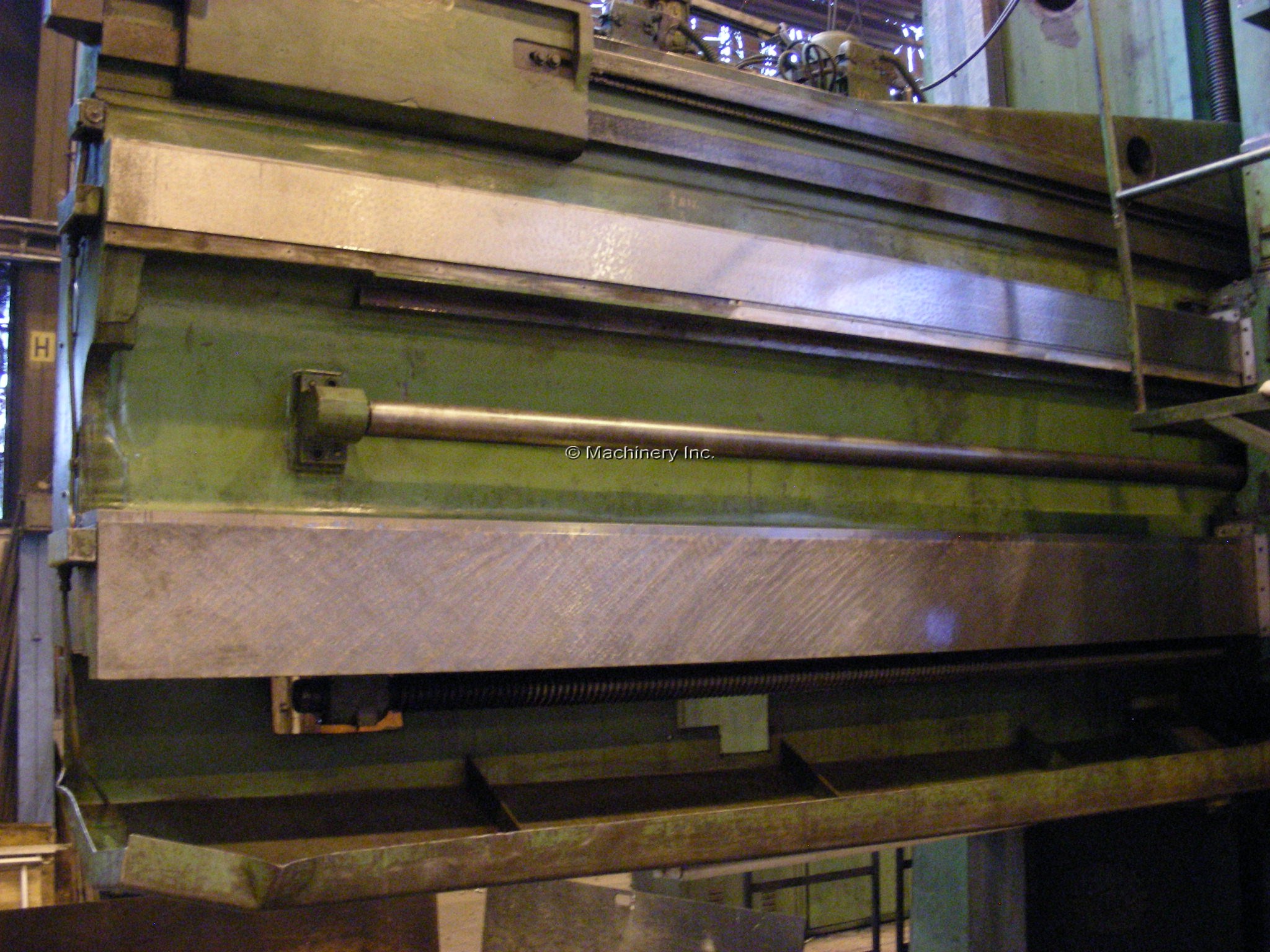

- CROSS RAIL HEAD ARRANGED TO SWIVEL 40 DEGREES OUTWARD AND 10 DEGREES INWARD.

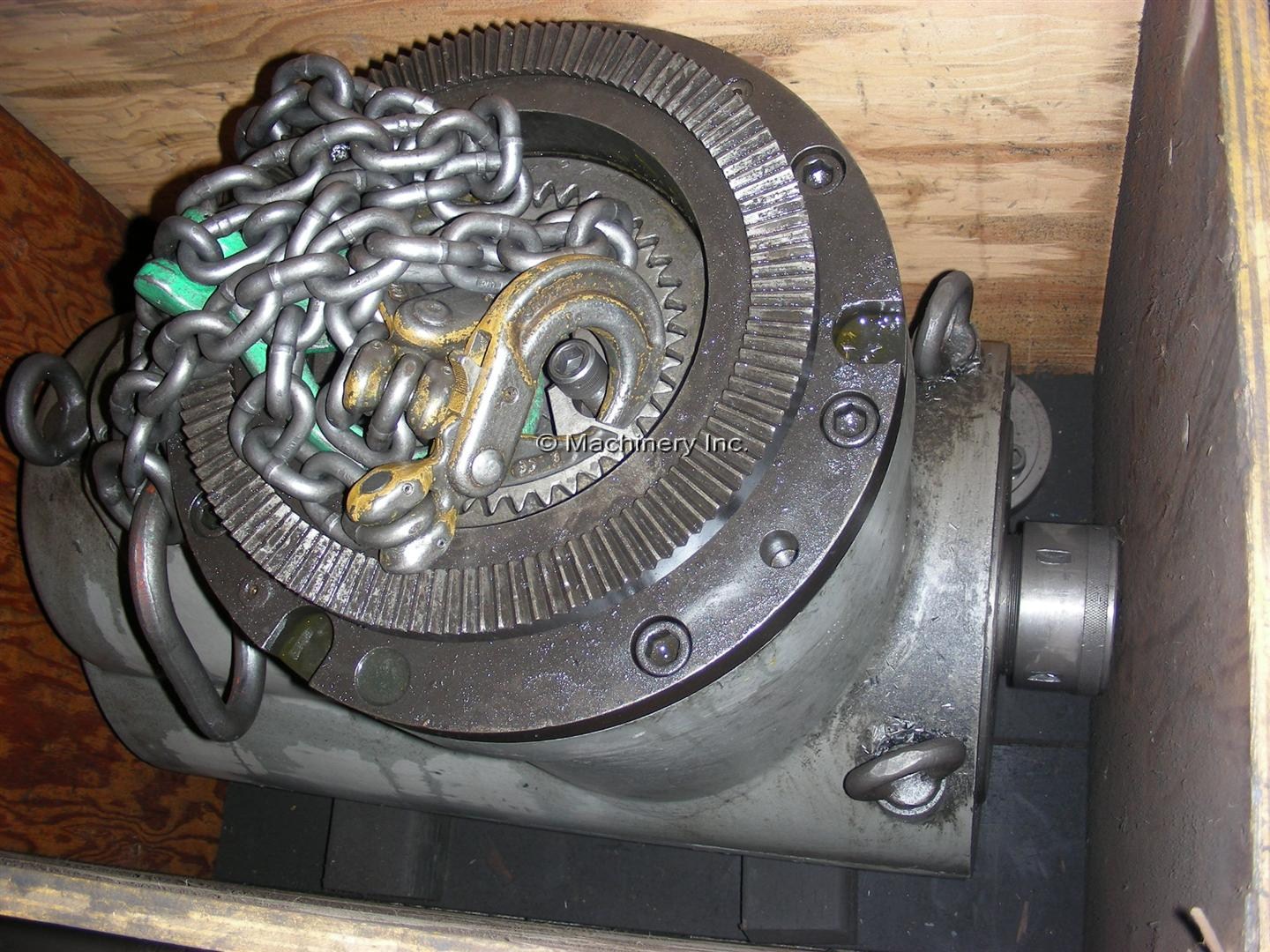

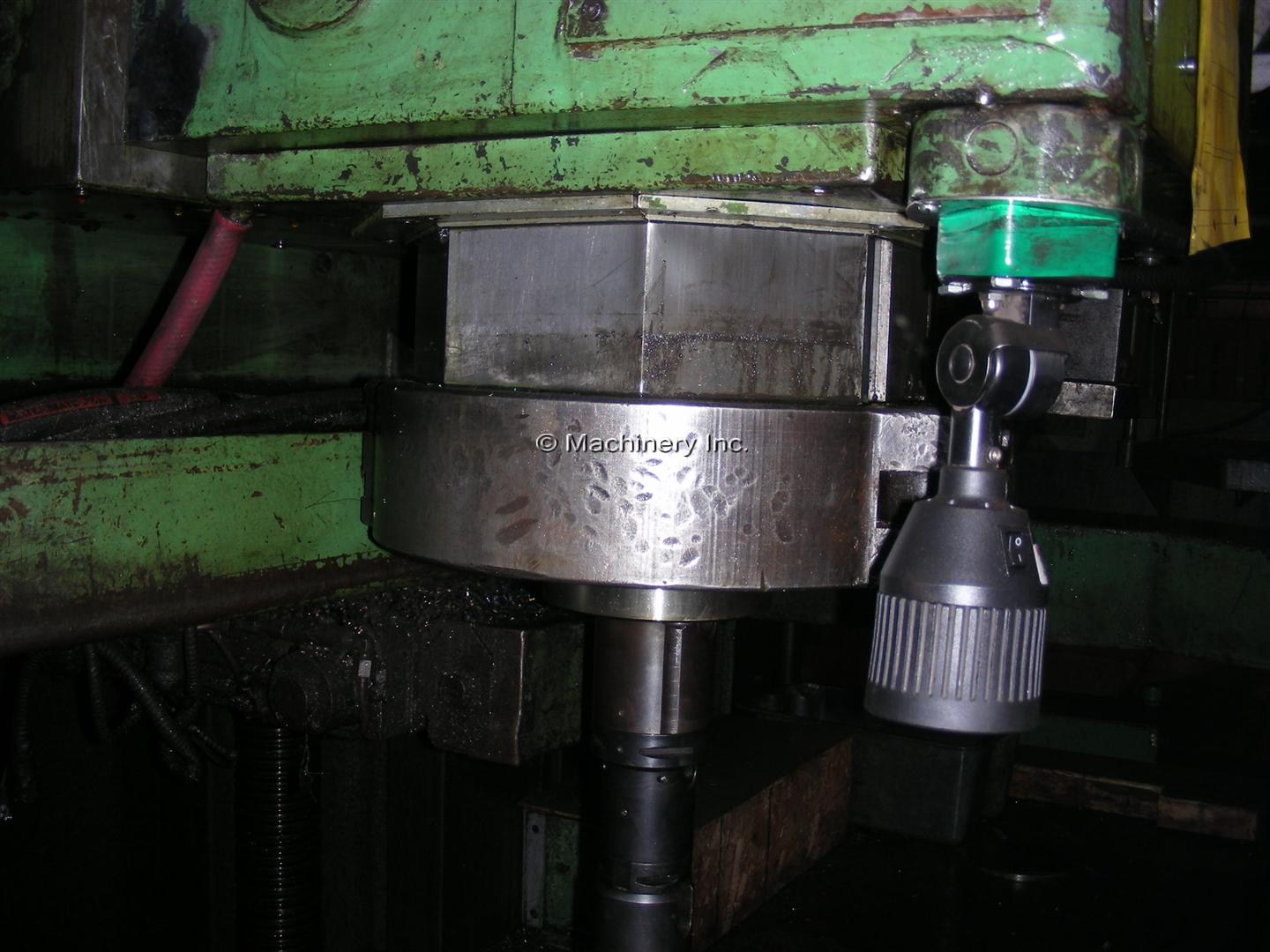

- ANGULAR MILLING HEAD TO ADAPT TO VERTICAL RAM MILLING SPINDLE

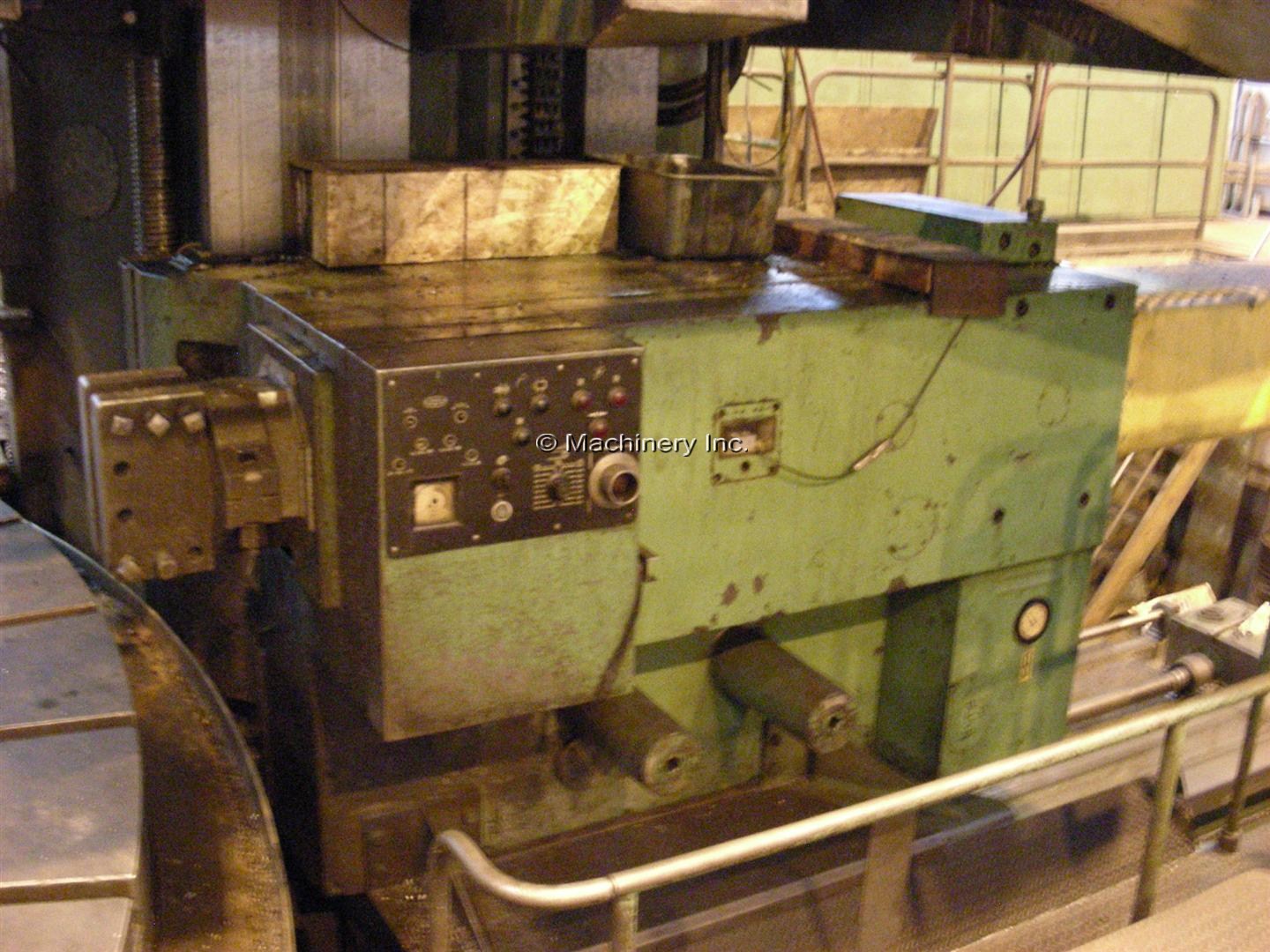

- SIDE HEAD

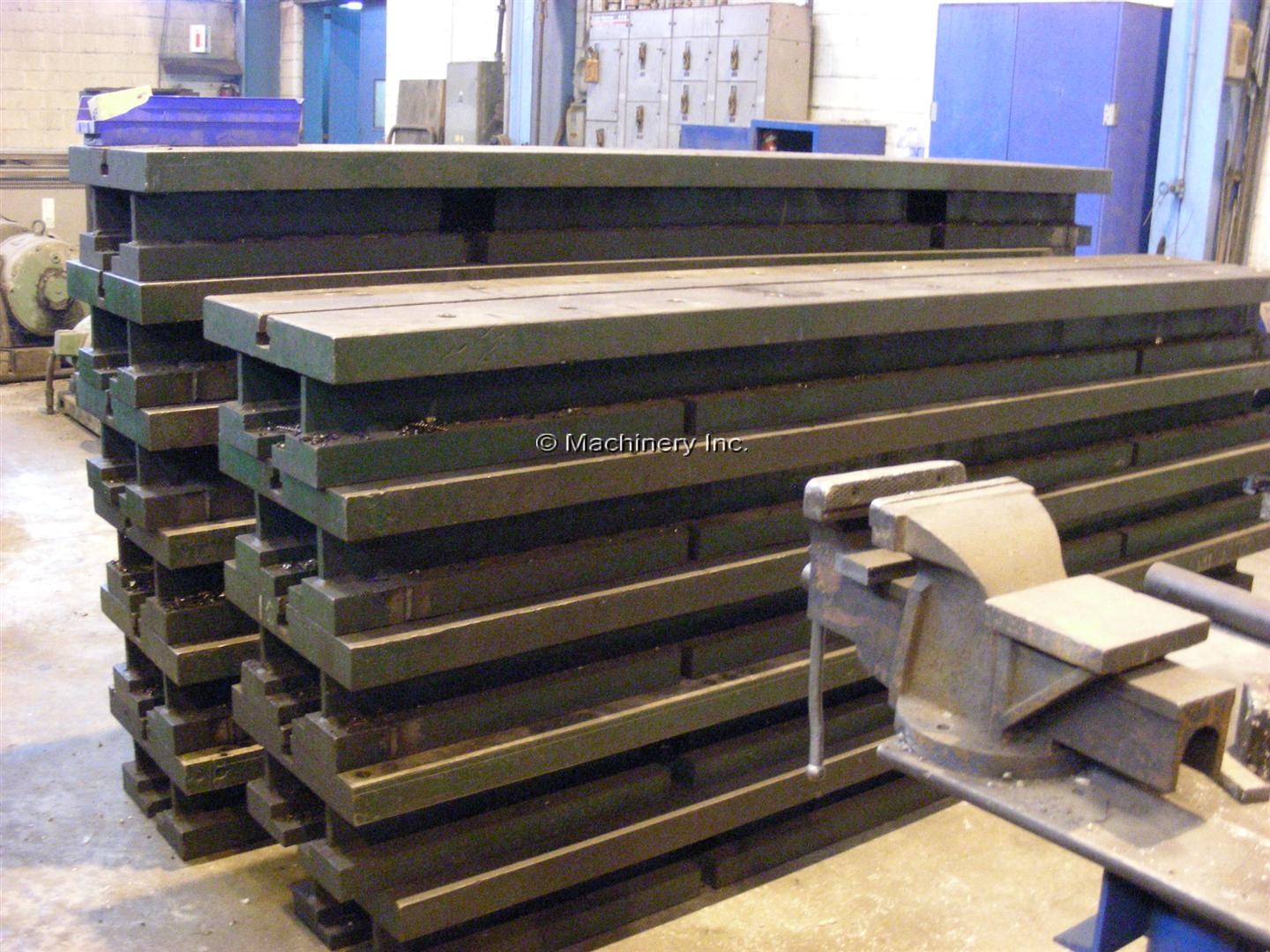

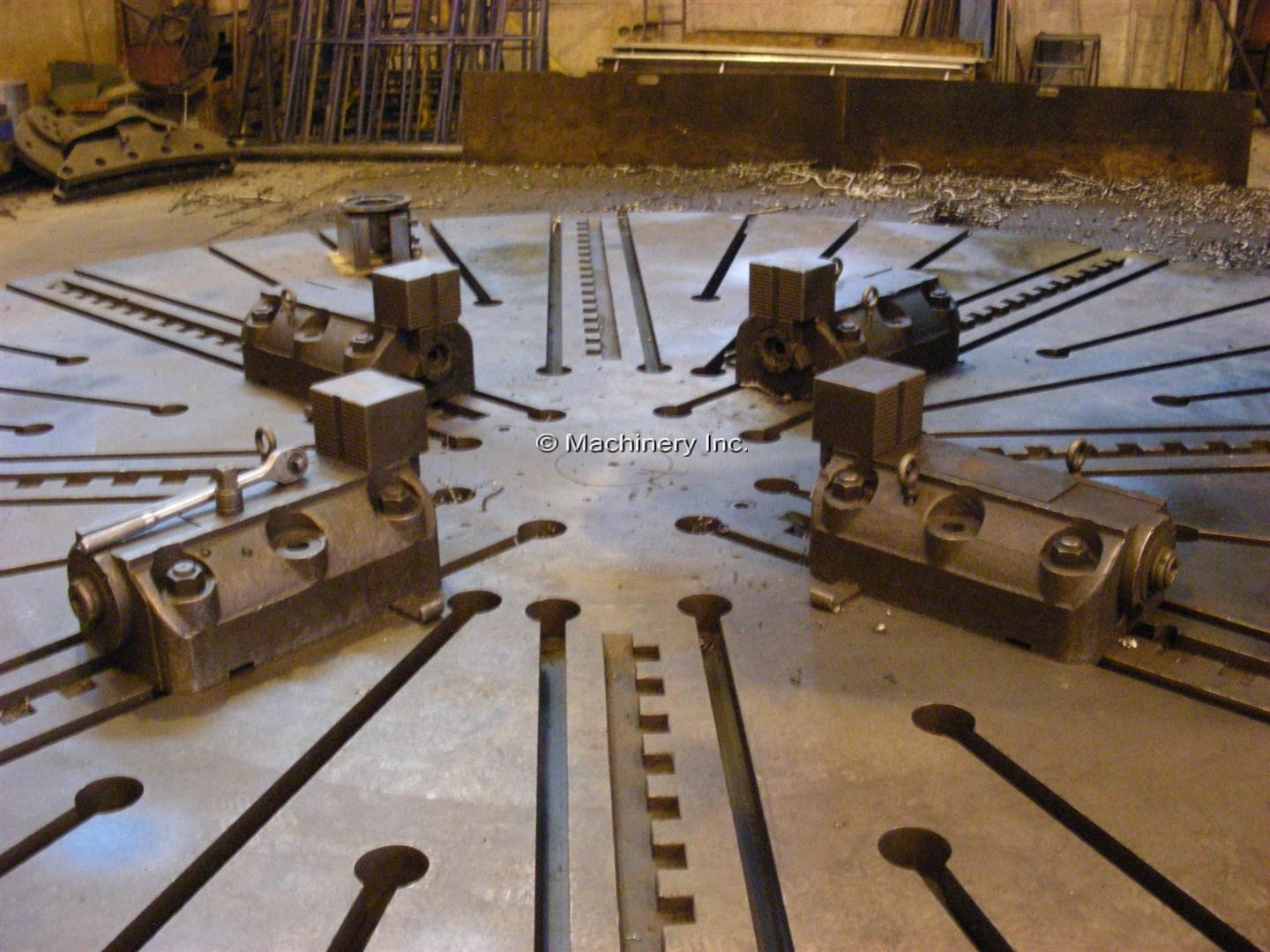

- (11) OUTRIGGERS OF APPROX. 3000 MM

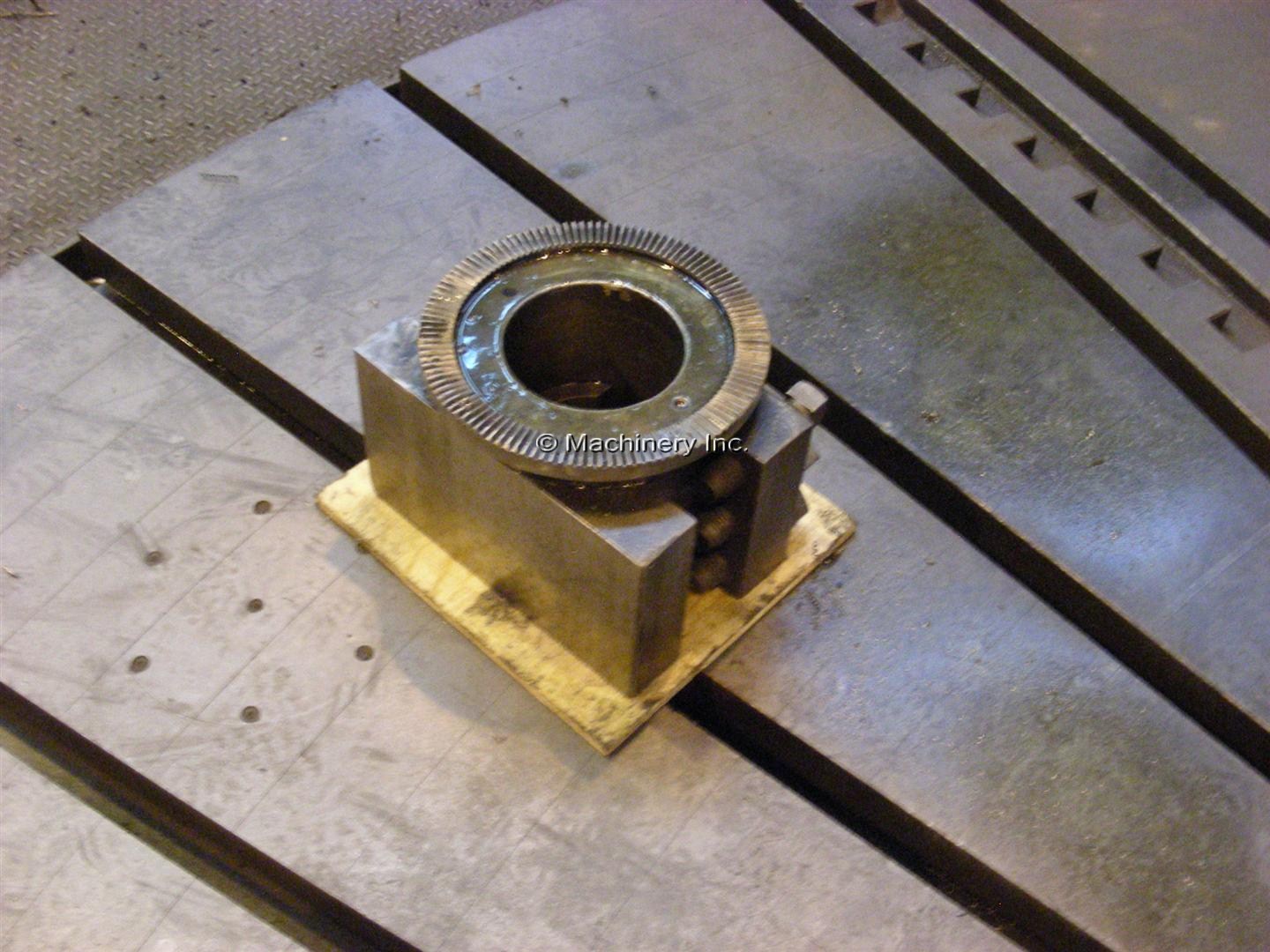

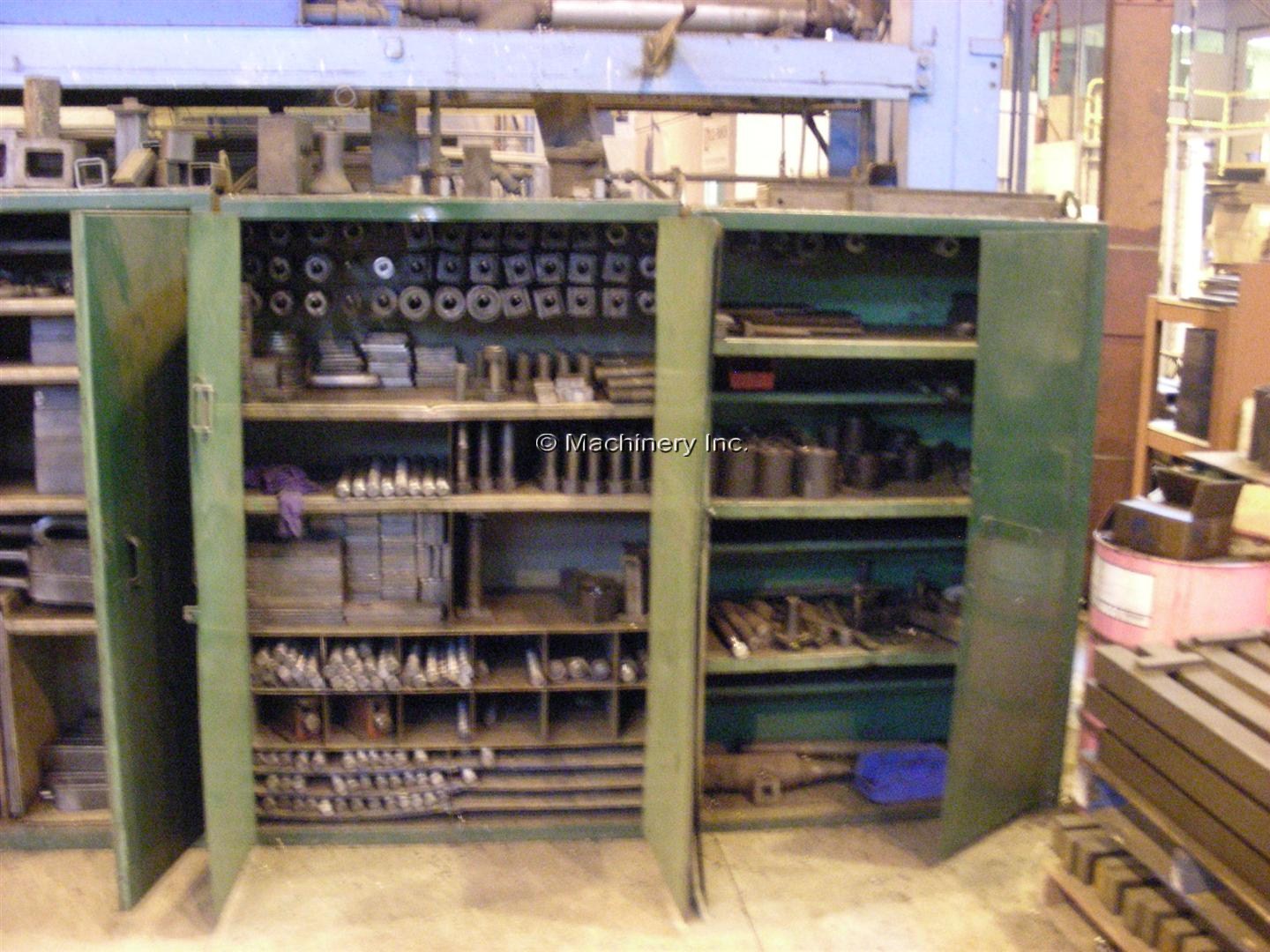

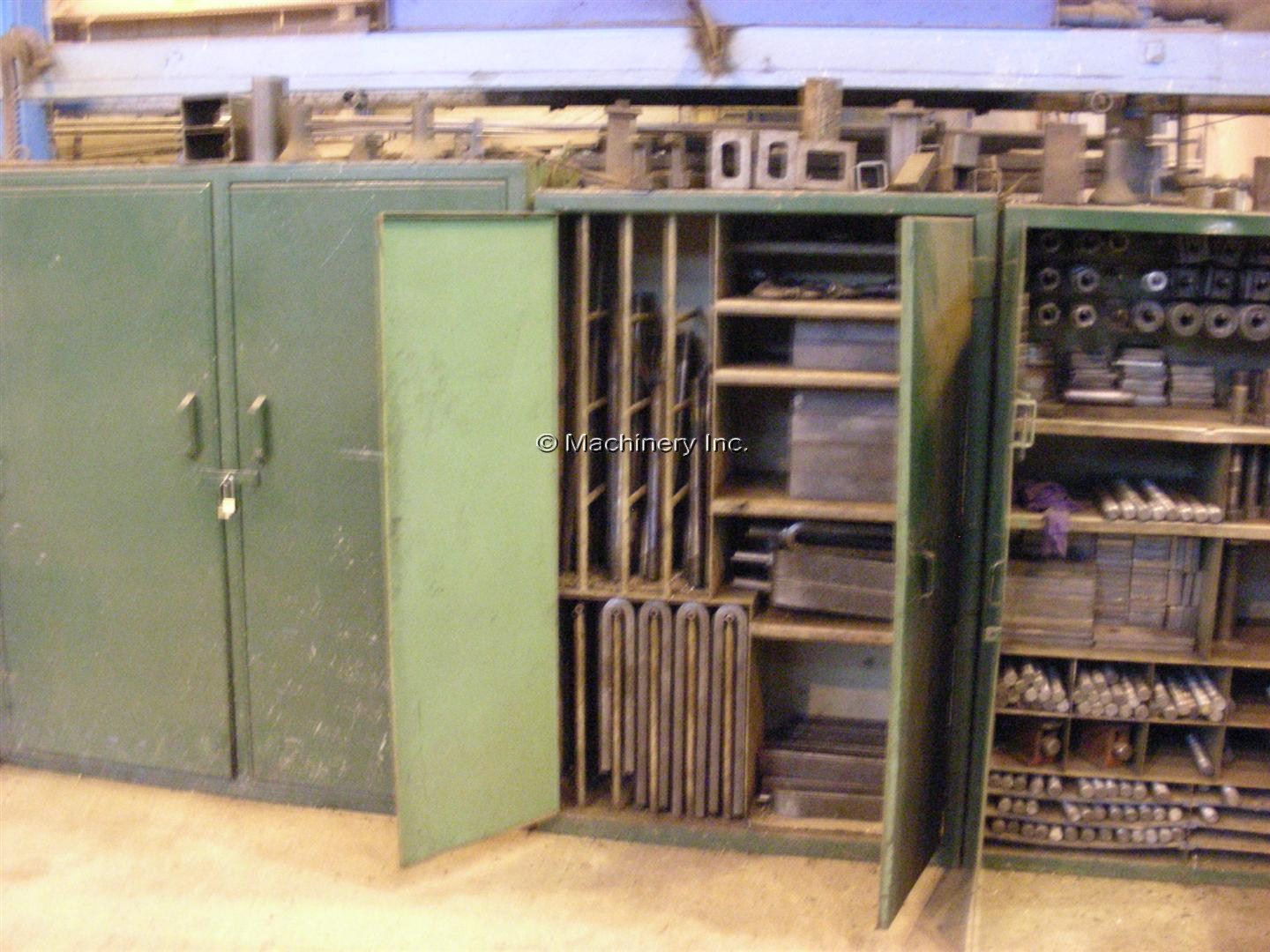

- CLAMPING TOOLINGS AND MISCELLANEOUS TOOLINGS.

- COMPLETE ELECTRIC REDONE IN 1994.

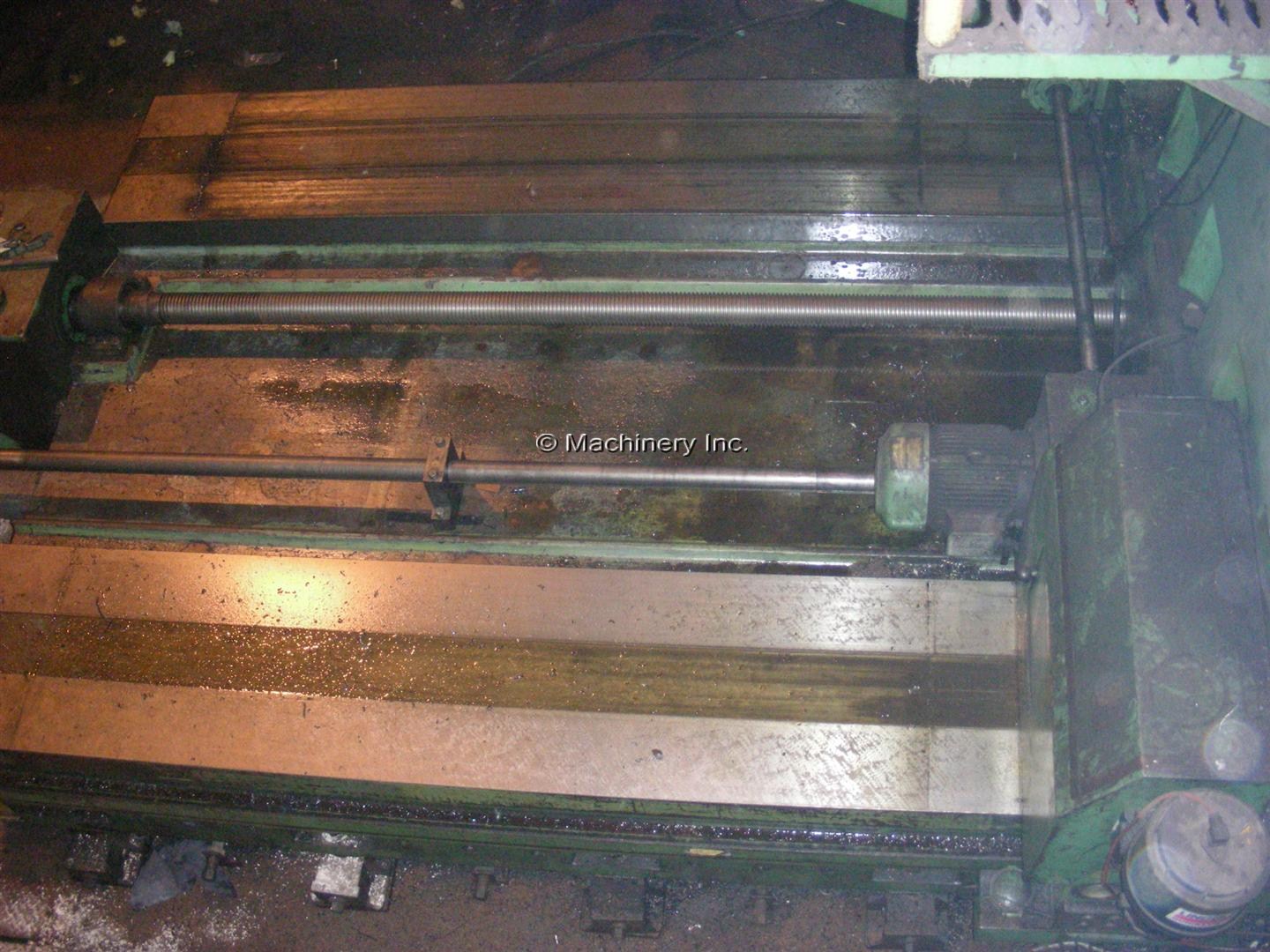

- WAYS WERE RESCRAPED AND NEW SCREW FOR THE RAM INSTALLED - ALL DONE IN 2011.

OVERALL DIMENSIONS:

-TOP OF PENDANT TO FLOOR: 30'

-GROUND LEVEL TO PIT FLOOR LEVEL: 8'6"

-LENGTH OF MACHINE: 55'

-WIDTH OF MACHINE: 26'7"

VOLTAGE: 440V/3PH/60HZ (ALSO AVAILABLE TRANSFORMER FOR 575V)

RATED CURRENT: 250A

*** FULL SPECS + PHOTOS AVAILABLE ON SERIOUS INQUIRY. ***
