Specifications

 Category : Lathes, CNC - Turning Centers

Ask for quotation
  Stock ref. # 1685

  Manufacturer DMG
  Model CTX 310
  Year 2005
  Swing 13"
  Turning Length 17.7"
  Chuck Size 8"
  Spindle Bore *
  HP 22"
  RPM 6000
  Control FANUC 32i
  Price SOLD!



Other specifications

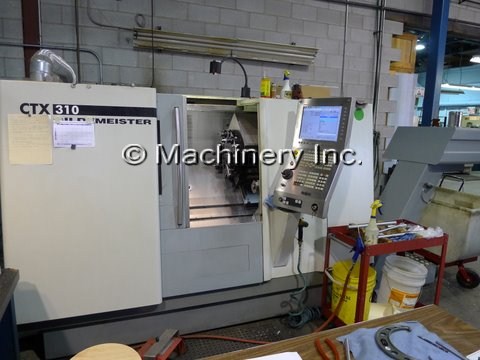

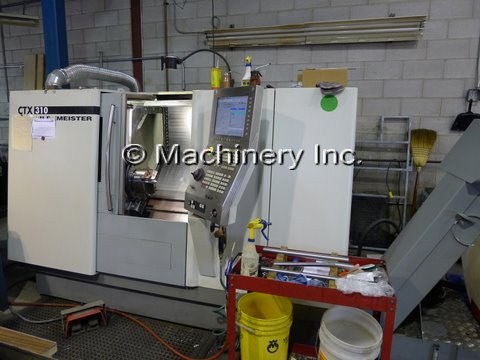

                  DMG Geildemeister CTX 310 CNC LATHE, 2005

                  Fanuc 32i Control - 8" Chuck

                  Specifications:

                  Maximum Swing Diameter.................. 330mm / 13"

                  Maximum Swing over cross slide........ 260mm / 10.2"

                  Maximum Turning Diameter................ 200mm / 7.9"

                  Maximum Turning Length.................... 450mm / 17.7"

                  Bar Capacity........................................ 51mm / 2"

                  Spindle Speed..................................... 6000 rpm

                  Spindle Motor...................................... 16.5 Kw

                  Tool Stations....................................... 12

                  Chuck size........................................... 8"

                  Weight: 3950 kg

                  Equipped with:

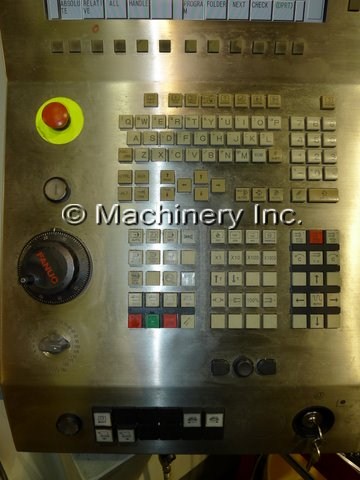

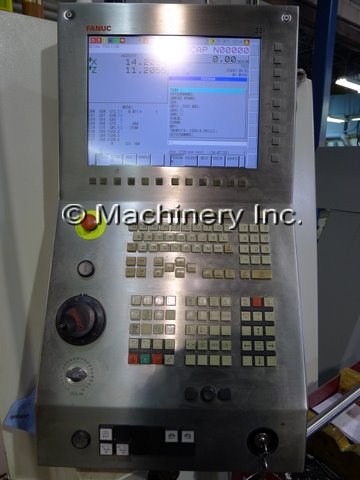

                  Fanuc 32i Control

                  8" Hydraulic Chuck

                  12 station VDI Turret with all tool holders

                  Tool Presetter

                  Automatic Chip Conveyor

                  *** EXCELLENT CONDITION ***
