Specifications

 Category : Lathes, CNC - Turning Centers

Ask for quotation
  Stock ref. # 1701

  Manufacturer OKUMA
  Model B300-W
  Year 2005
  Swing 24.8"
  Turning Length 35.43"
  Chuck Size 10" & 8"
  Spindle Bore 2.44"
  HP 20
  RPM 5000
  Control OSP-P200L
  Price SOLD!



Other specifications

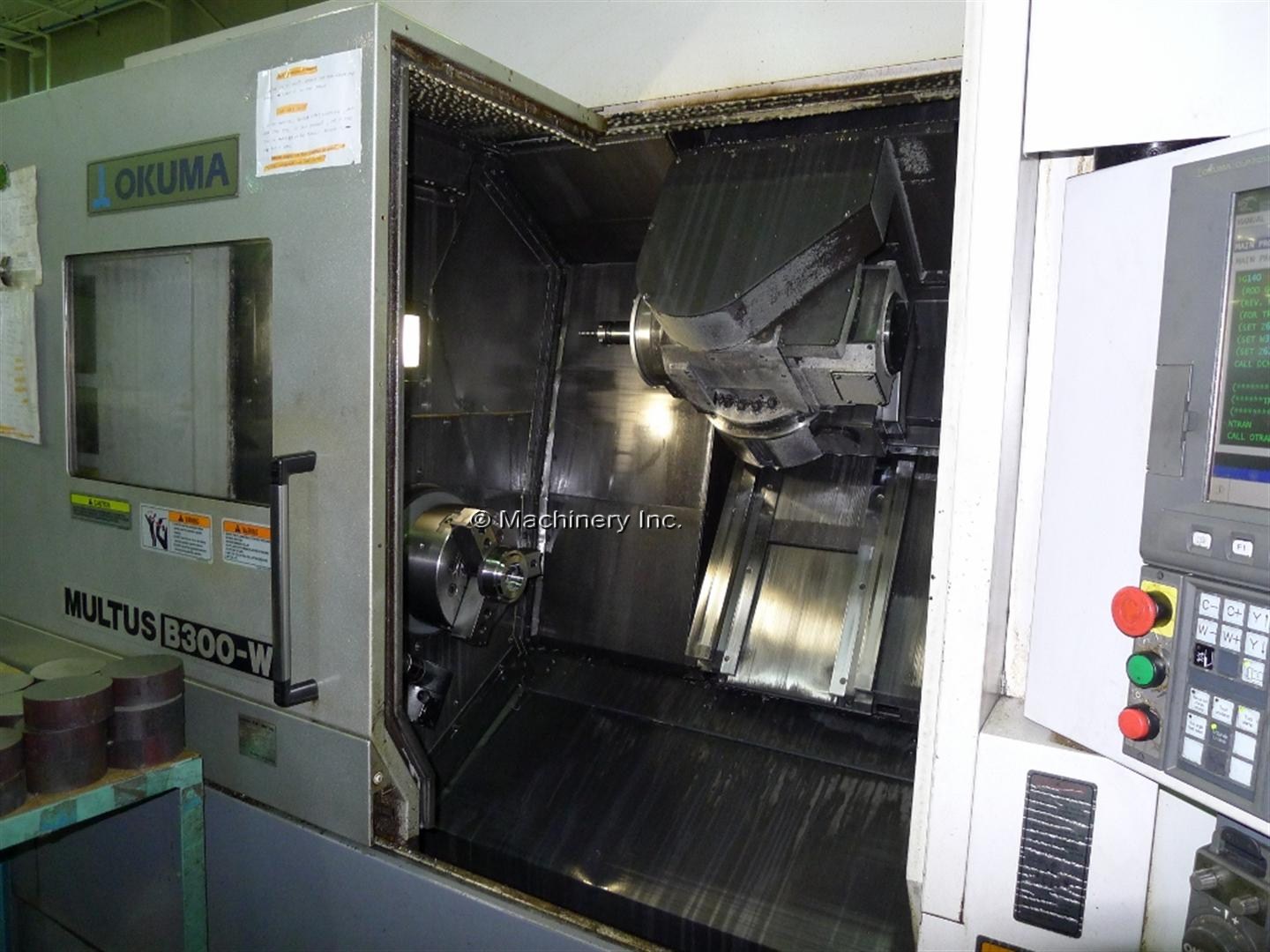

                  USED OKUMA MULTUS B300-W MULTI FUNCTION TURNING & MILLING CENTER, 2005



                  MANUFACTURER: OKUMA HOWA

                  MODEL: B300-W

                  YEAR: 2005



                  MAXIMUM SWING 24.8"

                  MAXIMUM TURNING DIAMETER 17.72"

                  MAX. DISTANCE BETWEEN SPINDLES 35.43"

                  X AXIS TRAVEL 22.83"

                  Z AXIS TRAVEL 37.2"

                  Y AXIS TRAVEL 3.15"

                  W AXIS TRAVEL (RIGHT SPINDLE TRAVEL) 39.37"

                  C AXIS MINIMUM INCREMENT 0.001

                  B AXIS TRAVEL (ANGLE MILLING) -30 TO +195

                  RAPID TRAVERSE RATE X & Z AXES 1575 IPM

                  RAPID TRAVERSE RATE Y AXIS 1024 IPM

                  RAPID TRAVERSE RATE W AXIS 787 IPM

                  SPINDLE NOSE (MAIN & SUB SPINDLE) A2-6

                  SPINDLE BORE (EITHER SPINDLE) 2.44"

                  SPINDLE SPEEDS (LEFT SPINDLE) 38 - 5,000 RPM

                  SPINDLE SPEEDS (RIGHT SPINDLE) 38 - 5,000 RPM

                  SPINDLE MOTOR (MAIN / SUB SPINDLE) 20HP / 15 HP (20 MIN./CONT.)

                  TOOL CHANGER CAPACITY 40 STATIONS

                  MILLING TOOLING SPEEDS 50 - 6,000 RPM

                  MILLING MOTOR 15/10 HP

                  APPROX. DIMENSIONS (INCL CHIP) 172" X 80" X 103"

                  MACHINE WEIGHT (APPROX) 22,000 LBS



                  EQUIPPED WITH:

                  KITAGAWA B-210 CHUCK

                  KITAGAWA B-208 CHUCK

                  OSP-P200L CNC CONTROL

                  ALL AVAILABLE MANUALS
