Specifications

Categories > Boring Mills, Horizontal, Table Type, CNC
Ask for quotation
Stock ref. # 1781

Manufacturer TOS

Model WHQ 13

Year 2008

Spindle Dia. 5.12"

X-Axis 138"

Y-Axis 98"

Table Size 71" x 98"

RPM 3000

Motor 50 HP

Control HEIDENHAIN 530ITNC

Price SOLD!

Other specifications

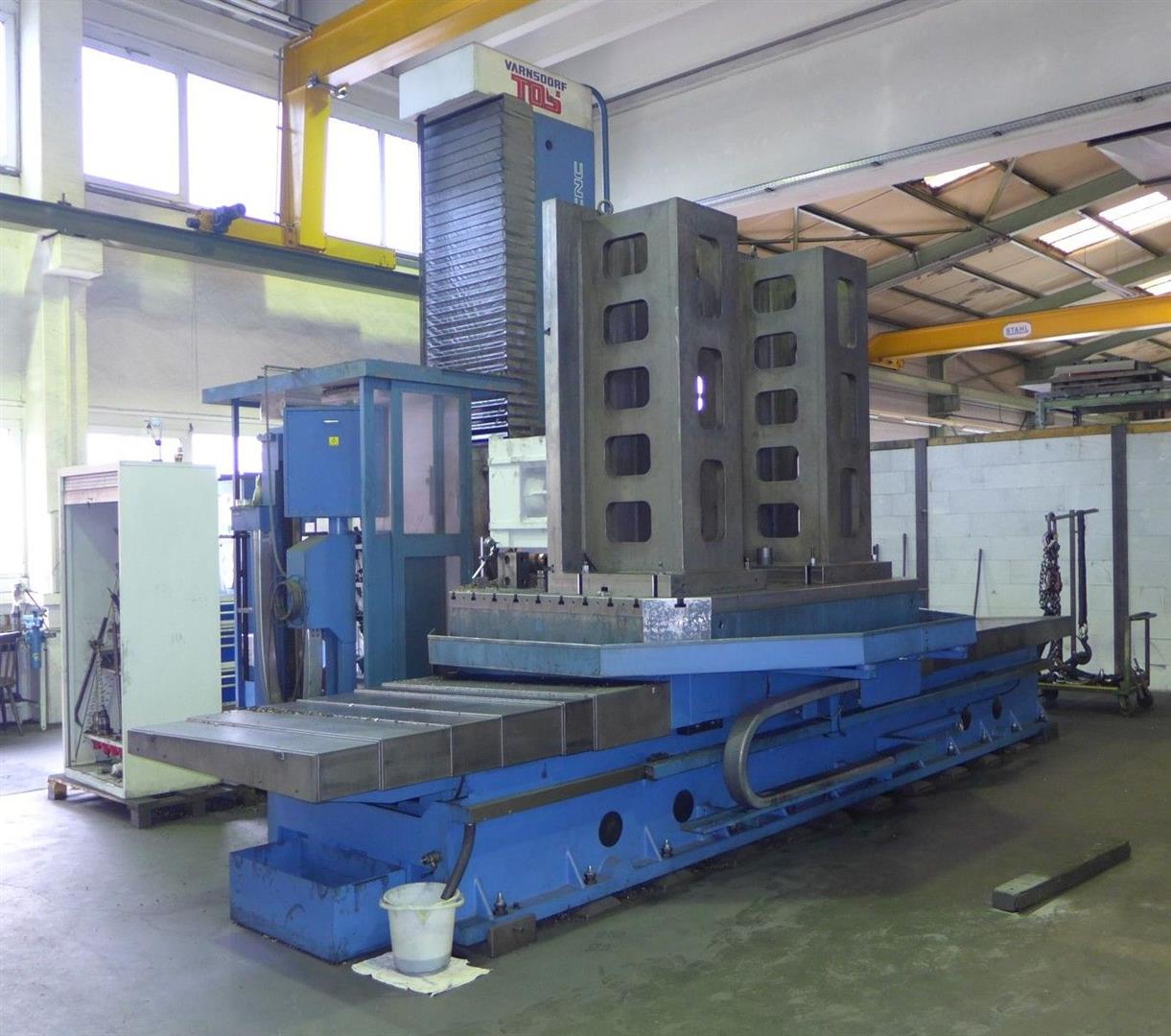

5.12" TOS WHQ 13 CNC TABLE TYPE HORIZONTAL BORING MILL, 2008

Manufacturer: TOS

Model: WHQ 13 CNC

Manufact.date: 2008

Controls: CNC controls HEIDENHAIN iTNC 530

WORKING RANGE -MILLING-

x-axis traverse 3500 mm

y-axis traverse 2500 mm

z-axis traverse 1250 mm

w-axis traverse 800 mm

TABLE

clamping surface (left-right) 2500 mm

clamping surface (front-back) 1800 mm

workpiece load (max) 15000 kg

rotation 360 °

WORKING SPINDLE / HEAD

spindle type horizontal

spindle revolutions (min) 10 /min

spindle revolutions (max) 3000 /min

spindle diameter 130 mm

taper fixture ISO SK 50

spindle power (continuous) 37 kW

ELECTRICAL SPECIFICATIONS

mains power supply 82 kVA

mains voltage 400 V

mains frequency 50 Hz

ATTACHMENTS

angular milling head yes

autom. tool clamping yes

ball spindles yes

guideway covers yes

coolant unit yes

TECHNICAL DESCRIPTION

This TOS is equipped with an 80-station tool changer, Coolant Device and an Angled Milling Head

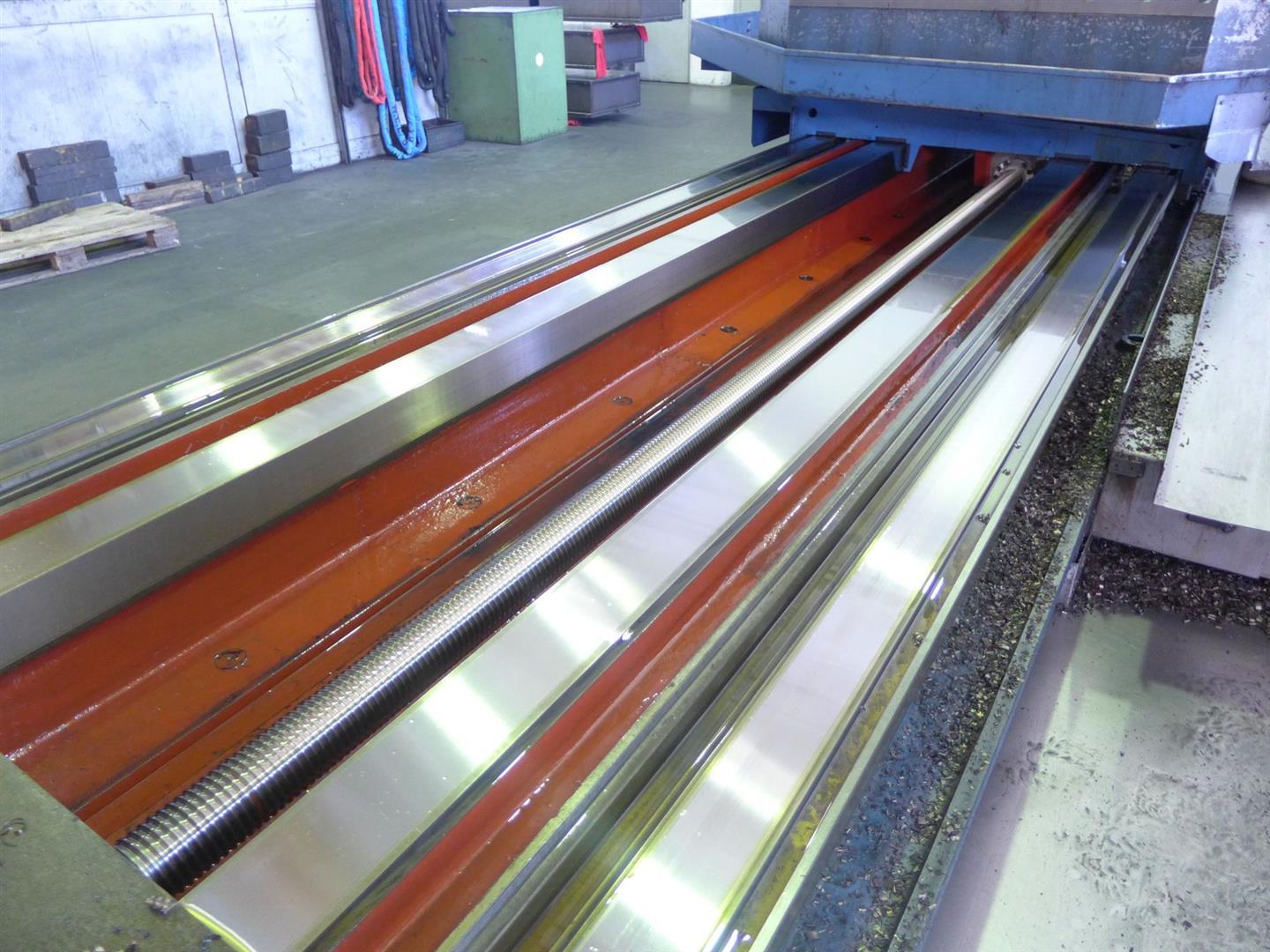

Photos
