Specifications

 Category : Lathes, CNC - Turning Centers

Ask for quotation
  Stock ref. # 1798

  Manufacturer OKUMA
  Model ES-L8
  Year 2000
  Swing 17.7"
  Turning Length 19.68"
  Chuck Size *
  Spindle Bore 2.44"
  HP 10 HP
  RPM 3000
  Control OSP U10L
  Price SOLD!



Other specifications

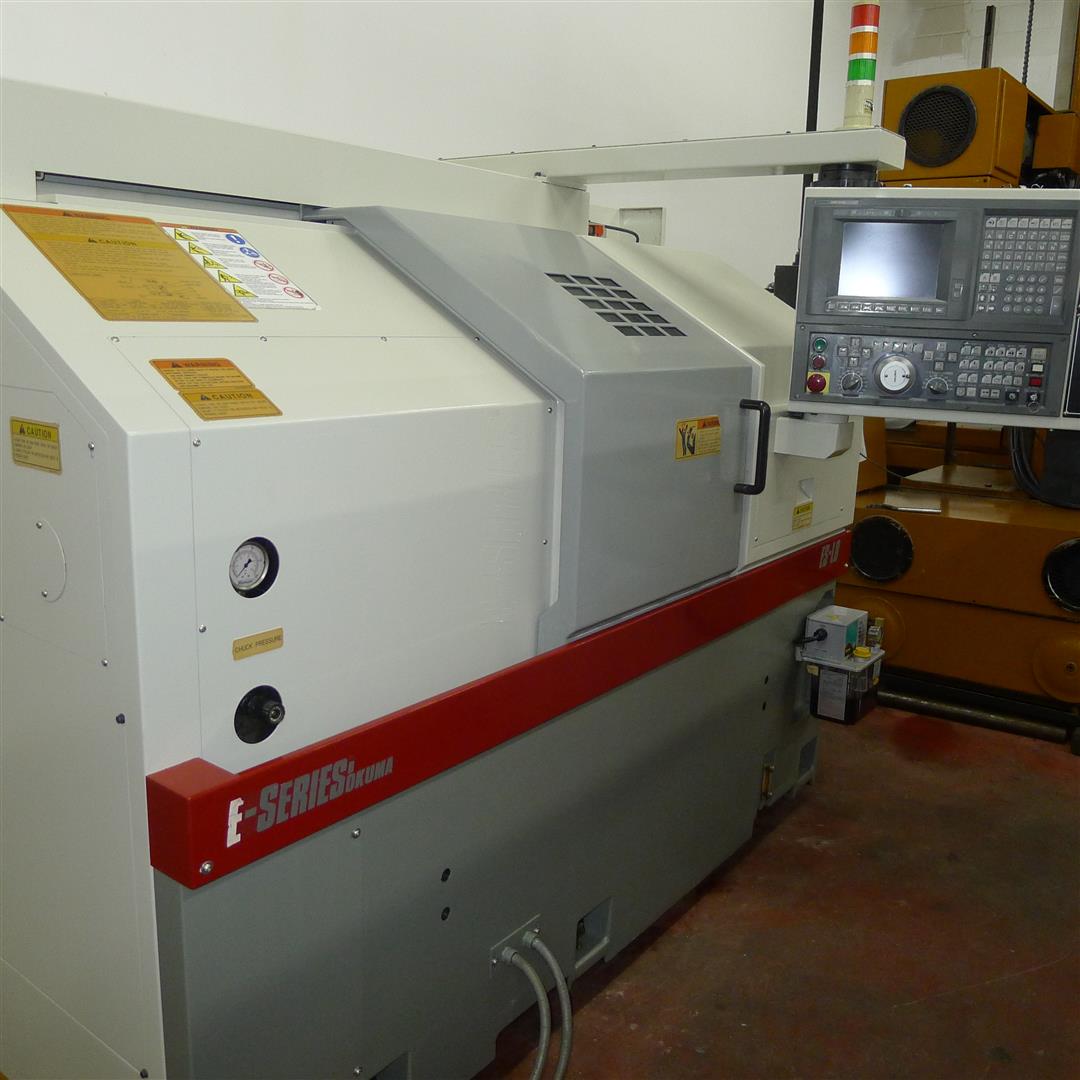

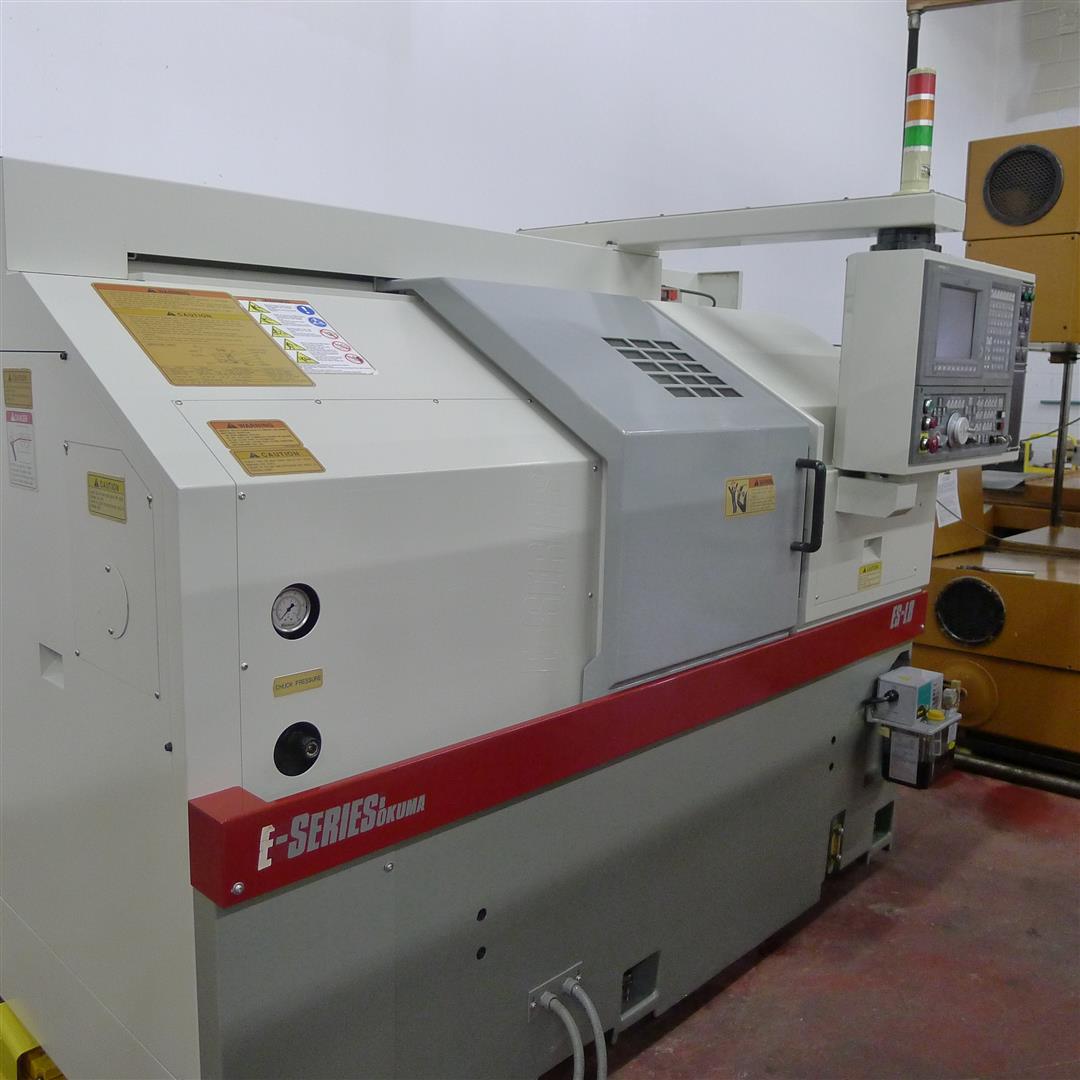

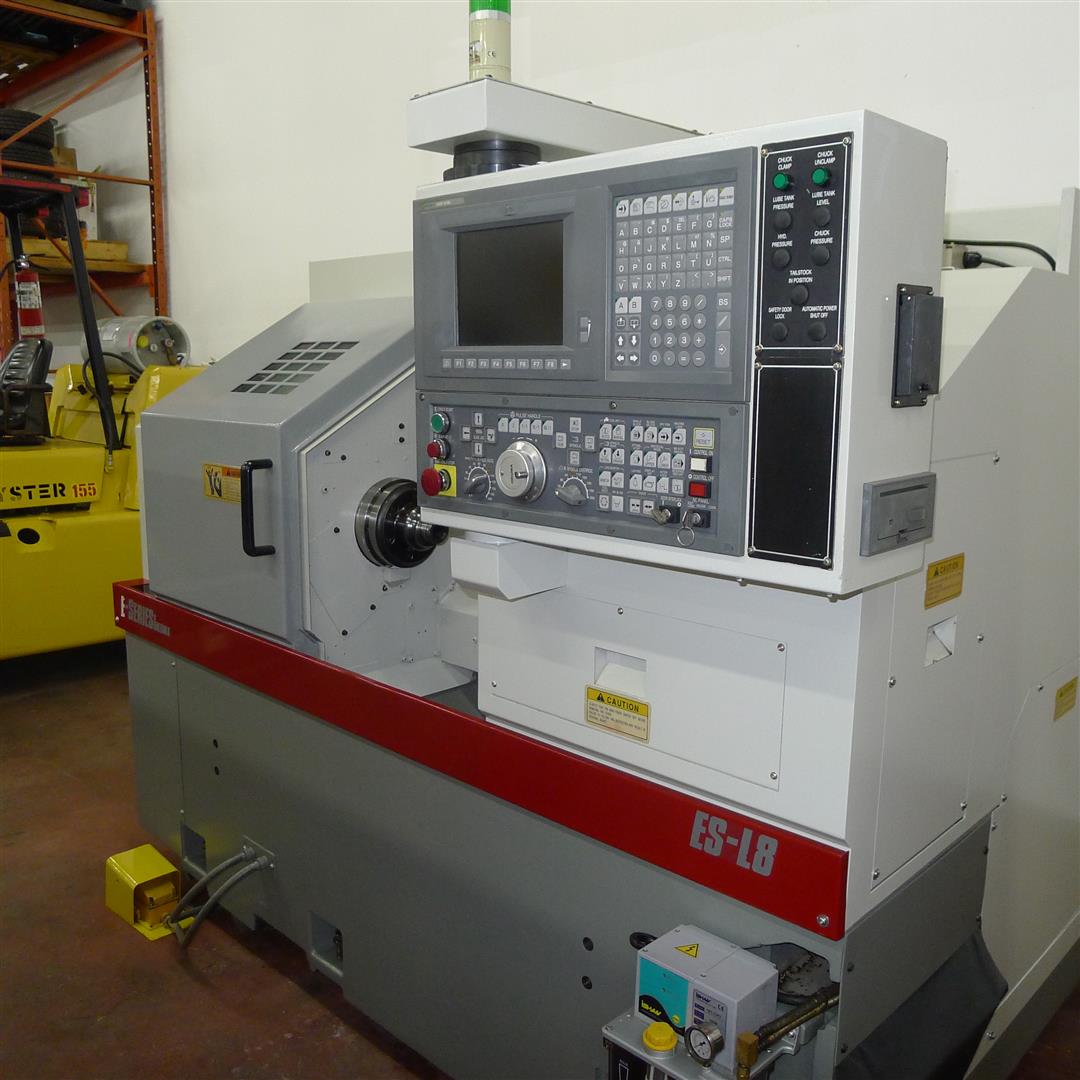

                  OKUMA ES-L8 CNC LATHE, 2000

                  MODEL: ES-L8

                  YEAR: 2000

                  S/N: C0345



                  Max Swing Over Slant Bed.................................. 17.7"

                  Max Swing Over Carriage................................... 10.63"

                  Max Distance Between Centers.............................. 19.68"

                  Cross Travel (X-Axis)..................................... 6.10"

                  Longitudinal Travel (Z-Axis).............................. 20.47"

                  Feed Range (Infinitely Variable) ......................... .1 to 200 IPM

                  Rapid Traverse Rate ...................................... 591 IPM

                  Number of Turrets......................................... 1

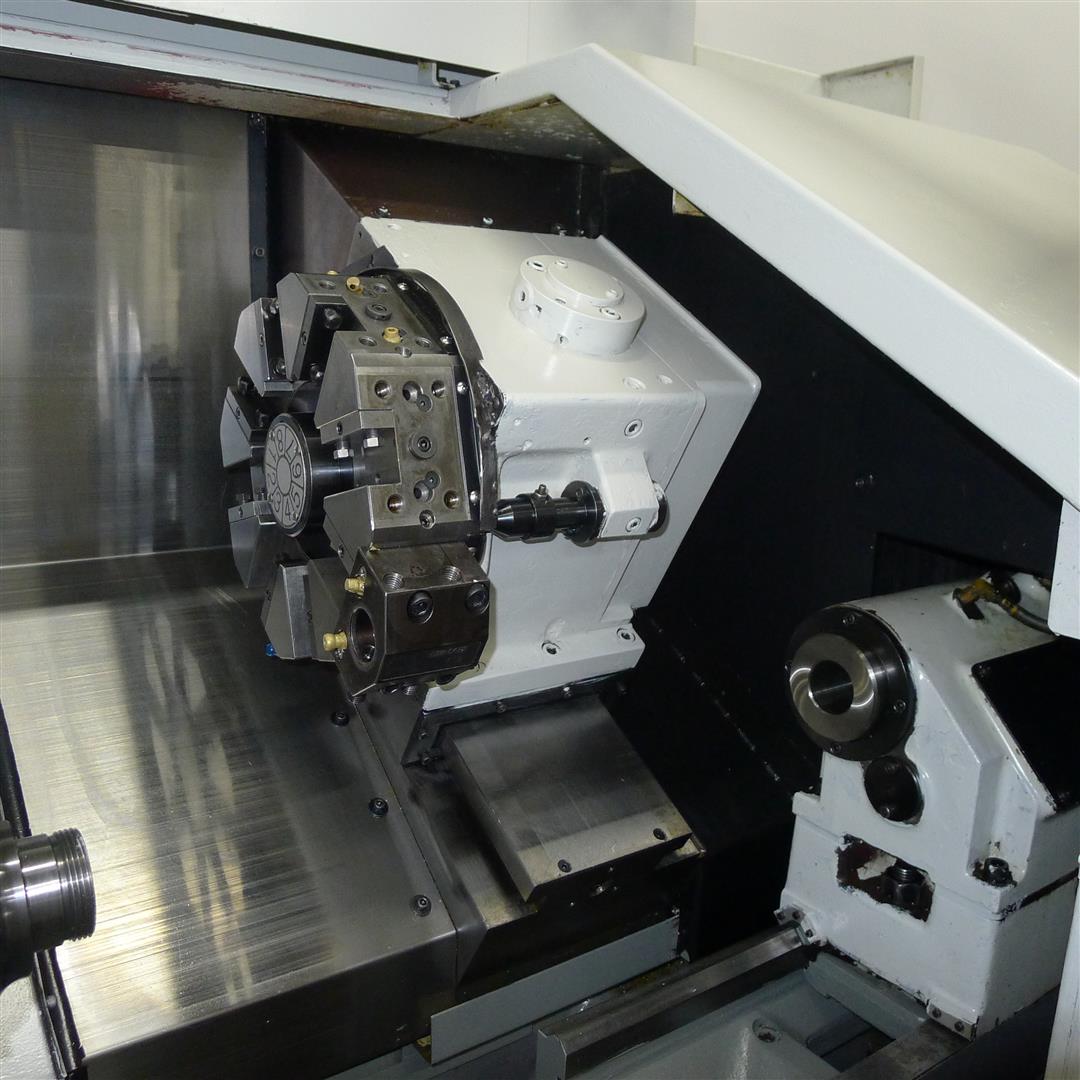

                  Turret Positions.......................................... 8

                  Spindle Bore.............................................. 2.44"

                  Bar Capacity.............................................. 2"

                  Spindle Speed Range....................................... 100-3000 RPM

                  Spindle Drive Motor....................................... 10 HP

                  Electrics................................................. 220/3/60

                  Approximate Machine Dimension............................. 89" x 75"

                  Approximate Machine Height................................ 80"

                  Approximate Machine Weight................................ 6000 LBS



                  EQUIPPED WITH:

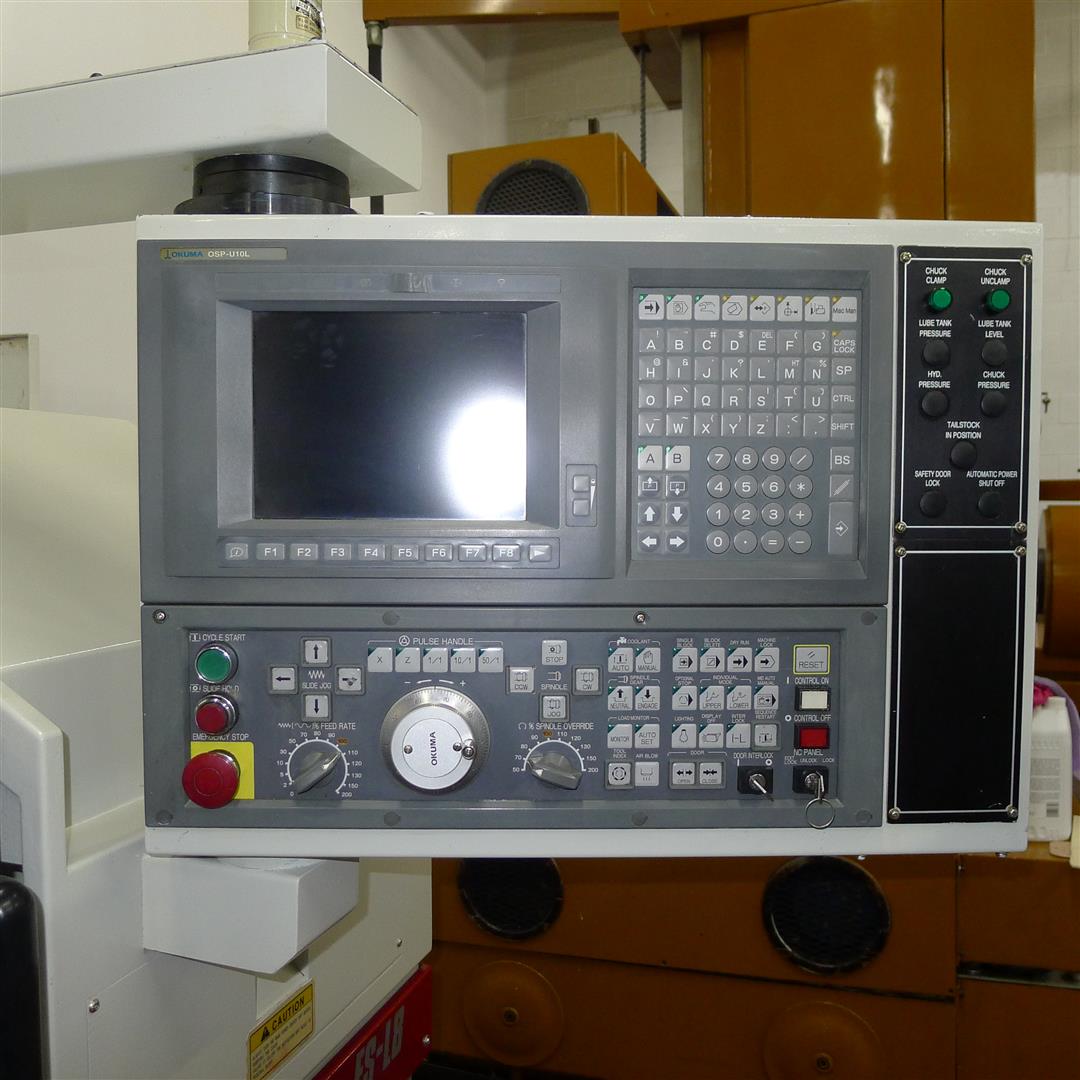

                  OSP U10L CNC CONTROL

                  *** ONE-TOUCH IGF PACKAGE ***

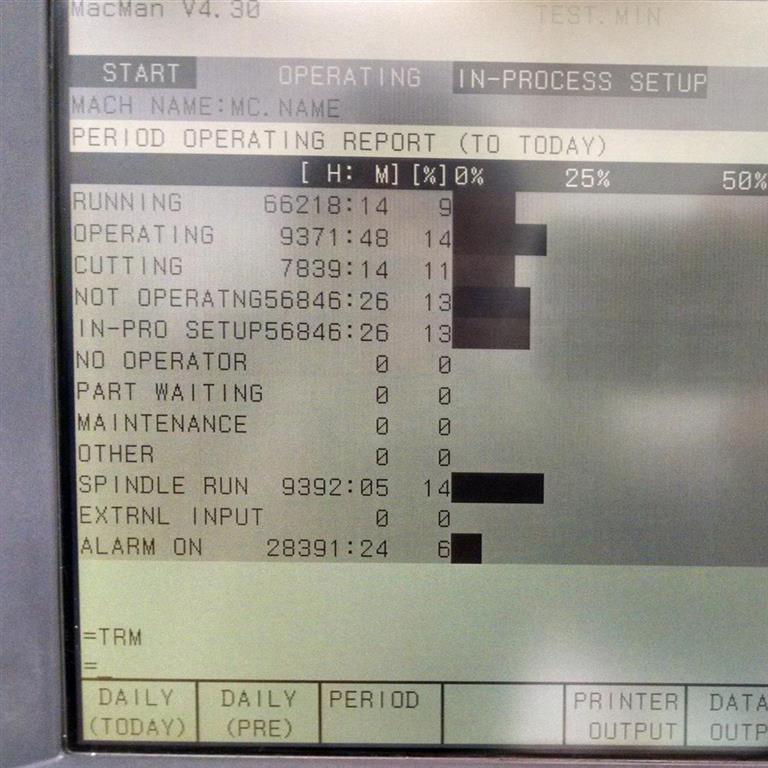

                  L MACMAN PACKAGE

                  SYSTEM PACKAGE

                  LNC PACKAGE

                  160M TAPE STORAGE

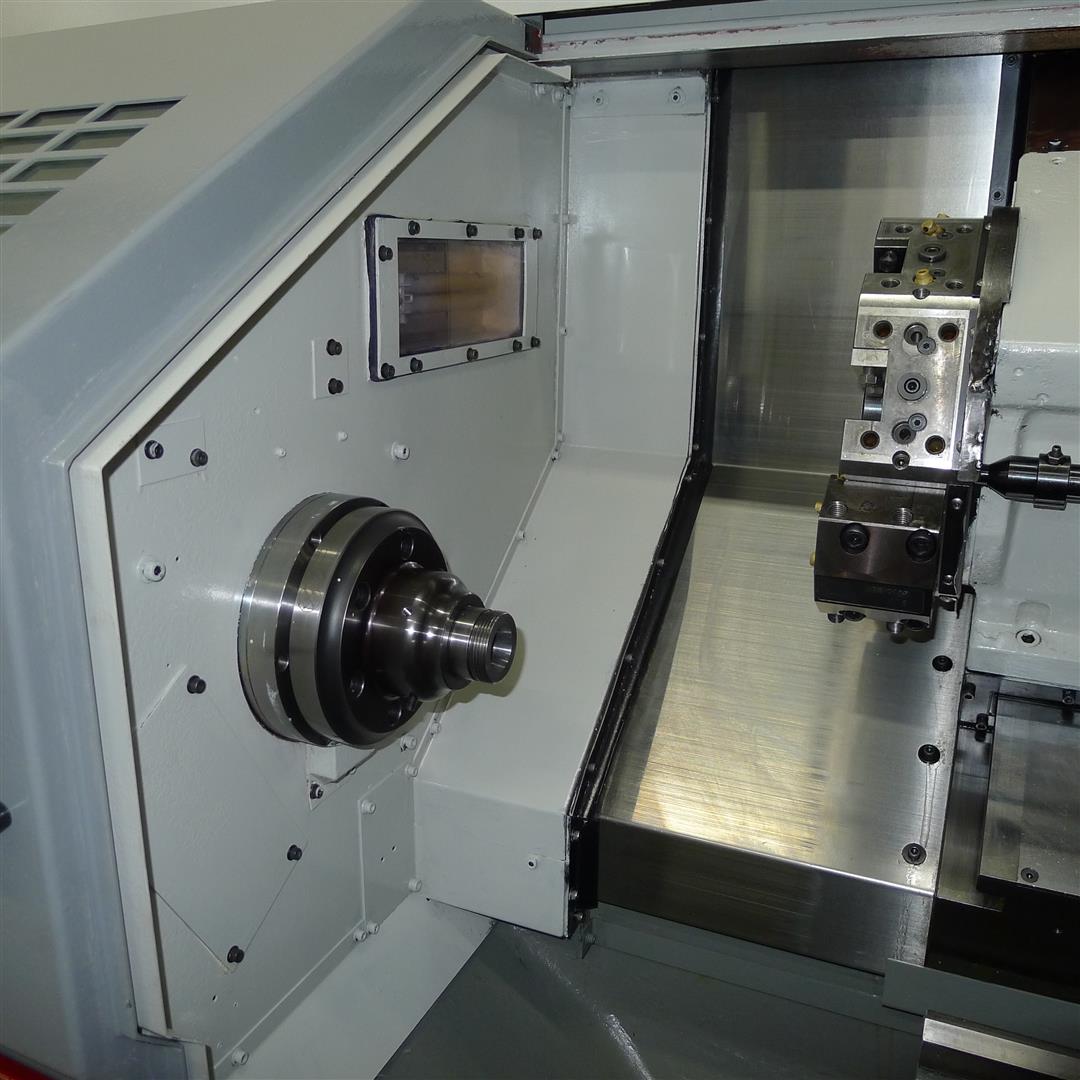

                  5C COLLET CHUCK

                  PROGRAMMABLE TAILSTOCK

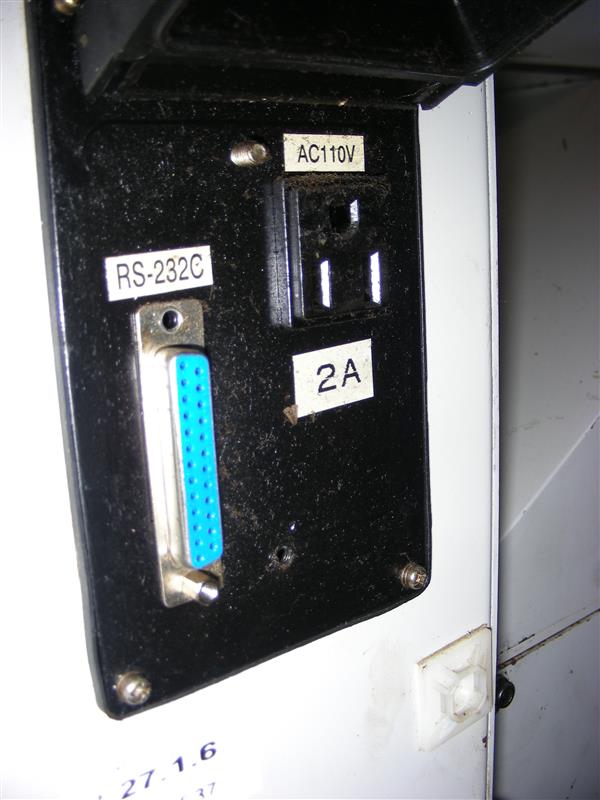

                  RS232C DATA COMMUNICATION PORT

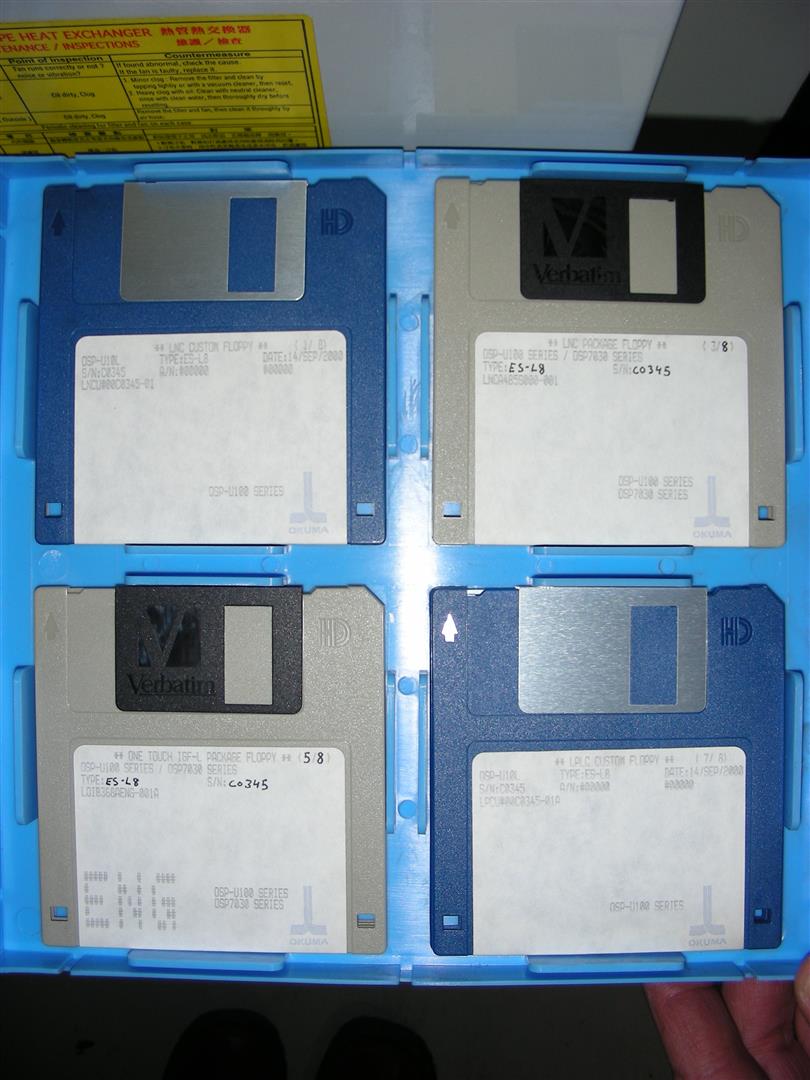

                  3.5" FLOPPY DISK DRIVE

                  MANUALS (ELECTRICAL DWG/OPERATION-MAINTENANCE/PARTS BOOK)



Photos
