Specifications

 Category : Lathes, CNC - Turning Centers

Ask for quotation
  Stock ref. # 1806

  Manufacturer DMG
  Model CTX 310
  Year 2006
  Swing 13"
  Turning Length 17.72"
  Chuck Size 8"
  Spindle Bore 2.625"
  HP 22.1
  RPM 6000
  Control FANUC 32I
  Price SOLD!



Other specifications

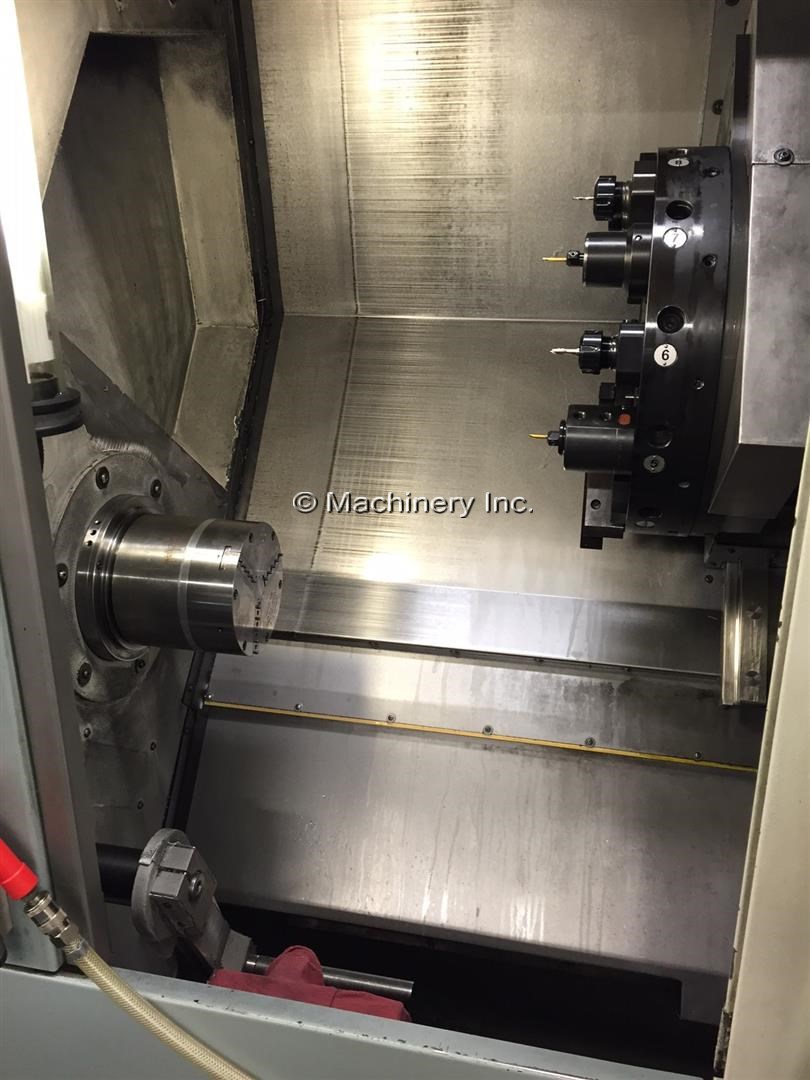

                  DMG CTX 310 CNC TURNING CENTER , 2006 WITH LIVE MILLING/ C-AXIS

                  YEAR: 2006

                  MODEL: CTX 310



                  SPECIFICATIONS:

                  Maximum Swing Diameter.................. 330mm / 13"

                  Maximum Swing over cross slide........ 260mm / 10.24"

                  Maximum Turning Diameter................ 200mm / 7.87"

                  Maximum Turning Length.................... 450mm / 17.72"

                  Bar Capacity........................................ 51mm / 2"

                  Spindle bore diameter: 2 5/8"

                  Spindle Speed..................................... 6000 rpm

                  Spindle Motor...................................... 22.1/14.75 HP (16.5/11 KW)

                  Weight: 3950 kg

                  EQUIPPED WITH:

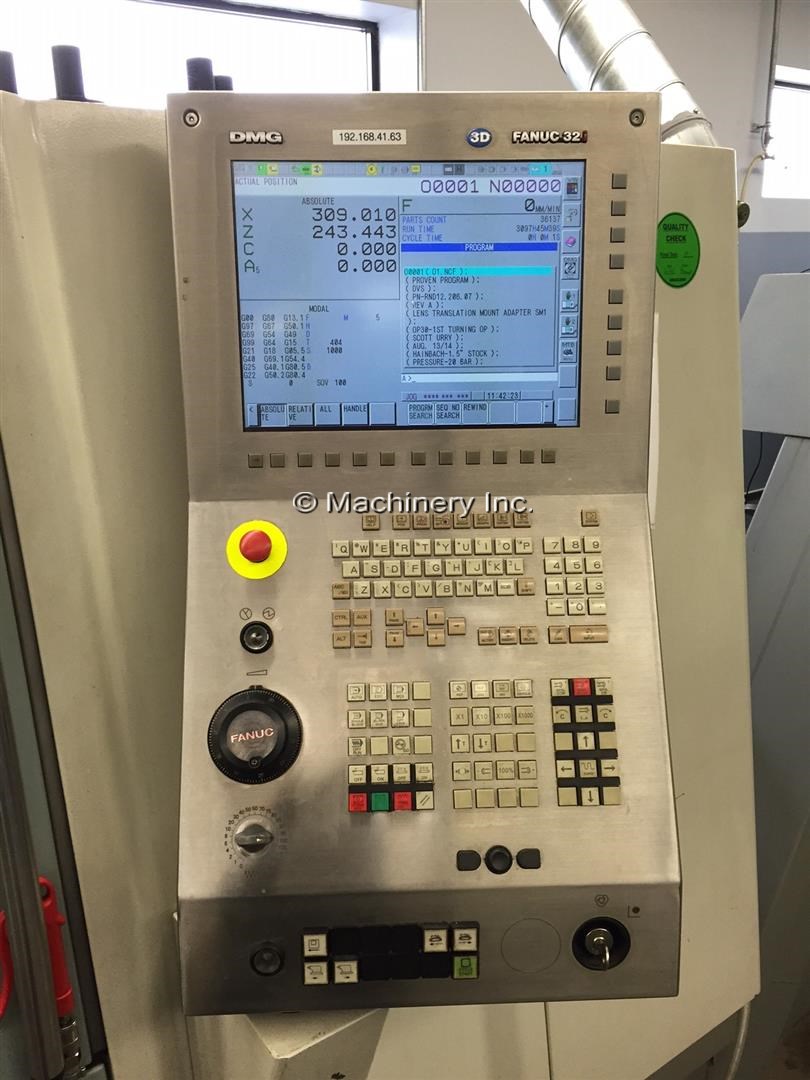

                  - FANUC 32I CNC CONTROL

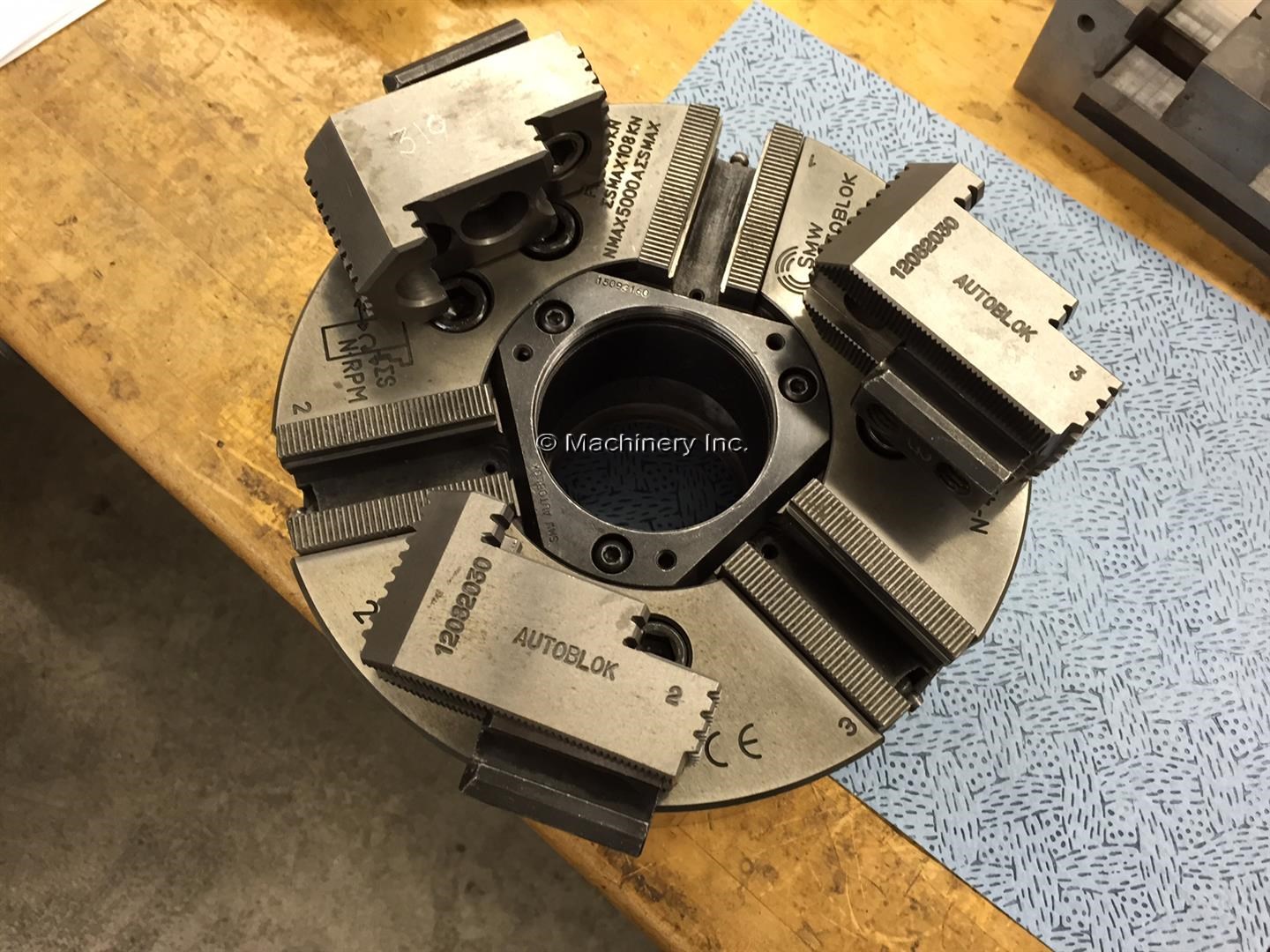

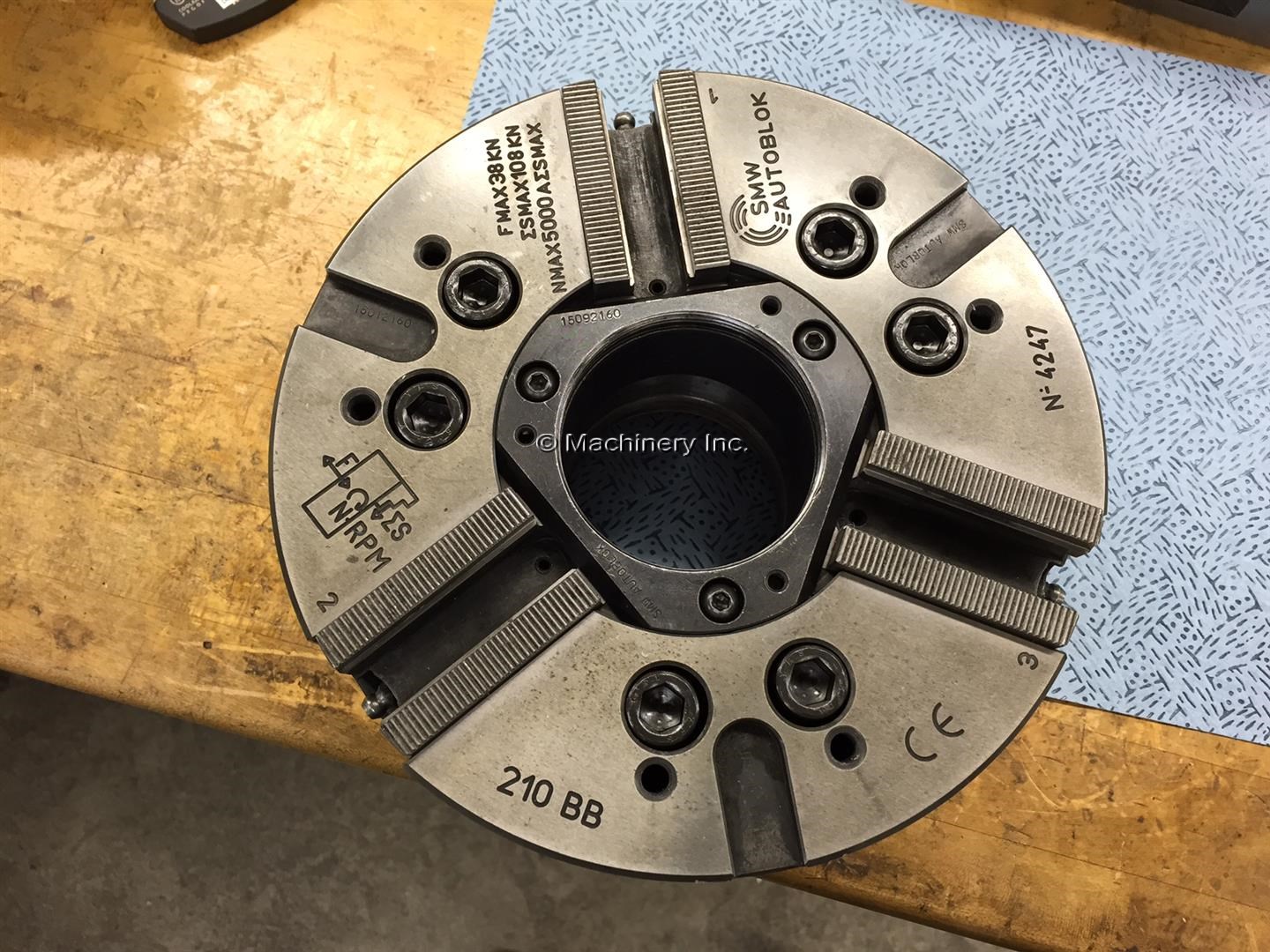

                  - 8" SMW AUTOBLOK HYDRAULIC CHUCK(210 BB) INCLUDING HARD JAWS AND SOFT JAWS

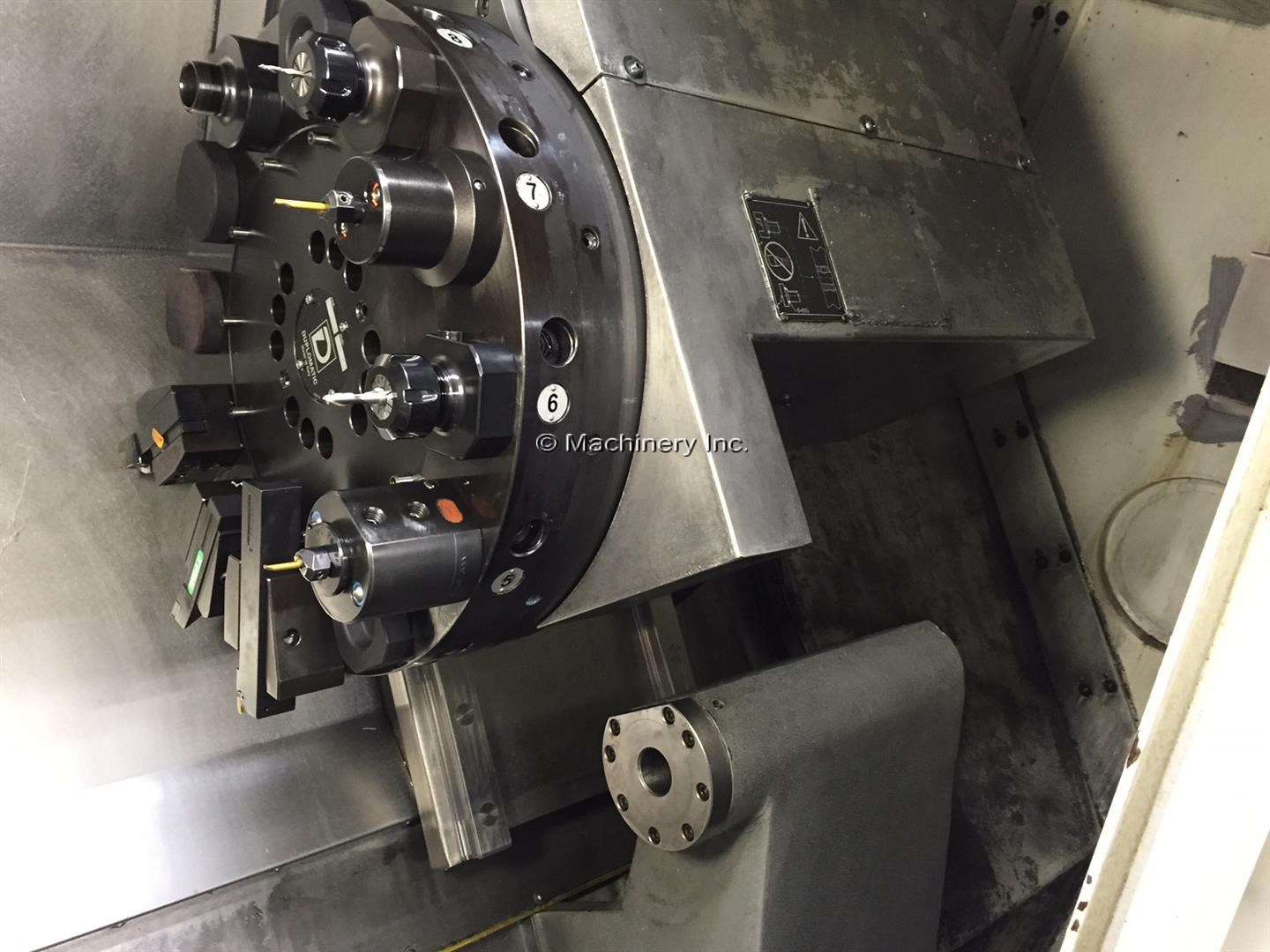

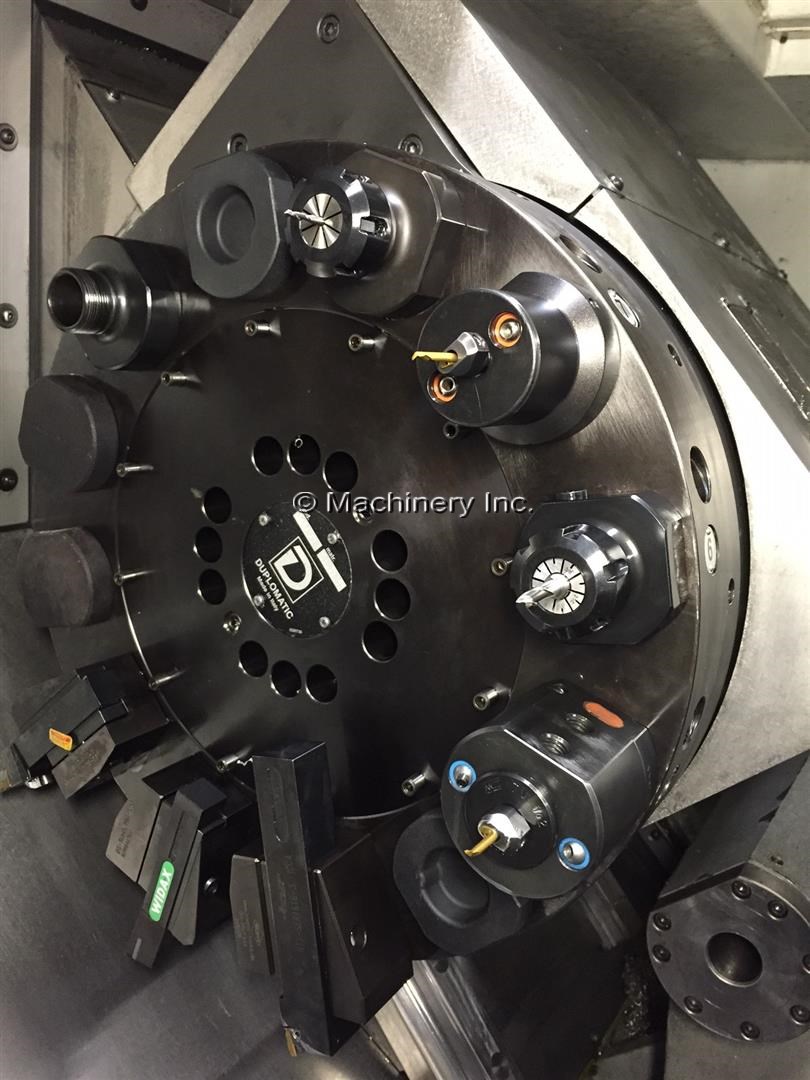

                  - 12 STATION DUPLOMATIC INDEXING TURRET

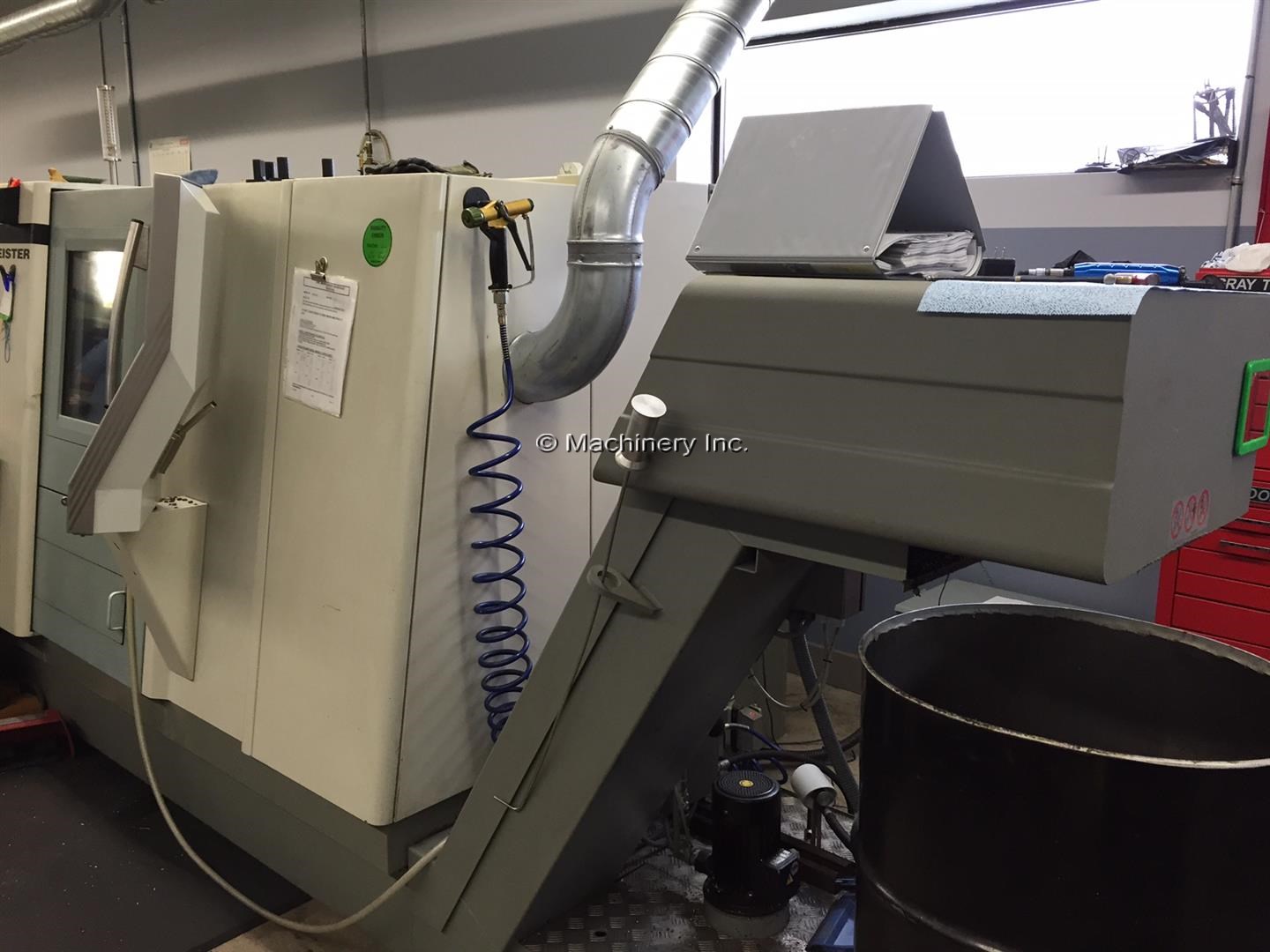

                  - CHIP CONVEYOR

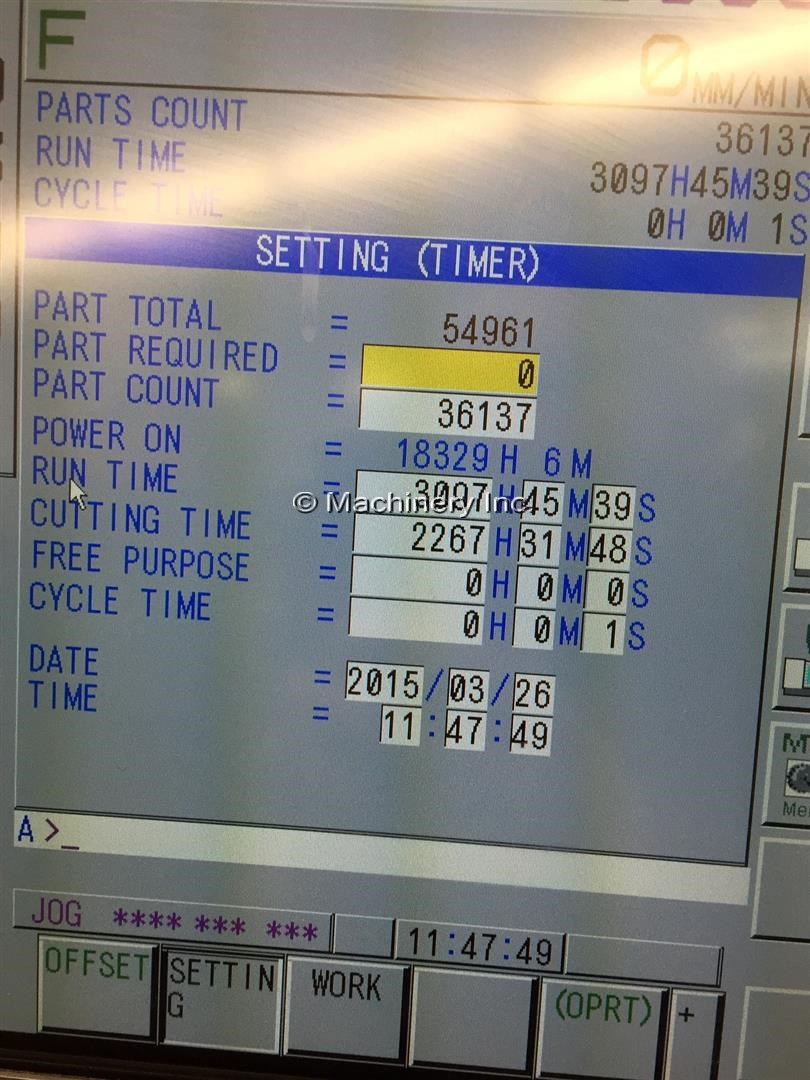

                  CUTTING HOURS: 2267



                  NOTE: No live tooling holders available with the machine.
