Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 1824

Manufacturer DMG

Model DMC 635V

Year 2009

Axis_Travels(X;Y;Z) 25" x 20" x 18"

RPM 18000

HP *

ATC 30

Control HEIDENHAIN 530

Price SOLD!

Other specifications

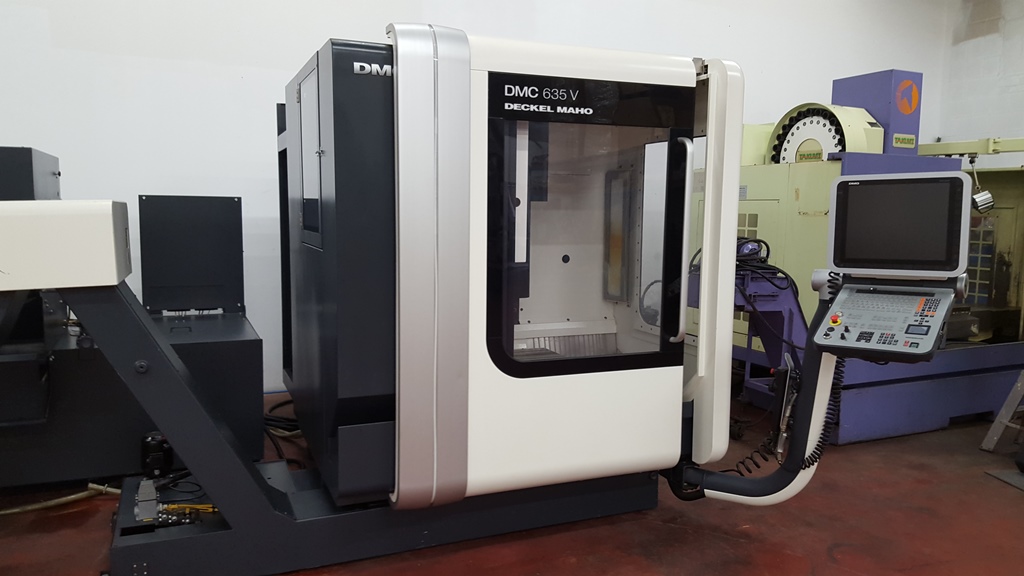

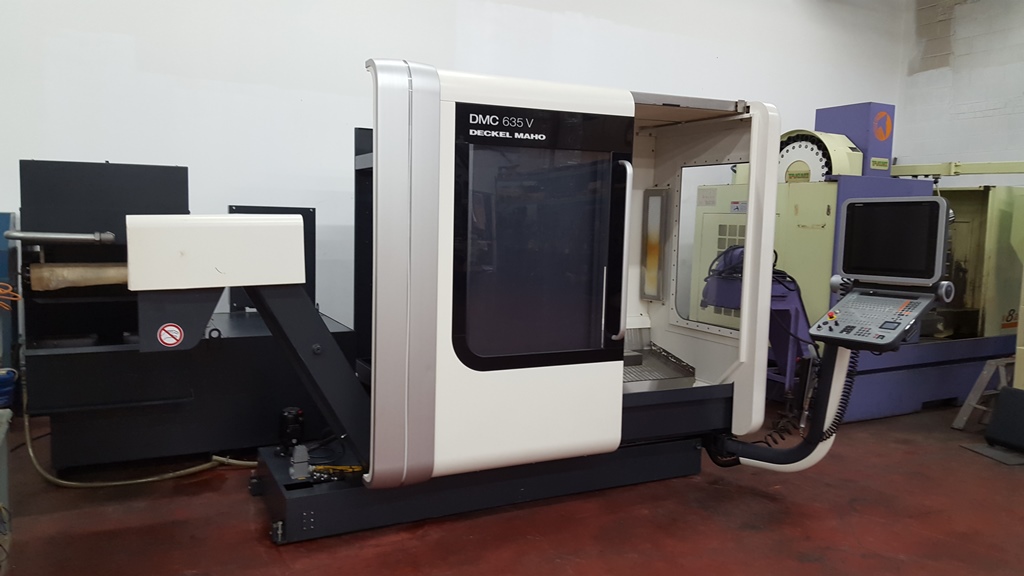

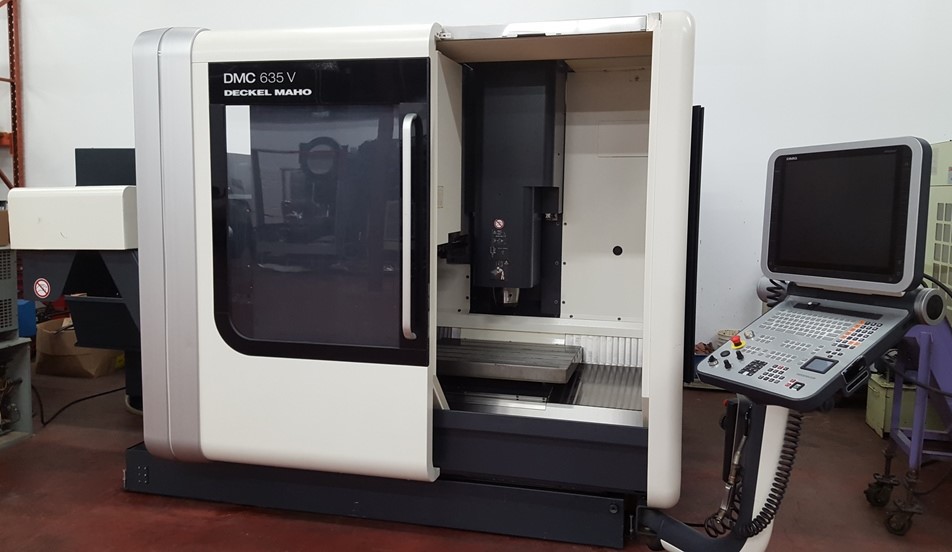

DMG DMC 635V VERTICAL MACHINING CENTER, 2009

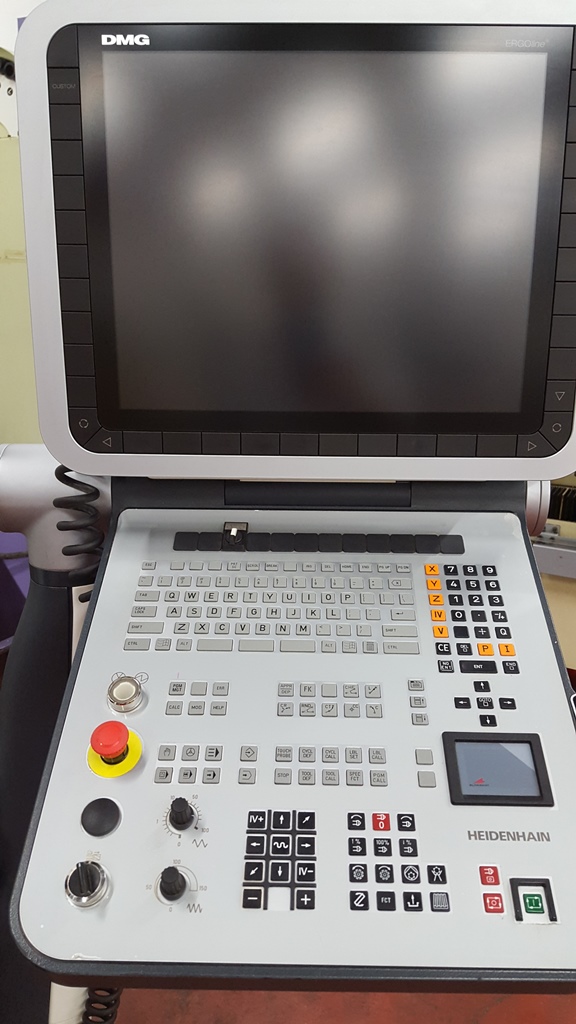

HEIDENHAIN iTNC 530 CNC CONTROL

MANUFACTURER: DECKEL MAHO

YEAR : 2009

TRAVELS:

X-TRAVEL 635 MM (25")

Y-TRAVEL 510 MM (20")

Z-TRAVEL 460 MM (18")

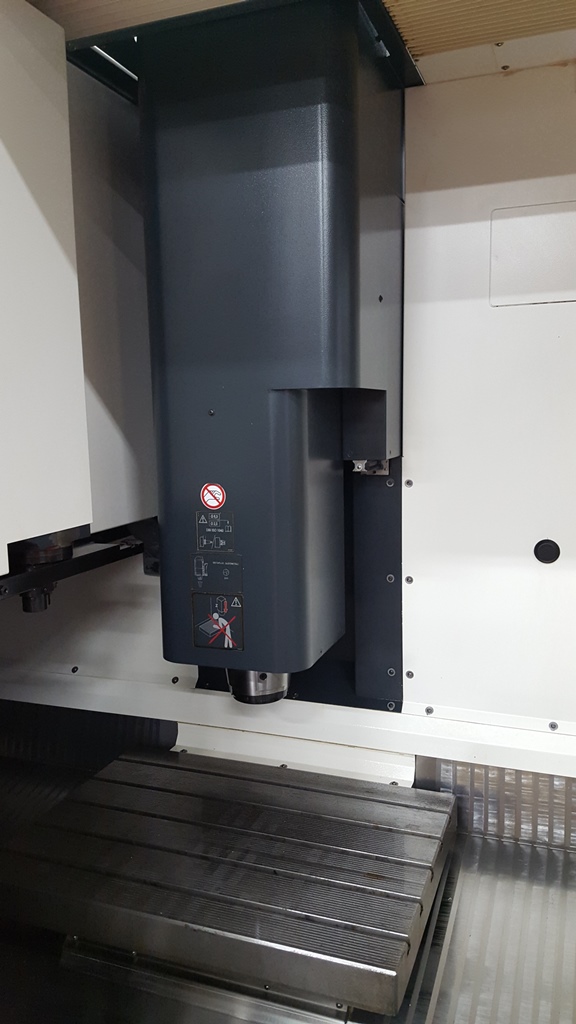

MAIN SPINDLE:

TURNING SPEED RANGE - MAIN SPINDLE MAX. 18.000 MIN/-1

POWER CAPACITY - MAIN SPINDLE 25 KW

TOOL TAPER HSK 63A

WORK TABLE:

TABLE SURFACE AREA 790 X 560 MM (31" x 22")

T-SLOT - DISTANCE 100 MM

T-SLOT - WIDTH 4X 14H12 / 1X 14H7 MM

MAX. TABLE LOAD 600 KG

TABLE HEIGHT OVER FLOOR 720 MM

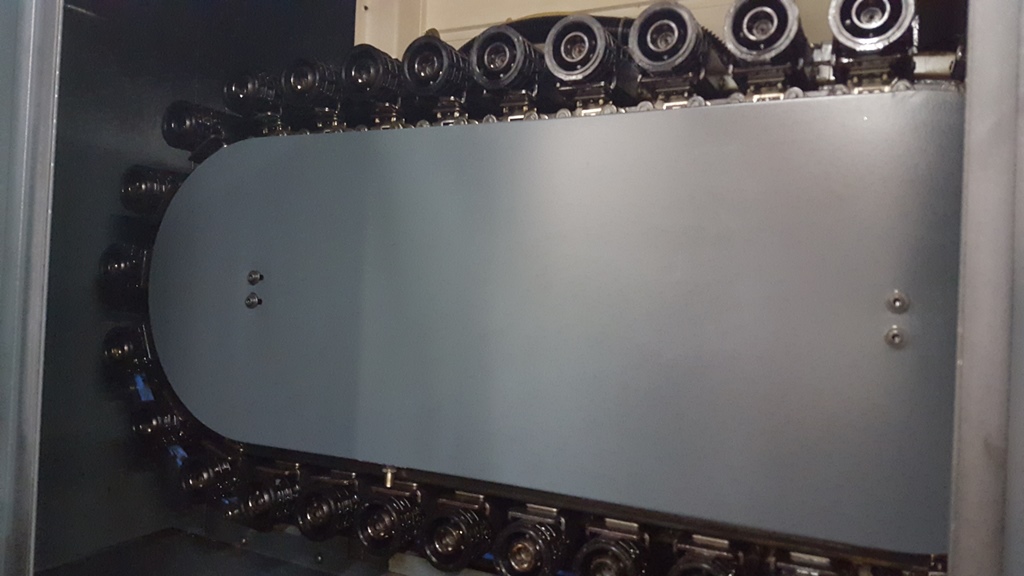

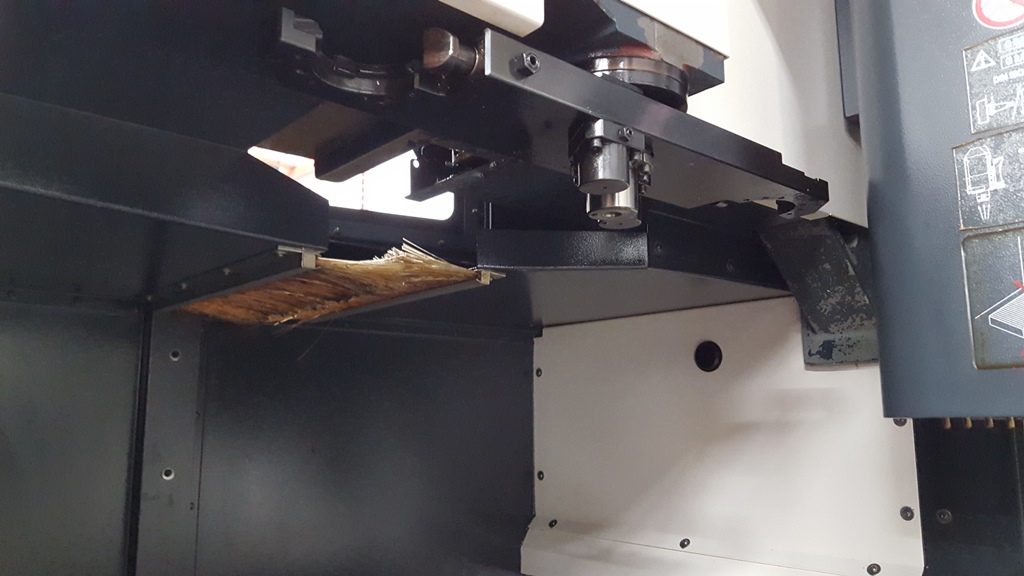

NUMBER OF TOOL POSITIONS 30 POS.

MAX. TOOL LENGTH 300 MM

MAX. TOOL WEIGHT 6 KG

FEED RATE:

RAPID TRAVERSE 25 M/MIN

FEED SPEEDS 1 - 20.000 MM/MIN

DIMENSIONS OF THE MACHINE CA. 3,5 X 4,0 X 2,7 M

EQUIPPED WITH: BOOKS/MANUALS

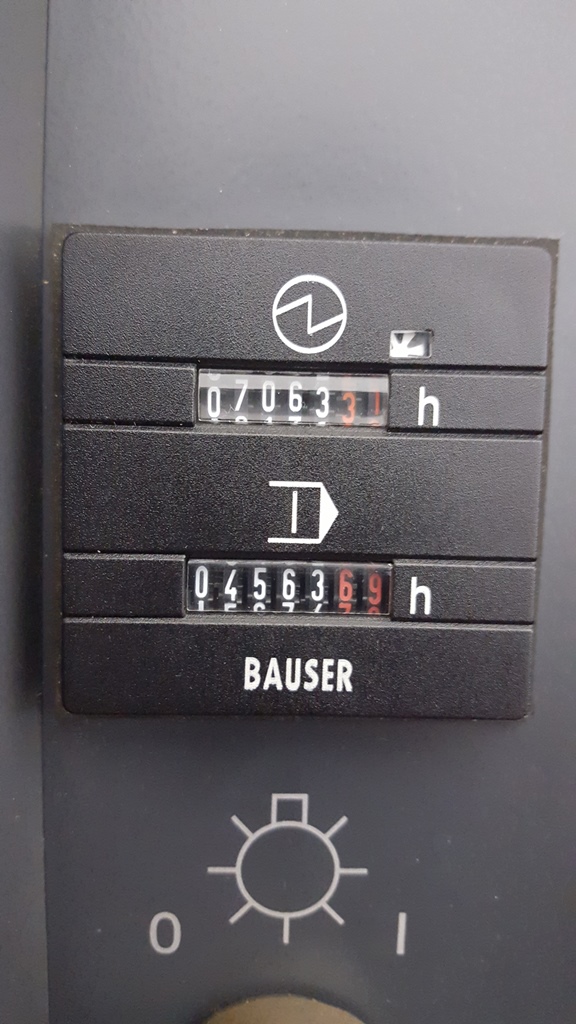

POWER ON HOURS: 7063

CUTTING TIME HOURS: 4563

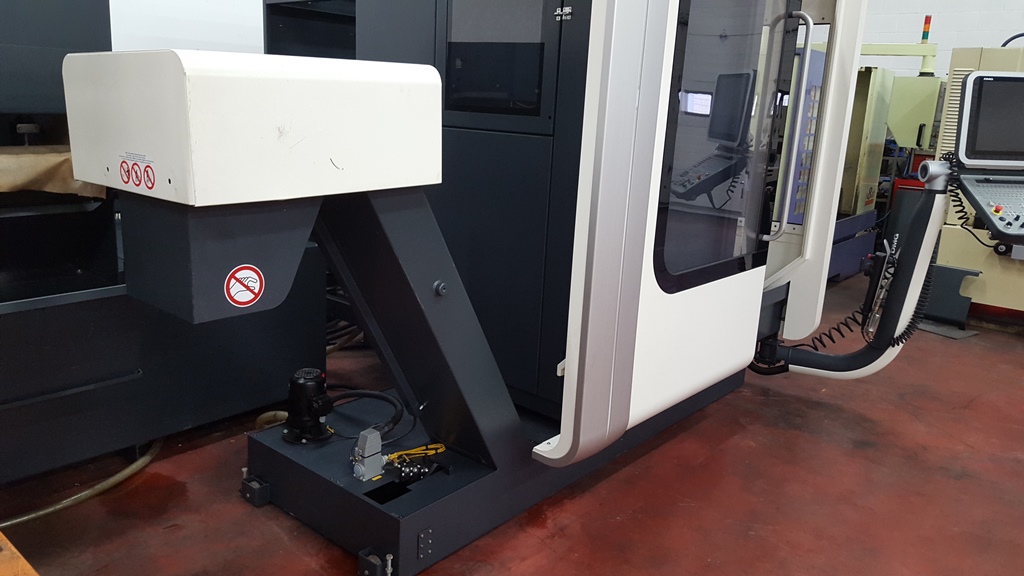

Photos
