Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 1825

Manufacturer DMG

Model DMU 100P

Year 2007

Axis_Travels(X;Y;Z) 39" x 39" x 39"

RPM 18000

HP 37

ATC 40

Control HEIDENHAIN 530

Price SOLD!

Other specifications

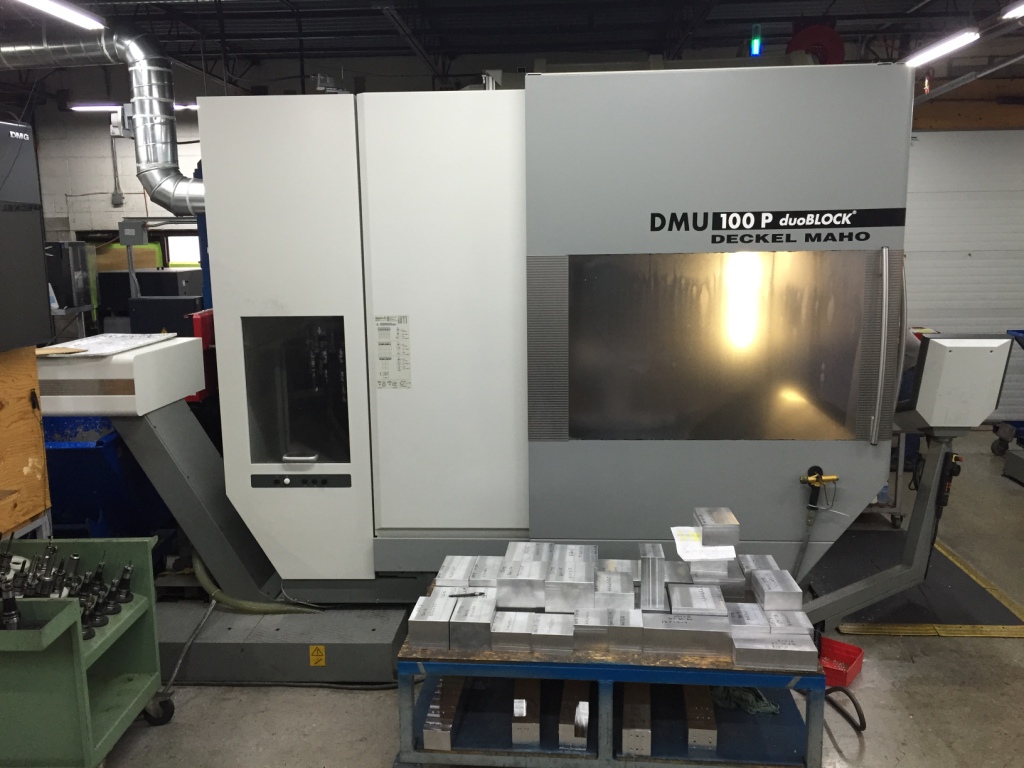

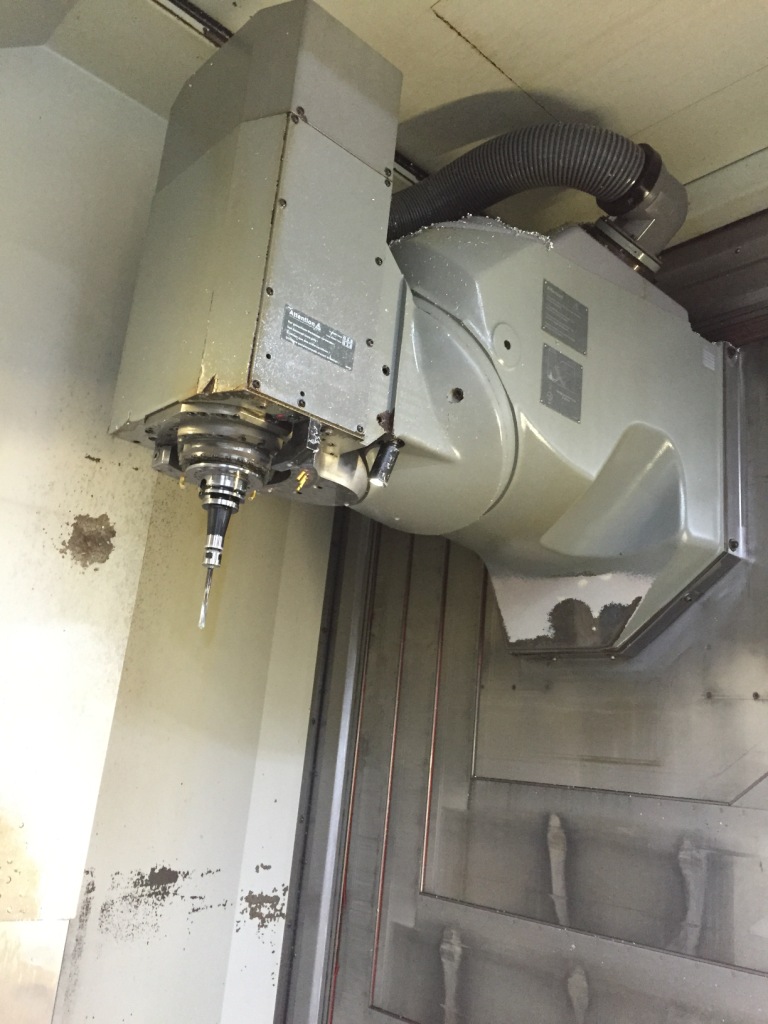

DECKEL MAHO DMG DMU 100 P duoBLOCK – B Axis Head 5- AXIS Universal Milling Machine

YEAR: 2007

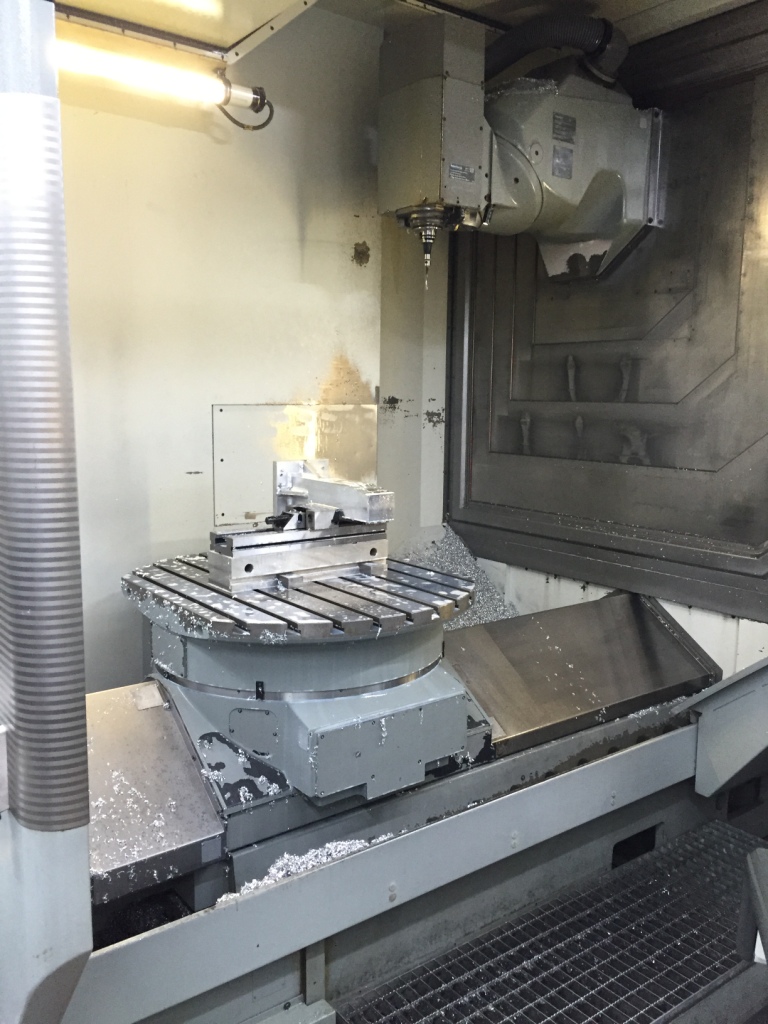

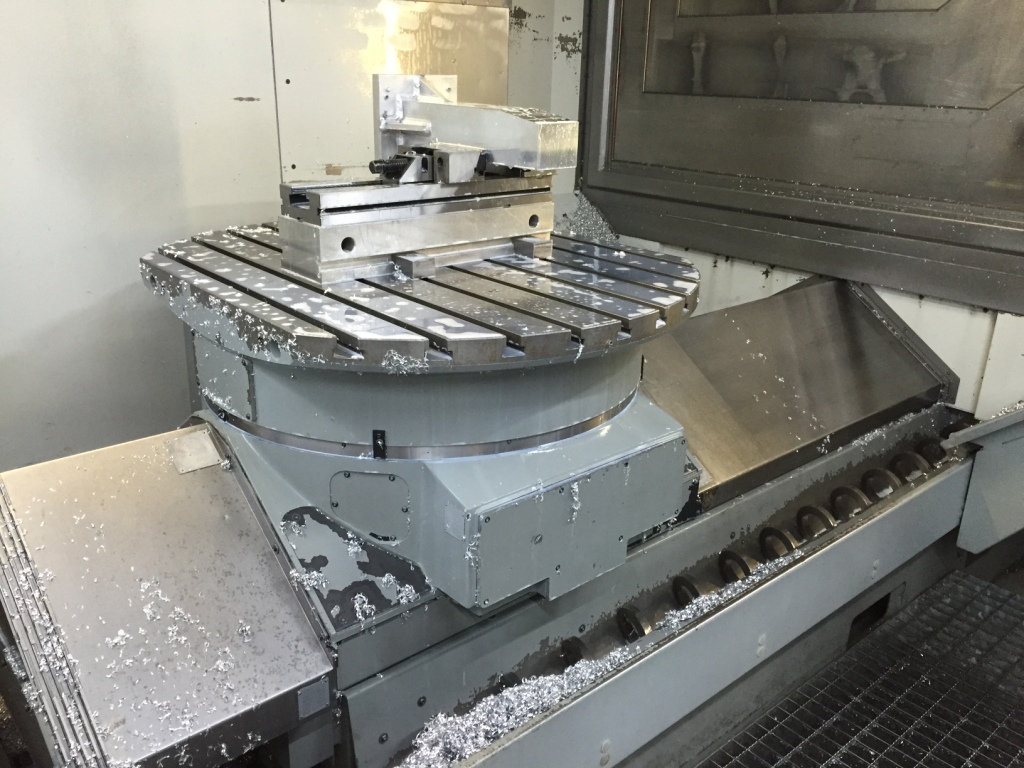

NC Swivel Rotary Table........ 43.3" x 35.4" (1,100mm x 900mm)

Table Load Capacity .......... 4850 lbs (2,200 kg)

X-Axis movement............... 39.4" (1,000mm)

Y-Axis movement............... 39.4" (1,000mm)

Z-Axis movement............... 39.4" (1,000mm)

B-Axis movement............... 0-190 Degrees

C-Axis movement............... .001 Degrees

Feed / Rapid traverse Rates... 2363 IPM (60 m/min)

Spindle max. Speed............ 18,000 RPM

Spindle Taper................. HSK-A 63

Main Drive Motor.............. 37.5/25.5 HP (28/19 kW)

Through spindle coolant....... 40 bar / 580 psi

Automatic Tool Changer........ 40 magazine pockets

Machine Dimensions

L x W x H..................... 182.6" x 192.2" x 133.9"

Machine Weight................ 40,785 lbs.

Equipped with:

-HEIDENHAIN iTNC 530 / MillPlus IT CNC 3D contouring control

-3D quickSET Workpiece Simulation software

-Electronic handwheel iTNC 530

-Rotating clear-view window

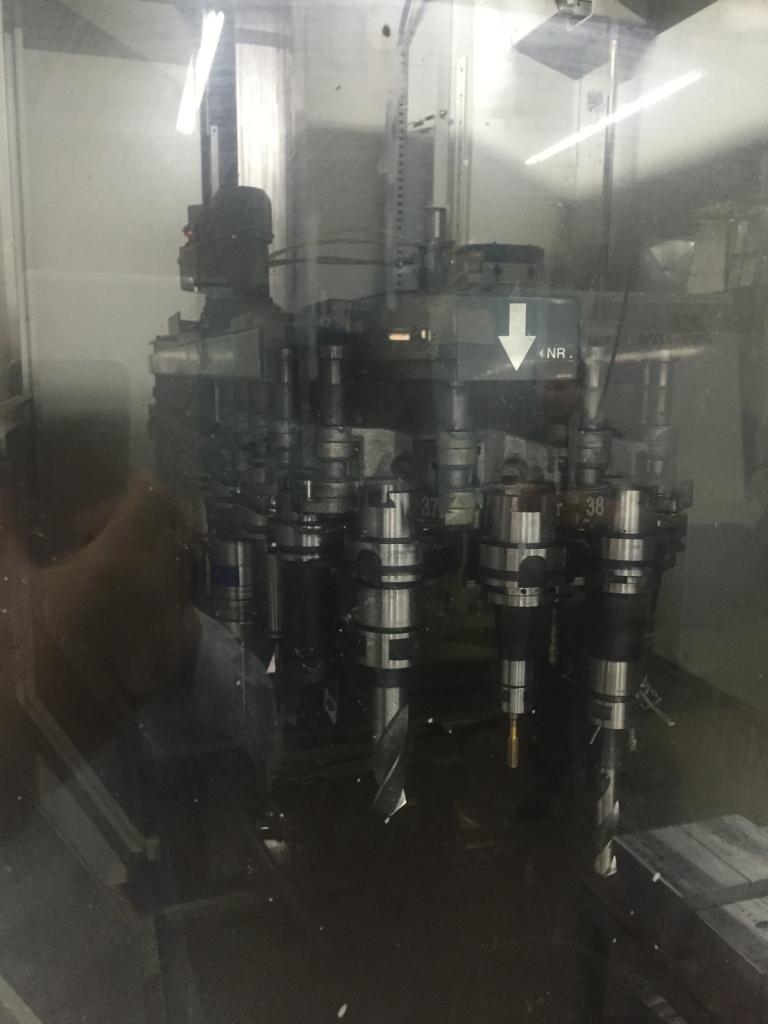

-40 Tool Magazine

-Heidenhain TS 640 infrared part measuring touch probe

-Tool life compensation management

-Blum Laser NT-Hybrid auto tool Length and diameter measuring

-Tool measuring in horizontal/vertical position

-Automatic retraction of the measuring unit in a protected housing

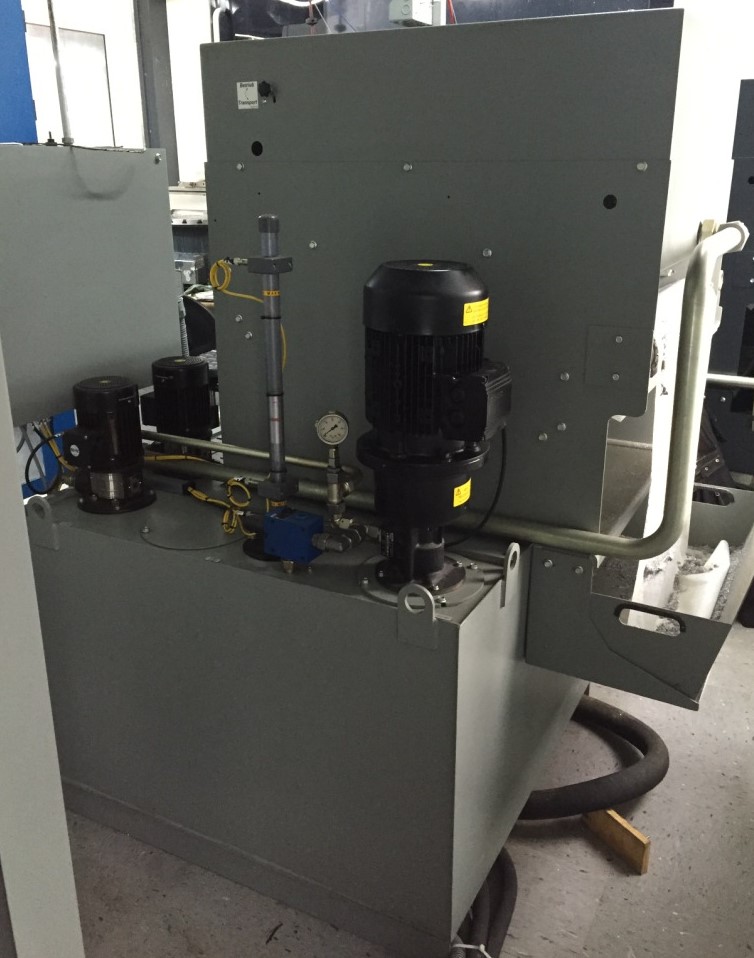

-Coolant Thru Spindle

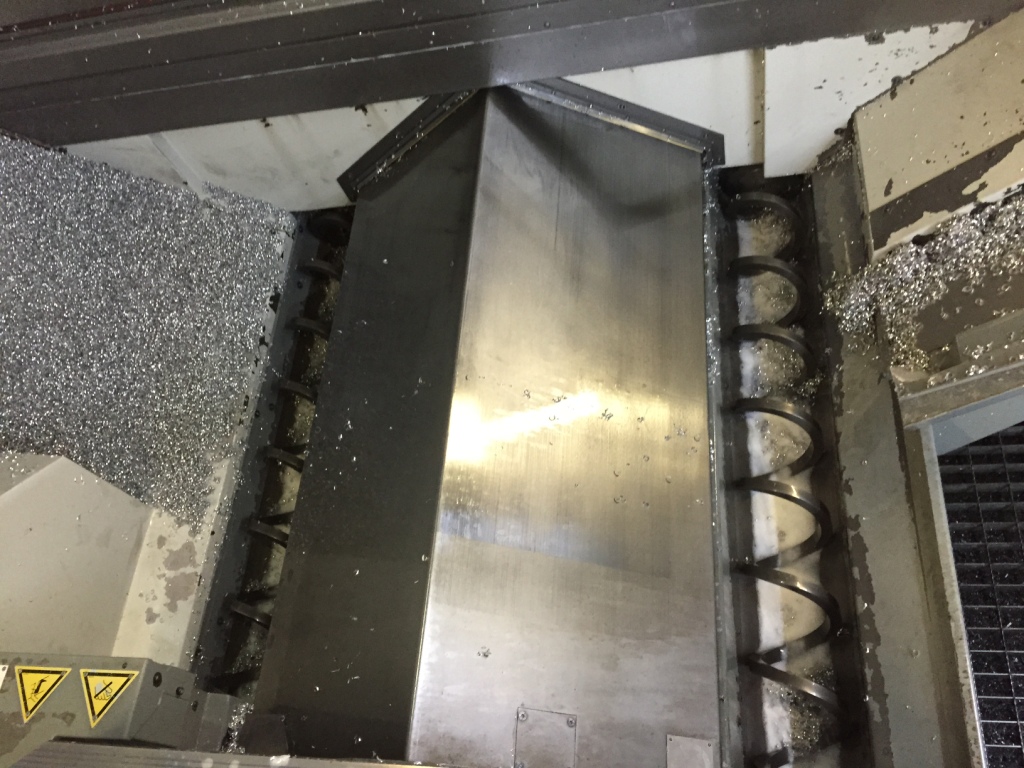

-Chip conveyor

POWER ON: 19637 HOURS

CUTTING TIME: 6198 HOURS
