Specifications

Categories > Lathes, CNC - Turning Centers
Ask for quotation
Stock ref. # 1833

Manufacturer DMG

Model CTX BETA 500

Year 2009

Swing 27.6"

Turning Length 19.68"

Chuck Size 10"

Spindle Bore 2.87"

HP 46

RPM 4000

Control HEIDENHAIN

Price CALL US!

Other specifications

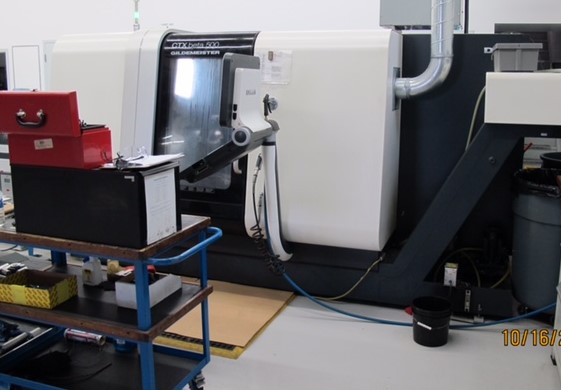

DMG Gildemeister CTX BETA 500 CNC Lathe

with Heidenhain CNC Control / Y-axis / C-axis and live driven tools

Year of Mfg: 2009

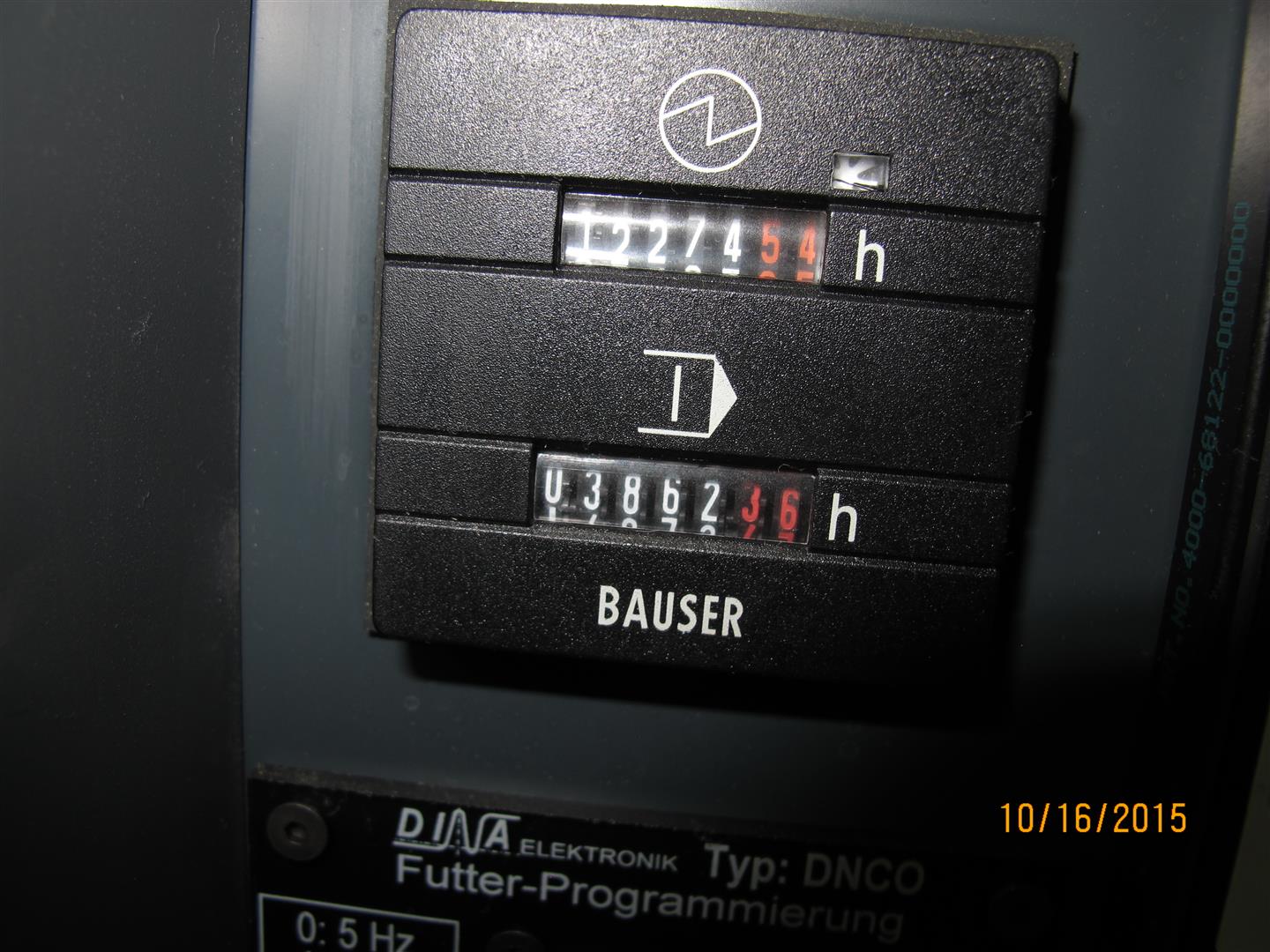

Power on hours: 12,274

Spindle hours: 3.862

Spicifications:

Max Swing.............................. 700mm (27.6")

Max Turning Diameter............ 410mm (16.14")

Distance between centers...... 500mm (19.68")

Spindle Motor power............... 34/25 kW

Spindle motor Torque............. 127 Nm

Max. Spindle Speed................ 4000 rpm

Spindle bore............................ 73 mm (2.87")

Z-axis travel............................. 550mm (21.7")

X-axis travel............................. 300mm (11.8")

Transverse stroke (Y).............. +/- 60mm (+/- 2.4")

No. of Tool stations................. 16 stations (all driven)

C-axis positions....................... 360,000 / 0.001

Live driven tools speed............ 6000 rpm

Tailstock cone.......................... MK5

Machine dimensions:

L x W x H................................. 4772mm x 4214mm x 1937mm

Net machine Weight................ 6100 Kg

Equipped with:

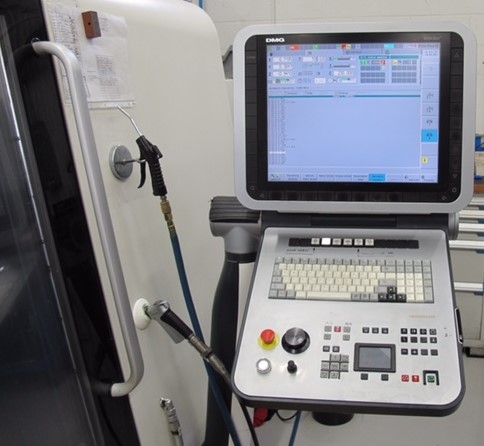

- CNC HEIDENHAIN Plus iT with ERGO Line

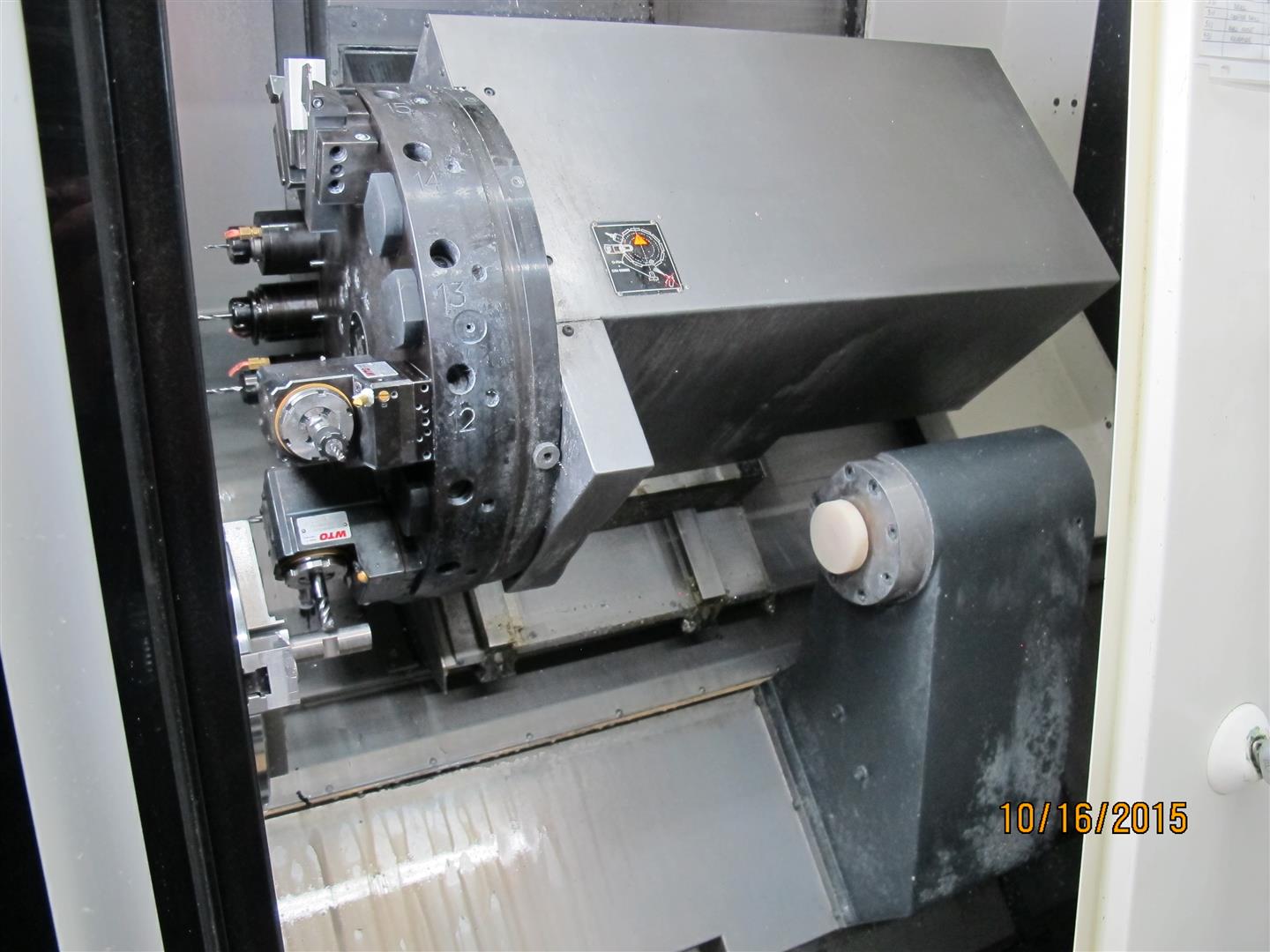

- SAUTER Turret - VDI 30

- All turret stations have live driven tool capability / C-axis

- SMW AUTOBLOK hydraulic 10" chuck - KNCS-N 225-65

- Programmable tail stock

- Water cooling for Main Spindle

- Lift up Chip Conveyor

- Parts catcher

- CSA electrical safety approved

Photos
