Specifications

 Categories > Machining Center, Vertical

Ask for quotation
  Stock ref. # 1940

  Manufacturer MAZAK
  Model VCU 400-5X
  Year 2013
  Axis_Travels(X;Y;Z) 20" x 16" x 20"
  RPM 12000
  HP 15
  ATC 30

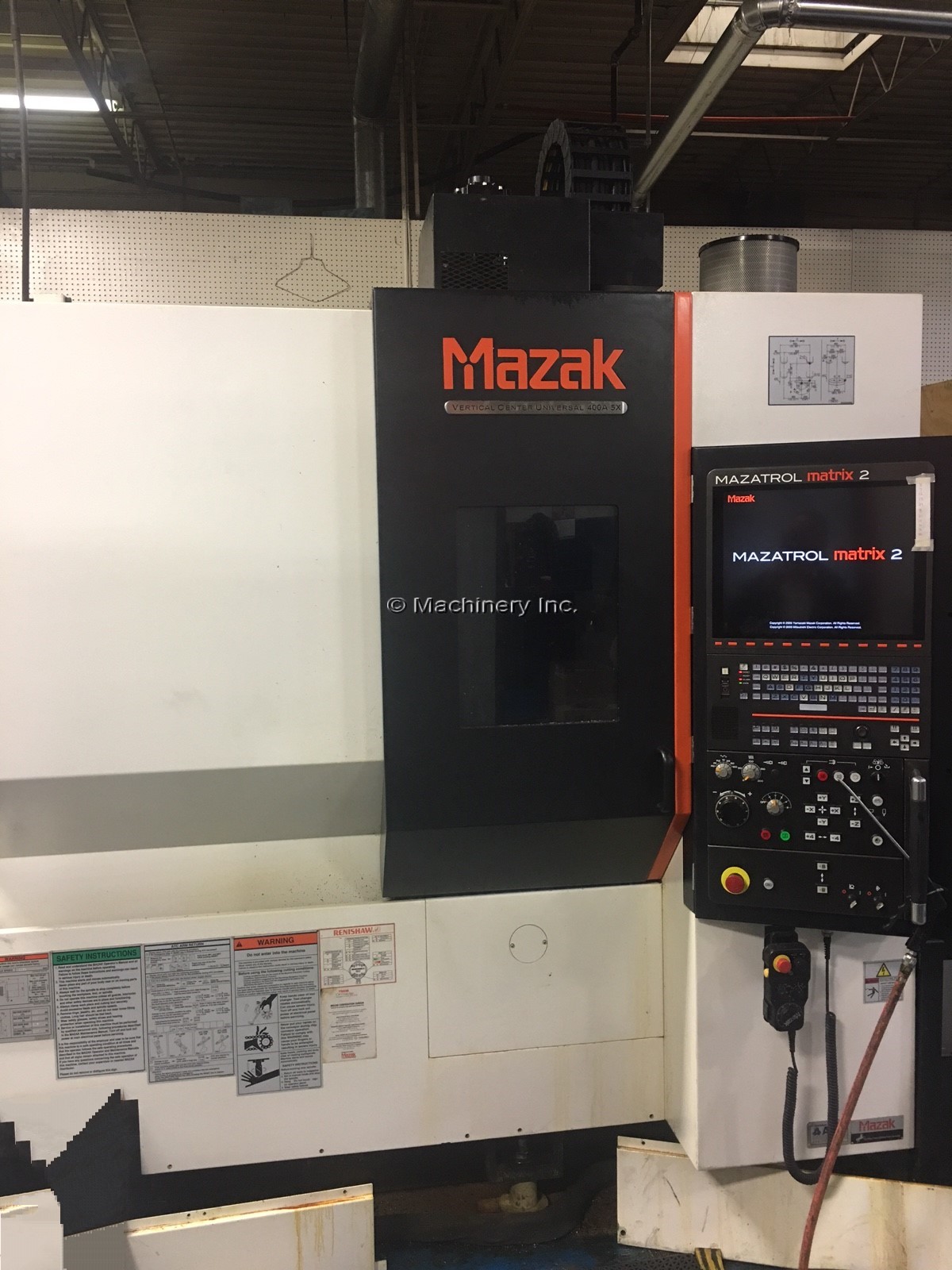

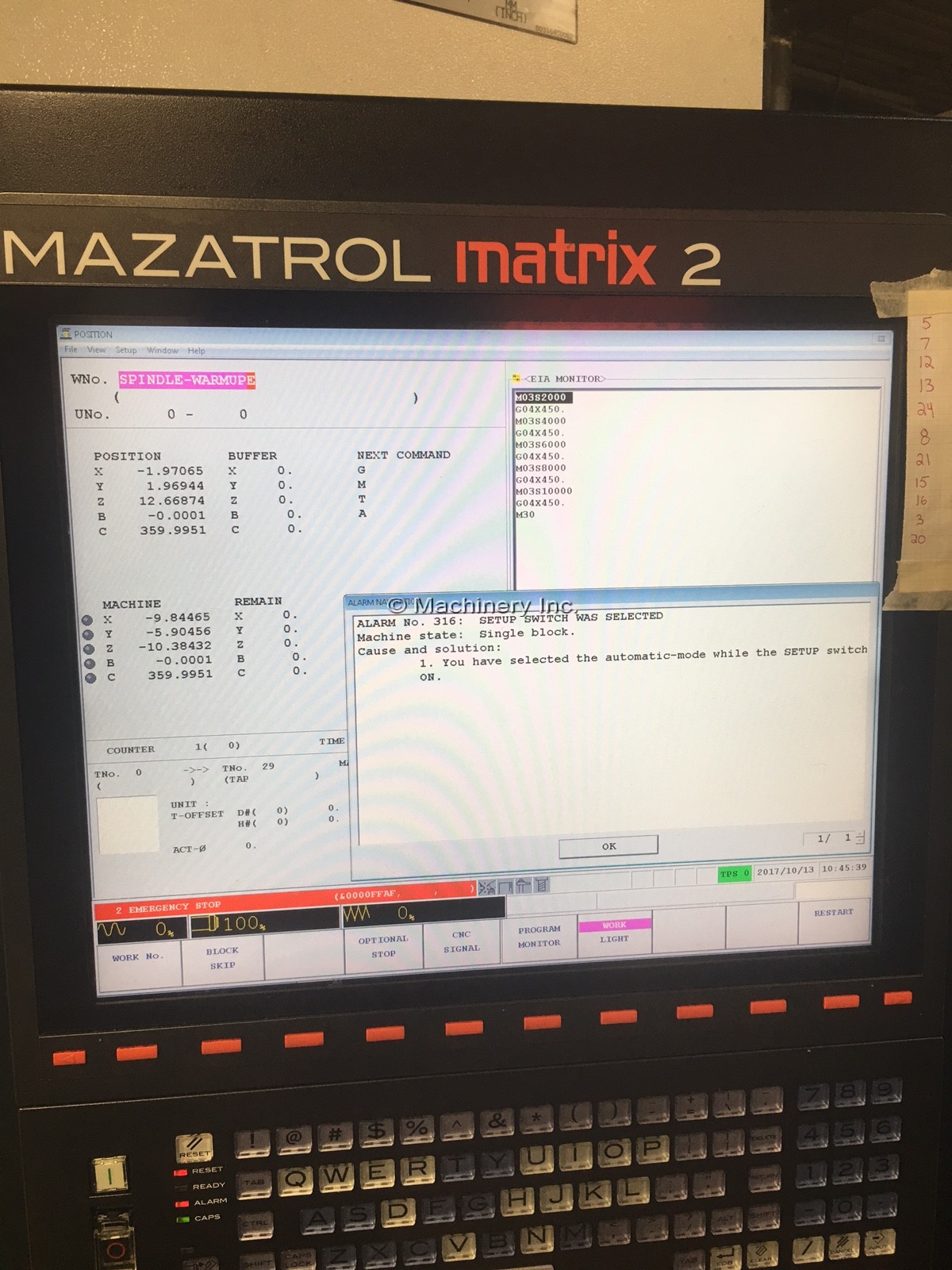

  Control MAZATROL MATRIX 2
  Price SOLD!



Other specifications



                  Mazak VCU-400A-5X 5-Axis CNC Vertical Machining Center, 2013

                  MODEL: VCU 400-5X

                  YEAR: 2013

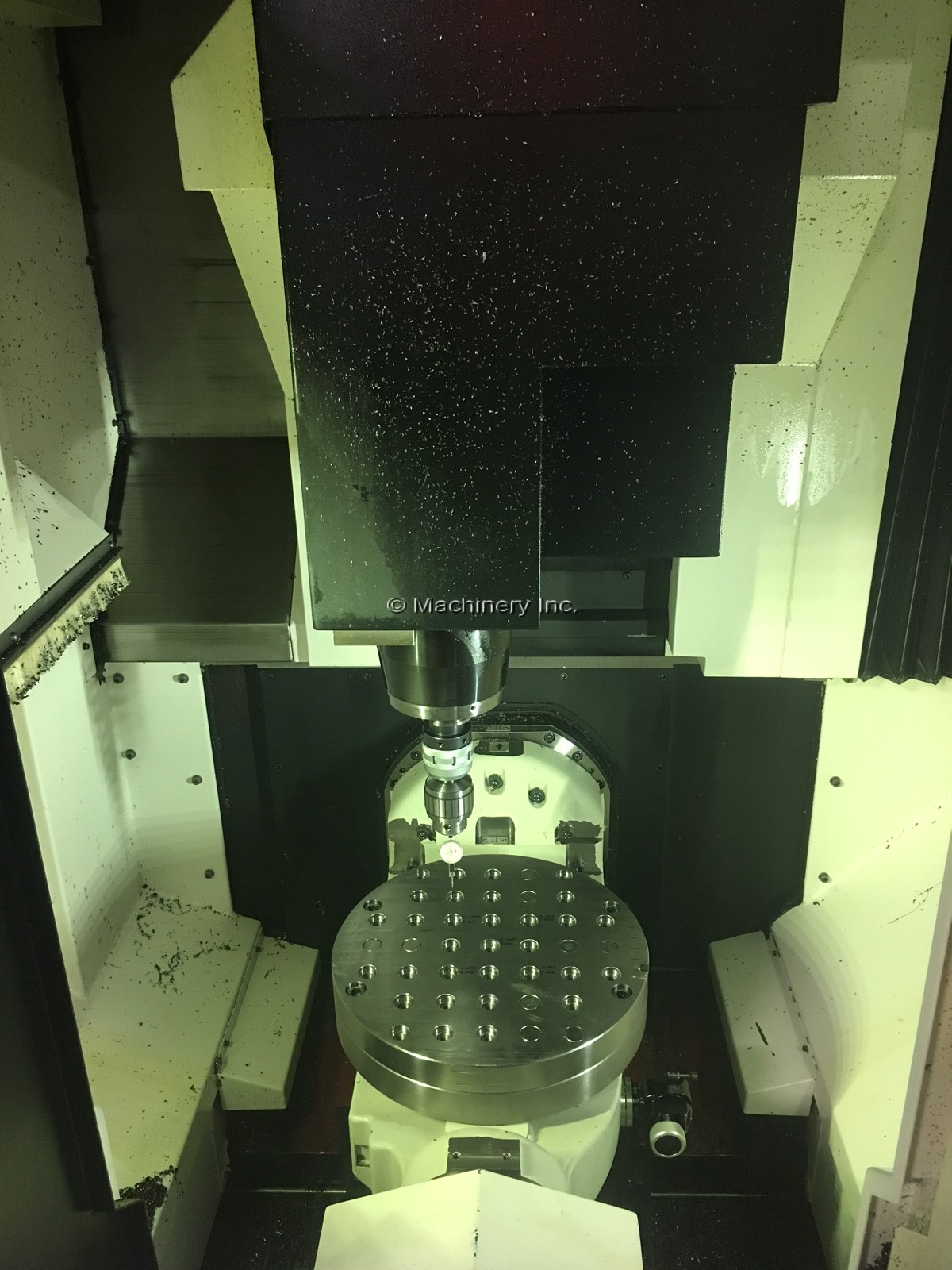

                  Table Size…………………………………………………………… 15.75” diameter

                  X-Axis Travel……………………………………………………… 19.88”

                  Y-Axis Travel……………………………………………………… 15.75”

                  Z-Axis Travel……………………………………………………… 20.07”

                  B-Axis Travel (table tilting: indexing 0.0001°)……… + 95° ~ -45°

                  C-Axis Travel (table rotation: indexing 0.0001°)…. +/- 360°

                  Spindle Nose to Table Surface (Min/Max)………….. 4.53” / 24.61”

                  Maximum Table Weight Capacity……………………… 441 LBS

                  Table Height……………………………………………………… 26.38”

                  Spindle Speed / Motor (30min.)…………… 12,000 RPM / 15 HP

                  Spindle Taper……………………………………………………… Taper #40

                  Rapid Traverse (X,Y,Z)………………………………………… 945 IPM

                  Number of Tools………………………………………………… 30

                  Maximum Tool Diameter (adjacent tools)………… 3.15”

                  Maximum Tool Diameter (no adjacent tools)…… 4.92”

                  Maximum Tool Length……………………………………… 10.23”

                  Tool Shank Type………………………………………………… CAT #40

                  Machine Height……………………………………………… 125.03”

                  Floor Space (w x l)…………………………………………… 84.65” x 124.21”

                  Machine Weight……………………………………………… 14,330 Lbs

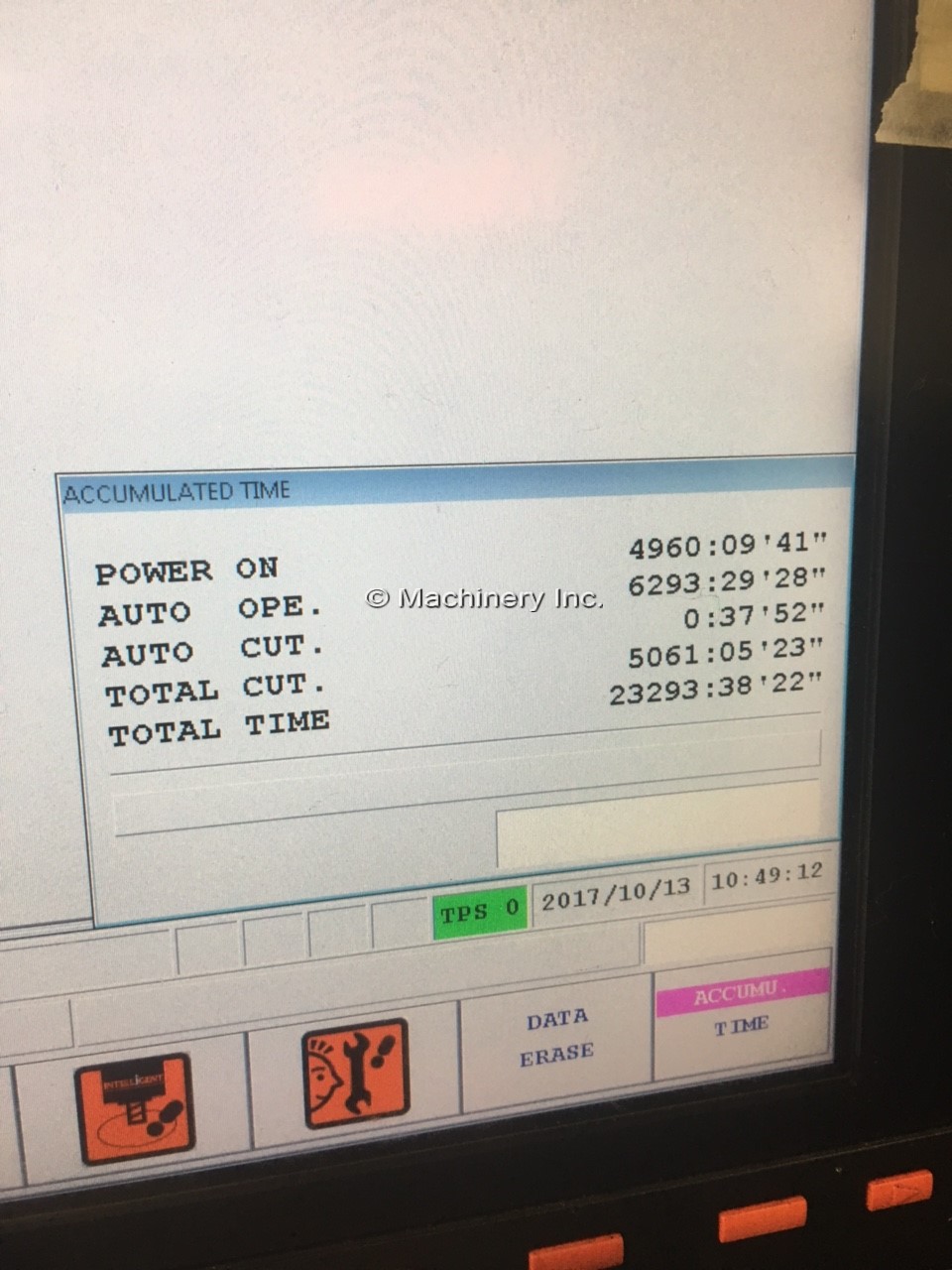

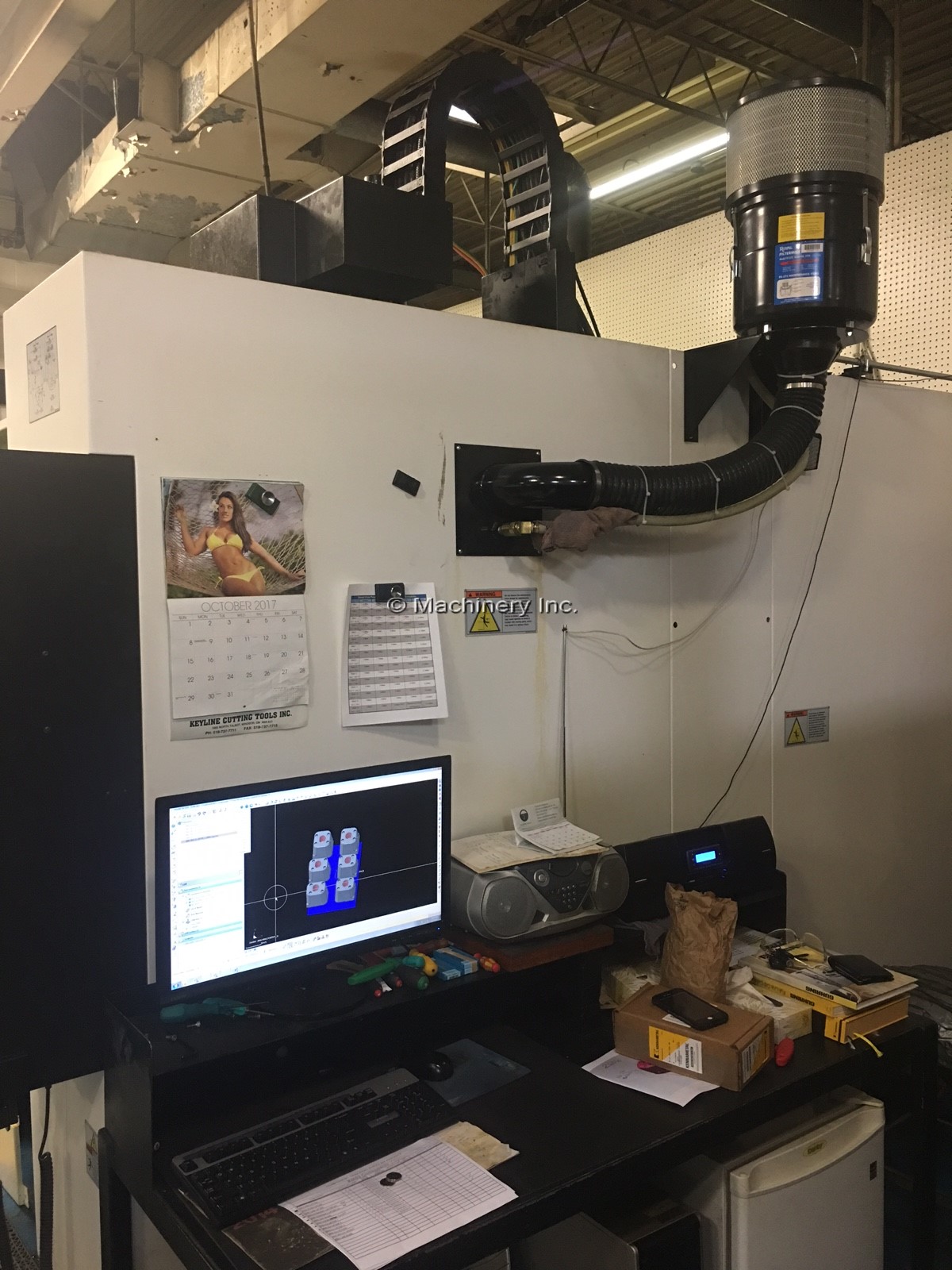

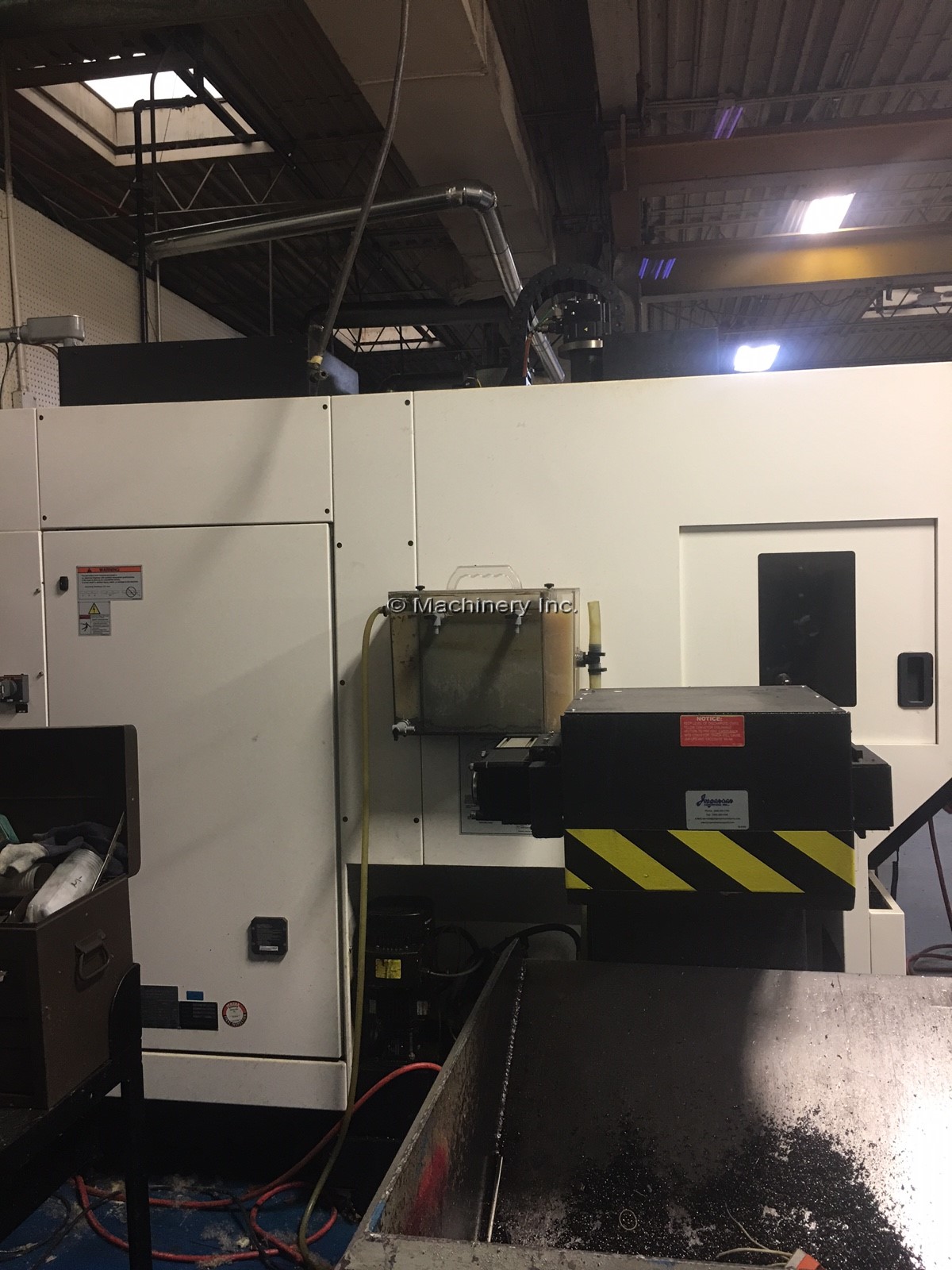

Photos
