Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 1956

Manufacturer KAO MING

Model KMC-3000 SV

Year 2005

Axis_Travels(X;Y;Z) 127" x 63" x 33"

Capacity 7 Ton

RPM 6000

HP 35

ATC 30

Control FANUC

Price SOLD!

Other specifications

KAO MING KMC-3000SV BRIDGE MILL, 2005

MANUFACTURER: KAO MING

MODEL: KMC-3000SV

YEAR: 2005

TABLE WORKING SURFACE 49.21" x 118"

TABLE LOAD CAPACITY 15,400 LBS.

LONGITUDINAL TRAVEL (X-AXIS) 127.16"

CROSS TRAVEL (Y-AXIS) 63.11"

VERTICAL TRAVEL (Z-AXIS) 33.46"

DISTANCE BETWEEN COLUMNS 66.60"

DISTANCE SPINDLE NOSE TO TABLE TOP 7.87" - 41.34"

CUTTING FEED RATES, ALL AXES 196 IPM

RAPID TRAVERSE RATE, ALL AXES 472 IPM

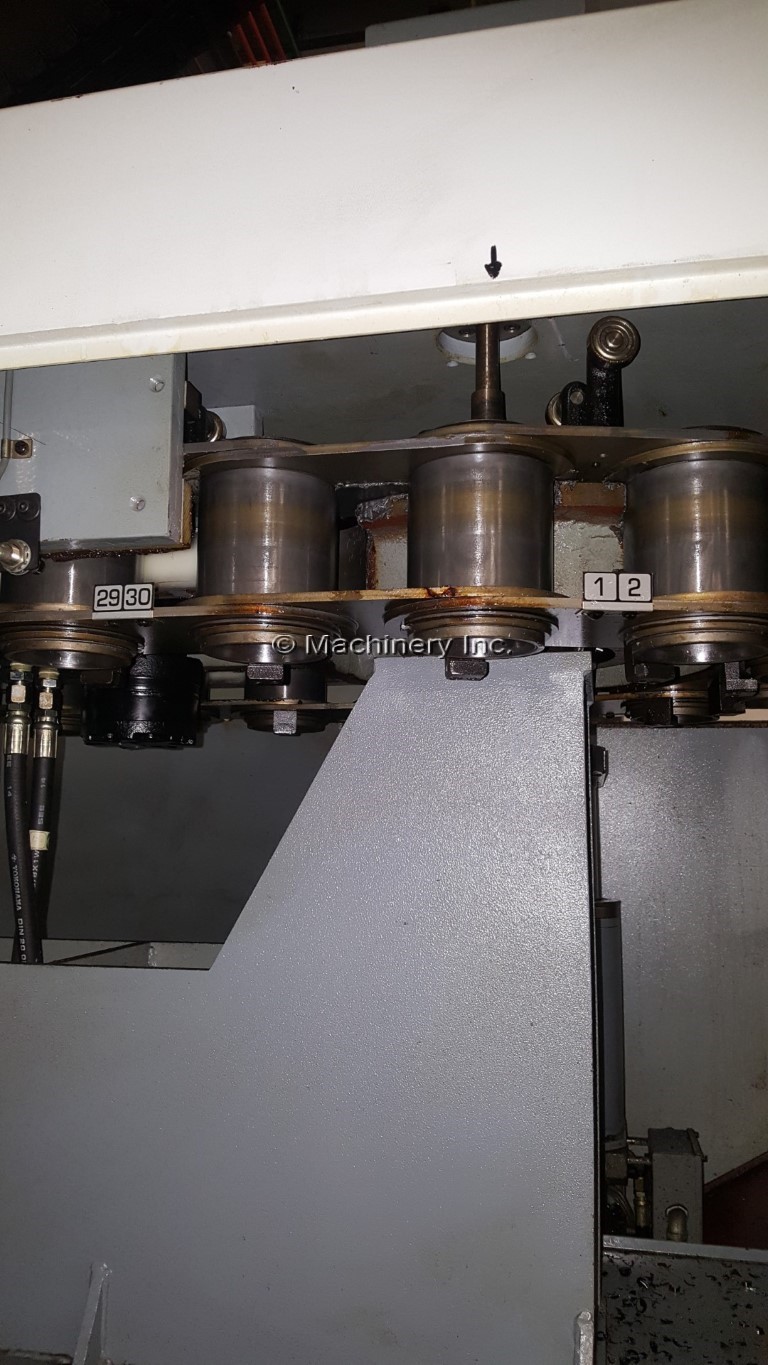

TOOL STORAGE CAPACITY 30 TOOLS

SPINDLE HORSEPOWER 35 HP

SPINDLE SPEEDS RANGE 6000 RPM / 2 SPEED GEAR BOX

SPINDLE TAPER CAT-50

OVERALL DIMENSIONS 320" x 185" x 167"

APPROXIMATE WEIGHT - NET 47,960 LBS.

Equipped With:

FANUC 18-M

2 SPEED GEAR BOX

RIGID TAPPING

MANUAL PULSE GENERATOR

FULL GUARDING

COOLANT TANK

BOX WAY DESIGN

CHIP AUGERS & CHIP CONVEYOR

SPINDLE CHILLER

ALARM LAMP

AIR BLAST

AUTO POWER OFF

WORK LIGHT

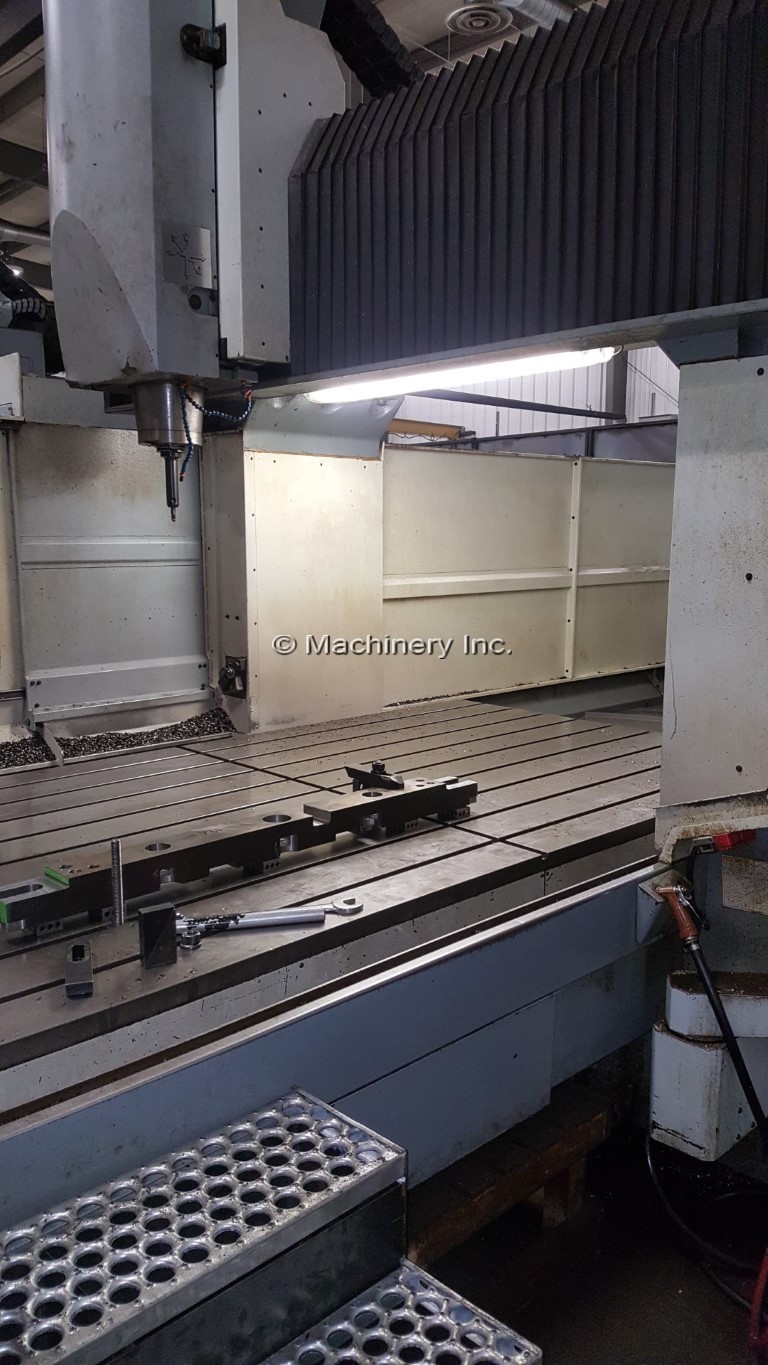

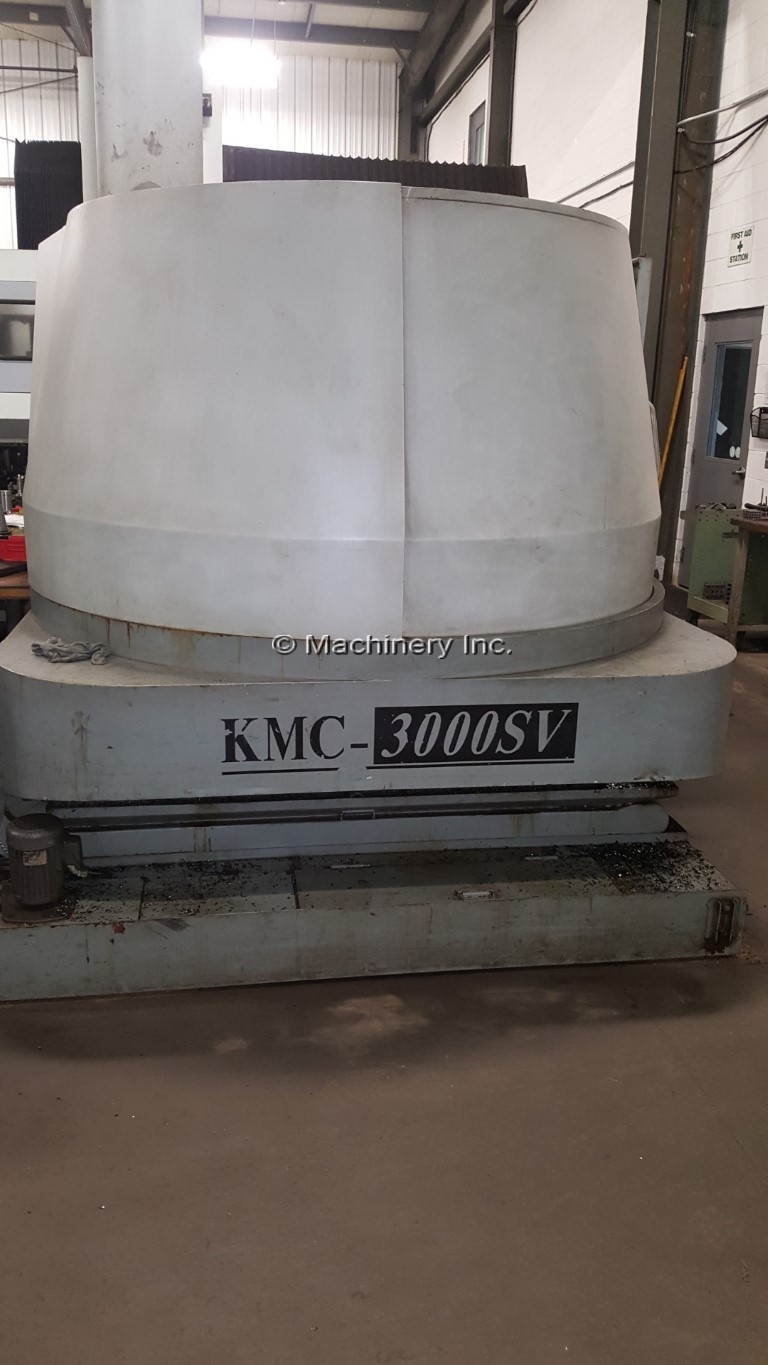

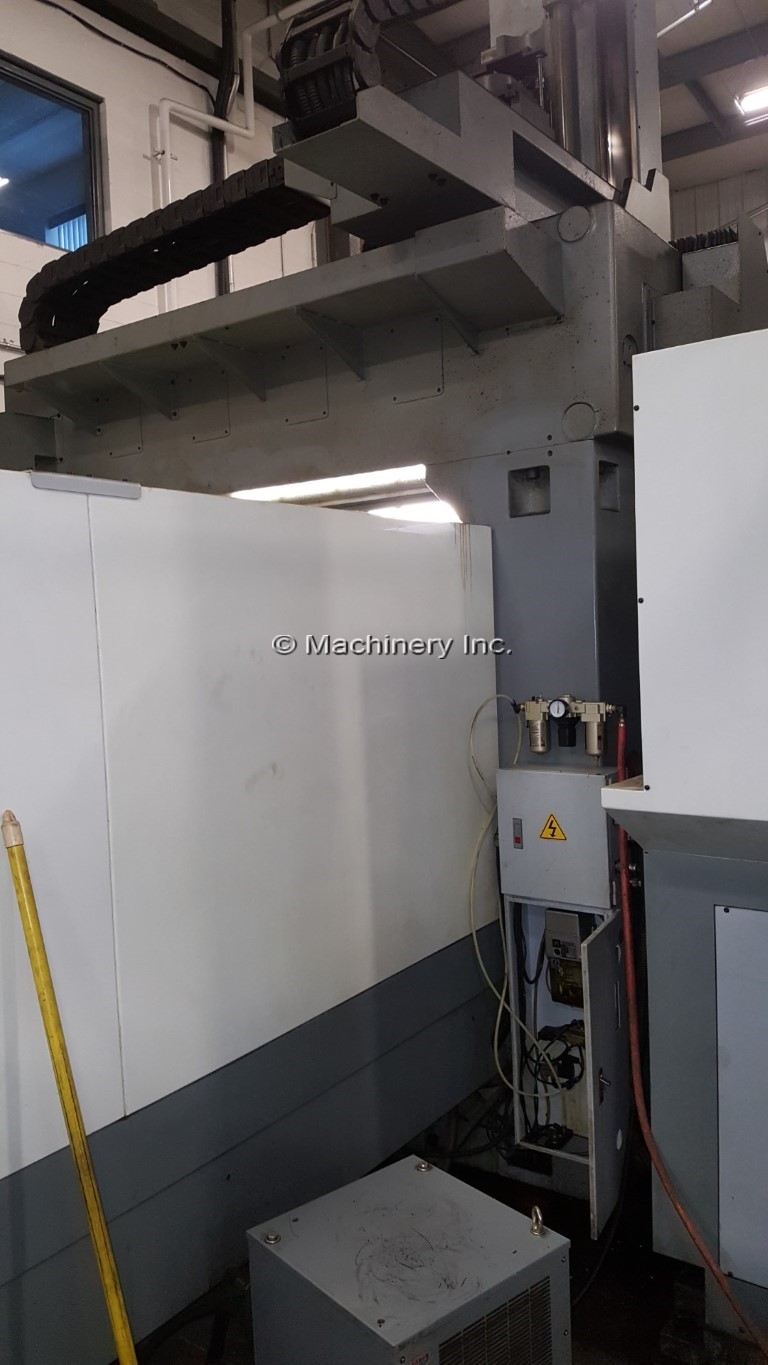

Photos
