Specifications

 Categories > Machining Center, Vertical

Ask for quotation
  Stock ref. # 1981

  Manufacturer DMG
  Model DMU125P hi-dyn
  Year 2001
  Axis_Travels(X;Y;Z) 49" x 34.6" x 31.5"
  RPM 8000
  HP *
  ATC 60
  Control HEIDENHAIN TNC 430
  Price CALL US!



Other specifications

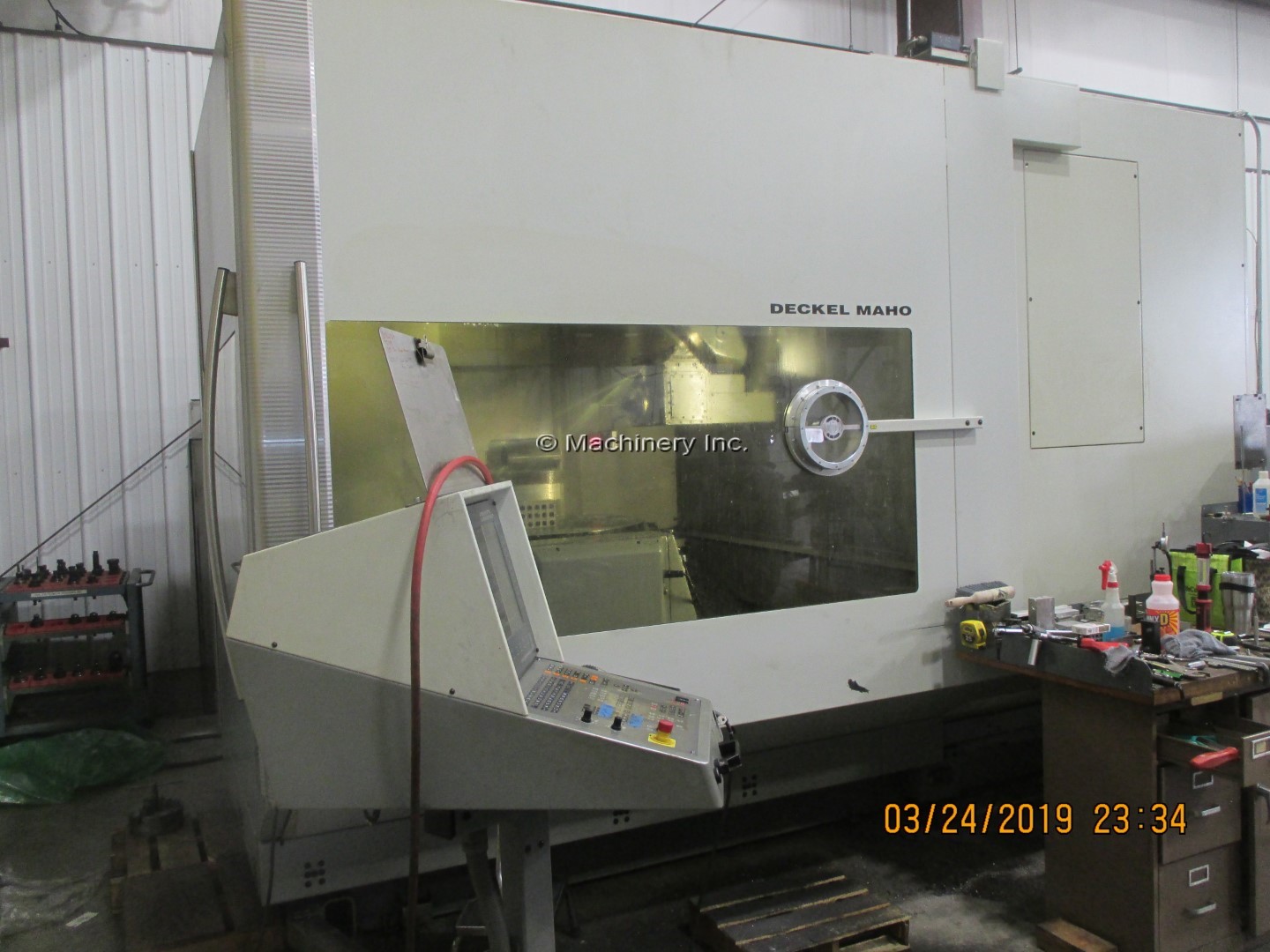

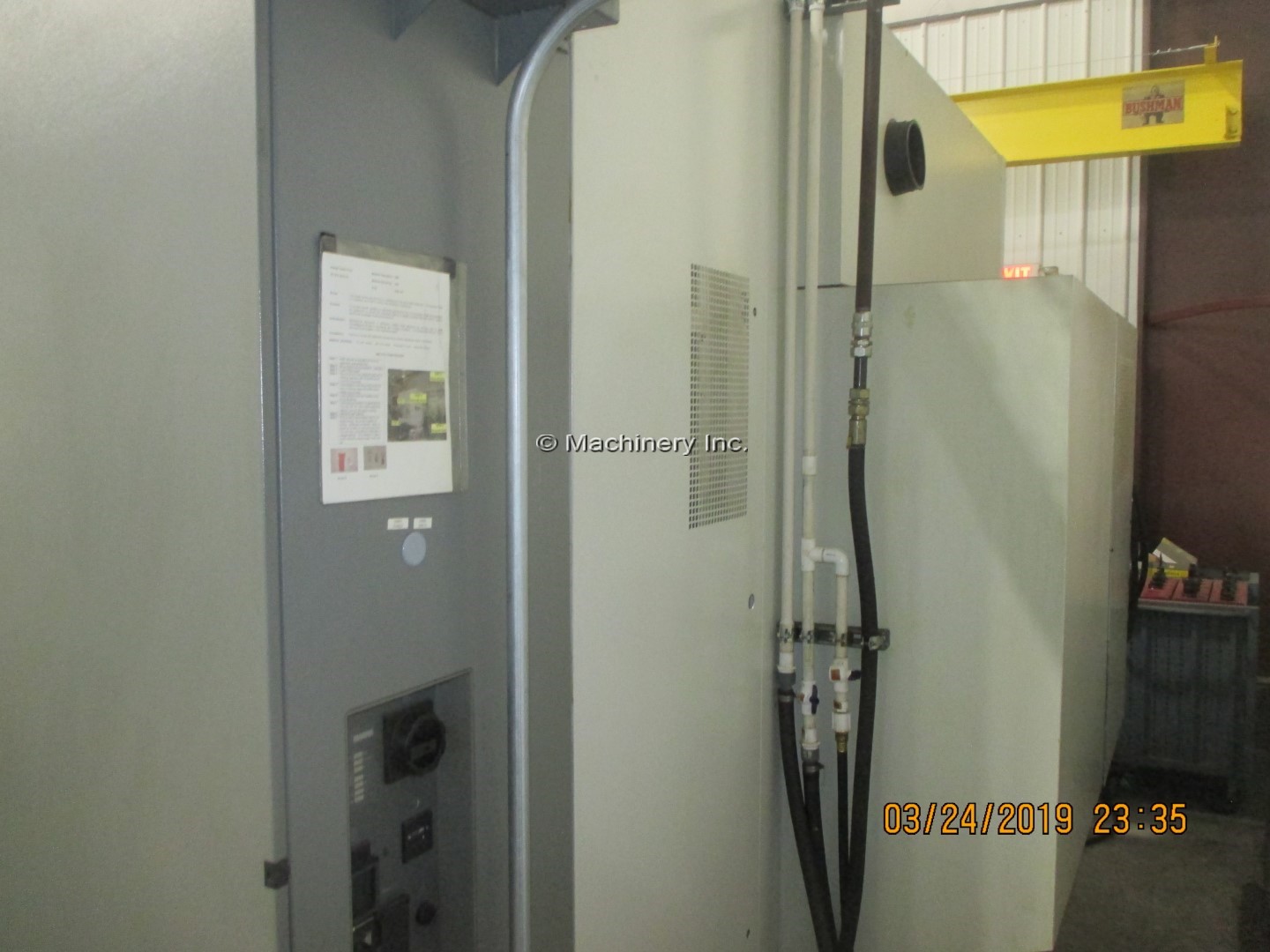

                  Used 2001 DMG-DECKEL MAHO DMU125P hi-dyn 5-Axis Universal Machining Center, 2001



                  Machine manufactured in Pfronten, Germany



                  HEIDENHAIN TNC430 CNC Control with HEIDENHAIN HR410 Handwheel



                  -DESIGN CONCEPT-

                  This is a UNIVERSAL machining center meaning it is two machines in one:

                  both a vertical AND horizontal machining center. The universal milling

                  head on this machine is automatic and programmable. It can be swivelled in

                  4 seconds from vertical to horizontal, and in combination with the rotary

                  swivel table makes 5-sided, full 5-axis machining in 1 set up possible.



                  Setup time is reduced, the need for multiple setups is eliminated and

                  accuracy and precision are improved. The P Series machines are intended

                  for fully automatic manufacturing of highly complex workpieces in a single

                  set up. Ideal for both small and large batches with the high production

                  components including high pressure CTS (Coolant Thru The Spindle) and

                  chip conveyor.



                  -WORKING RANGE-

                  X axis (longitudinal)................................ 49.21" (1,250 mm)

                  Y axis (transverse).................................... 34.65" (880 mm)

                  Z axis (vertical)...................................... 31.50" (800 mm)



                  -NC SWIVEL ROTARY TABLE, has bearings on both sides-

                  Clamping surface............................ 39.37" diameter (1,000 mm)

                  Maximum table load................................ 2,205 lbs (1,000 kg)

                  Rapid speed rotary axis........................................ 5.3 rpm

                  Rapid speed swivel axis........................................ 5.6 rpm

                  Rotation range...................... 360 x 0.001 degree (Full 4th axis)

                  Swivel angles To spindle -45 degrees, from working spindle +30 degrees

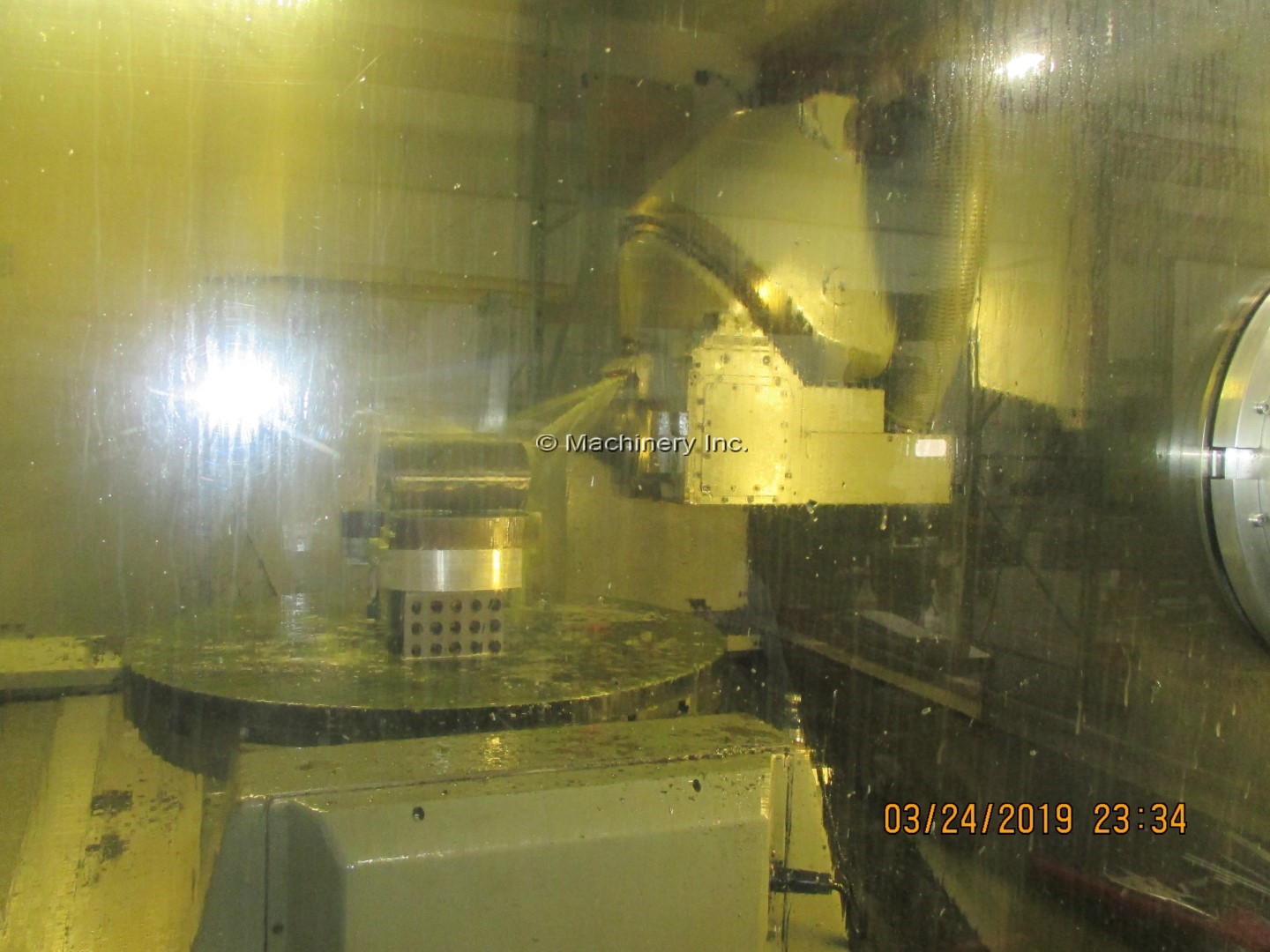

                  -AUTOMATIC UNIVERSAL MILLING HEAD-

                  Automatic swivel from horizontal to vertical in approximately 4 seconds.

                  The auto swivel head makes this machine 2 machines in one because both

                  vertical and horizontal machining is possible with one workpiece clamping.

                  Together with the NC Swivel Rotary table 5-Sided, full 5-Axis machining is

                  possible with one workpiece clamping.



                  -Power SPINDLE 5X torque-MASTER (GEARED HEADSTOCK)-

                  Type............................................. AC controlled/digital

                  Power 40% duty cycle (S3)............................. 21.46 hp (16 kW)

                  Power 100% duty cycle (S1)............................ 17.43 hp (13 kW)

                  Spindle speed range....................................... 20-8,000 rpm

                  Number of gear steps................................................. 2

                  MAXIMUM SPINDLE TORQUE......................... 811.3 ft/lbs (1,100 Nm)

                  Spindle bearing diameter front.......................... 3.94" (100 mm)

                  Spindle taper.................................................... CAT40

                  Clamping force..................................... 2,360 lbs (10.5 kN)



                  -FEED DRIVES-

                  Type.............................................. Brushless AC/Digital

                  Feed rate (x-y-z)....................... 0.04-590 ipm (1-15,000 mm/min)

                  Rapid feed (x-y-z)................................ 1,575 ipm (40 m/min)

                  Feed power (x-y-z)................................... 2,250 lbs (10 kN)

                  Ballscrew x/y/z................................... 50x20/40x20/40x20 mm



                  -60 POSITION TOOL CHANGER-

                  Magazine type........................ Chain, horizontal, double gripper

                  Number of pockets................................................... 60

                  Maximum tool weight..................................... 22 lbs (10 kg)

                  Maximum tool diameter with no neighbouring empty pockets 3.94" (100 mm)

                  Maximum tool diameter with neighbouring empty pockets.... 6.3" (160 mm)

                  Maximum tool length..................................... 17.7" (450 mm)

                  Tool change time............................... Approximately 6 seconds

                  Chip-to-chip time CAT40 Approximately 15 seconds vertical, 7 sec horiz



                  -HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM-

                  Input Resolution.............................................. 0.001 mm



                  -HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM-

                  Input Resolution.............................................. 0.001 mm

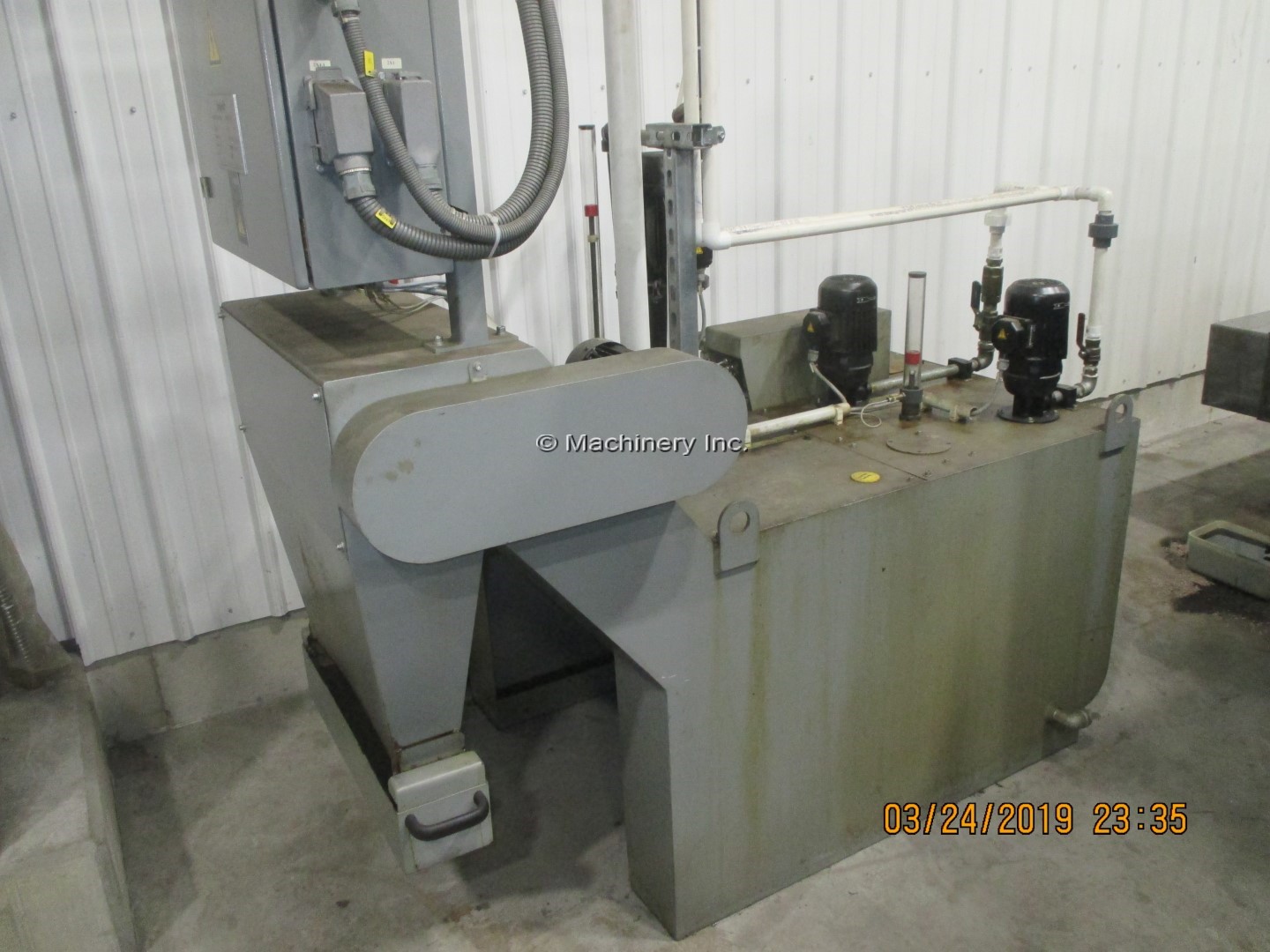

                  -EXTERNAL FLOOD COOLANT PUMP ON OUTSIDE OF SPINDLE-

                  Pump output external jets flow rate....... 5.3 gallon/minute (20 l/min)

                  Coolant tank capacity................................ 50 gallon (189 l)



                  -INTERNAL COOLANT SUPPLY THRU THE SPINDLE-

                  Coolant tank capacity............................... 160 gallon (606 l)

                  Pump output thru the spindle................ 6 gallon/minute (23 l/min)

                  Coolant pressure...................................... 580 PSI (40 bar)



                  -EQUIPPED WITH-

                  Fully enclosed protection cabin



                  HEIDENHAIN infrared parts measuring probe



                  HEIDENHAIN TT130 tool length/diameter measuring

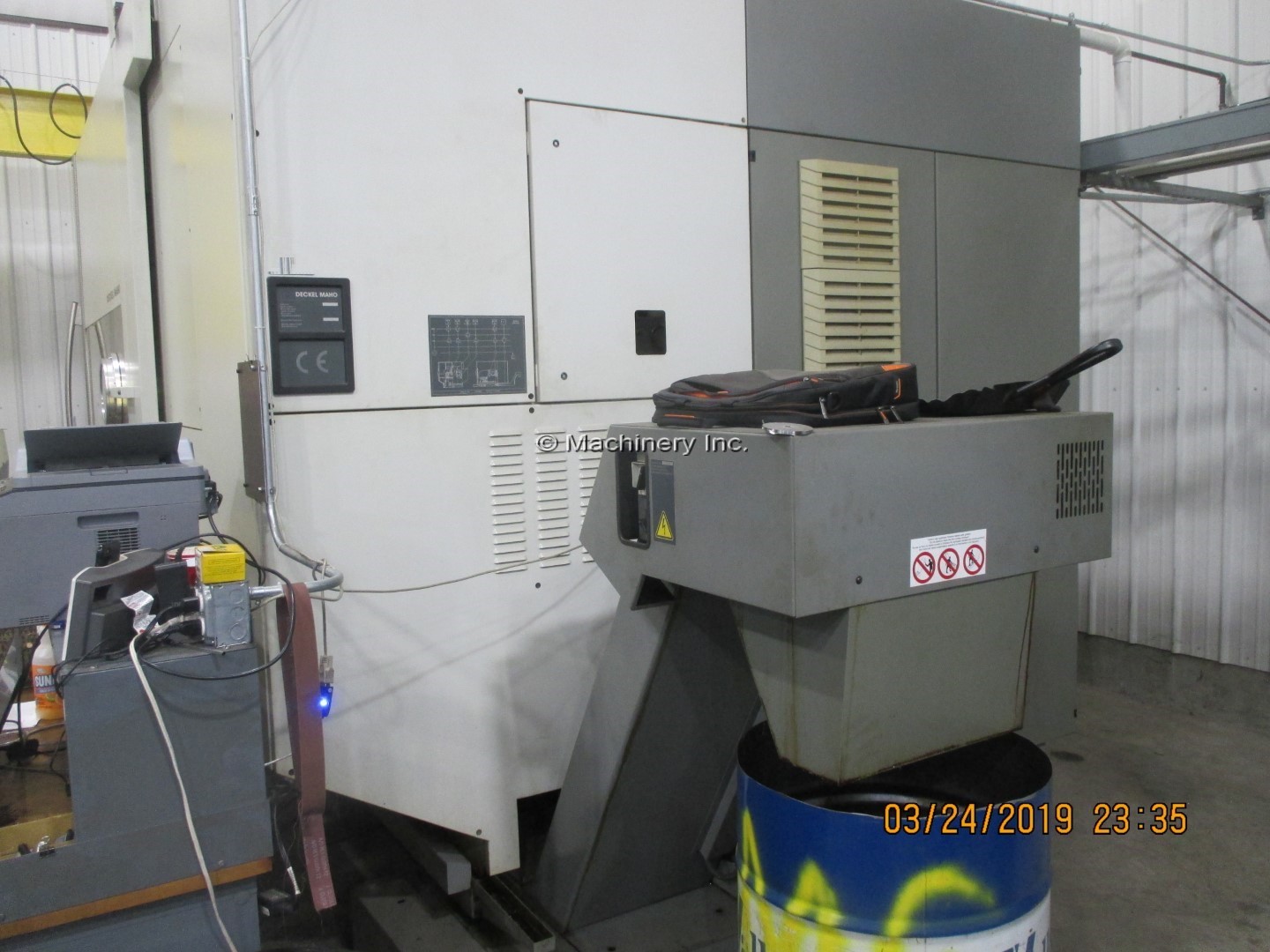

                  Chip conveyor
