Specifications

 Category : Lathes, CNC - Turning Centers

Ask for quotation
  Stock ref. # 1987

  Manufacturer HYUNDAI-KIA
  Model SKT250TTSY
  Year 2012
  Swing 30.7"
  Turning Length 35.4"
  Chuck Size 10"/8"
  Spindle Bore 3.4"
  HP 33.5
  RPM 4000
  Control FANUC 18i-TB
  Price CALL US!



Other specifications



                  2012 HYUNDAI-KIA SKT250TTSY CNC LATHE(7-AXIS, TWIN SPINDLE), 2012

                  MANUFACTURER: HYUNDAI-KIA

                  MODEL:SKT250TTSY

                  YEAR: 2012



                  Specification Description

                  SWING BED: 30.7"

                  SWING OVER SLIDE: 27.5"

                  MAX TURN DIA: 15.4"

                  MAX MACHINING LENGTH: 35.4"

                  CHUCK DIAMETER: 10"/8"

                  X-AXIS TRAVELS: ( Upper /Lower ) 10.6" /7.5"

                  Z-AXIS TRAVELS: 36.25"

                  Y-AXIS TRAVEL: 4.7"

                  C-AXIS DEGREES OF MOTION: 0.001

                  BAR CAPACITY: 3"

                  SPINDLE NOSE: A2-8 / 3.4"

                  SPINDLE SPEEDS: 4000 RPM

                  SPINDLE MOTOR: 33.5 / 20 HP

                  TURRET STATIONS: 12 x 2

                  LIVE TOOL TAPER: BMT 65:

                  LIVE TOOL SPEEDS: 30 to 4,000 RPM

                  MACHINE DIMENSIONS: (APPROX.) 145"x89"x101"

                  NET WEIGHT: (APPROX.) 25,250 LBS



                  Equipped With:

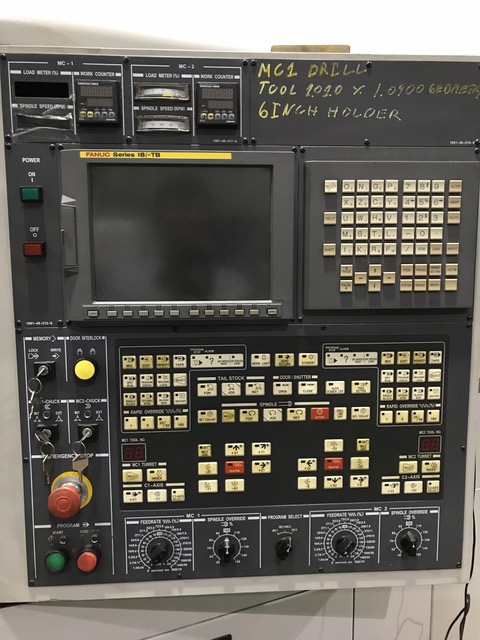

                  FANUC 18i-TB CNC CONTROLS

                  FULL C-AXIS

                  CHIP CONVEYOR

                  AUTOMATIC TOOL "Qsetter"

                  LIVE TOOLING ON BOTH TURRETS

                  PARTS CATCHER

                  4 LIVE TOOL HOLDERS

                  COOLANT TANK

                  TOOL PRESETTER



Photos
