Specifications

 Category : Lathes, CNC - Turning Centers

Ask for quotation
  Stock ref. # 1990

  Manufacturer DMG
  Model CTX 310
  Year 2007
  Swing 13"
  Turning Length 17.7
  Chuck Size 8"
  Spindle Bore *
  HP 10
  RPM 5000
  Control FANUC 32i
  Price CALL US!



Other specifications

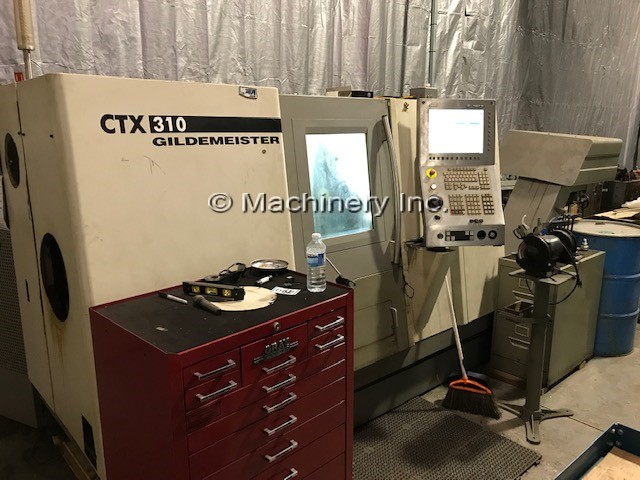

                  DMG GILDEMEISTER CTX 310 CNC Lathe, Fanuc 32 CNC control Year of Mfg. 2007

                  Live driven tools and C-axis

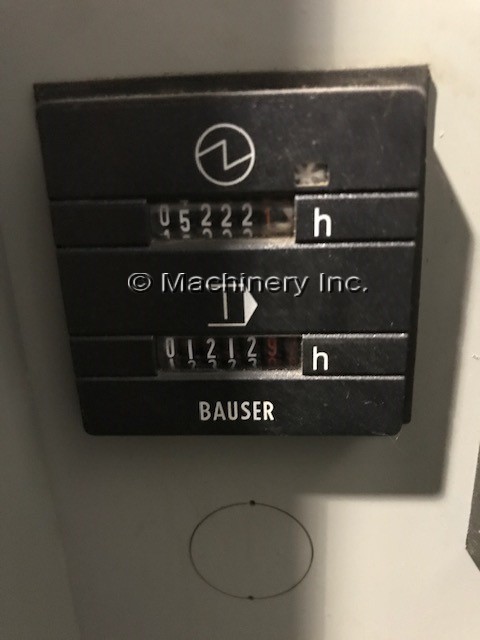

                  Machine has very very low hours (see picture)

                  Parts catcher / programmable tailstock and quill.

                  Specifications: Max. Swing Diameter............ 13" (330mm)

                  Maximum turning diameter ...... 7.87 (200 mm)

                  Maximum turning length ........ 17.7 (450 mm)

                  Centre distance ............... 22.87 (581 mm)

                  Bar Capacity .................. 2 (50 mm)

                  Maximum Spindle RPM ........... 5000 RPM

                  Spindle power ................. 10 hp (7.5 kW)

                  Machine Dimension:

                  Max. floor space (LxWxH)....... 60" X 155" X 60"

                  Net Weight..................... 8708 LBS

                  Equipped with:

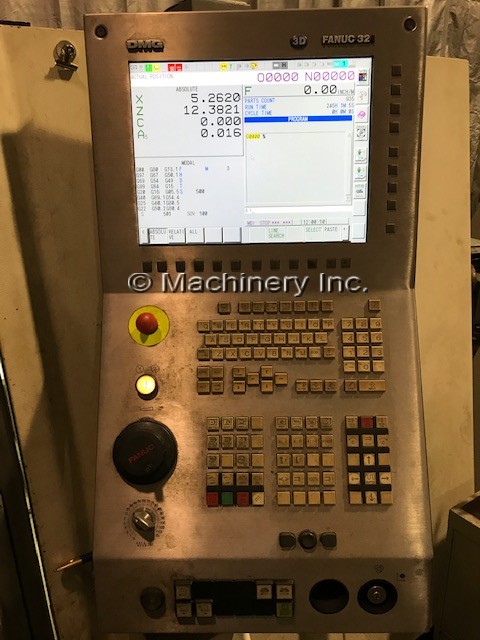

                  - FANUC 32 Control

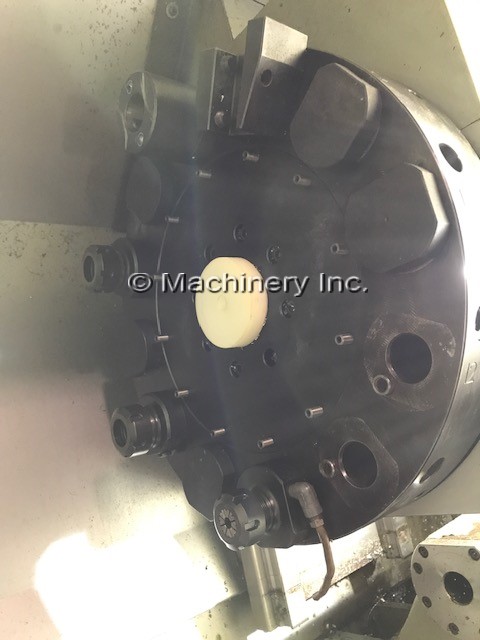

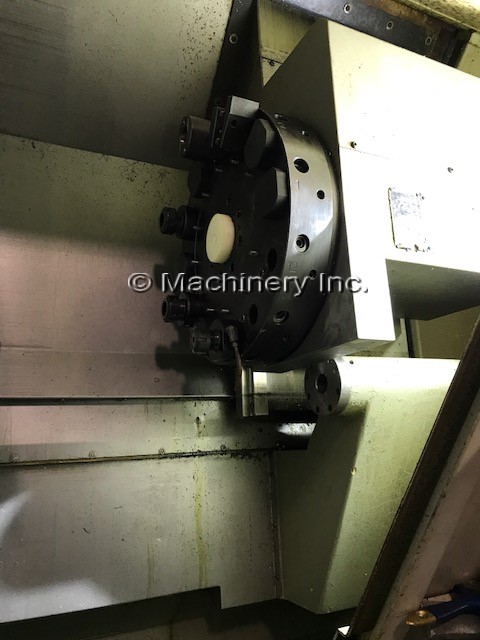

                  - 12 positions / 6 live driven tool positions / C-axis

                  - Many live tools available with the machine

                  - SMW AUTO BLOCK hydruailic 8" Chuck

                  - Lift up Chip Conveyor

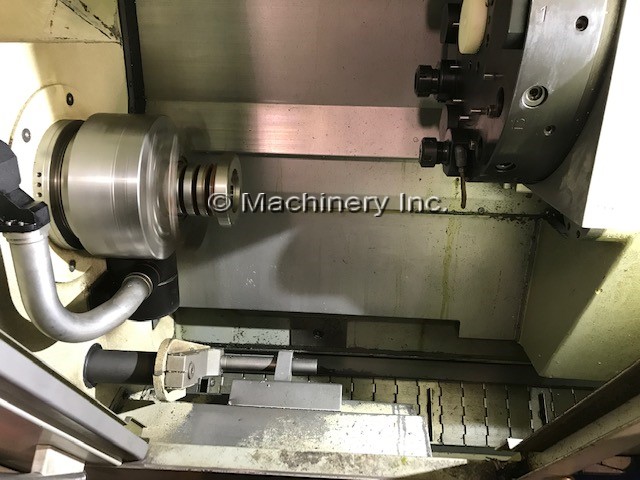

                  - Parts catcher

                  - Programable tail stock

                  - CSA electrical safety approved (see sticker in picture) - Transformer - Operational manuals included



Photos
