Specifications

 Category : Lathes, CNC - Turning Centers

Ask for quotation
  Stock ref. # 2000

  Manufacturer MAZAK
  Model INTEGREX 200-IV ST
  Year 2010
  Swing 26"
  Turning Length 58.85"
  Chuck Size 8"
  Spindle Bore 2.99"
  HP 25
  RPM 5000
  Control MATRIX
  Price CALL US!



Other specifications



                  MAZAK INTEGREX 200-IV ST CNC TURNING LATHE, 2010 *** 5 AXIS SIMULTANEOUS ***

                  MANUFACTURER: MAZAK

                  MODEL: 200-IV ST

                  YEAR: 2010

                  Chuck Type Main / Subspindle: 8" Hyd/8" Hyd



                  Maximum Swing........................... 26"

                  Maximum Swing over Lower Turret......... 10.6"

                  Maximum Swing Using Y-Axis.............. 19.5" - 26"

                  Maximum Cutting Diameter: Chucking...... 26" (Upper)

                  Maximum Cutting Diameter: Chucking...... 10.24" (Lower)

                  Maximum Cutting Length.................. 58.85"

                  Maximum Distance Between Chuck Jaws..... 60.83"



                  MAIN SPINDLE SPECIFICATIONS (L):

                  Spindle Nose............................ A2-6

                  Spindle Bore............................ 2.99"

                  Maximum Bar Work........................ 2.5"

                  Spindle Speed........................... 35 - 5000 RPM

                  Spindle Index (Programmable)............ 0.0001 Degree

                  Spindle Horsepower (Cont./30 Mins.)..... 20/30 H.P.



                  SECOND SPINDLE SPECIFICATIONS (R)

                  Spindle Nose............................ A2-6

                  Spindle Bore............................ 2.99"

                  Maximum Bar Work........................ 2"x 34.6" deep from chuck face

                  Spindle Speed........................... 35 - 5000 RPM

                  Spindle Index (Programmable)............ (0.0001 Deg. C-Axis Option)

                  Spindle Horsepower (Cont./30 Min.)...... 20/25 HP



                  UPPER TURRET ROTARY TOOL SPECIFICATIONS:

                  Rotary Tool Spindle Speed............... 12,000 RPM

                  Rotary Tool Spindle Horsepower (20% ED). 25 H.P.

                  Magazine Capacity....................... 20 Tools

                  ATC Tool Shank.......................... COROMANT CAPTO® C6



                  LOWER TURRET DRUM TYPE SPECIFICATIONS:

                  Total Number of Tools................... 9

                  Tool Selection Method................... Bi-Directional



                  AXIS TRAVELS:

                  X-Axis.................................. 22.83"

                  X2 Axis Lower........................... 5.91"

                  Y-Axis.................................. +/- 3.15"

                  Z-Axis 60".............................. 60.82"

                  Z2 Axis Lower 60"....................... 58.66"

                  B-Axis Pendulum H....................... 225 degrees (0.0001 degree increments)

                  Second Headstock W-Axis............. 61.02"





                  MACHINE REQUIREMENTS:

                  Floor Space (LxWxH)..................... 95.39" x 200.31" x 102.24"

                  Total Power Required.................... 76.5 KVA

                  Air Requirements........................ 71 PSI / 24.7 CFM

                  Machine Weight.......................... 25,960 lbs.





                  Equipped With (subject to buyer verification):



                  * Mazatrol Matrix Control with 15" Color LCD Screen

                  * Simultaneous 5-axis machining

                  * B Axis Pendulum Head

                  * Y Axis Capability

                  * Subspindle

                  * Full C Axis on Both Spindles

                  * 12,000 RPM Milling Spindle on Upper Turret

                  * 9 Station Lower Drum Style Turret

                  * Lift Up CChip Conveyor

                  * 20 Position Automatic Tool Changer

                  * Mazak High Pressure Coolant

                  * Automatic Tool Eye

                  * Spindle Air Blast

                  * Milling Spindle Synch. Tapping

                  * PCMCIA Interface - 2 Slots

                  * IC Memory Card Interface

                  * Main & Subspindle Synchronization

                  * All Available Manuals

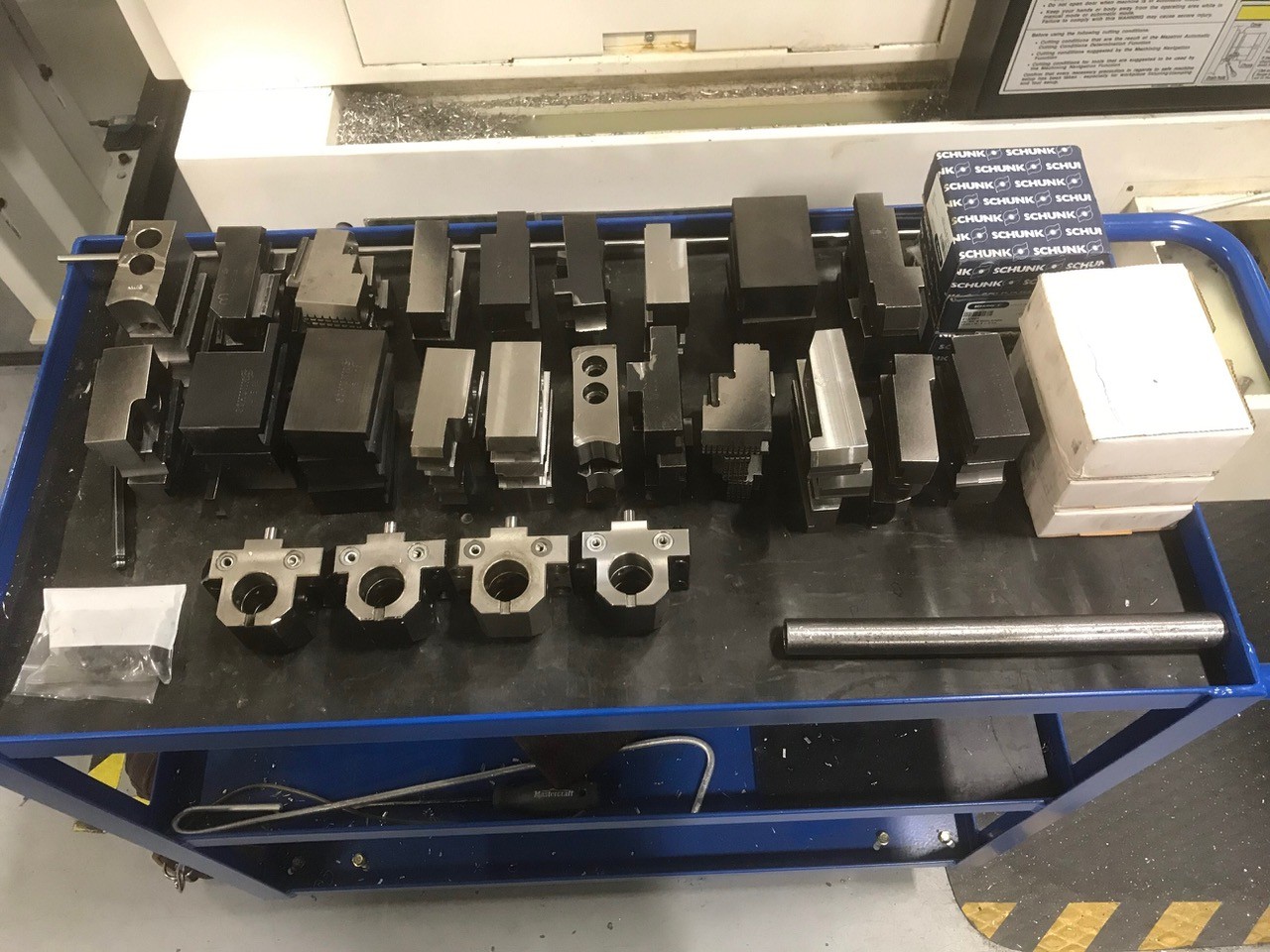

                  SOME TOOLINGS FOR LOWER TURRET.

                  NO TOOLING FOR UPPER HEAD.
