Specifications

Categories > Machining Center, Vertical, Bridge Type
Ask for quotation
Stock ref. # 2012

Manufacturer AWEA

Model SP2016 HSS

Year 2004

Axis_Travels(X;Y;Z) 82" x 63" x 30"

Capacity 8 Ton

RPM 15000

HP 30

ATC 24

Control FANUC 18iMB

Price CALL US!

Other specifications

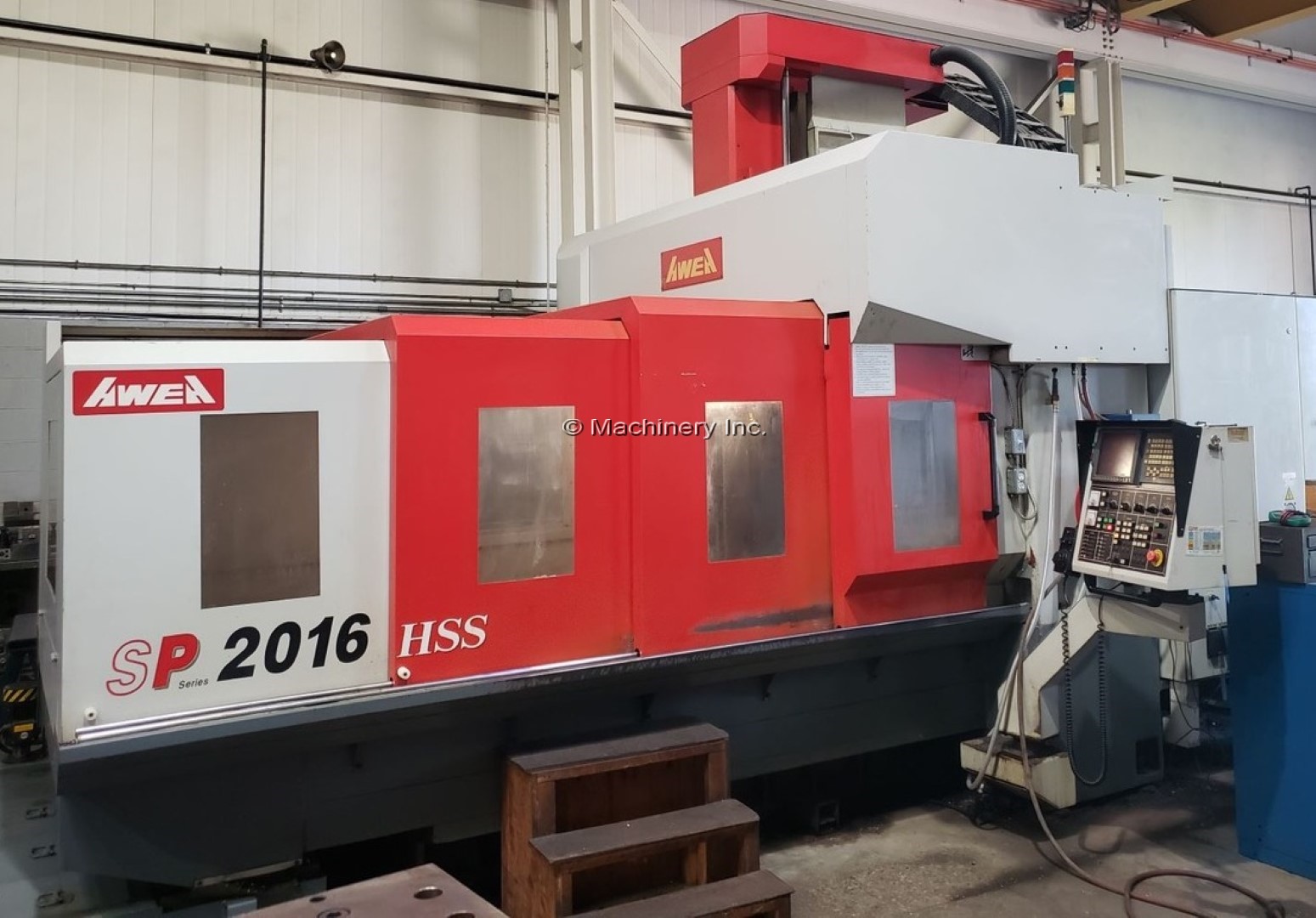

AWEA SP 2016 HSS HIGH SPEED BRIDGE MILL, 2004

NEW 2004

X TRAVEL: 2,100 mm ( 82.7" )

Y TRAVEL: 1,600 mm ( 63.0" )

Z TRAVEL: 760 mm ( 30.0" )

TABLE SIZE 2,310 x 1,500 mm ( 90.9" x 59.0" )

TABLE LOAD CAPACITY 8,000 kg ( 17,600 lb )

DISTANCE BETWEEN COLUMNS 1,700 mm ( 66.9" )

SPINDLE MOTOR 18.5 / 22 kW ( 25 / 30 HP )

SPINDLE SPEEDS 10 ~ 15,000 rpm

SPINDLE TAPER BT 40

DISTANCE SPINDLE NOSE TO TABLE TOP 160 ~ 920 mm ( 6.3" ~ 36.2" )

RAPID X, Y 20,000 mm/min. ( 787.4 IPM )

RAPID RATE Z (590 ipm)

CUTTING FEED RATE (0.4- 590.6 IPM )

POSITIONING ACCURACY ą 0.003 mm ( ą 0.0001" )

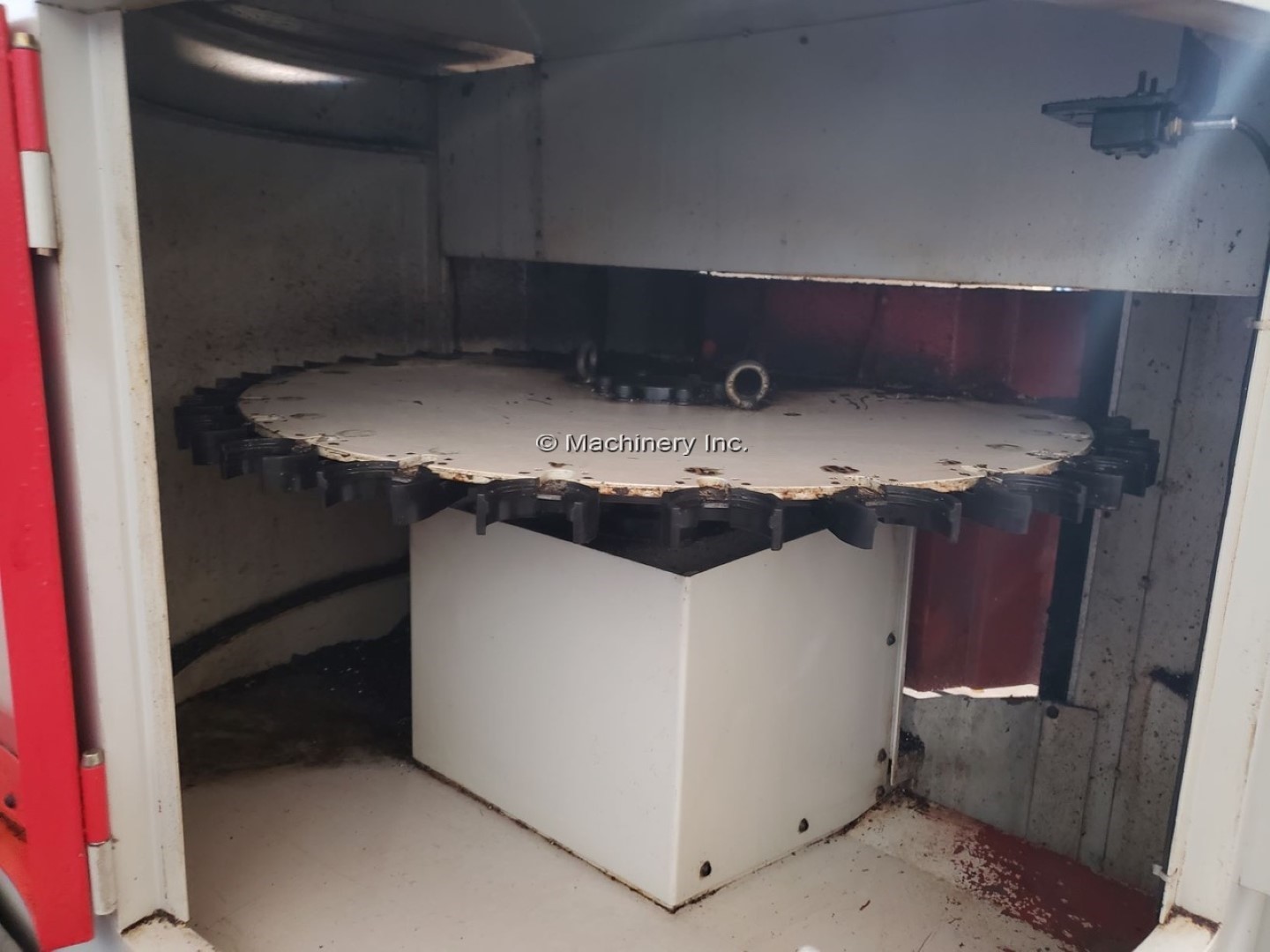

TOOL MAGAZINE 32 ATC

220 VOLTAGE

EQUIPPED WITH:

Glass scales

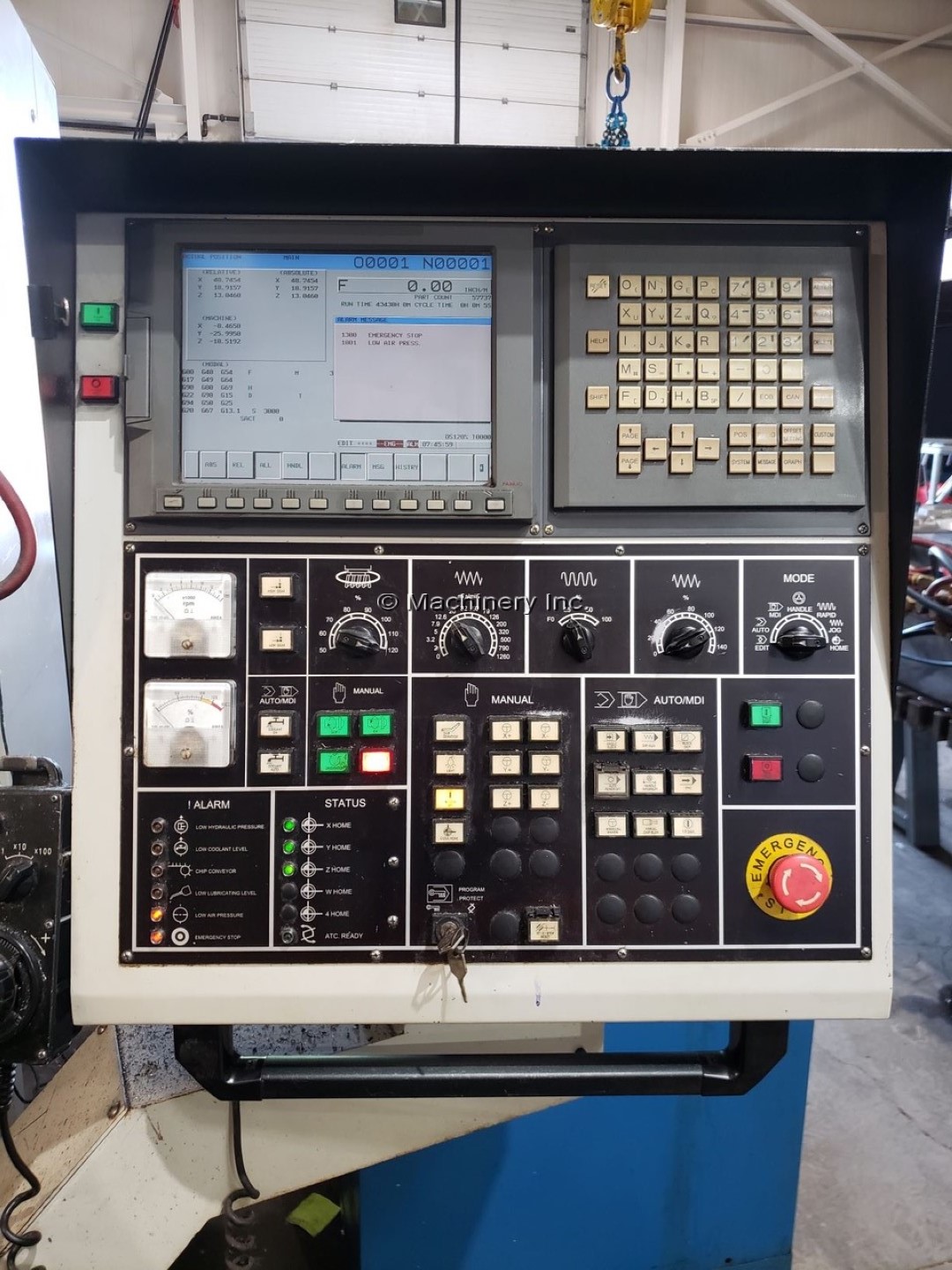

FANUC 18iMB WITH HPCC High Speed Functions

Photos
