Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 2042

Manufacturer DMG

Model DMU 100P DUOBLOCK

Year 2008

Axis_Travels(X;Y;Z) 39.4" x 39.4" x 39.4"

RPM 12000

HP 37

ATC 60

Control 3D HEIDENHAIN iTNC 530

Price SOLD!

Other specifications

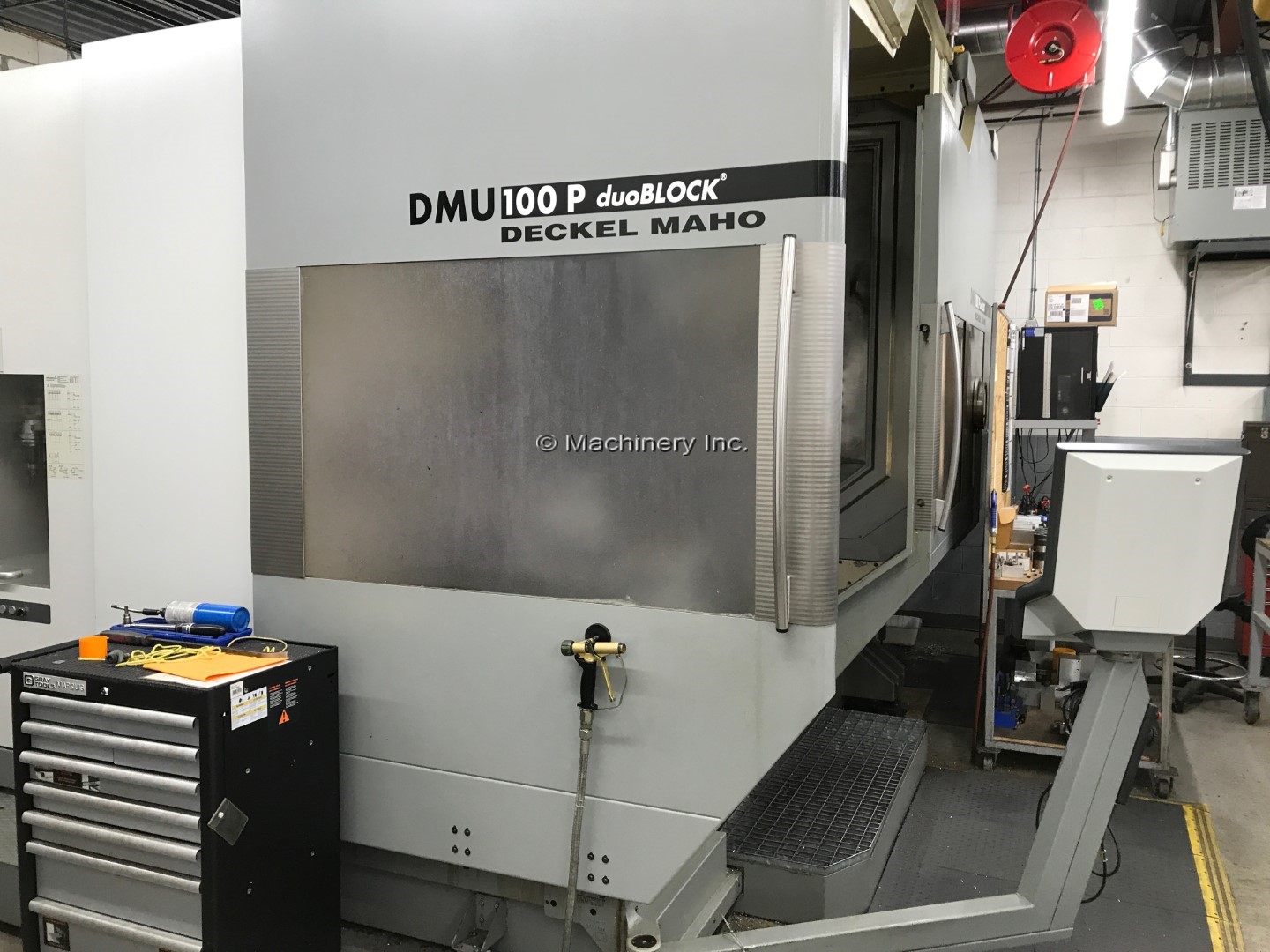

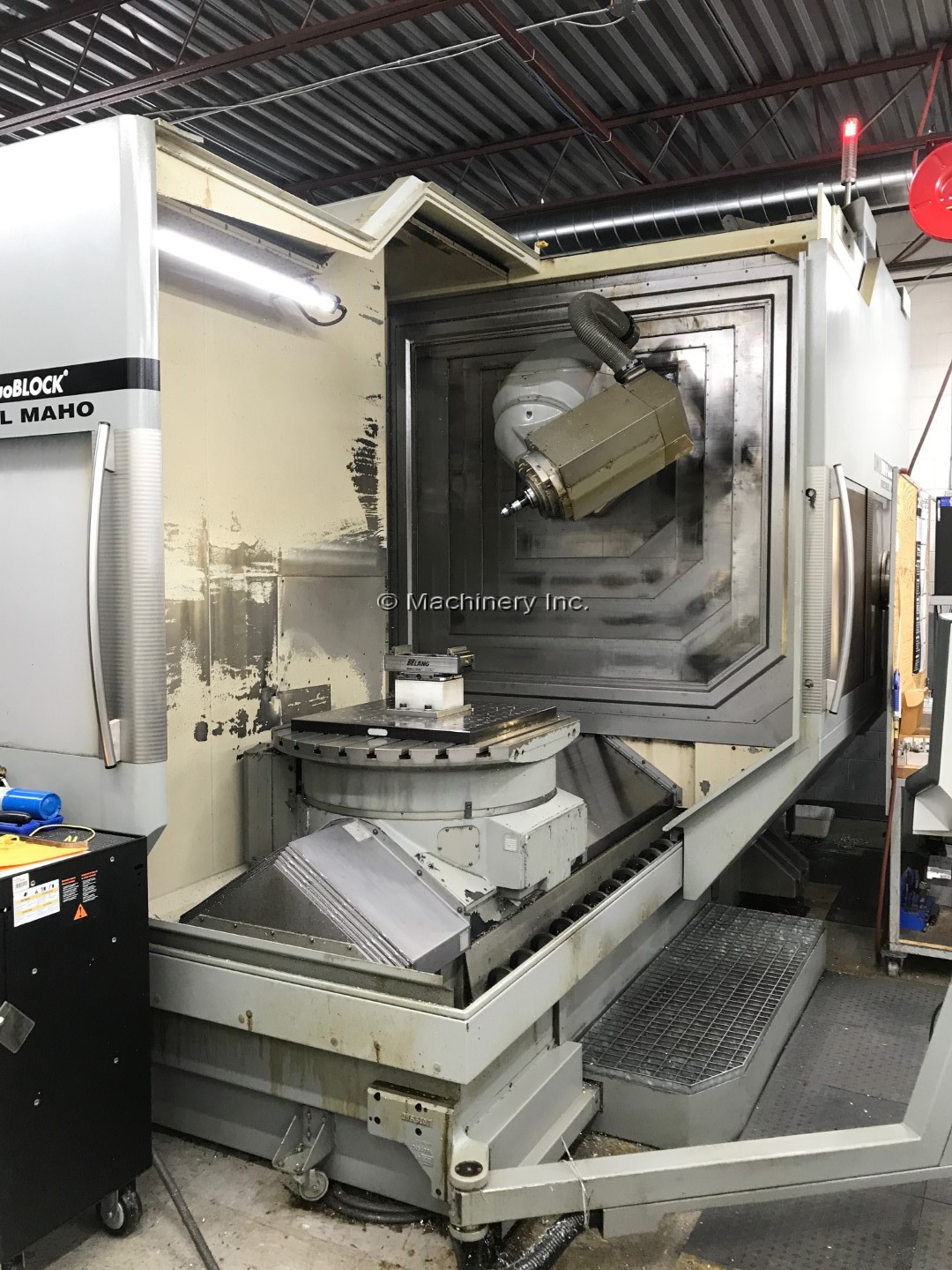

DMG DMU 100P DUOBLOCK 5 AXIS UNIVERSAL MILLING MACHINE, 2008

AXIS TRAVELS:

X = 1,000 mm / 39.4 in (longitudinal)

Y = 1,000 mm / 39.4 in (transverse)

Z = 1,000 mm / 39.4 in (vertical)

SPINDLE SPEED: 12000 RPM

SPINDLE TAPER: HSK-A 100

28 kW / 37 hp (40% duty cycle);

19 kW / 25 hp (100% duty cycle)

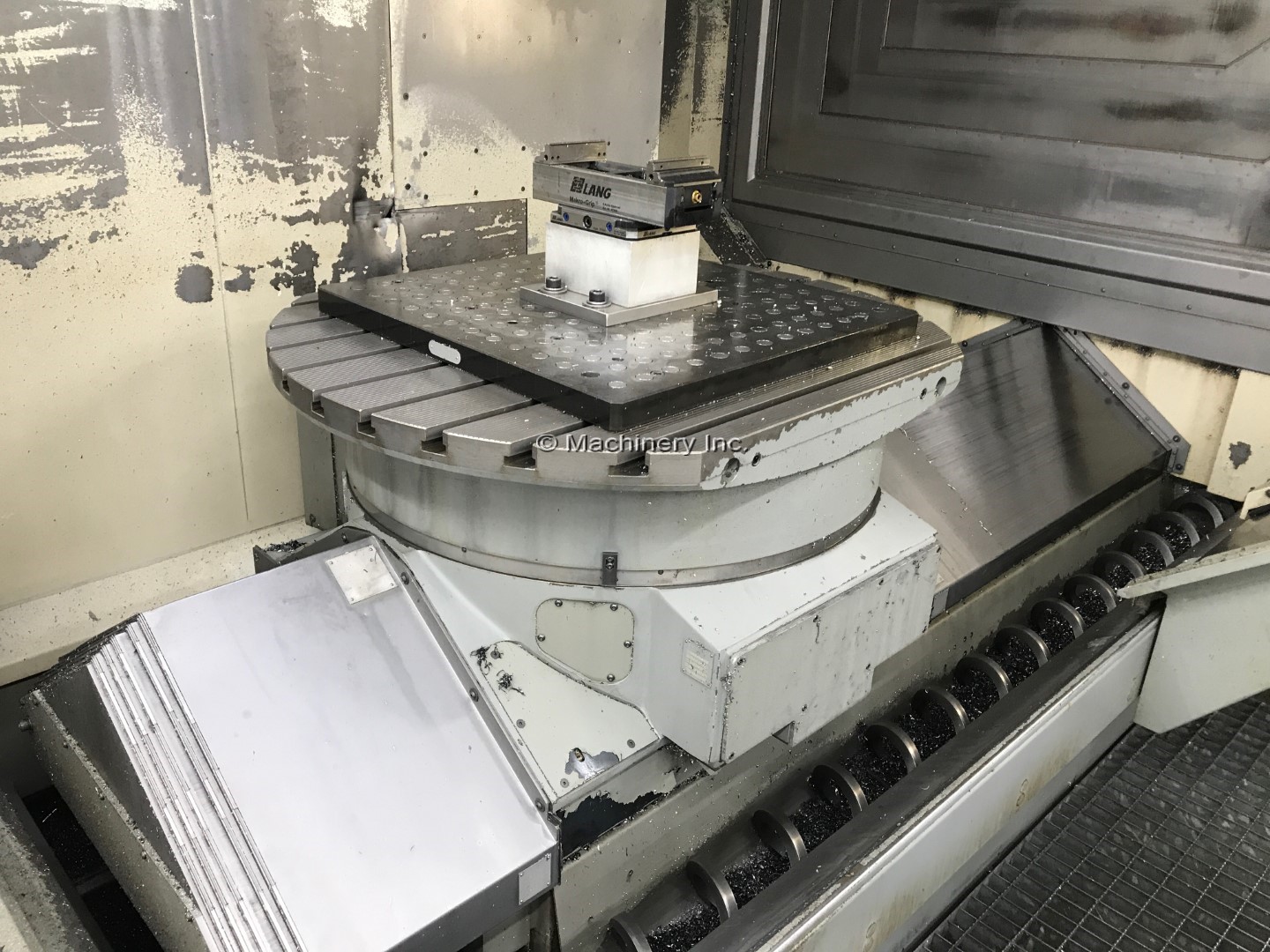

NC rotary table d 1,100 mm x 900 mm 43.3 in x 35.4 in

Max. table load (table centre): 2,000 kg / 4,400 lbs

EQUIPPED WITH:

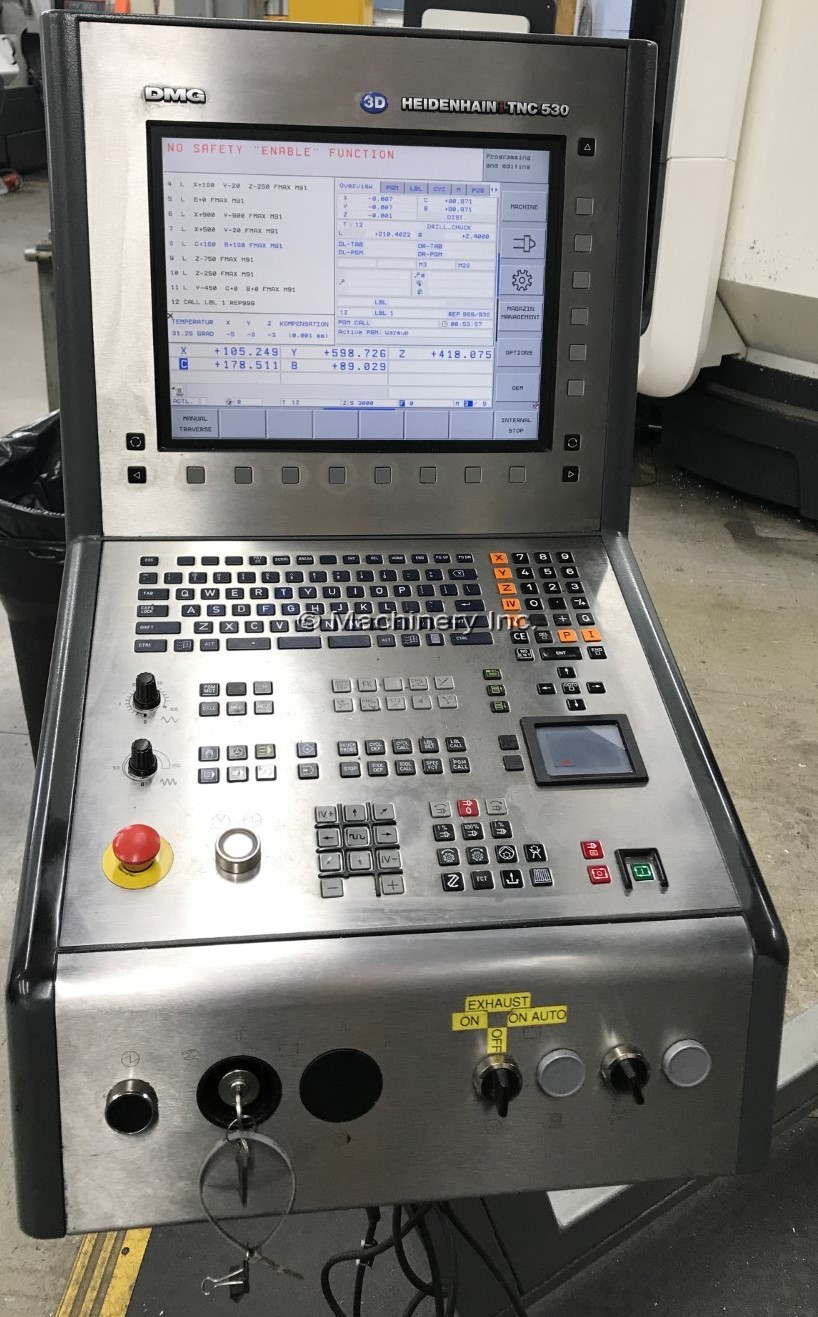

3D HEIDENHAIN iTNC 530 CONTROL WITH HANDWHEEL

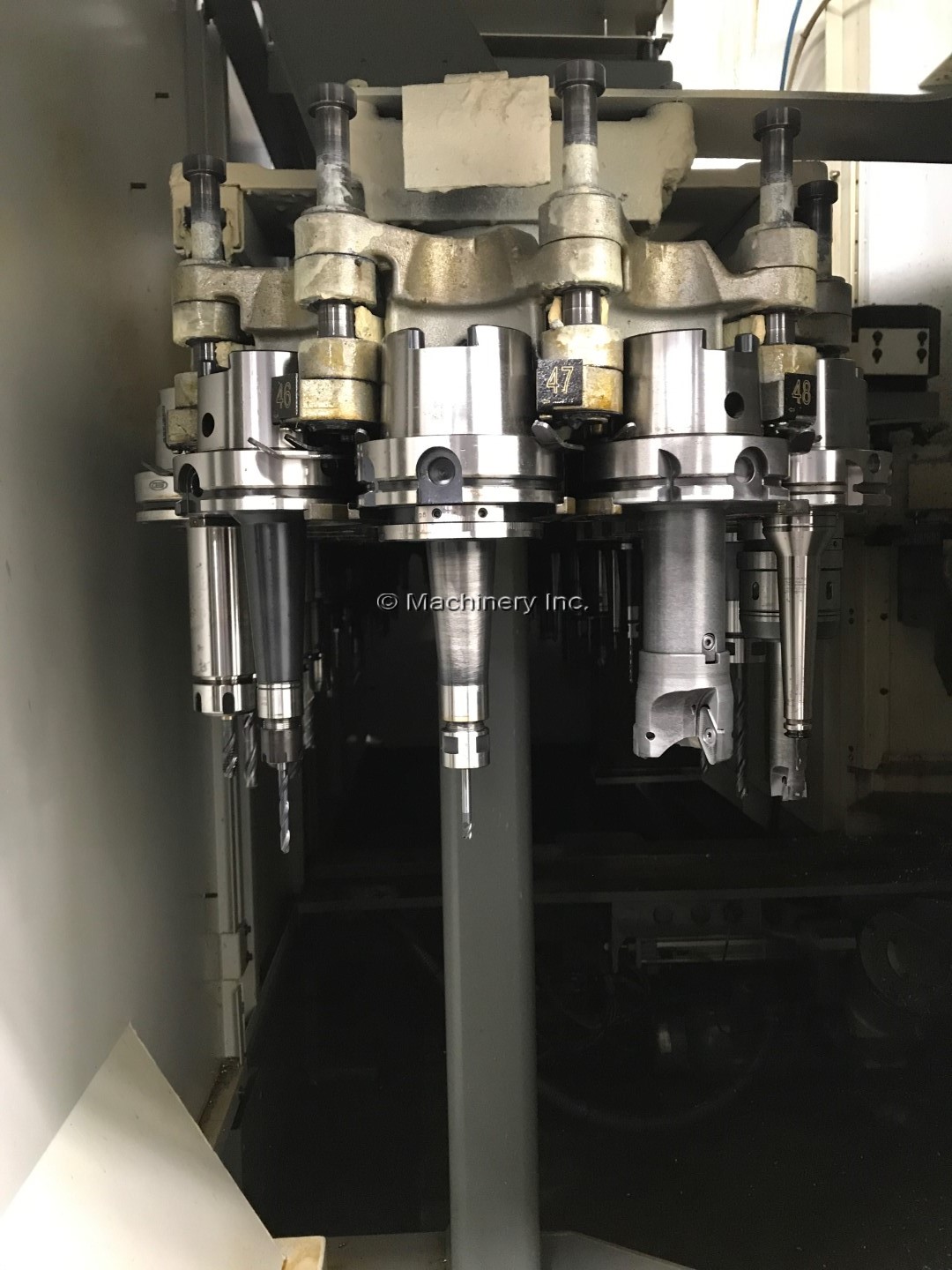

60 ATC

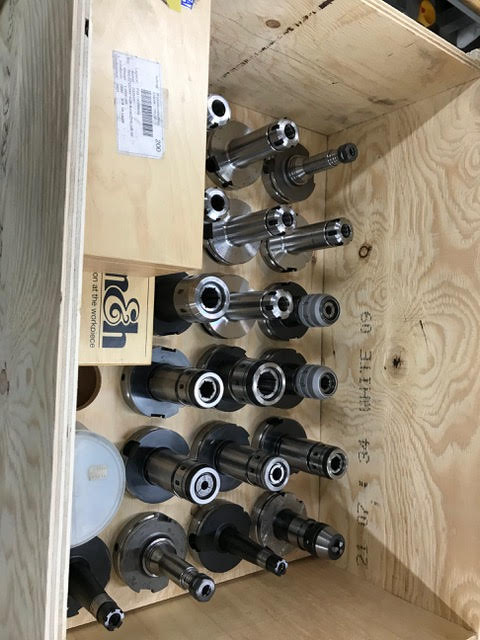

*** 20 HSK-A 100 TOOLS INCLUDED ***

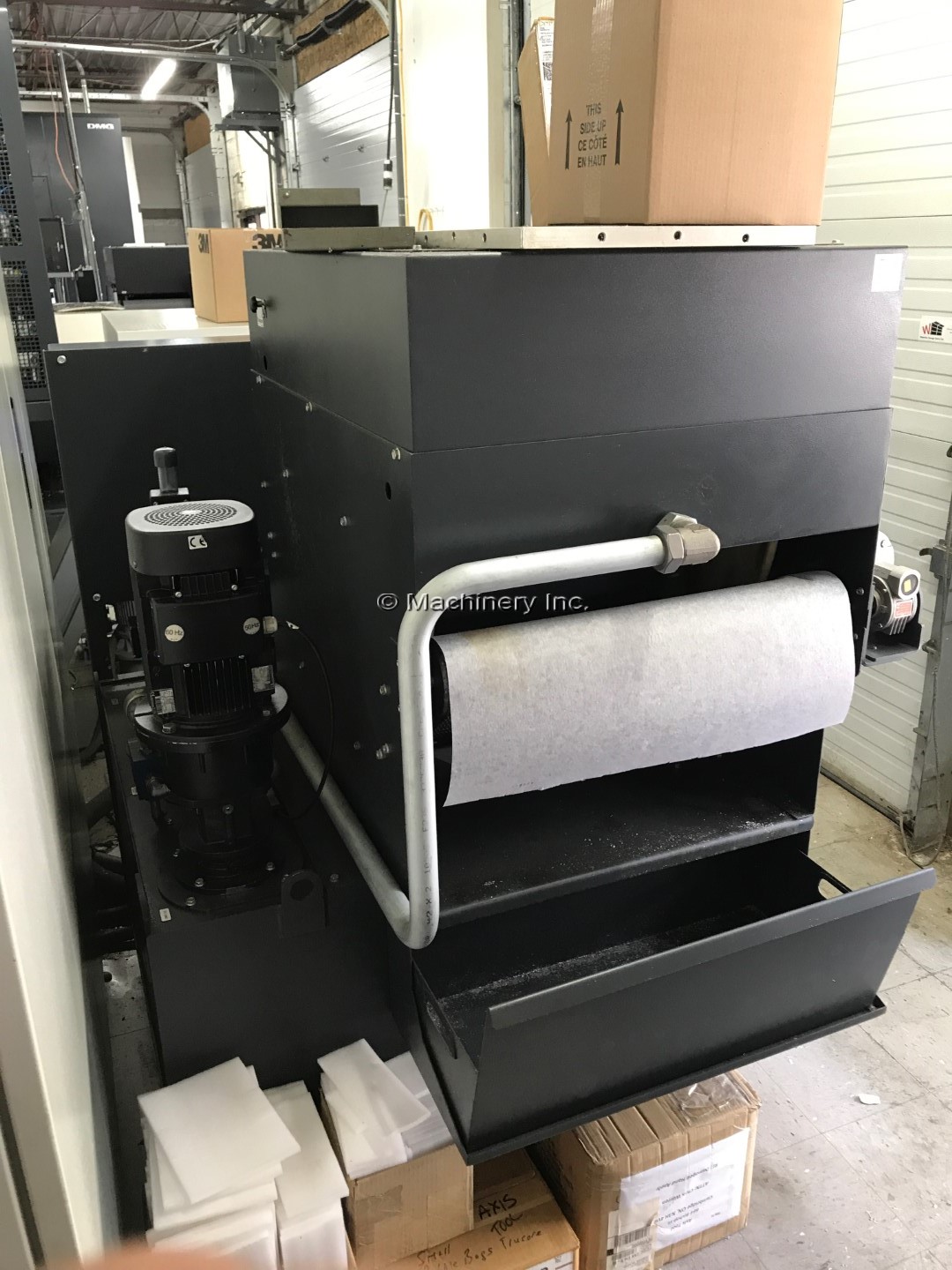

Coolant tank 600 l / 160 gallon

Internal coolant supply 40 bar / 580 psi

through spindle centre (AD)

Chip conveyor

rotating clear-view window

3D contouring control

Tool measuring in machining area

Type Blum Laser NT-Hybrid automatic retraction of the measuring unit in a protected housing tool length and tool diameter measuring in horizontal/vertical position

3D quickSET extension package

Infrared Probe M&H 25.00 HDR

Spray pistol with pump

Oil and emulsion mist separator electrostatic filter (emulsion ≥ 5%)

Space requirement machine incl. operation and maintenance with chain magazine SK 40/SK 50

40/60 pockets

Depth 7.2 m/283.4 in

Width 6.4 m/251.9 in

APPROX WEIGHT: 41,887 LBS
