Specifications

Categories > Boring Mills, Horizontal, Floor Type, CNC
Ask for quotation
Stock ref. # 2044

Manufacturer PARPAS

Model ML 130

Year 1996

Spindle Dia. 5"

X-Axis 354"

Y-Axis 118"

RPM 1800

Motor 50 HP

Control SIEMENS 840D

Includes ROTARY TABLE

Price CALL US!

Other specifications

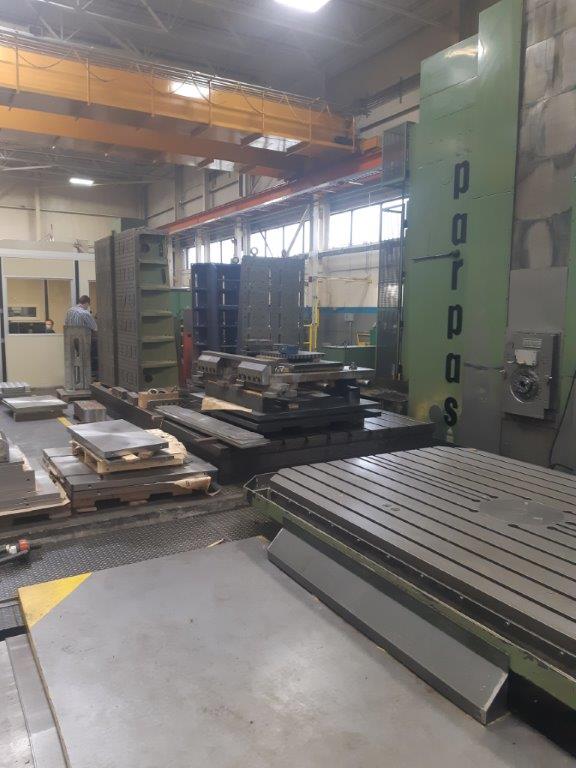

PARPAS MODEL ML-130 TRAVELING COLUMN CNC HORIZONTAL

FLOOR TYPE RAM MILL WITH (1) UNIVERSAL HEAD

NEW 2001

Control: Siemens 840D

TRAVELS:

X AXIS (cross)............................: 354"

Y AXIS (vert)..............................: 118"

Z AXIS (ram)..............................: 51"

W AXIS (spindle)……………………..: 27.6"

Floor Plate Dimensions...............: 119" x 79"

Rotary Table Size………………………...........: 119" x 79"

Rotary Table Cross Slide……………........: 79" in/out

Rotary Table Capacity………………….........: 80,000 Lbs.

Spindle Speeds.......................: to 1800 RPM

Spindle Taper........................: #50

Spindle Motor........................: 50 HP

Ram Cross Section Dimension..........: 22" x 25.5"

Feed Rate............................: TO 315 IPM

Rapid Rate...........................: TO 393 IPM

Equipped With:

79" x 197" Floor Plate (1)

4 Axis Rotary Table

(2) 84" x 36" wide x 28" length Angle Plates

Riding Operators Platform

Chip Conveyor

Telescoping Steel Way Covers

2.5 Degree Fully Programmable (2) Axes Universal Head

480 Volt 3/60 Cycle

Current Pit Dimension: 34Ft. LR x 156" FB x 52" Deep

Machine Height: 176" High

NOTE: MILLING CAPABILITIES WITH #50 TAPER SPINDLE IN RAM
