Specifications

Categories > Machining Center, Horizontal
Ask for quotation
Stock ref. # 2064

Manufacturer MATSUURA

Model H-PLUS 300

Year 2018

Axis_Travels(X;Y;Z) 19.7" x 22 x 19.6"

RPM 15000

HP *

Pallet 5

ATC 120

Control Matsuura G-Tech 31i

Price CALL US!

Other specifications

Matsuura H-Plus 300 CNC Horizontal Machining Centre, 5 pallets, 2018

Date of Mfg. 2018.08

MAX WORK SIZE mm (in)..............Ø500 × H760 | (Ø19.68 × H29.92)

WORKING SURFACE mm (in)............300 x 300 (11.81 x 11.81)

TRAVEL (X/Y/Z) mm (in).............500/560/500 | (19.68 / 22.04 / 19.68)

LOADING CAPACITY kg (lb)...........250 (550)

SPINDLE MAX SPEED..................MATSUURA Hi-Tech 15,0000 rpm

SPINDLE TAPER......................CAT-40

RAPIDS (X/Y/Z) m/min (in/min)......60 (2,362.2)

AUTOMATIC TOOL CHANGE..............120 position (240 position base)

NUMBER OF PALLETS..................5 floor pallet system

NC SYSTEM..........................Matsuura G-Tech 31i

Full 4th axis rotary table with scale (0.001 degree indexing)

Turbo Micro-Fine II lift up chip conveyor (640 L coolant tank)

Renishaw OMP-60 part measuring probe.

Renishaw NC-4 laser for tool measuring.

Coolant through spindle 300 PSI

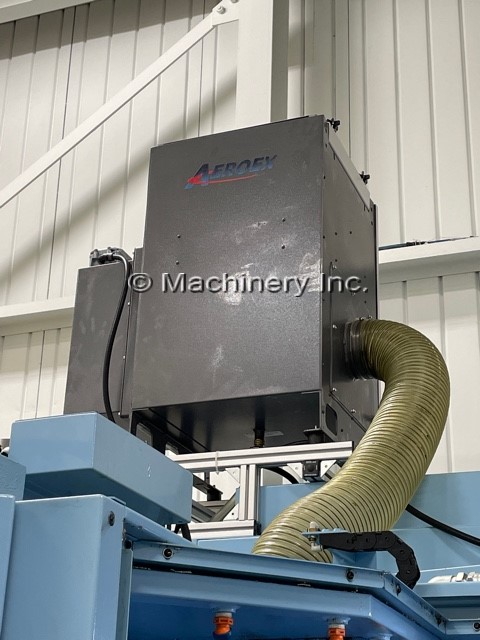

Aeroex ROX-400 oil/mist collector

Fanuc G54.2 - Dynamic fixture offset

Fanuc iZ-2/150NF with 1000 block look ahead

Fanuc NANO smoothing function with jerk control

Fanuc Optimal torque accel/decel function
