Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 2084

Manufacturer HAAS

Model VF2SS

Year 2013

Axis_Travels(X;Y;Z) 30" x 16" x 20"

RPM 12000

HP *

ATC 24

Control HAAS

Price SOLD!

Other specifications

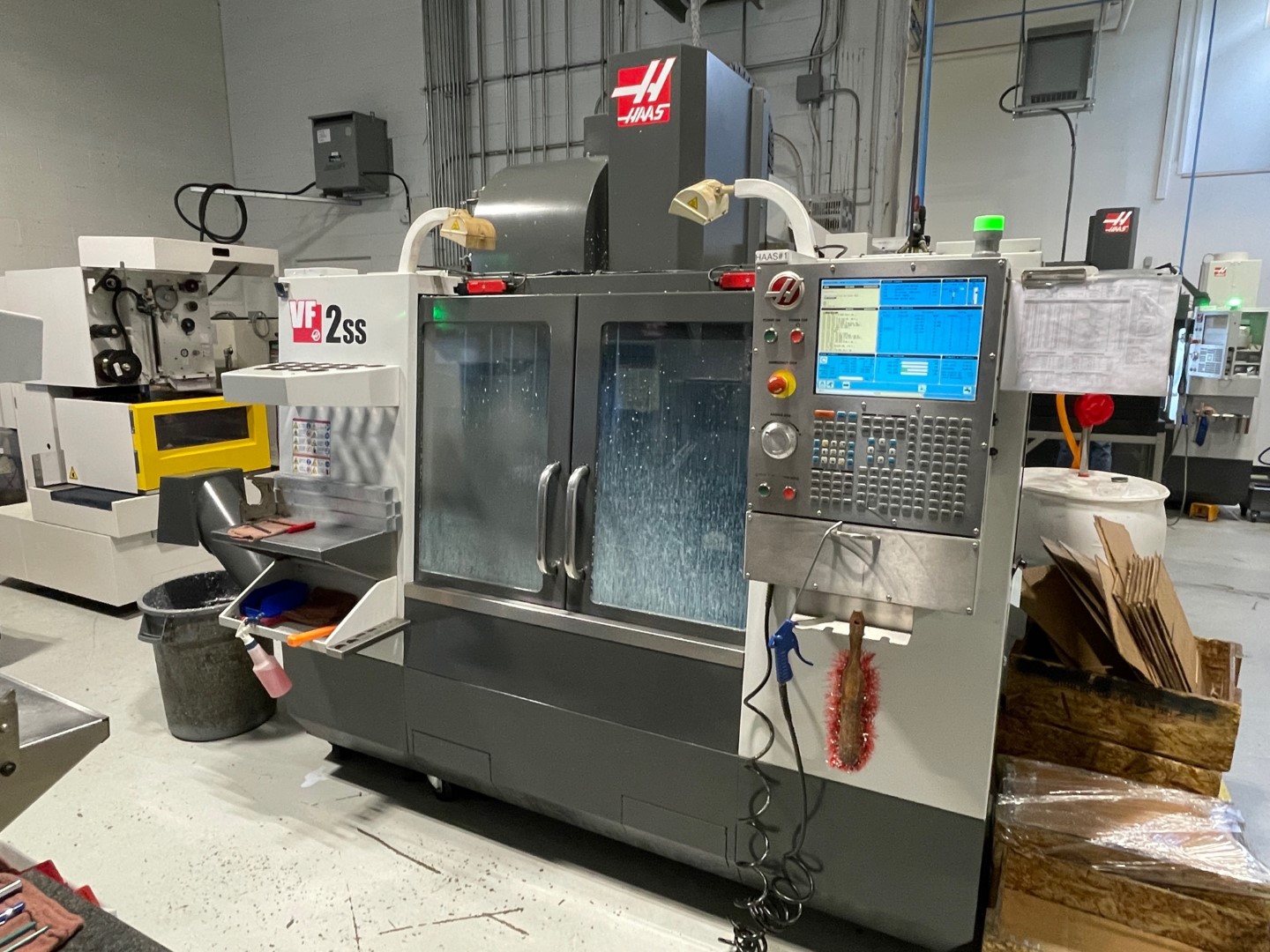

HAAS VF2SS VERTICAL MACHINING CENTER, 2013

YEAR: 2013/06

X-Axis Travel........... 30"

Y-Axis Travel........... 16"

Z-Axis Travel........... 20"

Table LxW............... 36.0" x 14.0"

Max Weight on Table........ 1500 lbs

Spindle Nose to Table........ 4" - 24"

Spindle Taper......... CAT-40

Max. Speed speed.......... 12000 RPM

Spindle Power......... 30 HP (22.4 kW) vector drive

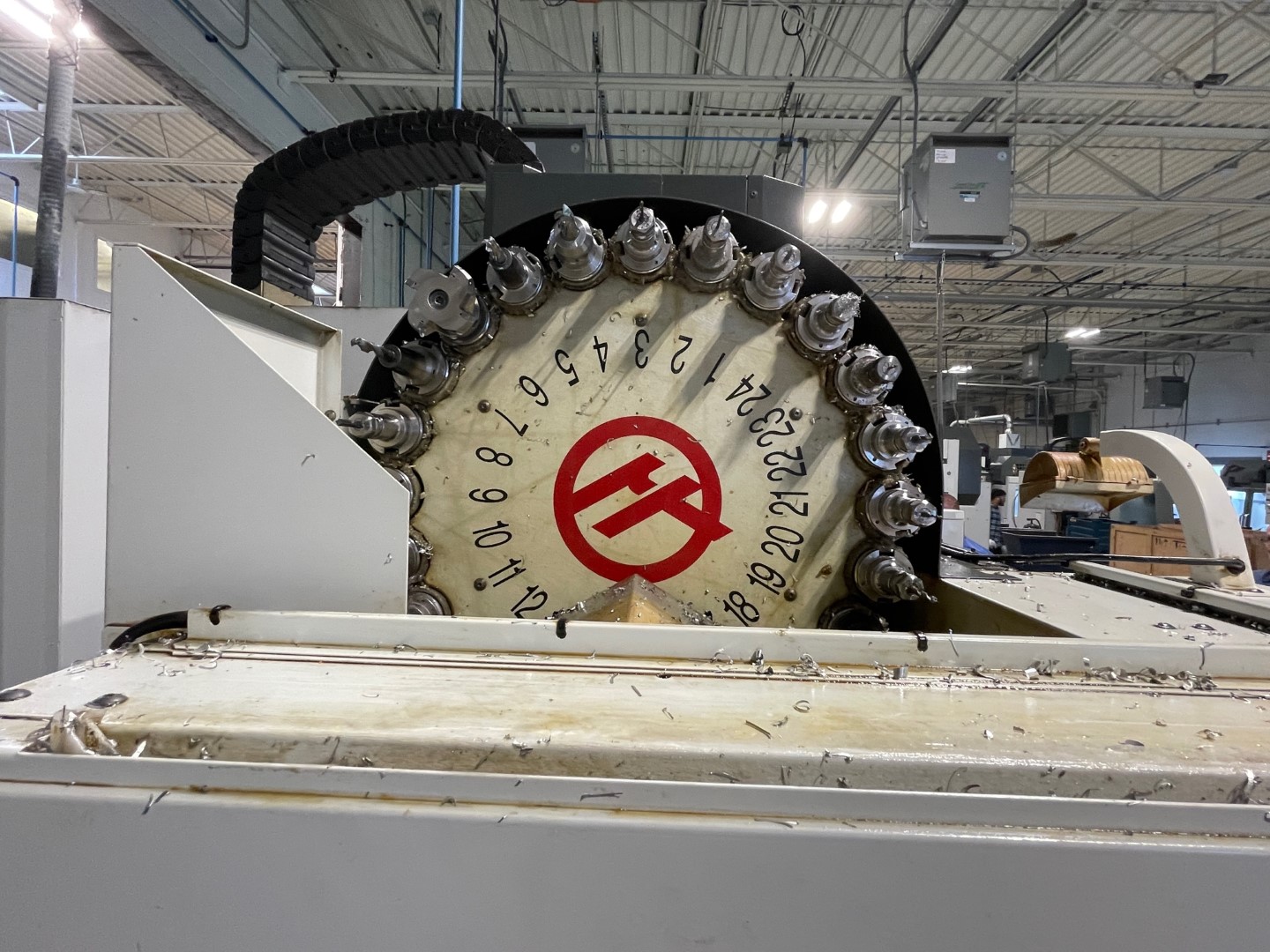

Automatic Tool Changer....... 24 pockets

Max Tool Length.......... 11"

Tool Changing Time........... 1.8 Seconds

Rapid Traverse Rates........ 1400 Inch Per Minute

Cutting Feed Rates......... 650 Inch Per Minute

Overall Dimensions: 101" x 99" x 101" High

Weight: 7800 lbs

EQUIPPED WITH:

12,000-rpm inline direct-drive Spindle

Through-Spindle Coolant, 300 psi (21 bar)

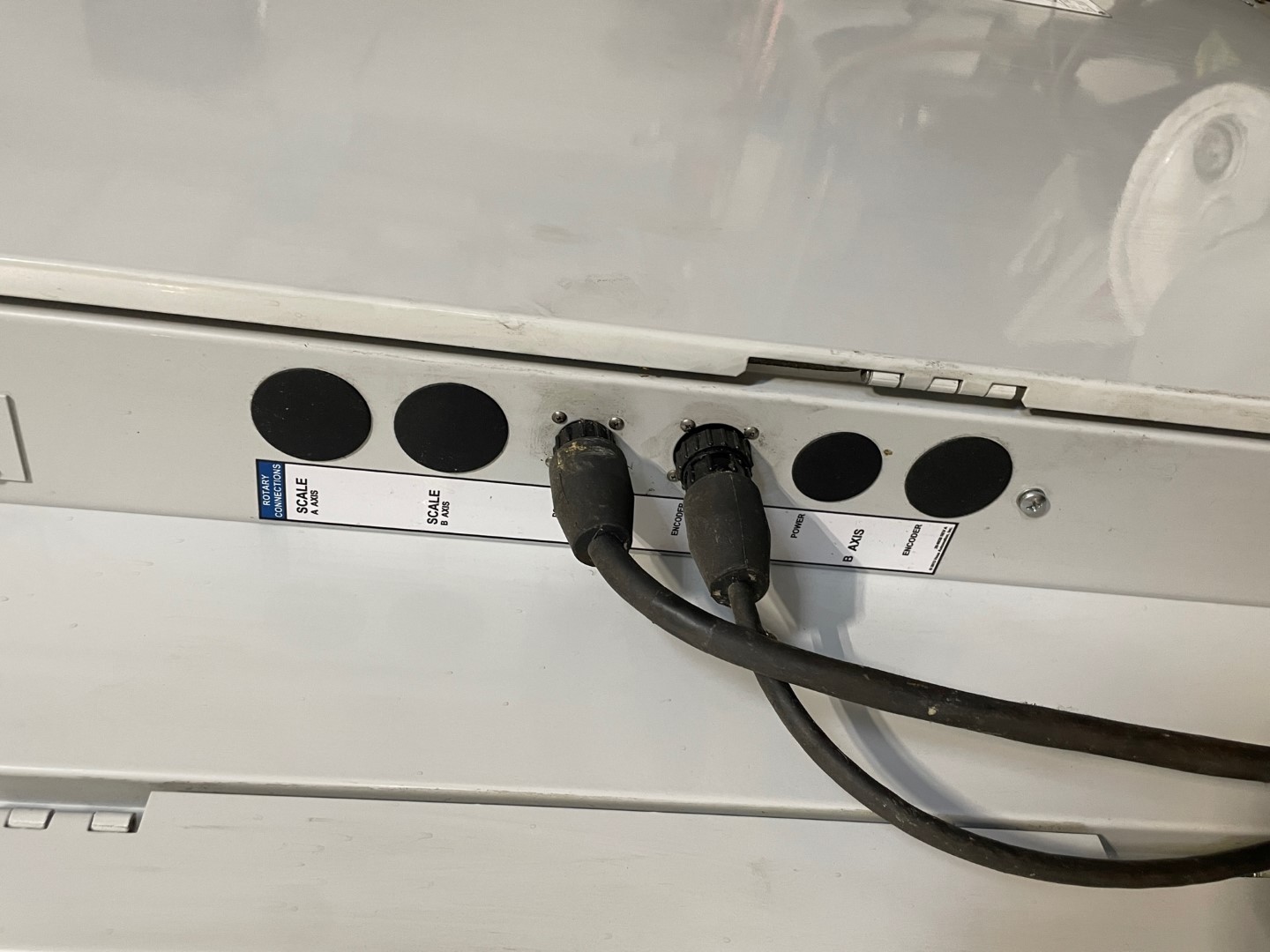

4TH-AXIS DRIVE AND WIRING (no rotary table included)

Wireless Intuitive Probing System; Renishaw

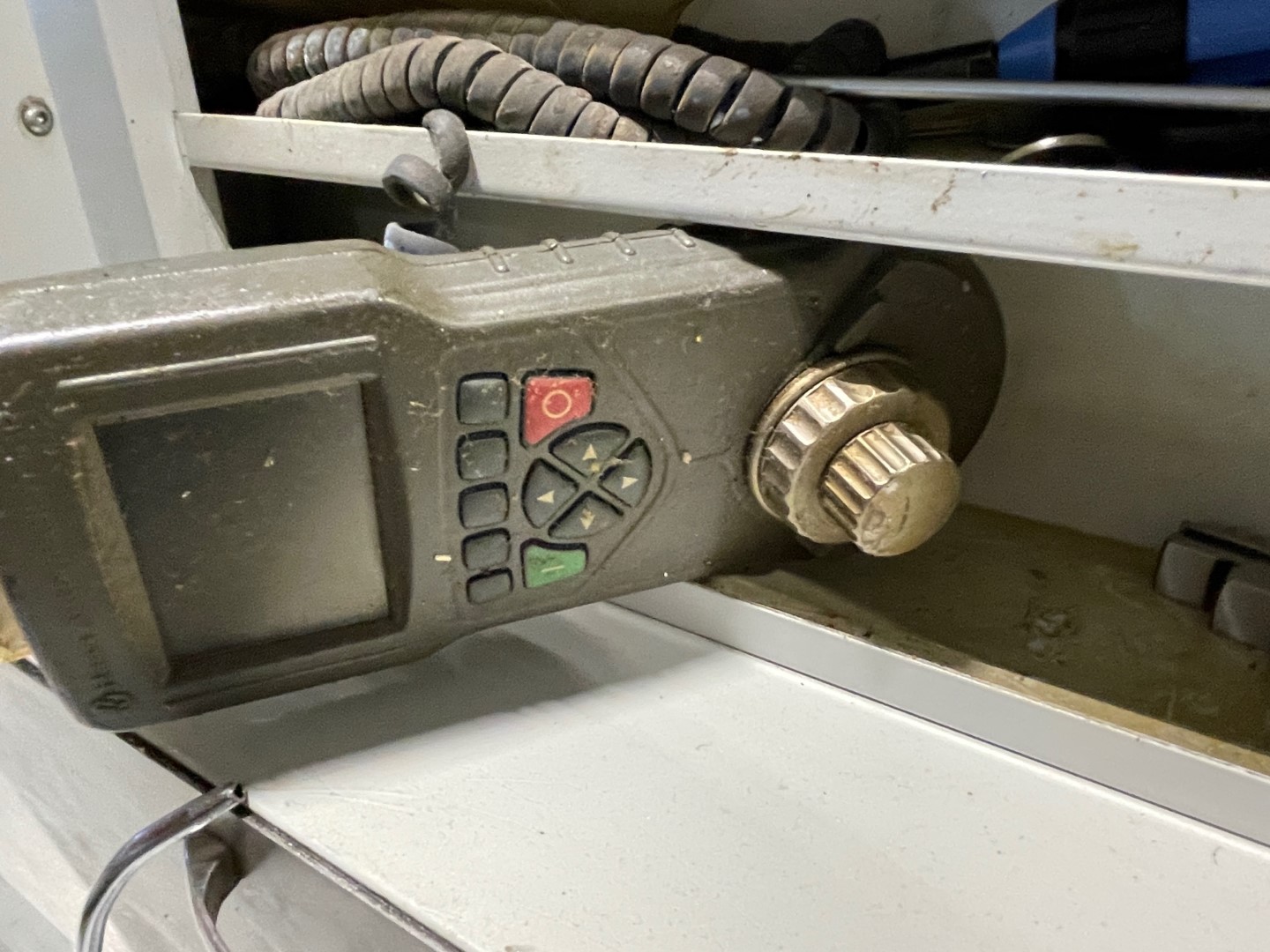

Remote Jog Handle with extra-large touchscreen display

STANDARD PROGRAM MEMORY, 1 GB

HIGH-INTENSITY LIGHTING, 24V

Programmable Coolant Nozzle

ETHERNET INTERFACE

HAASCONNECT: REMOTE MONITORING

HAASDROP

RIGID TAPPING

CHIP AUGER

EARLY POWER-FAILURE DETECTION MODULE

User-Definable Macros

Coordinate Rotation and Scaling

Spindle Orientation

Visual Part Programming System

AUXILIARY COOLANT FILTER

*** 4TH AXIS ROTARY TABLE IS NOT FOR SALE.

Photos
