Specifications

Categories > Machining Center, Vertical
Ask for quotation
Stock ref. # 2111

Manufacturer MATSUURA

Model MAM72-63V

Year 2006

Axis_Travels(X;Y;Z) 29" x 33" x 25"

RPM 15000

HP 30

ATC 40

Control FANUC (G-Tech 30i)

Price CALL US!

Other specifications

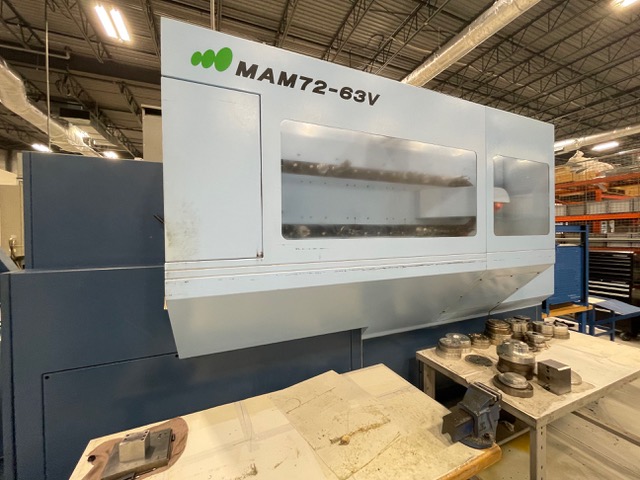

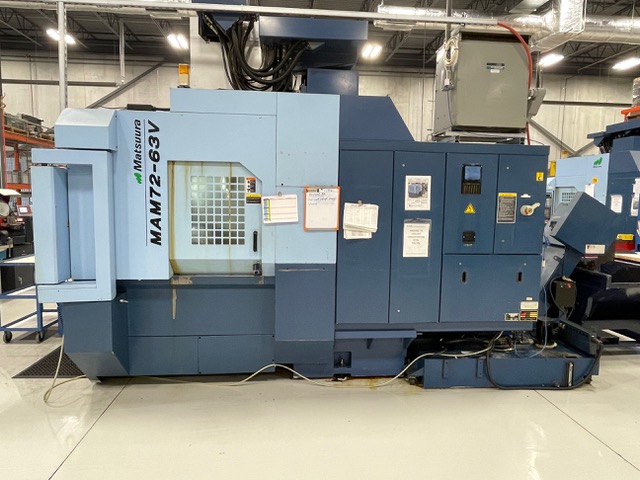

USED MATSUURA MAM72-63V 5-Axis CNC Vertical Machining Center, 2006

Year of Mfg. 2006

X Axis Travel............... 29.92"

Y Axis Travel............... 33.26"

Z Axis Travel............... 25.98"

A Axis Travel............... 120 +/-Deg

C Axis Travel............... 360Deg

Rapid Rate X Axis........... 2,362 IPM

Rapid Rate Y Axis........... 2,362 IPM

Rapid Rate Z Axis........... 2,362 IPM

Table Size.................. 19.68" x 19.68

Max Table Load.............. 882 LBS

Spindle Motor............... 30 HP

Spindle Speed............... 15,000 RPM

Spindle Taper............... CAT-40

Tool Changer................ 40 ATC

Dimensions:

L x W x H................... 7200.0 × 3900.0 × 3200.0

Weight...................... 14500 kg

Equipped with:

Matsuura G-Tech 30i (FANUC)

Linear Scales

Chip Conveyor

Full 5 Axis Simultaneous

Laser Tool Measure

Rigid Tap

Data Server

Photos
