Specifications
| Ask for quotation | |
| Stock ref. # 2113 |
|
|
Other specifications

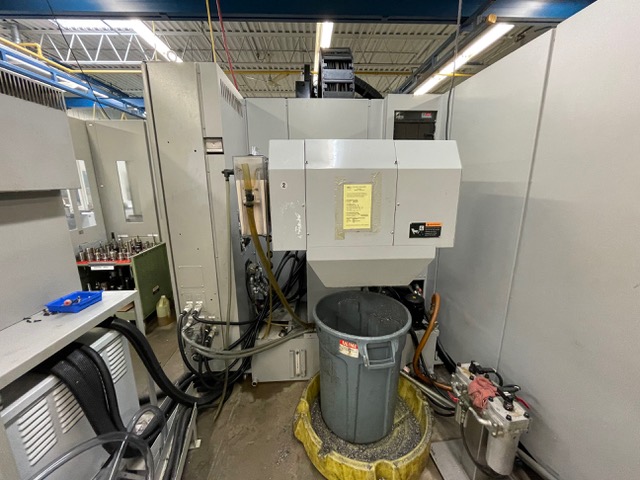

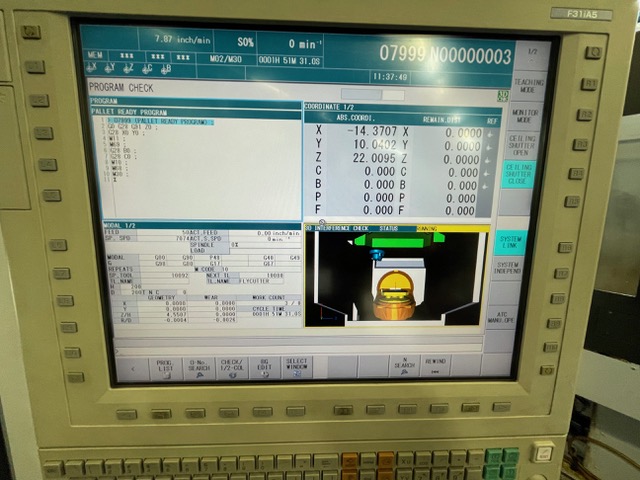

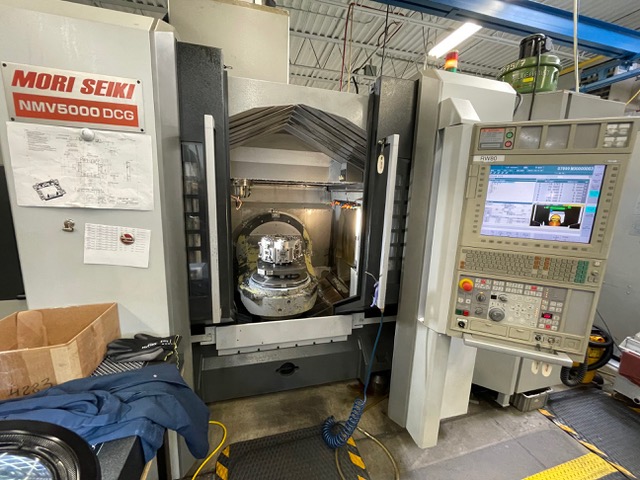

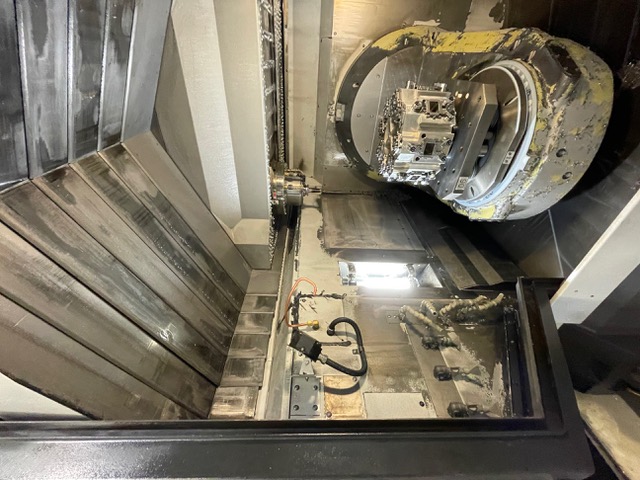

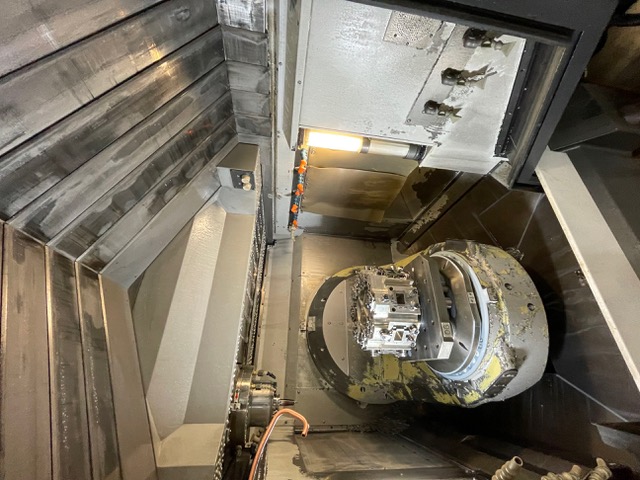

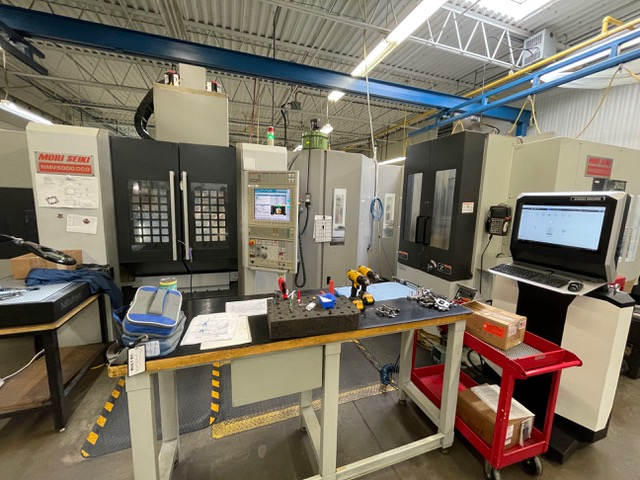

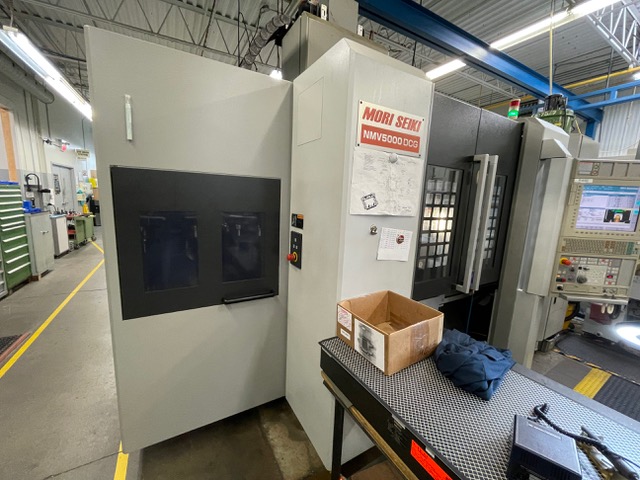

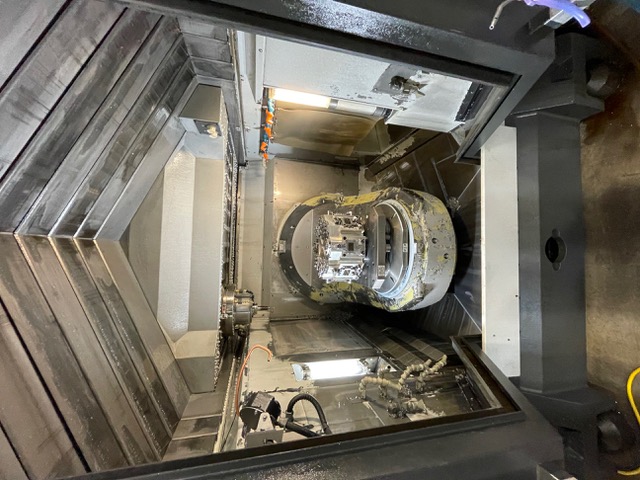

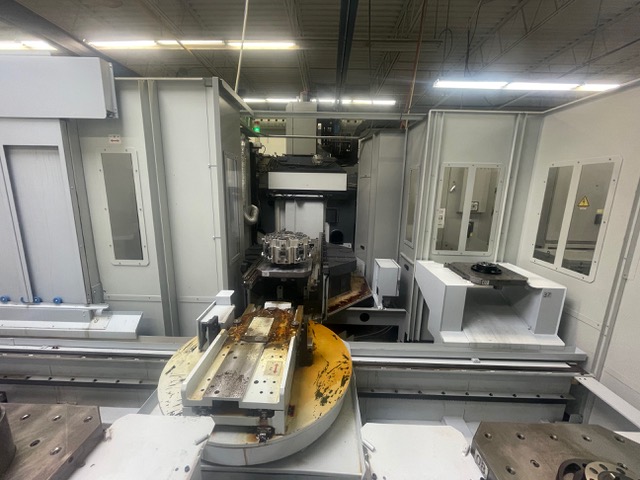

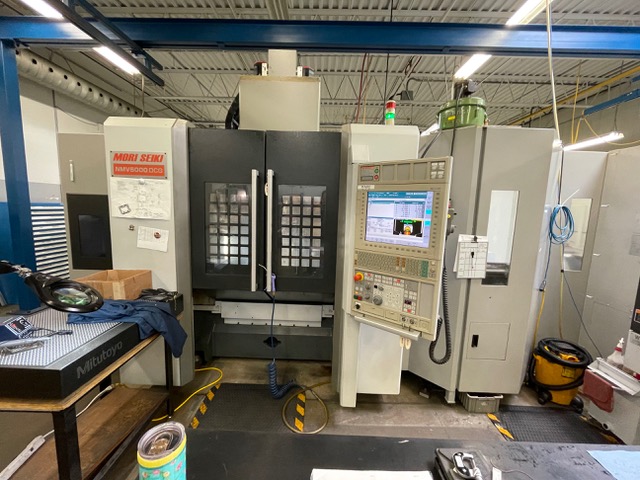

Mori Seiki NMV-5000DCG - 5 axis Vertical Machining Center, 2012 Date of Mfg. 01.2012 8 pallet pool Chip blaster 1000 psi CTS CAT-40 big plus taper Turning option on C-axis (1,400 rpm) Scale feedback on all axis 181 position automatic tool changer Specifications: Table Diameter.............. 19.7" Maximum weight on table..... 660 lbs. X Travel.................... 28.7" Y Travel.................... 20.1" Z Travel.................... 20.1" B-axis travel............... -180 / +160 Degrees C-axis index................ 360,000 Degrees Table turning max. Speed.... 1,400 rpm Spindle motor Power......... 25 hp Max. Spindle speed.......... 12,000 RPM Spindle taper............... CAT-40 BIG PLUS Rapid traverse x, y / z..... 1968 IPM / 1574 IPM ATC tool capacity........... 181 Positions Number of pallets........... 8 pallets Coolant through spindle..... Yes / 1000 psi CNC Control................. FANUC 31i-A5 Equipped with: NC SYSTEM FS-31IA5(MAPPS 3) C-axis turning option, 1400 rpm X, Y, Z axis MAGNESCALE Scale Feedback 181 position Automatic Tool Changer 8 pallet pool system Chip Blaster coolant through spindle 1000 psi MPG hand wheel Lift up chip conveyor Coolant filters Mist collector Spindle Chiller EXTERNAL CHIP CONVEYOR - SCRAPER (DRUM FILTER TYPE) Renishaw Parts probe NANO SMOOTHING FOR 5-AXIS MACHINING TOOL LIFE MANAGEMENT MAPPS IV
Photos
|
