Specifications
| Ask for quotation | |
| Stock ref. # 2156 |
|
|
Other specifications

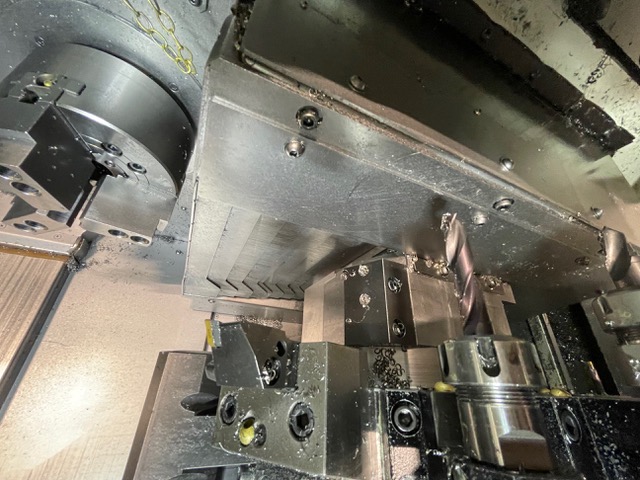

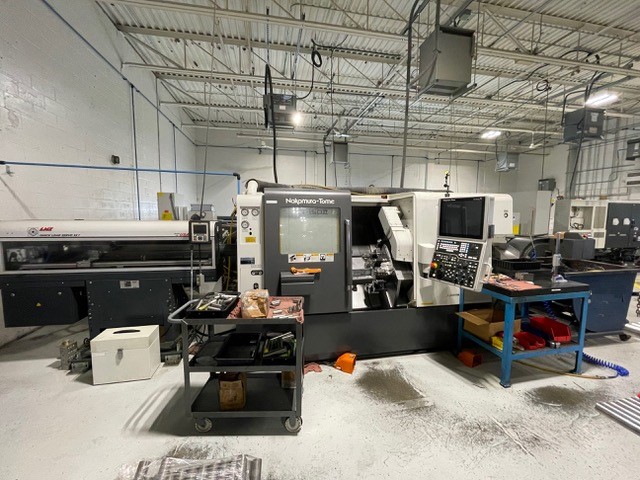

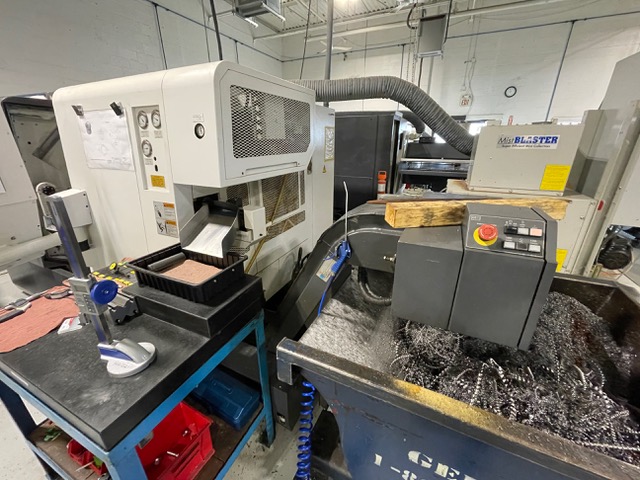

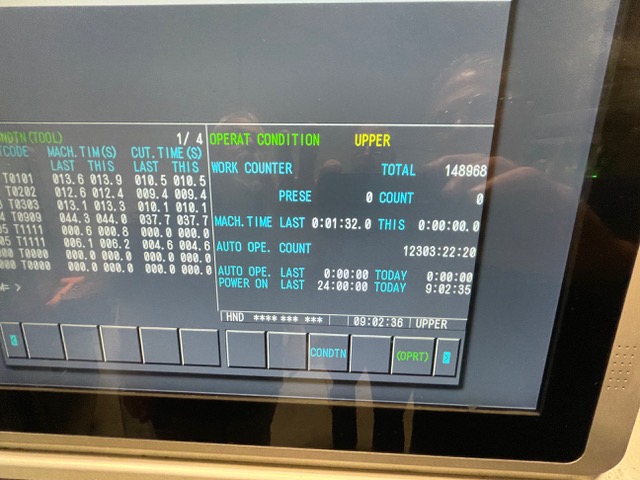

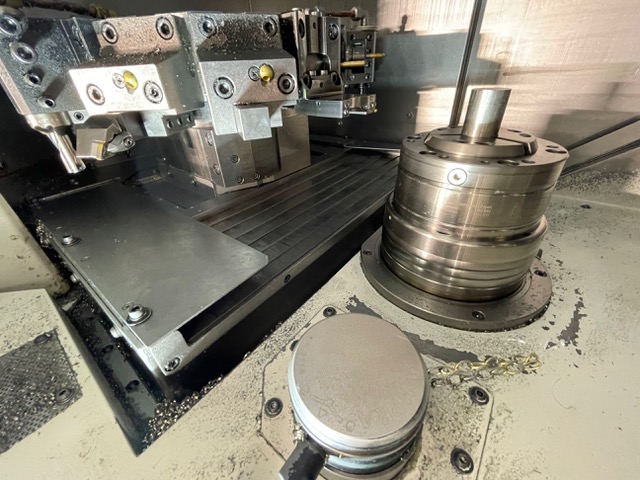

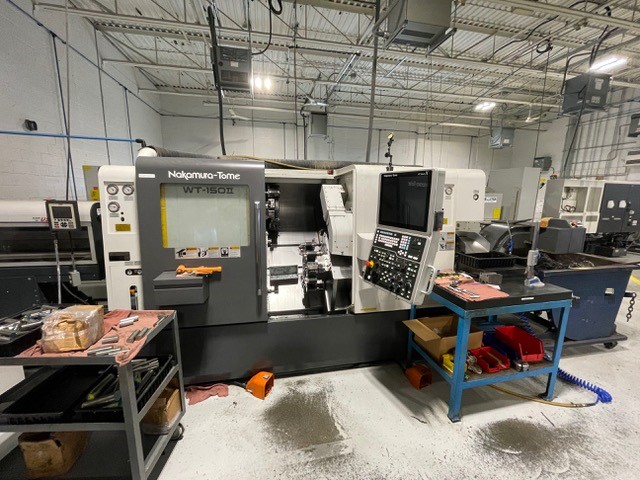

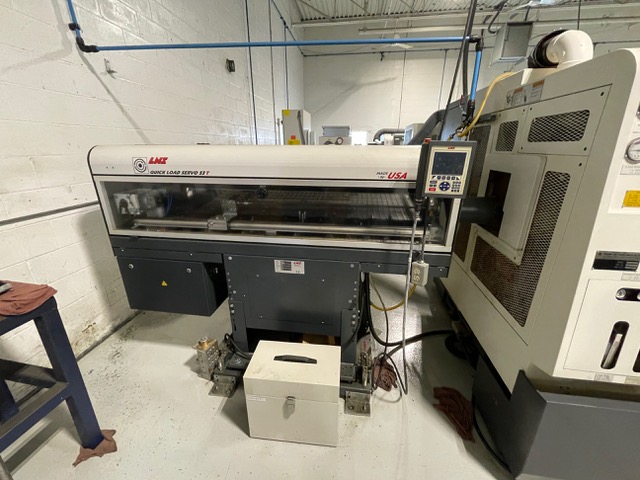

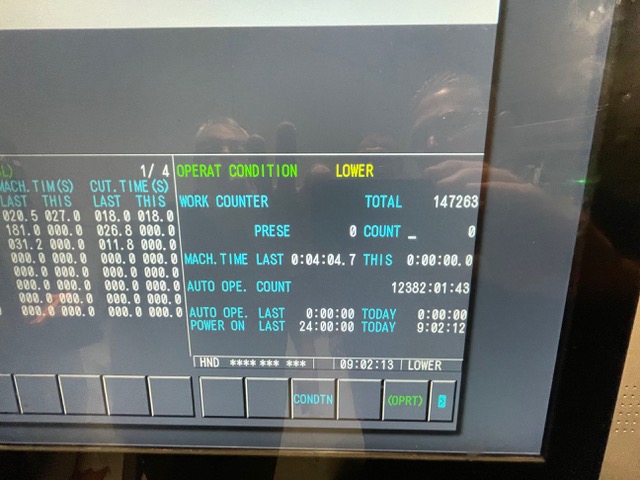

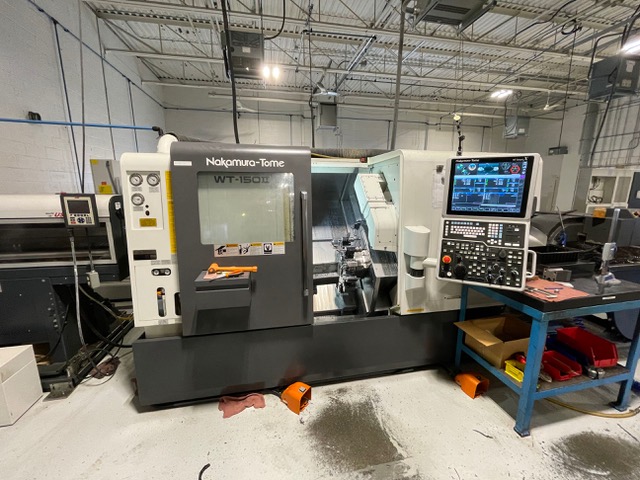

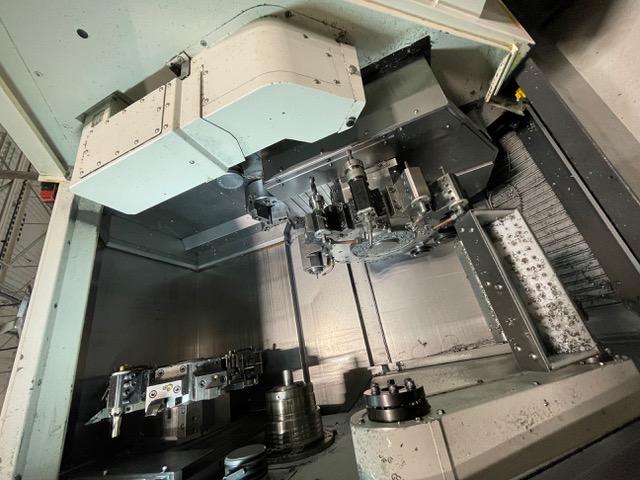

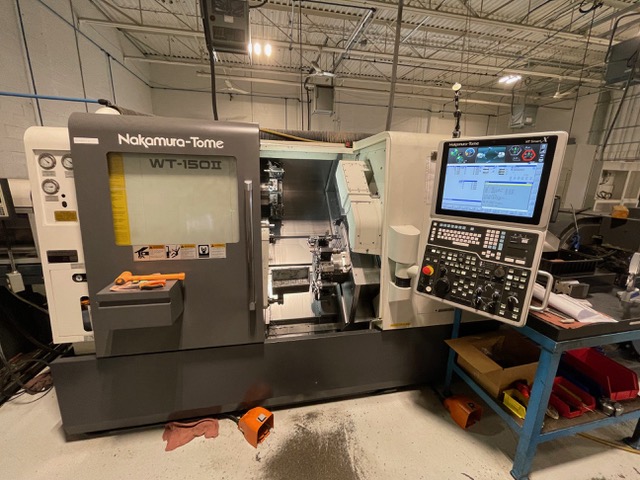

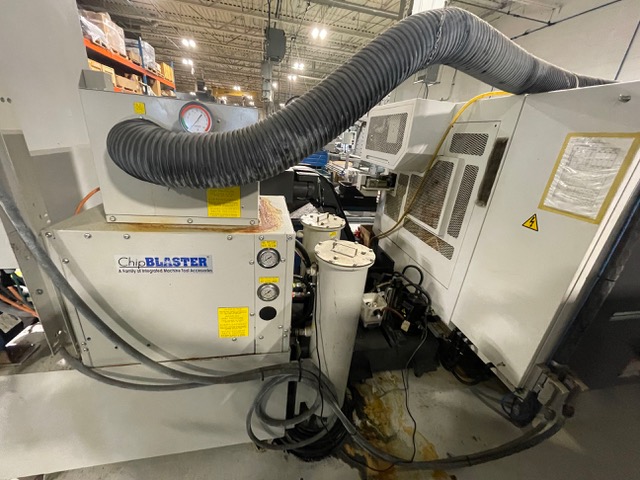

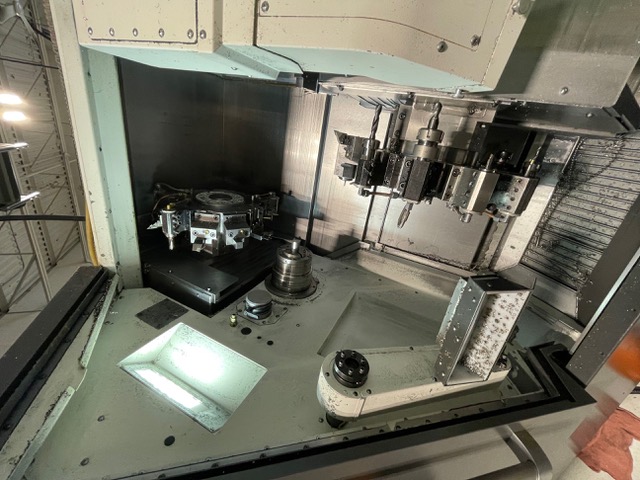

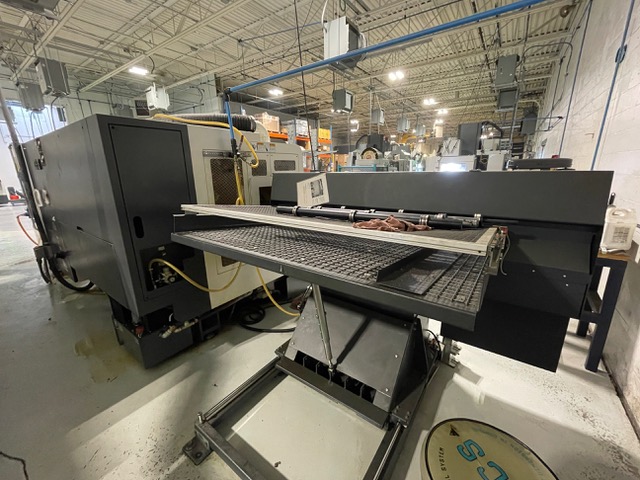

NAKAMURA WT-150 CNC MULTI-AXIS TURNING CENTER, 2017 The hours on both spindles are around 12,000 hrs. That’s around 1500 hours per year, or less than one shift yearly. I've attached pictures. 2 Radial and 2 Axial live tool holders with it + bar feeder. 1000 psi Chip blaster unit + Super efficient mist collector on top Detachable tool presetter. Year of Mfg. 2017.02 General Specifications: Max Turning Diameter............... 7.48" Max Turning Length................. 15.74" Distance between spindle noses..... Max. 29.52" / min. 7.87" Max Bar Capacity................... 2.56" Hole through draw tube L/R......... 2.6" / 2.05" Spindle bore L/R................... 3.15" / 2.48" Chuck Size......................... 6" C axis rotation - both spindles.... 0.001 degree Spindle Speed, Left................ 4,500 RPM Spindle Speed, Right............... 5,000 RPM Left Spindle Motor................. 15/11 kW / 20HP Right Spindle Motor................ 11/7.5 kW / 15 HP Upper Turret Tool positions..................... 24 Live tool positions................ 12 Upper Axes Travel (X/Z)............ 5.61"/18.30" Upper Y-Axis Travel................ +/-35 ... +/- 1.38" Driven Motor Power................. 5.5 kW / 7.37 HP Driven Tool Speed.................. 6,000 RPM Lower Turret Tool positions..................... 24 Live tool positions................ 12 Lower Axes Travel (X/Z)............ 6.59"/18.3" Driven Motor Power................. 5.5 kW / 7.37 HP Driven Tool Speed.................. 6,000 RPM Requirements: Floor space required L x W......... 142" x 78" Machine approx. weight............. 19,600 lbs Power requirement.................. 67.2 kVA
Photos
|
