Specifications
| Ask for quotation | |
| Stock ref. # 2157 |
|
|
Other specifications

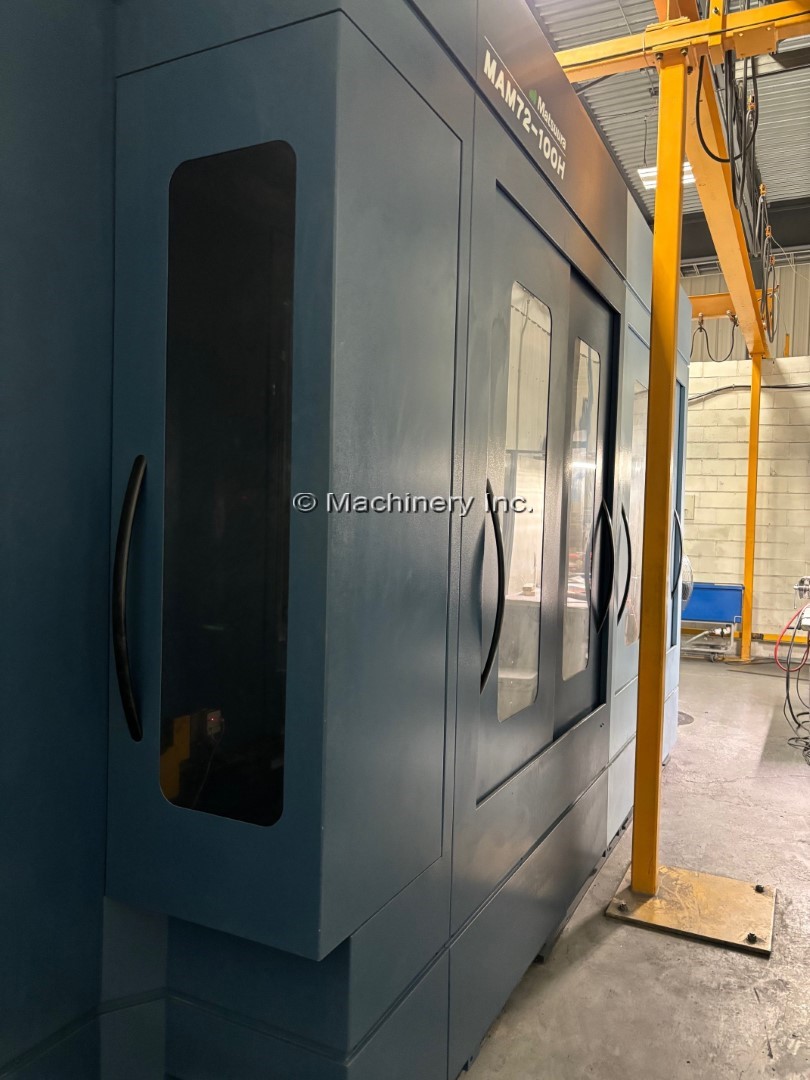

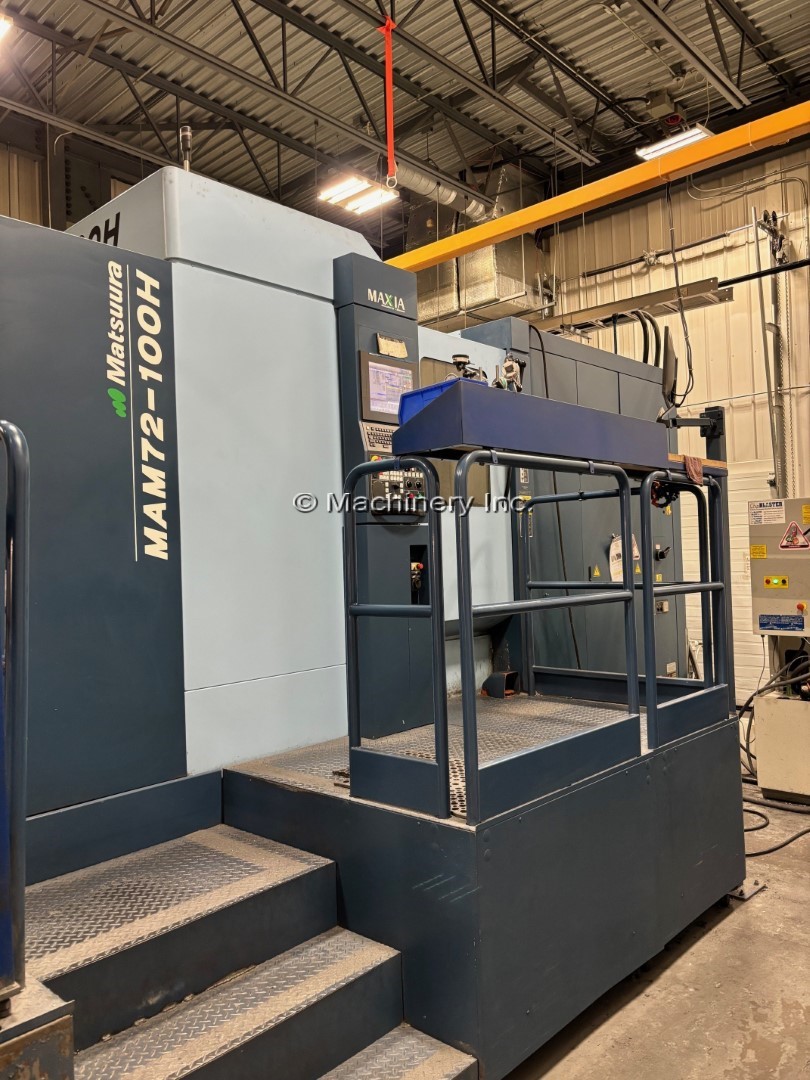

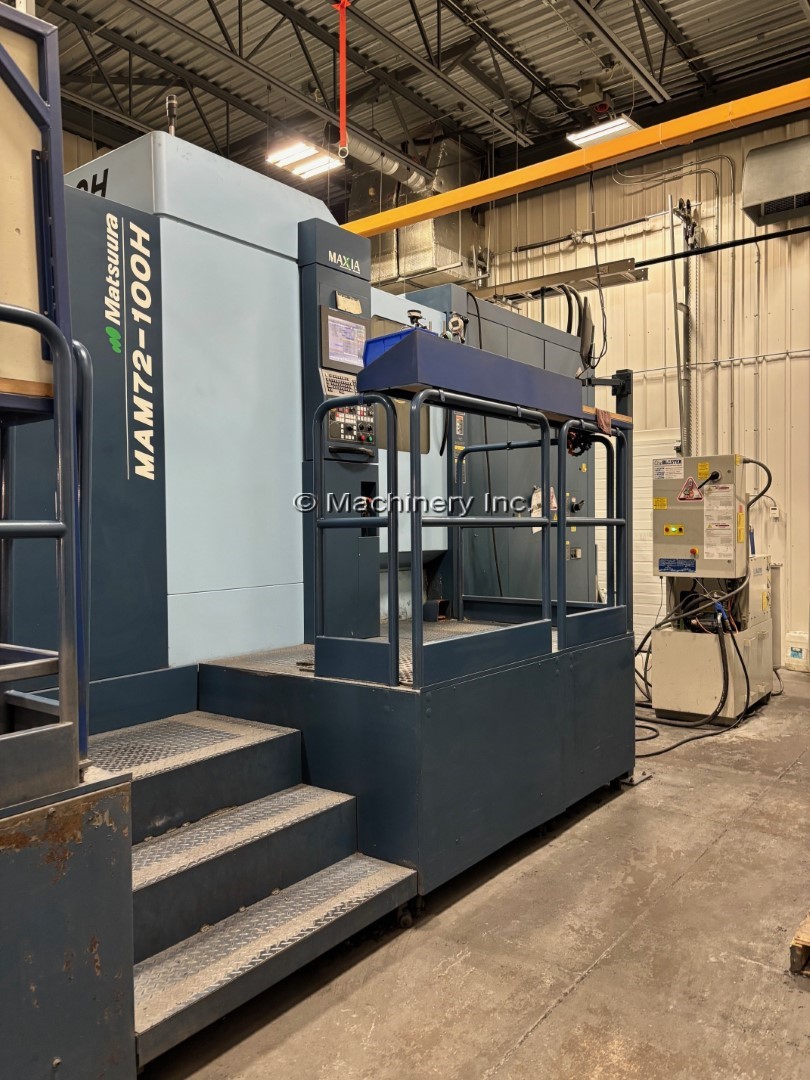

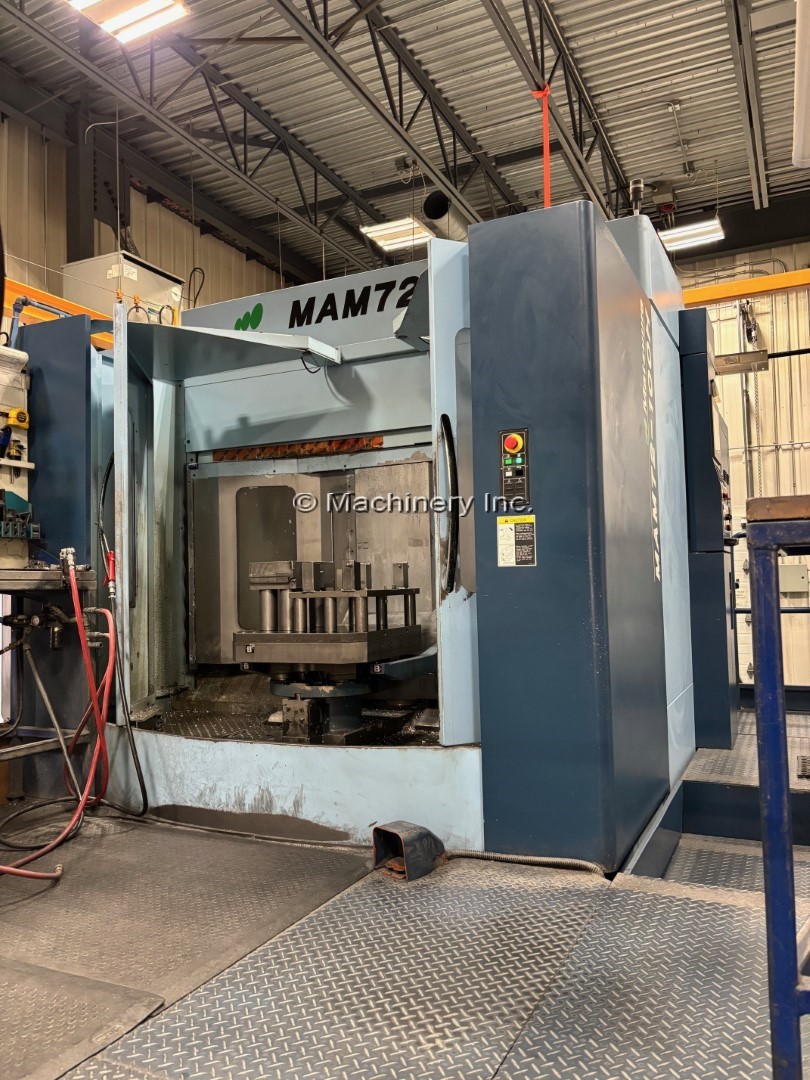

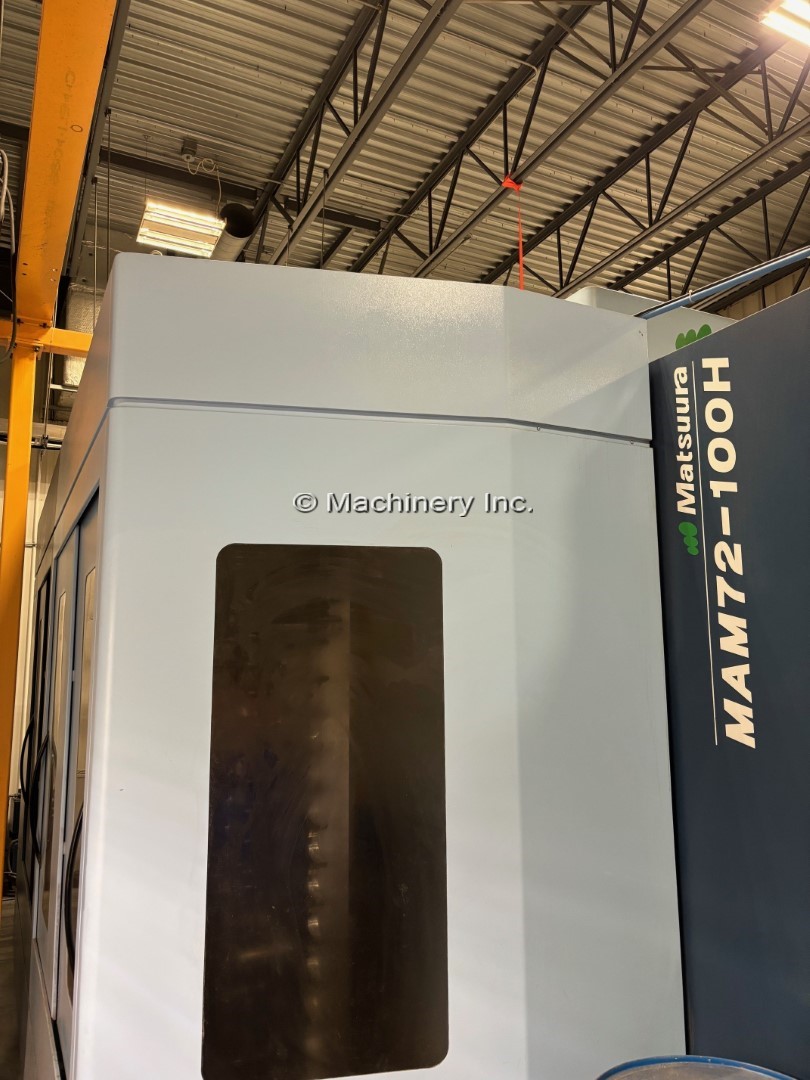

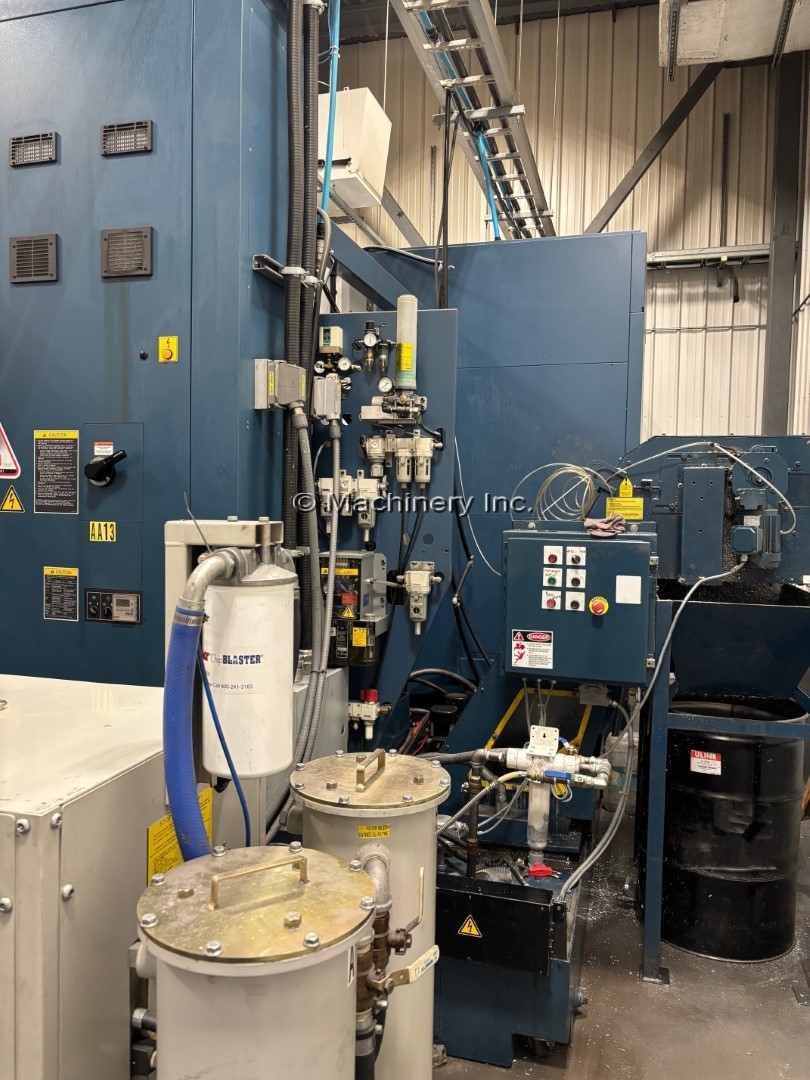

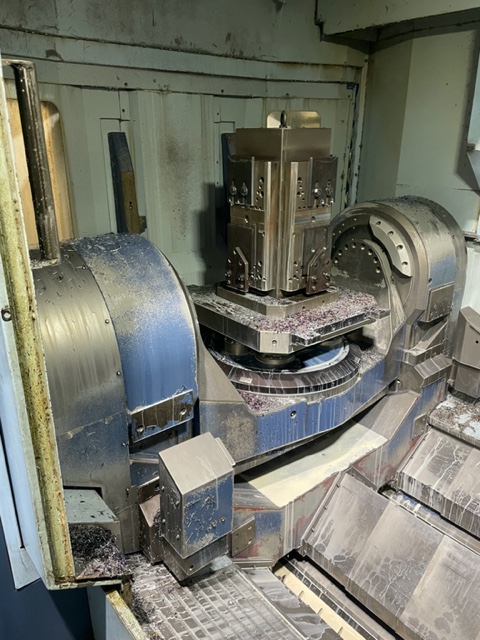

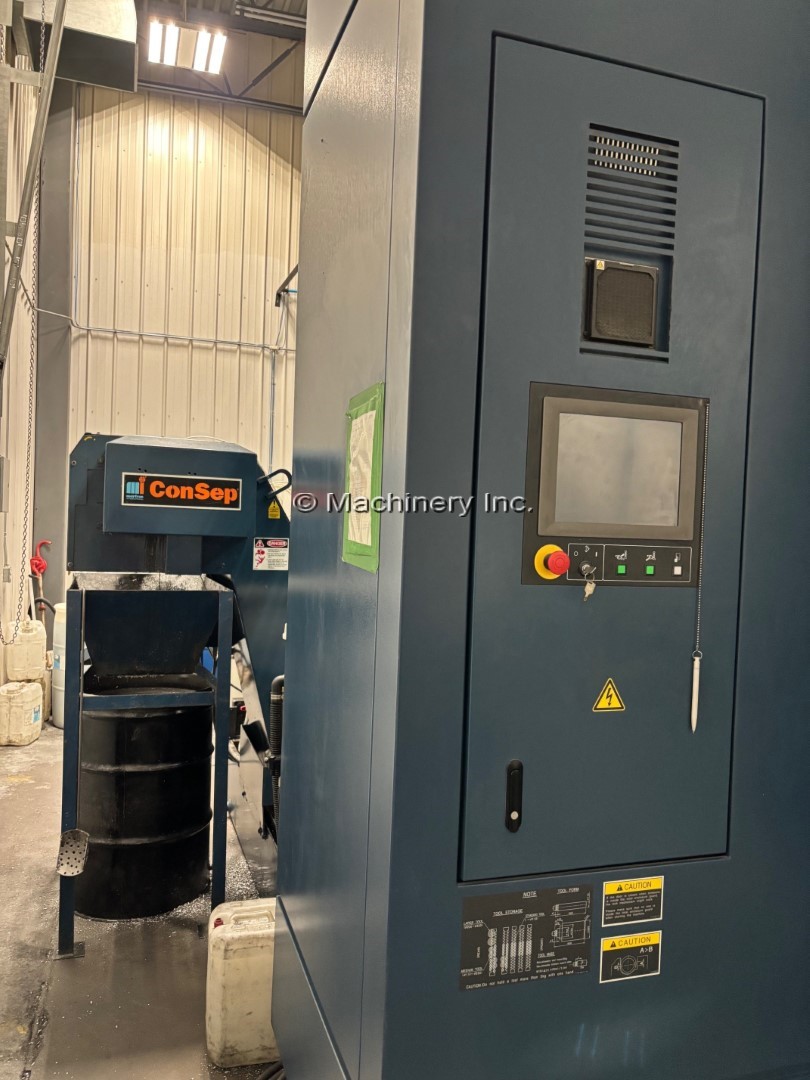

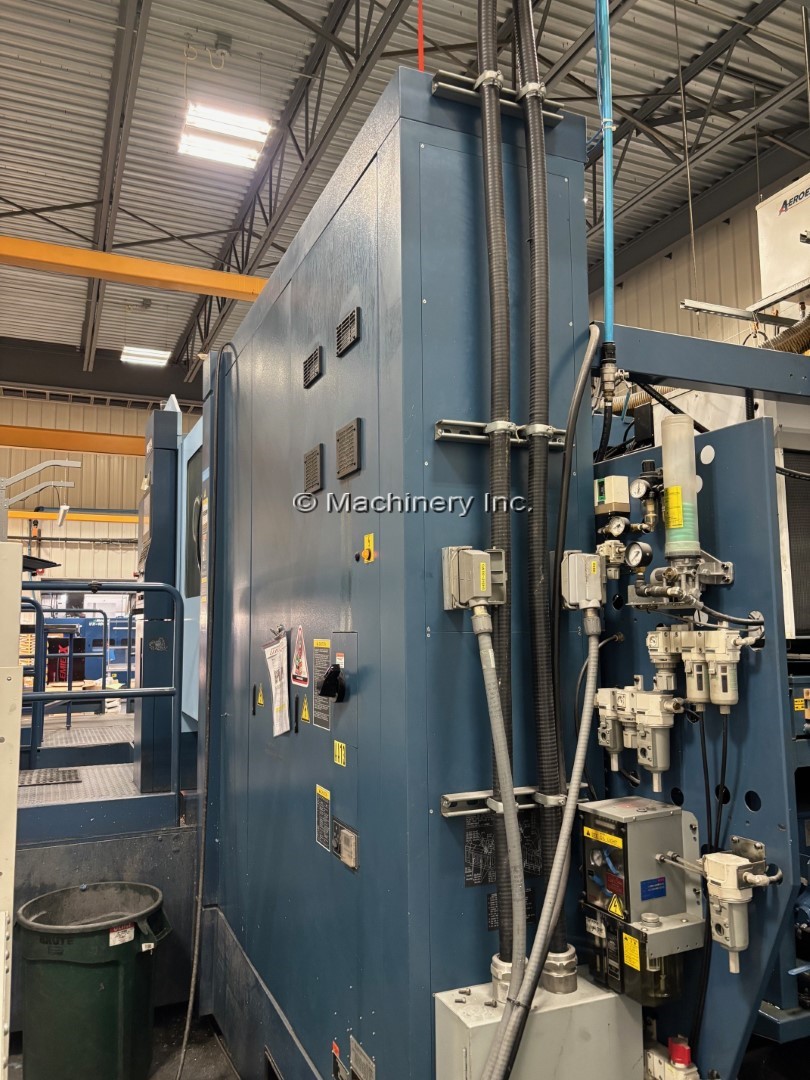

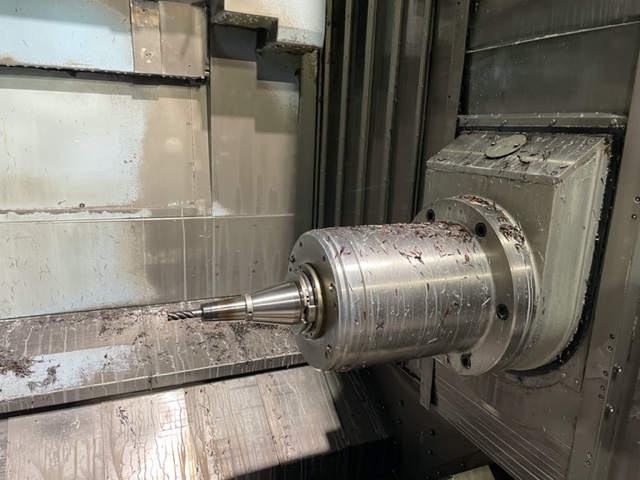

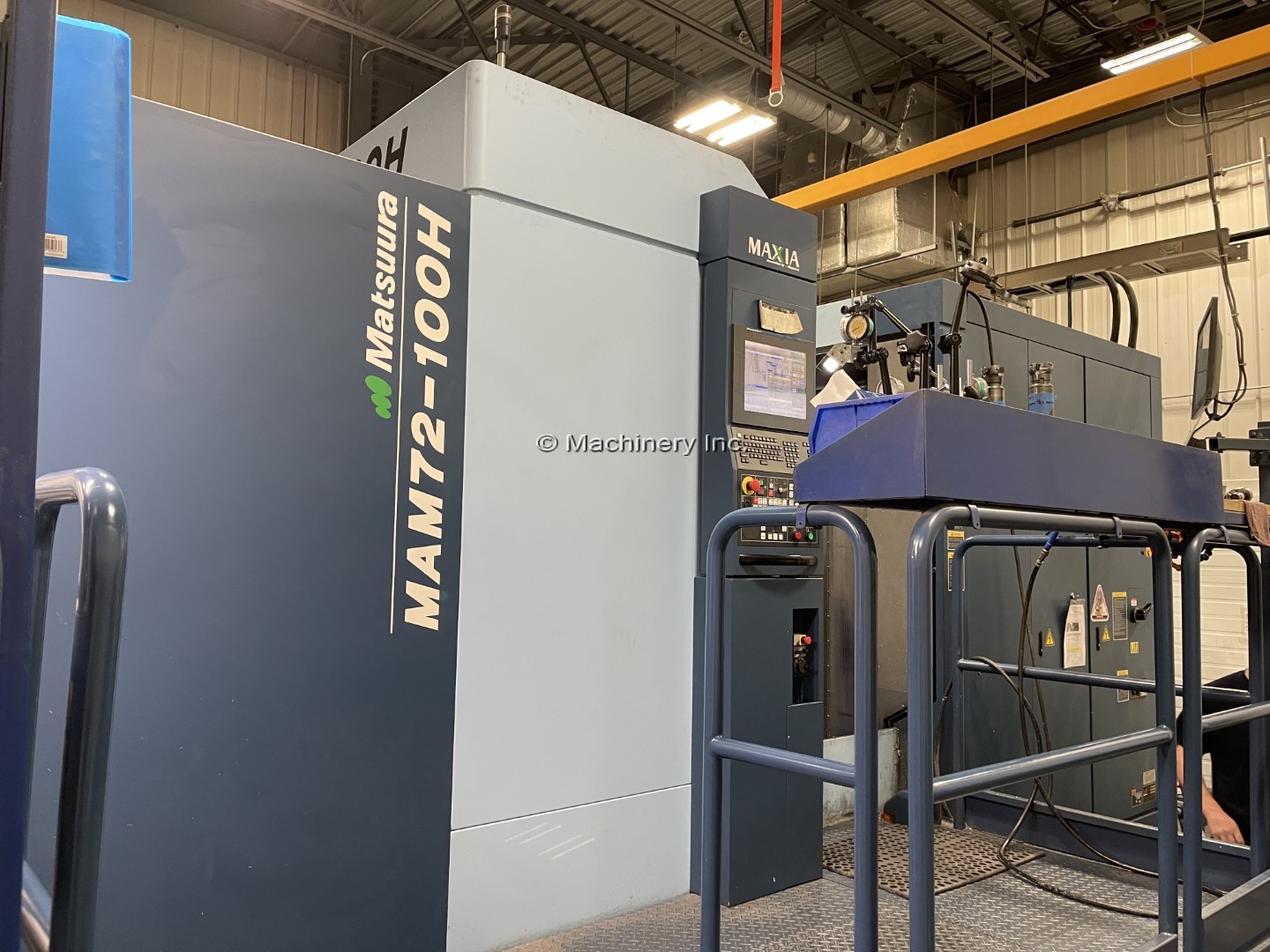

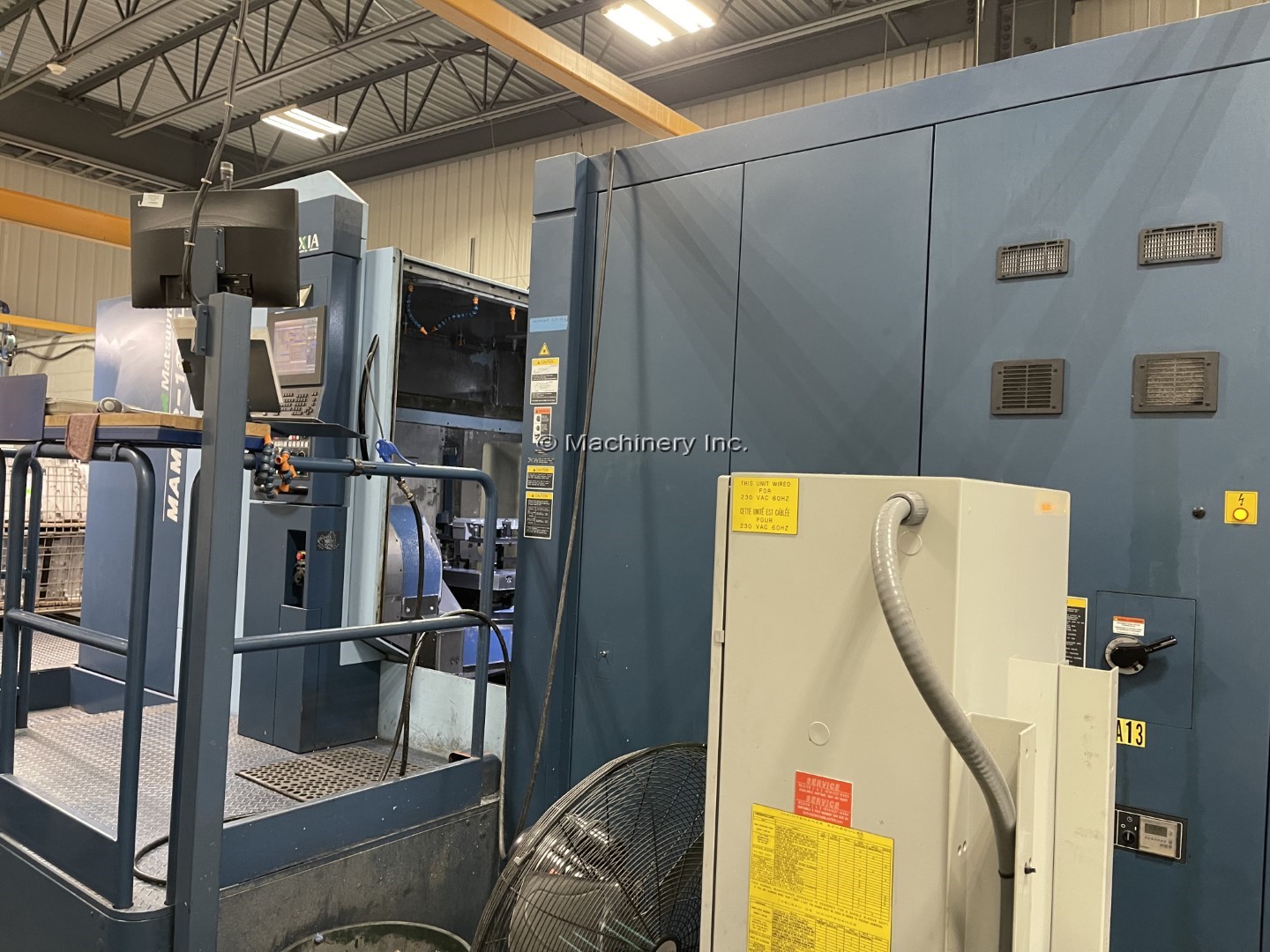

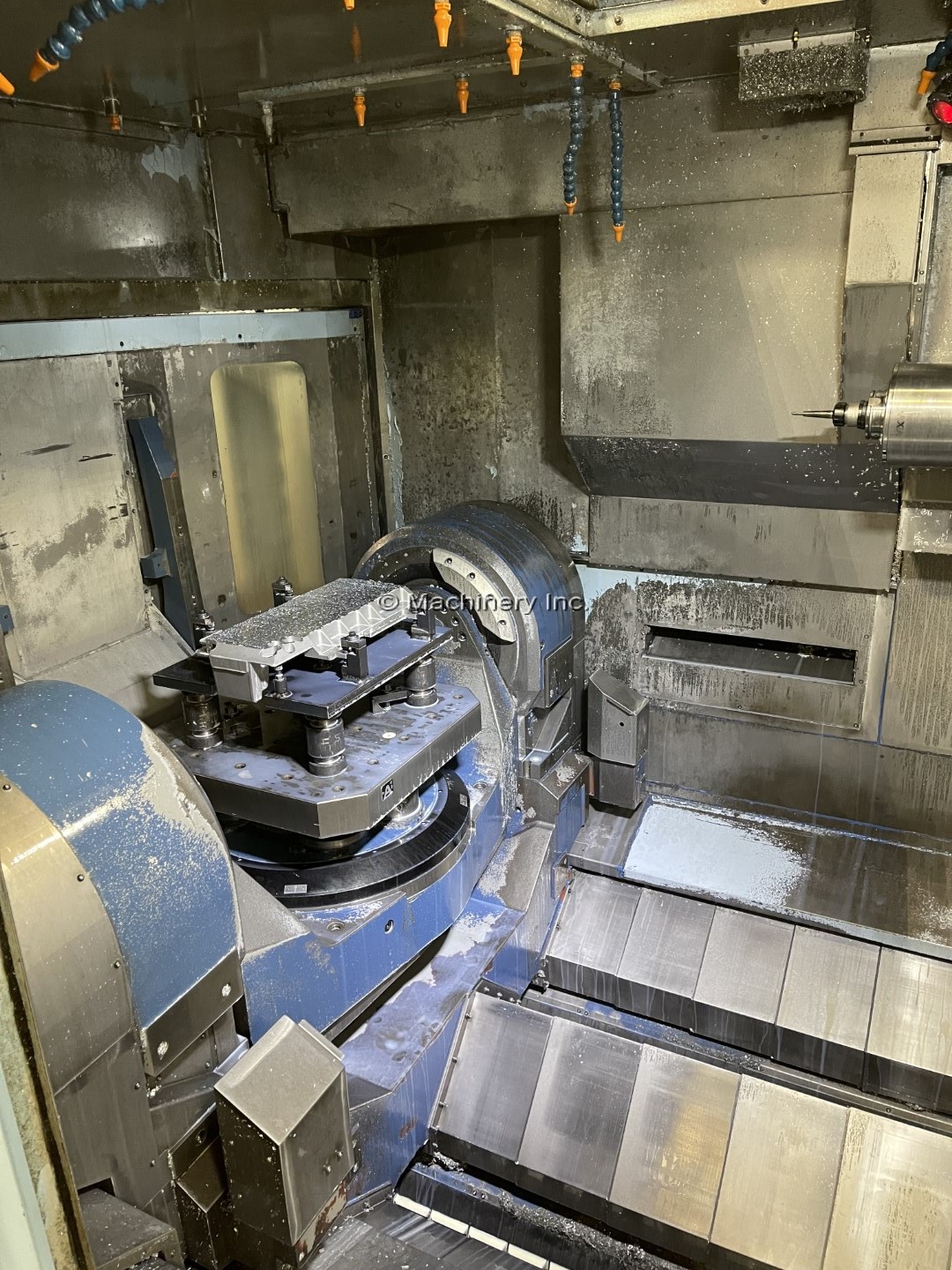

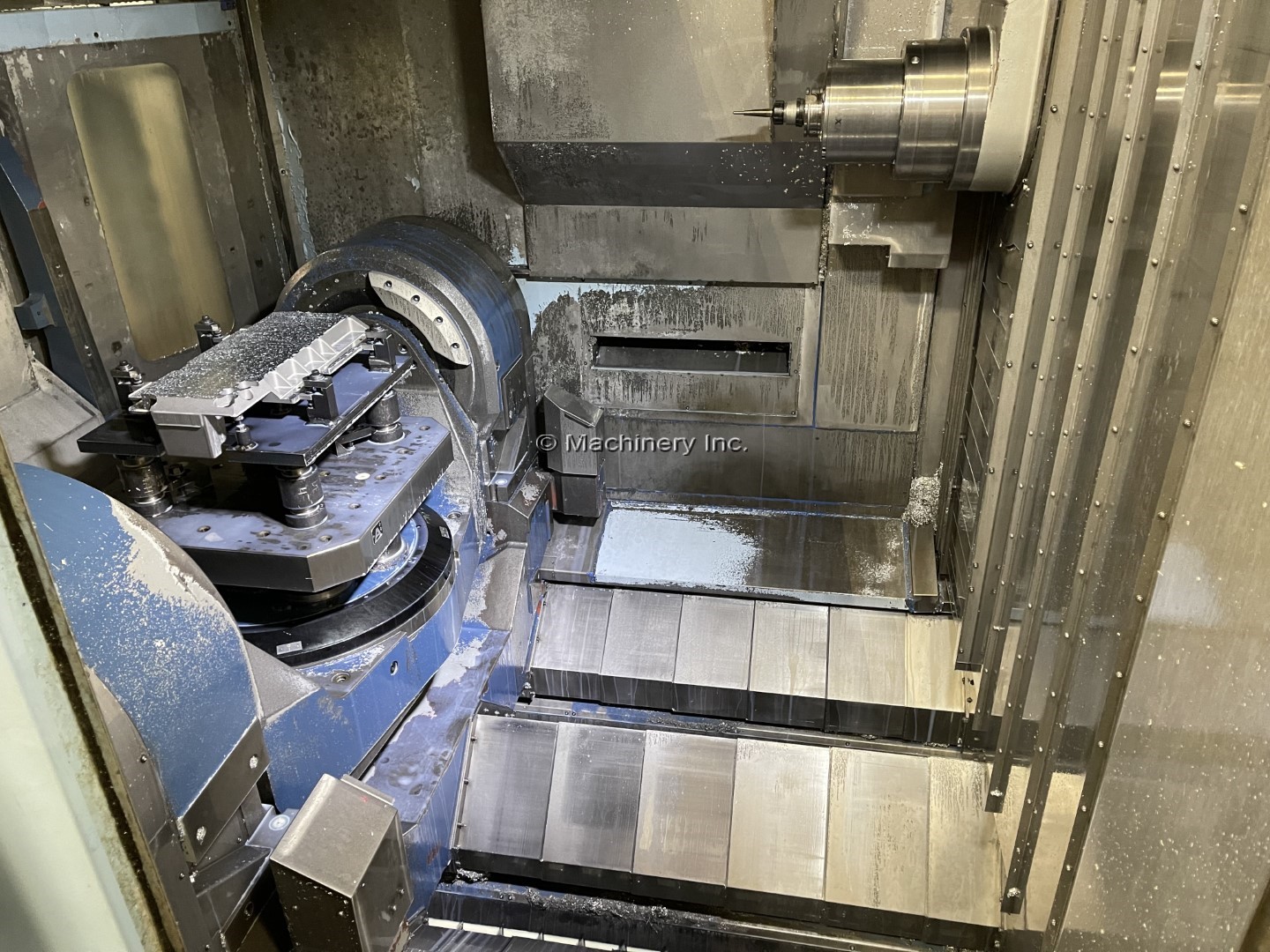

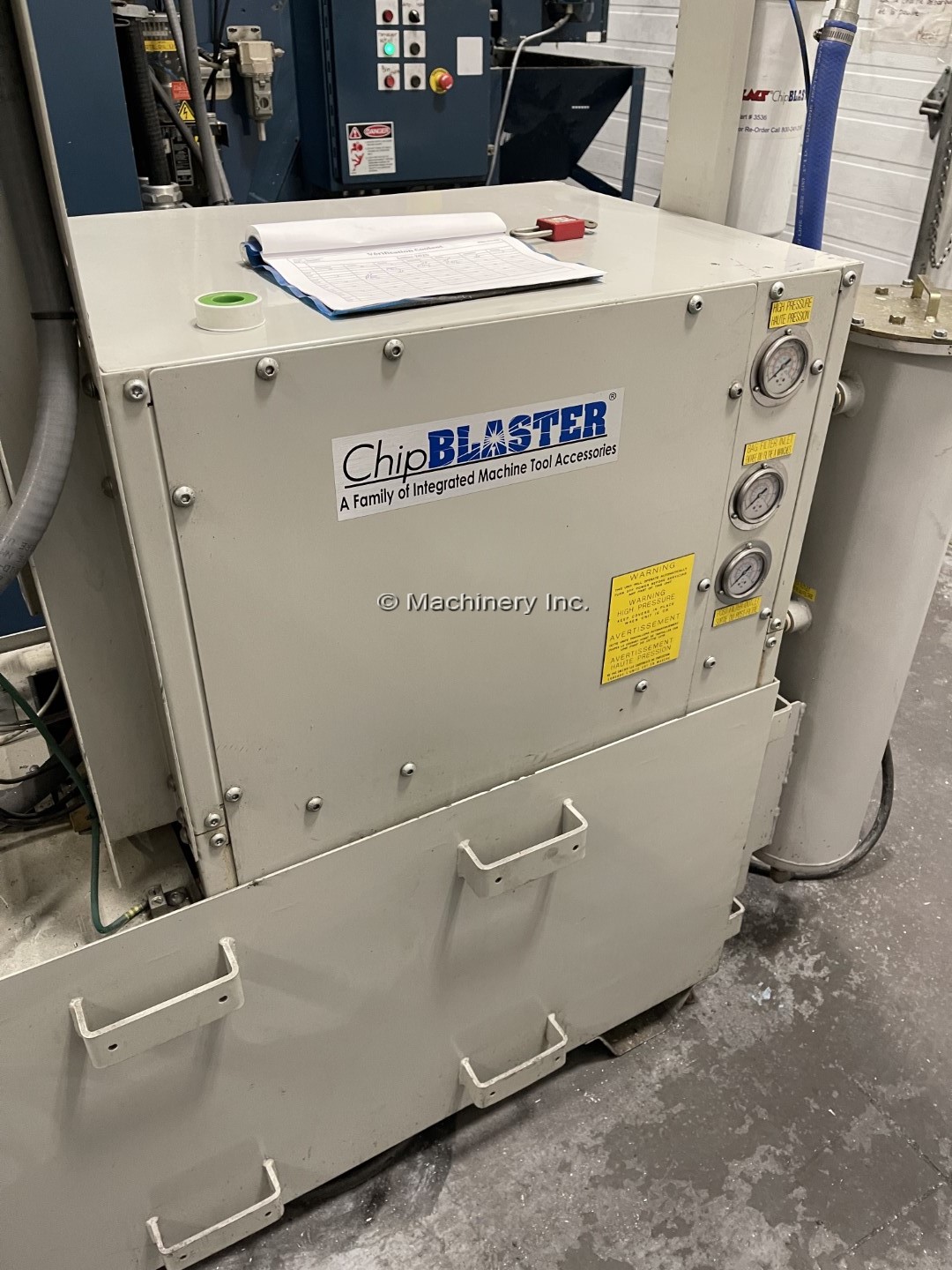

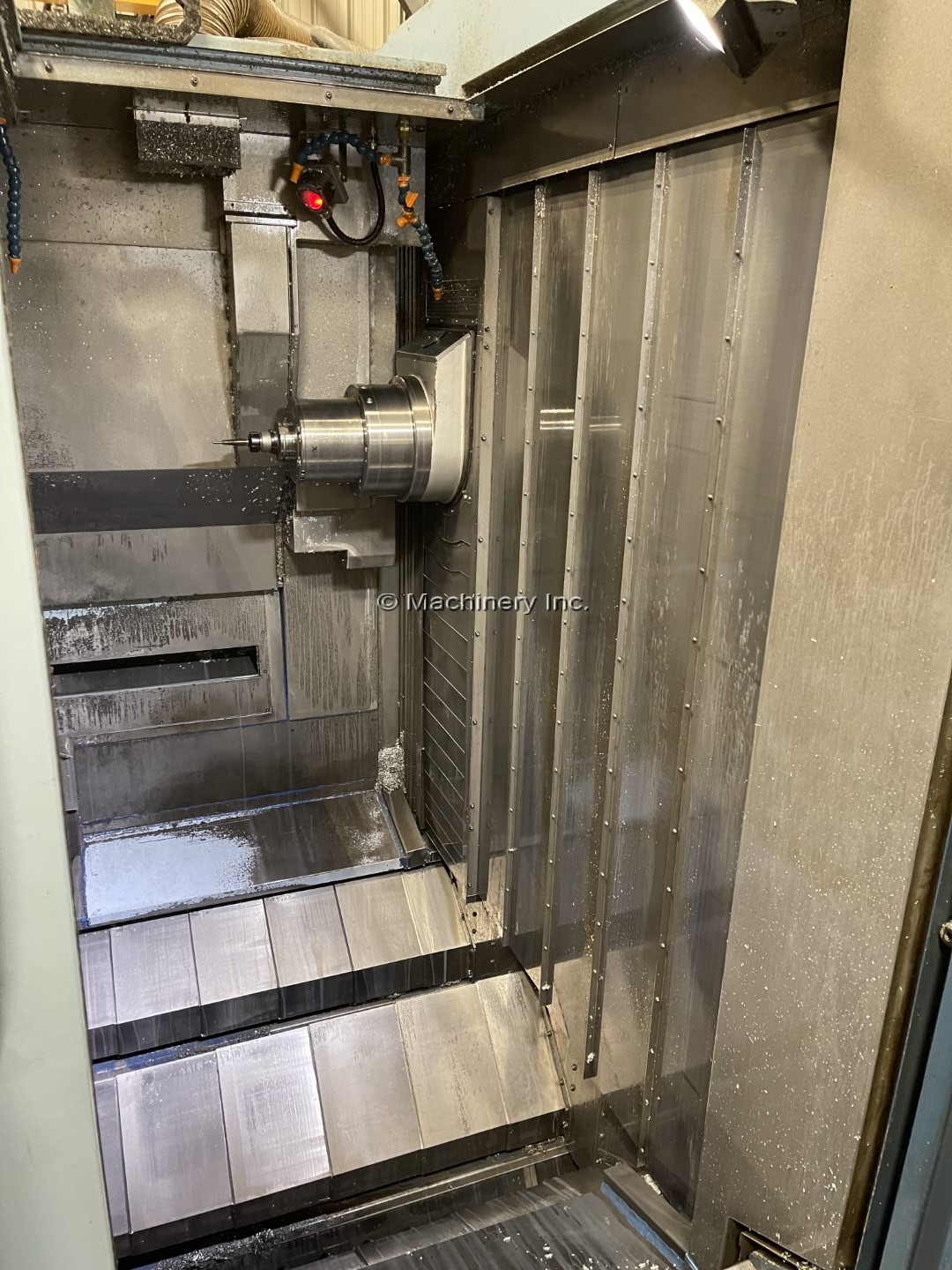

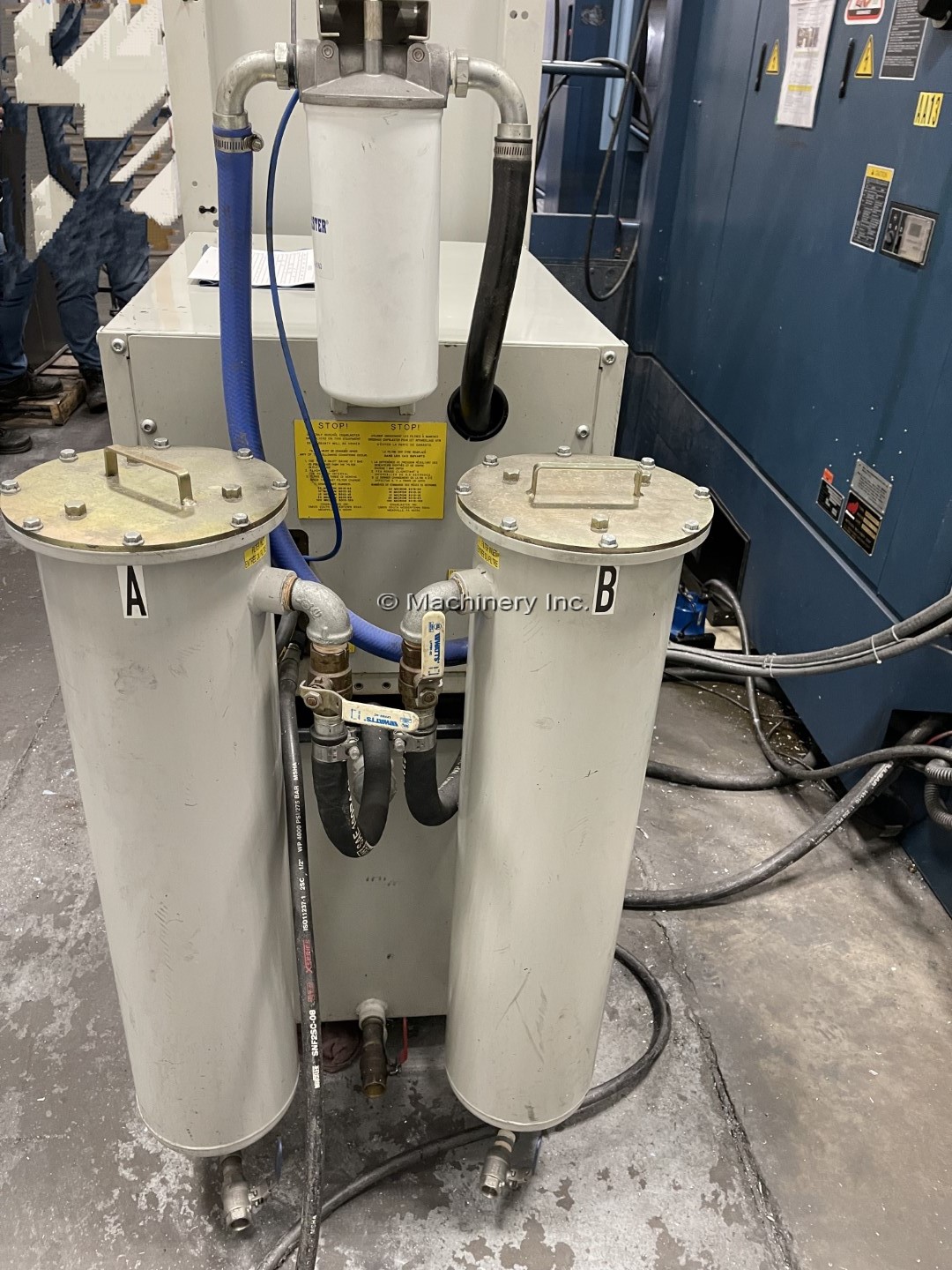

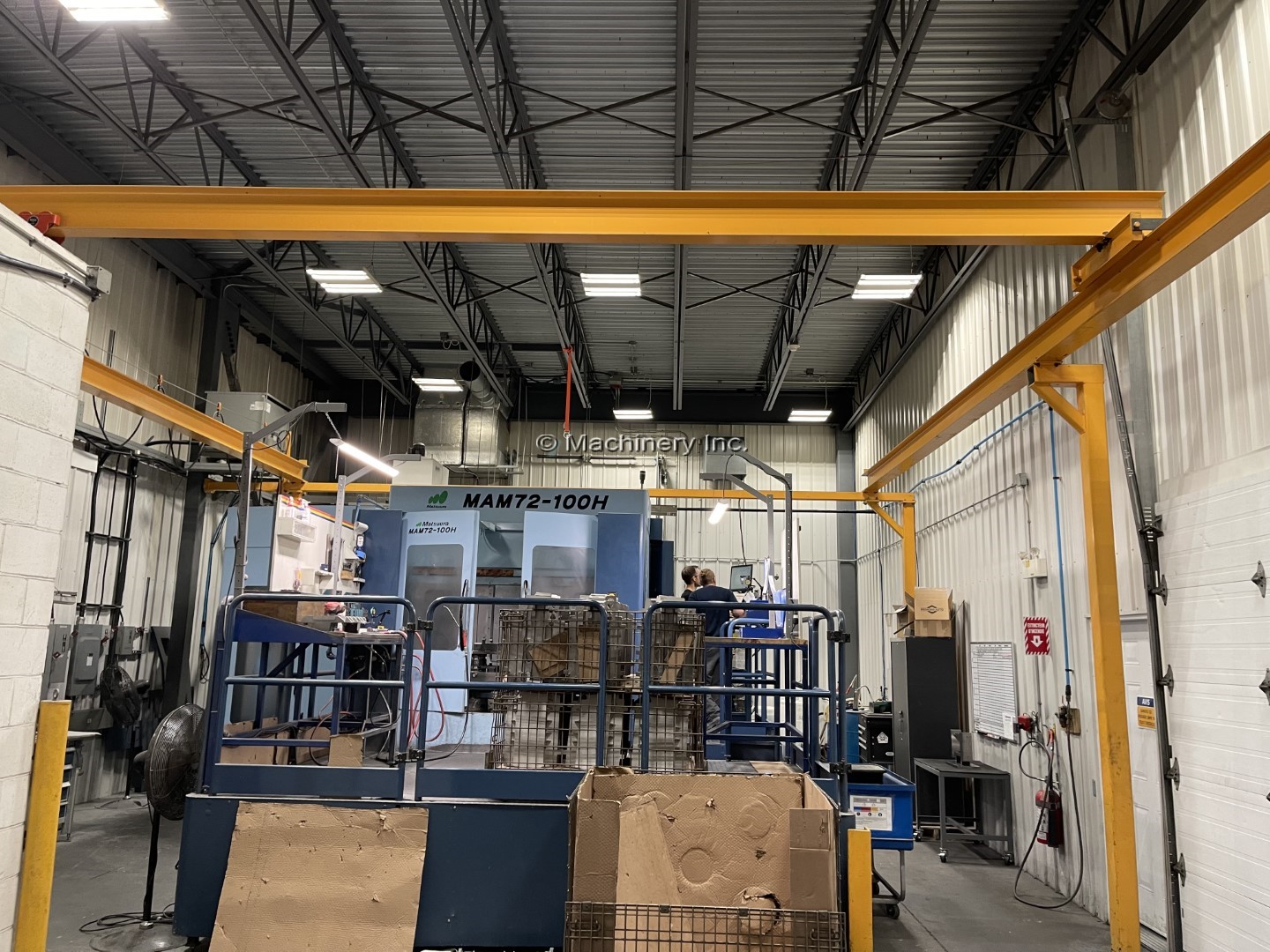

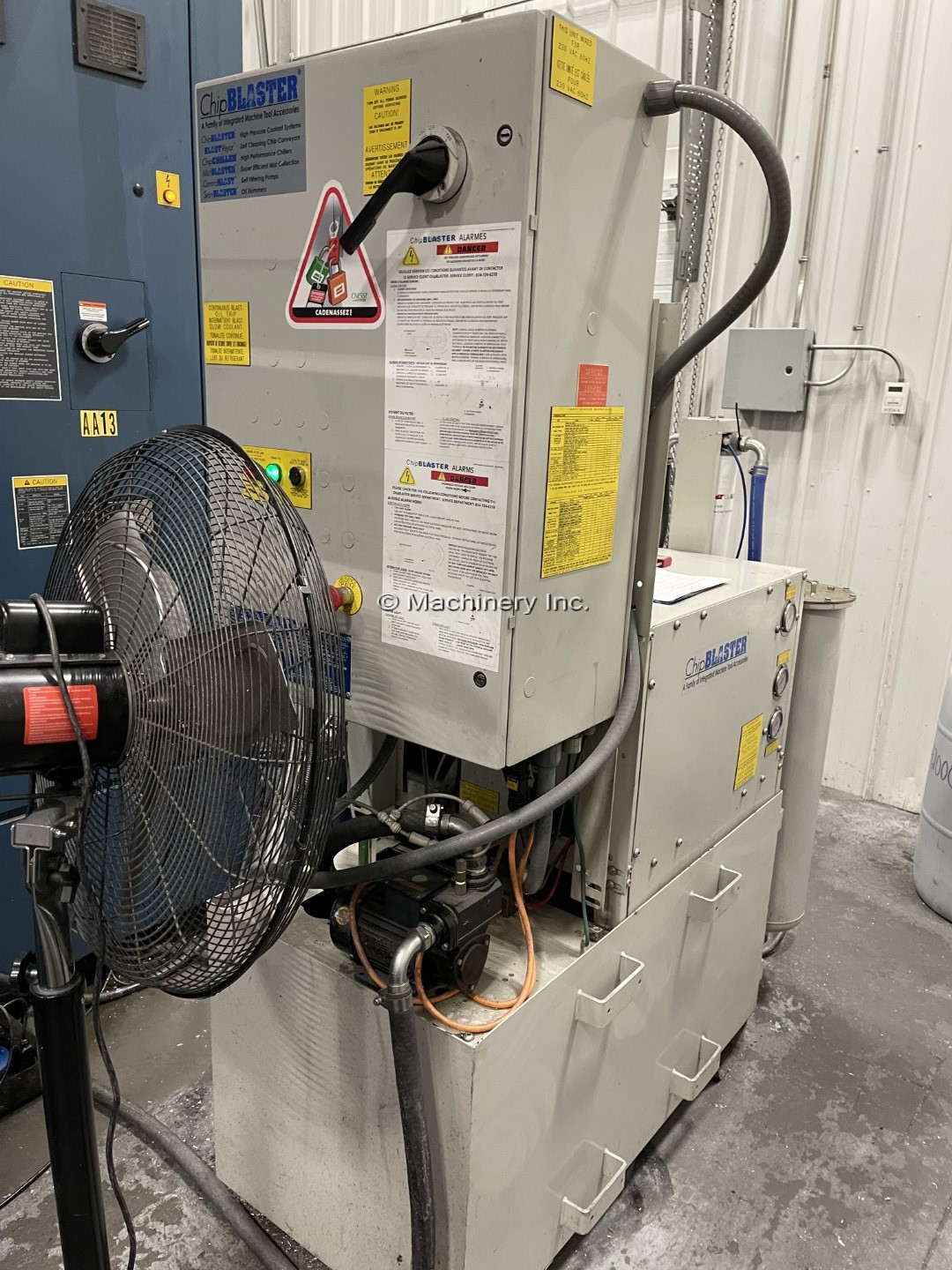

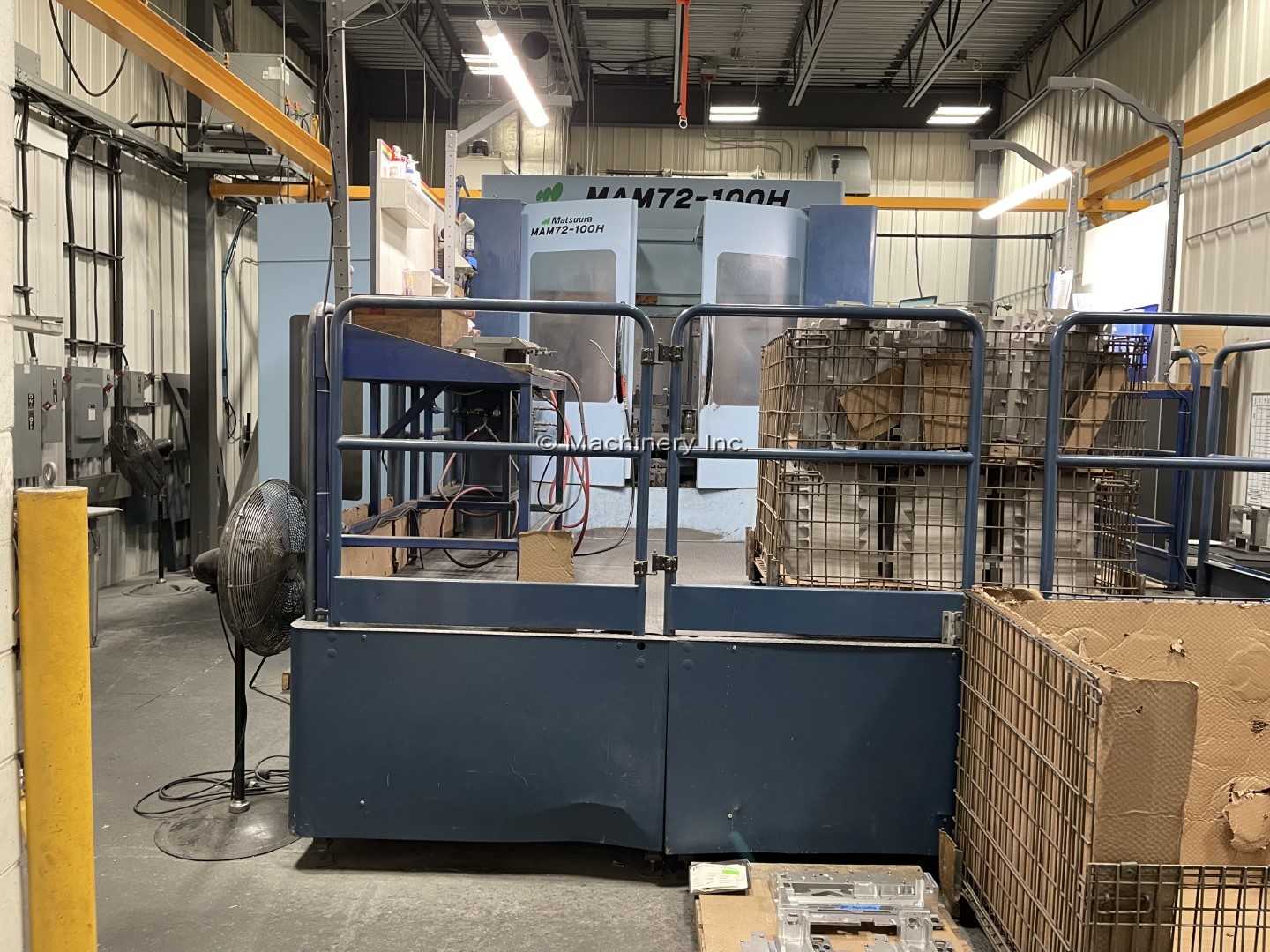

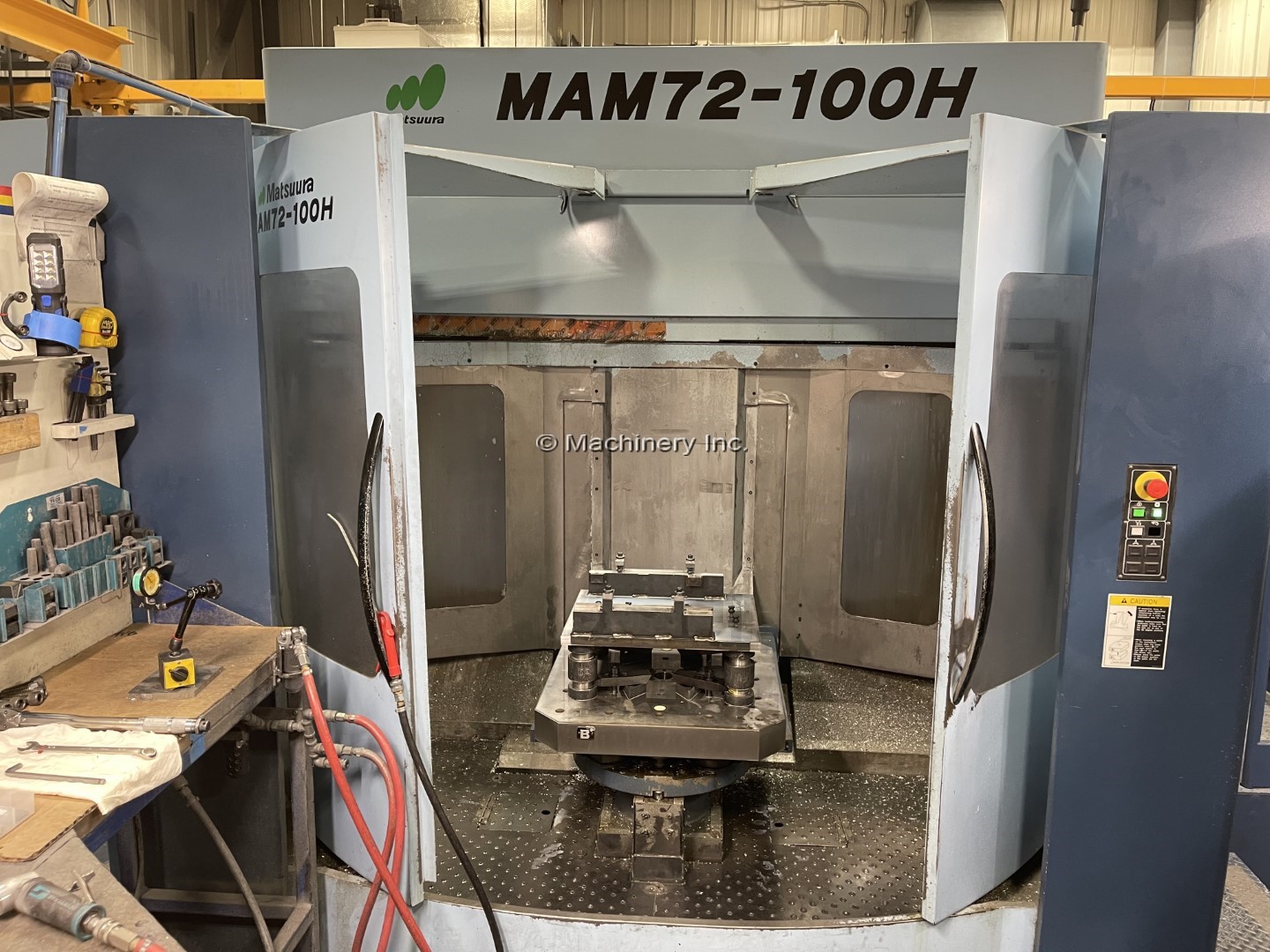

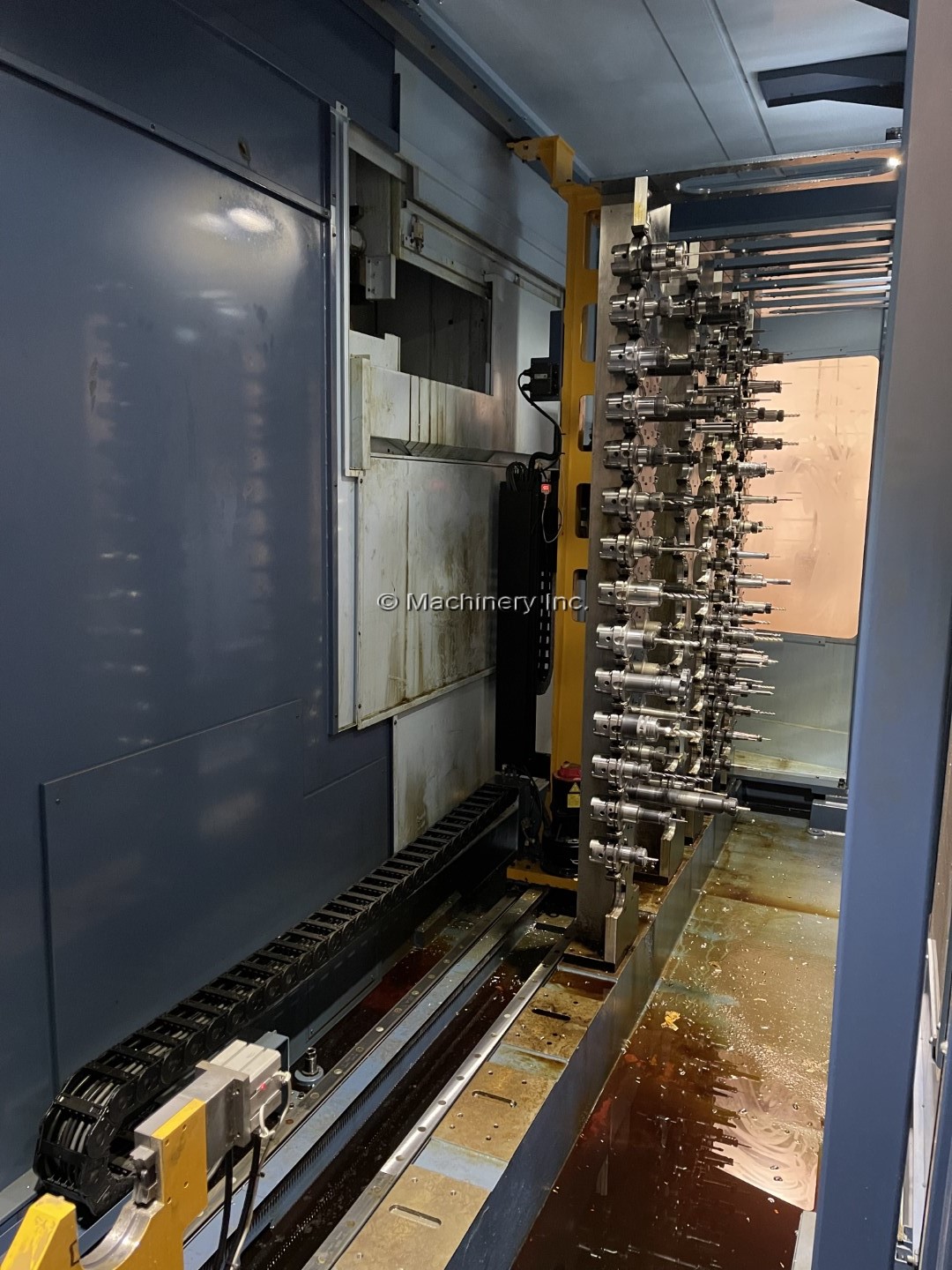

Matsuura MAM72-100H (2-Pallet) 5-Axis CNC Horizontal Machining Center, 15K RPM, 150 ATC, 2016 MANUFACTURER: MATSUURA MODEL: MAM72-100H YEAR: 2016 Specifications: X-axis 41.33" Y-axis 36.22" Z-axis 37.79" A-axis -120 to +30 dee C-axis Table rotation axis 360 deg Pallet Surface to Spindle Center -10.63 – 25.59” Pallet Center to Spindle Gauge Line 5.9” – 43.7” Pallet Center to X-Zero Position 22.63” Pallet No. of Pallets 2 / Rotary Type Pallet Weight 616 lbs Pallet Work Surface 24.8” x 24.8” Max Work Envelope Dia. 39.37” x H 30.31” Distance from Floor to Pallet Surface 60.82” Index Increment A/C 0.001 / 0.001 Deg EQUIPPED WITH: - Linear scales on all axes - Direct drive motors for A & C axes - Overhead coolant flushing - Matsuura high speed look head function including Fanuc data server - EZ-5 Kinematic function - 15,000 rpm high torque spindle - HSK-100 spindle taper - 150 position ATC (Expandable to 240 tools) - Turbo lift-up chip conveyor and filtering system - Renishaw ln Process Measurement probe & Laser Tool Measurement System - ChipBlaster JV-40 high pressure coolant system - CAMplete Trupath simulation software and post processor Working hours: 33 787 hours NOTE: NEW SPINDLE IN APRIL 2023. * Preliminary Specifications Subject to Verification MACHINE WEIGHT: 22000 KG (48400 LBS)
Photos
|
