Specifications

 Categories > Lathes, CNC - Turning Centers

Ask for quotation
  Stock ref. # 2166

  Manufacturer NAKAMURA
  Model SC300L
  Year 2018
  Swing 13.7"
  Turning Length 43"
  Chuck Size 10"
  Spindle Bore 2.795"
  HP 29.5"
  RPM 3500

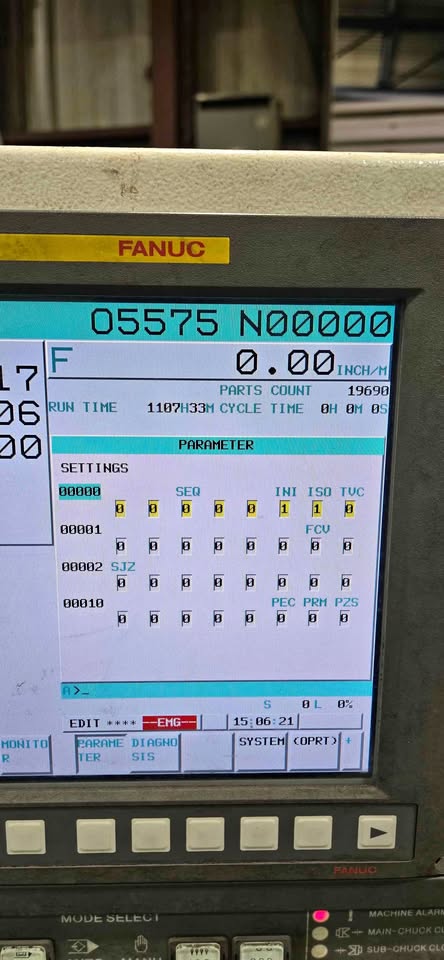

  Control FANUC
  Price CALL US!



Other specifications

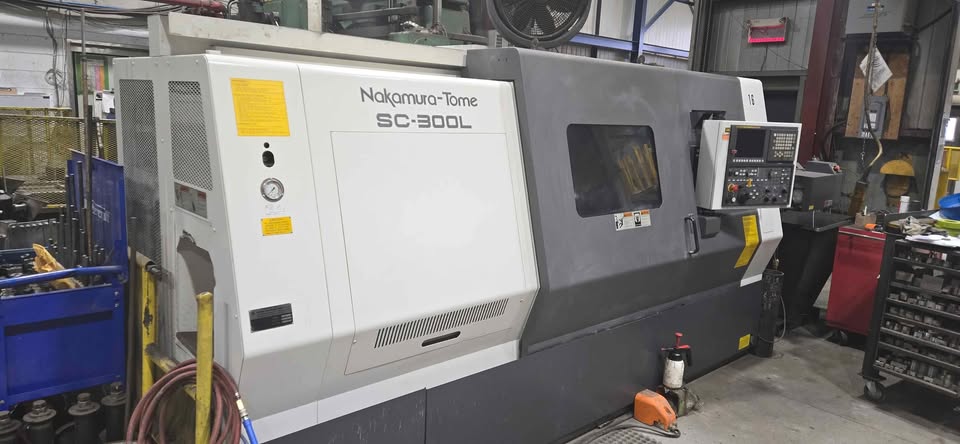

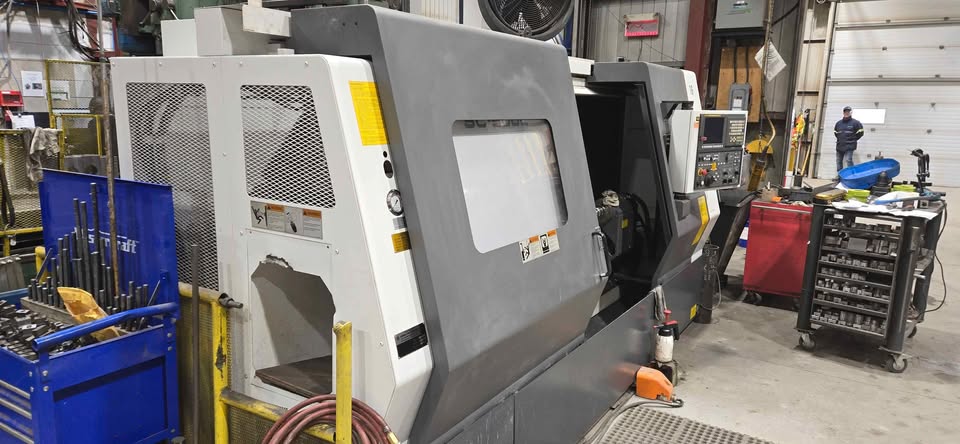

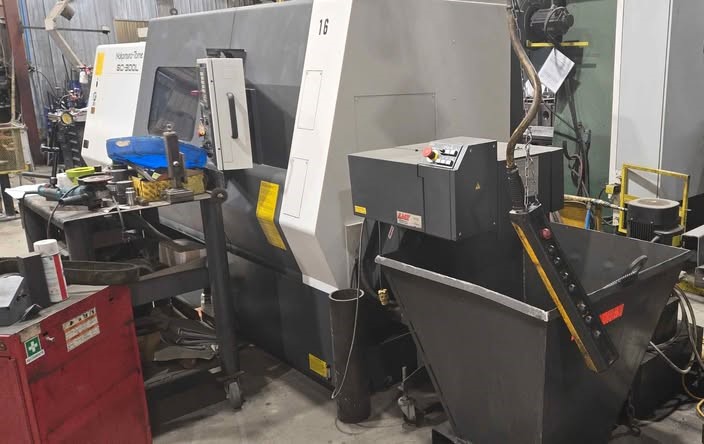

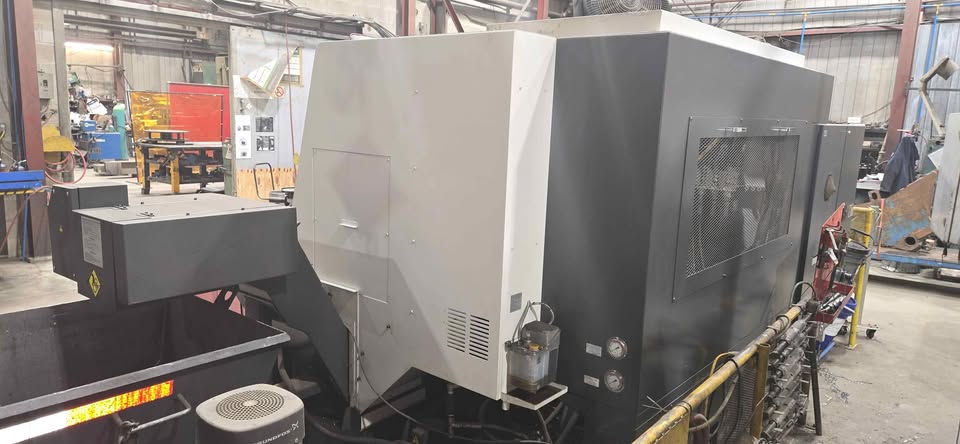

                  NAKAMURA SC300L CNC LATHE WITH LIVE MILLING, 2018

                  Capacity SC-300 SC-300L

                  Max. turning diameter 350mm 350mm (13.77")

                  Max. turning length 600mm 1,100mm (43.30")

                  Distance between center 713.5mm 1213.5mm (47.7")

                  Bar capacity(mm) 71 80(op.) 89(op.) 71mm (2.795")

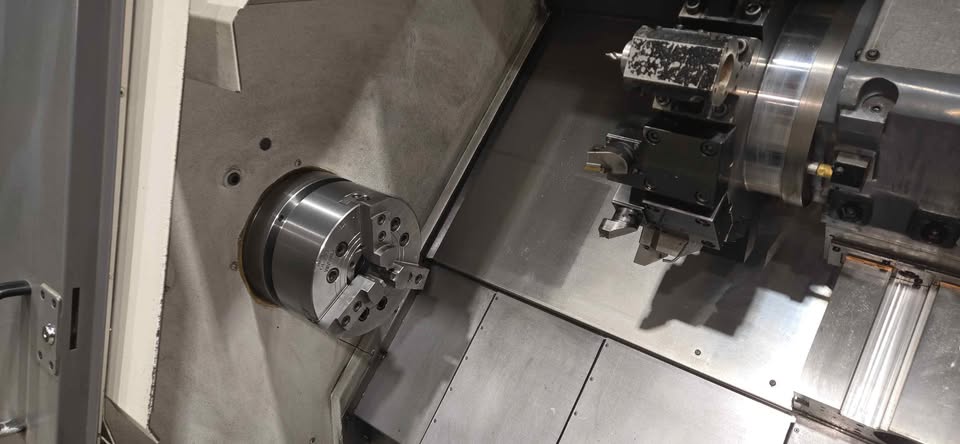

                  Chuck size 10″254mm

                  Axis travel SC-300 SC-300L

                  Slide travel X 222.5mm 222.5mm

                  Slide travel Z 635mm 1,135mm

                  Slide travel Y（op.） ±45mm

                  Spindle SC-300 SC-300L

                  Spindle speed(min-1　) 3,500 2,500 3,500

                  spindle motor Standard 22/18.5kW

                  Option 30/22kW

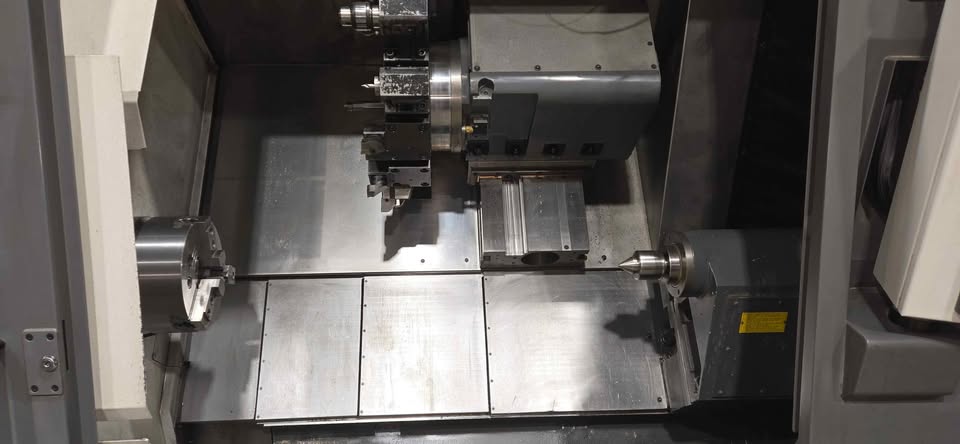

                  Turret SC-300 SC-300L

                  Number of turrets 1

                  Type of turret head Dodecagonal

                  Number of index positions 12

                  Driven tools（op.） SC-300 SC-300L

                  Spindle speed 3,600min-1

                  Driven motor power 5.5/3.7kW

                  Rotary system Individual rotation

                  Number of driven-tool stations 12

                  Tailstock(op.） SC-300 SC-300L

                  Quill diameter/Quill stroke 90mm/100mm

                  Quill taper MT-5

                  （Rotating center） MT-4

                  （built-in center）

                  Sub spindle（op.） SC-300 SC-300L

                  Chuck size/Bar capacity 8″215mm/51mm

                  Spindle speed 3,500min-1

                  Spindle motor 11/7.5kW

                  Distance between spindle nose max/min max.810mm/min.310mm

                  General SC-300 SC-300L

                  Floor space （L×W×H） 3,202mm×1,735mm

                  ×1,950mm



                  3,702mm×1,735mm

                  ×1,950mm



                  Machine weight 4,600kg 5,200kg



Photos
