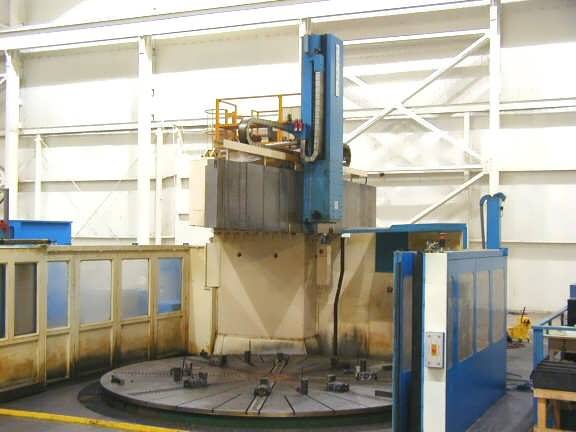

                  CARNAGHI AS65T/6000FC 5-axes CNC vertical turning center with full “C” axis and live spindle, 60 automatic tool changer, single column open side design with fixed rail, table diameter 236.2”(6000mm), max. turning diameter 255.9”(6500mm), max. turning height with standard tool holder 98.4”(2500mm), max. distance under cross rail 101”(2565mm), max. distance under face of ram head 108”(2745mm), size of square ram 9.8” x 9.8”, boring diameter with ram 13.9”, x-axis max. horizontal saddle travel 205.7”(5225mm), Z-axis vertical ram travel 59”(1500mm), max. table load 110,000 lbs , infinitely variable table speeds (4) ranges: 2.1 to 49 RPM, rapid traverse rate 590 IPM, C-axis max. programmable feed rate 1.19 RPM, 360,000 C-axis index positions, live spindle speed range to 18,000 RPM, spindle nose HSK 63E, live spindle drive 35 KW, 134 H.P. table drive, hydrostatic saddle and ram movement, steel telescopic way covers, T-slotted table with (8) faceplate jaws, aux. control panel, automatic chip conveyor, pressurized & mist coolant system with enclosure, laser probe, tool probe, P10TM work piece measuring system, Heidenhain direct linear measurement X & Z axis, C-axis Heidenhain ROD700, L100 Carnaghi tool holder, boring bar, holders, Rotating Tool Accessories: vertical high speed milling head 18,000 RPM, horizontal high speed milling head 18,000 RPM, universal milling head 6,000 RPM, M-line universal high speed milling attachment 18,000 RPM, high speed drilling head, Fanuc 16i-T CNC control mounted in swing pendant with color CRT and RS232 port, installed new 1999
