Specifications
| Ask for quotation | |
| Stock ref. # 0977 |
|
|
Other specifications

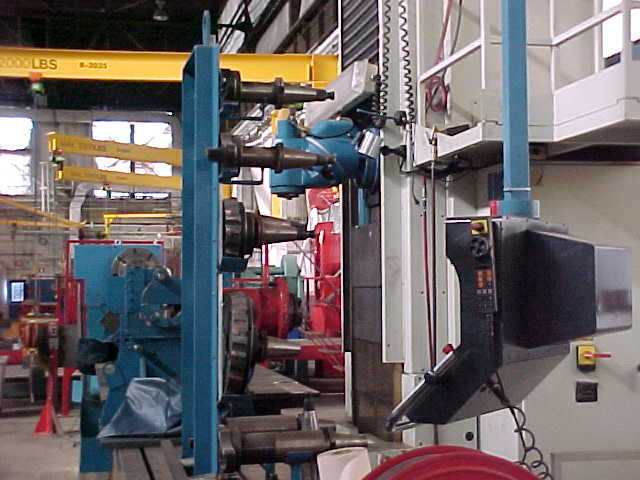

NICOLAS CORREA MODEL L30 CNC UNIVERSAL MILLING MACHINE YEAR: 1998 COLUMN UNIT: CAST IRON GG-26 A.C. SERVO-DRIVE WITH TIMING DRIVEN 4490 LBS PRE-LOADED, DOUBLE-NUT 50 MM DAI CARRIER: CAST IRON GG-26 LONG, NON-METALLIC 59.5 IN A.C. SERVO-DRIVE WITH TIMING DRIVEN 4490 LBS PRE-LOADED, DOUBLE-NUT 50 MM DIA RAM: CAST IRON GG-26 SQUARE SHAPED SLIDEWAYS 70mm x 50mm x 45mm FULL TORQUE UNDER 450 R.P.M. 700 FT.LBS FULL POWER AS FROM 450 R.P.M. 40 HP BED/TABLE: CAST IRON GG-26 TABLE BLOCK 39.4 WIDE BED SIZE 361.4" LONG x 39.4" WIDE T SLOTS 7x 22mm A.C. SERVO-DRIVE WITH TIMING DRIVEN 4490 LBS PRE-LOADED, DOUBLE-NUT 82 MM DIA TRAVELS: LONGITUDINAL (COLUMN) "X" AXIS 291,3 CROSS(RAM) "Y"AXIS 47,2 VERTICAL (RAM) "Z" AXIS 78,7 MAXIMUM LOAD ON TABLE 66000 LBS SPINDLE TAPER ISO50 DIAMETER OF FRONT BEARING 3,94 SPEED RANGE 20-3000RPM SPINDLE MOTOR A.C. 40HP FEED RANGE (TABLE, RAM) 0.08-200 IN./MIN RAPID TRAVERSE 472 IN./MIN MACHINE WEIGHT 74800 LBS HEIDENHAIN TNC-410 CONTOURING CONTROL AXES 3,4 OR5 AND SPINDLE S PROGRAM MEMORY 128 KB (64 PROGRAMS) PROGRAM ENTRY HEIDENHAIN CONVERSATIONAL OR ACCORDING TO ISO INPUT RESOLUTION AND DISPLAY STEP UP TO 0.1 UM INTERPOLATION LINEAR INTERPOLATION 4 OF 4 AXES CIRCULAR INTERPOLATION 2 OF 4 AXES 3 OF 4 AXES BY TILTING THE WORKING PLANE TRANSFORMER FOR OPERATION 230/440/600/3 PHASE/60CYCLES SPECIAL HORIZONTAL MILLING HEAD SPINDLE RUNNING TIME METER 3 AXES OVER LOAD METER TO CHECK FEED MOTOR AMPERAGE PROTECTION ON "Y" AXIS SLIDEWAYS HEAT COMPENSATION DEVICE TEN PULL STUDS COOLANT EQUIPMENTS RENISHAW IN-PROCESS MEASURING PROBE
Photos
|
