Specifications
| Ask for quotation | |
| Stock ref. # 0987 |
|
|
Other specifications

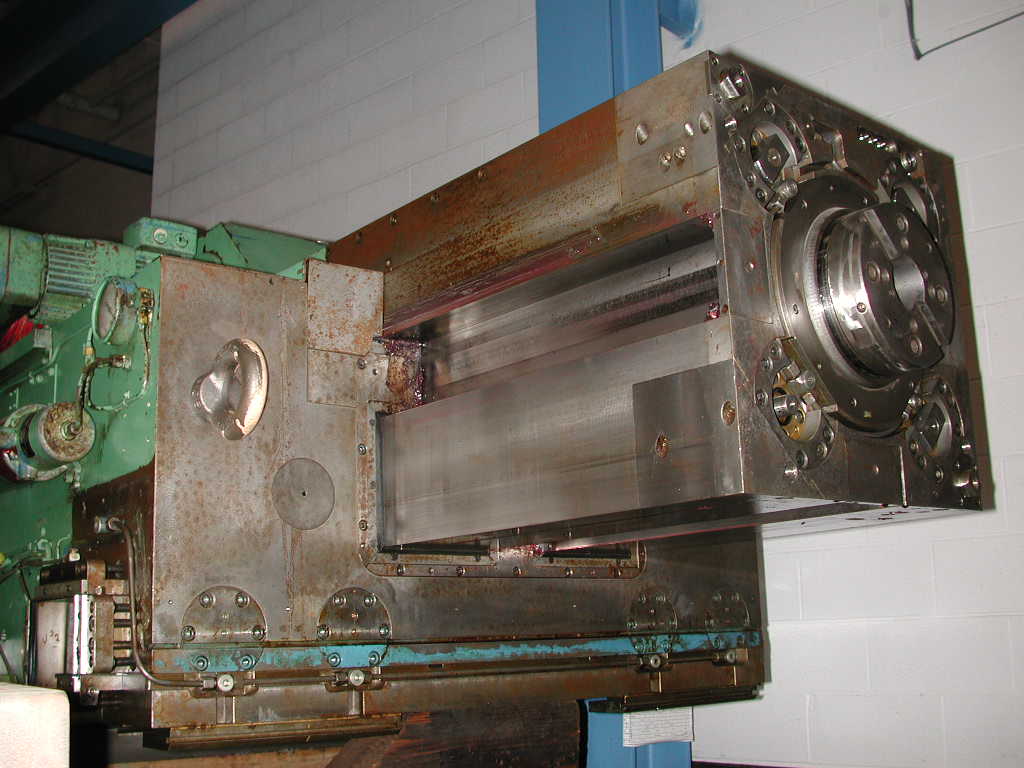

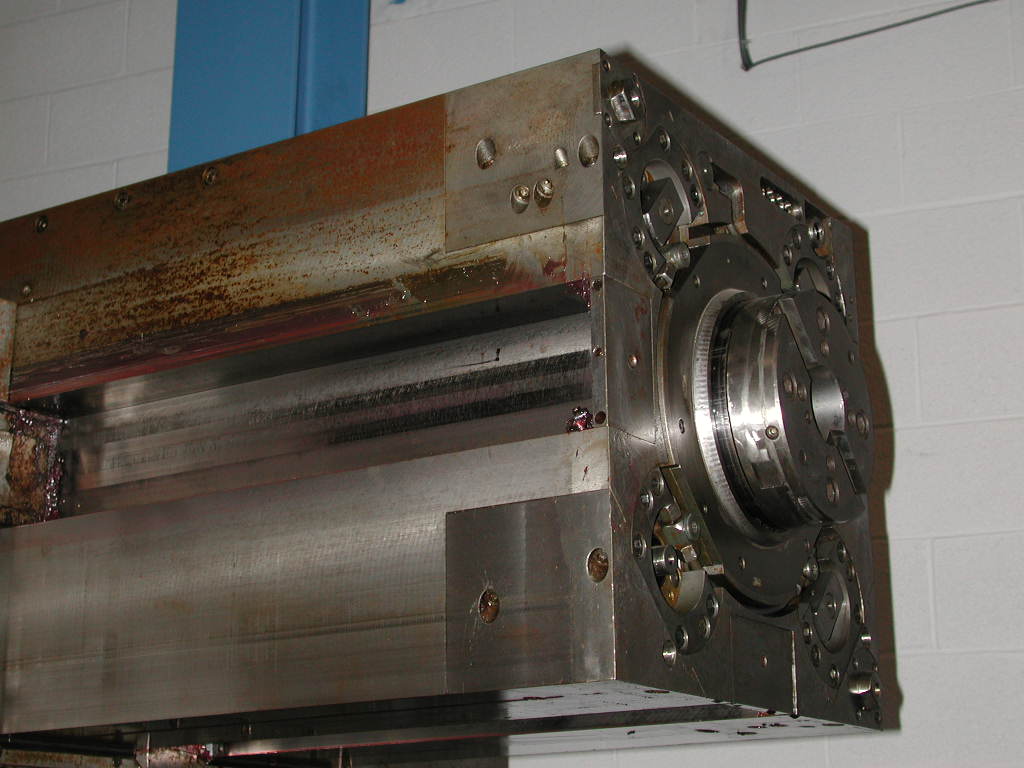

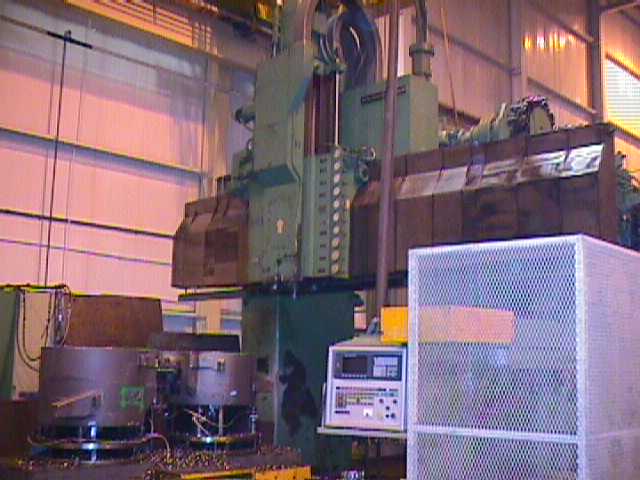

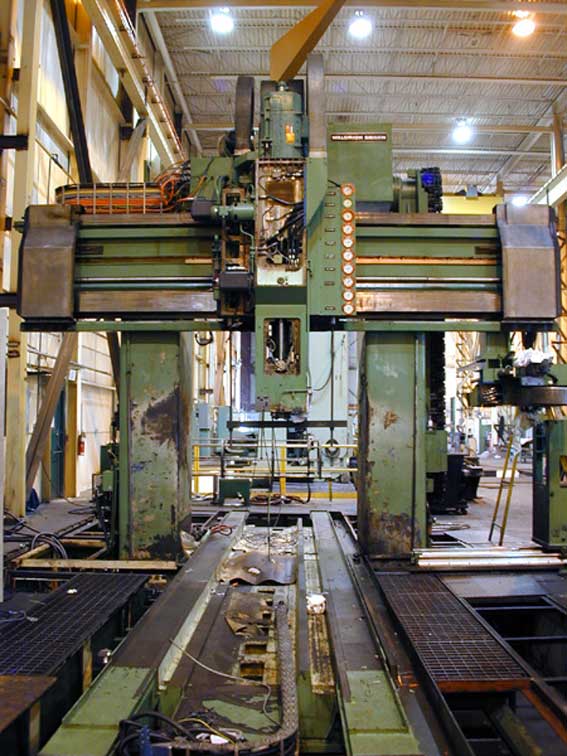

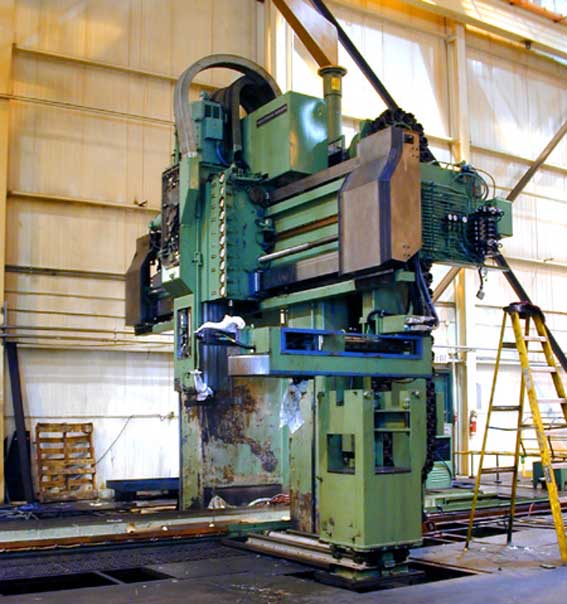

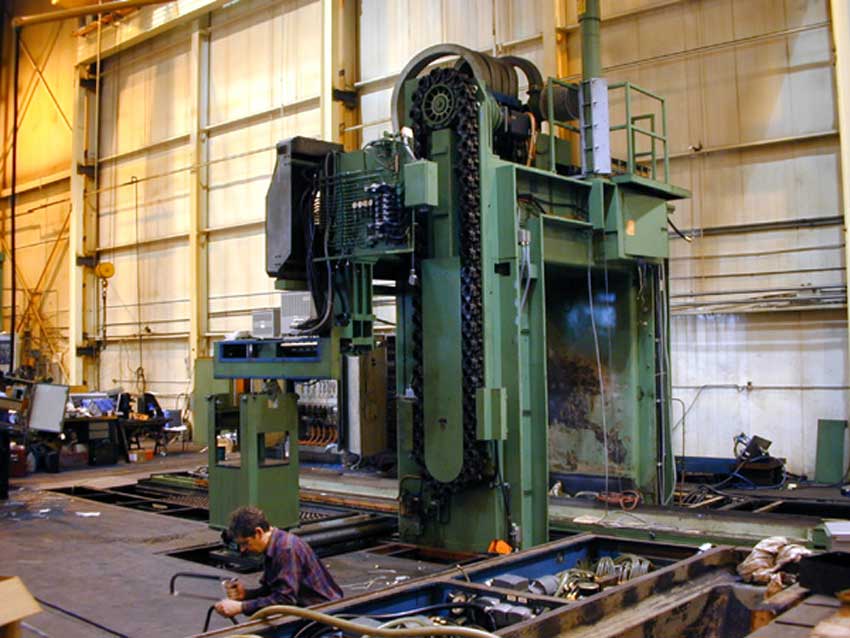

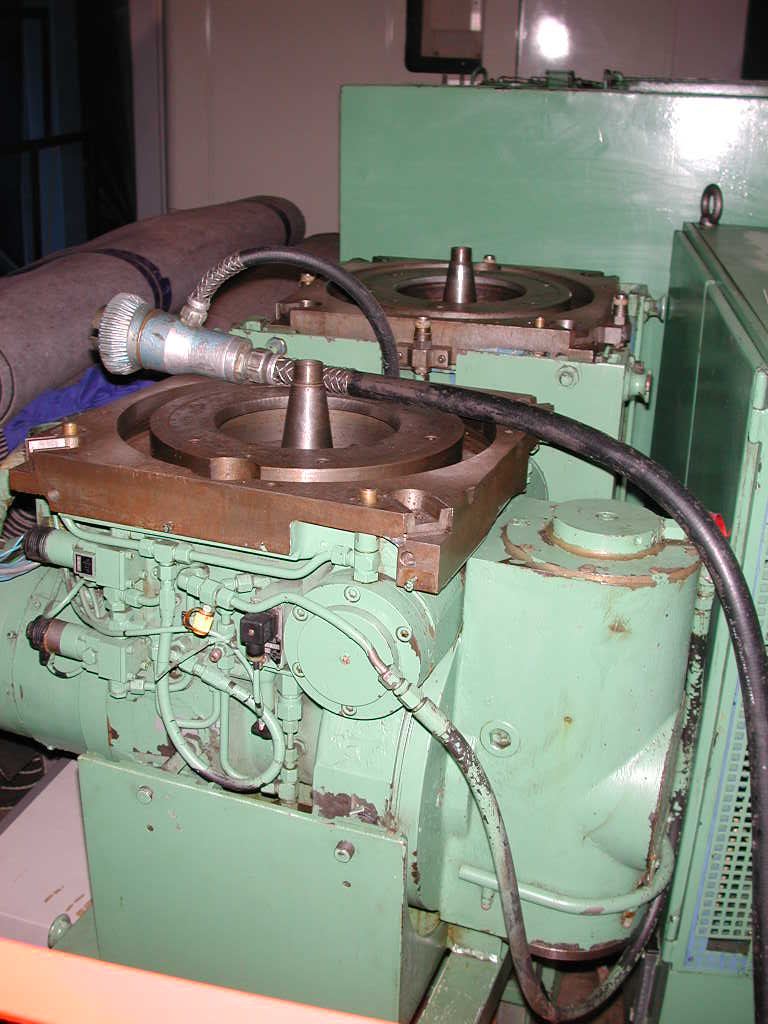

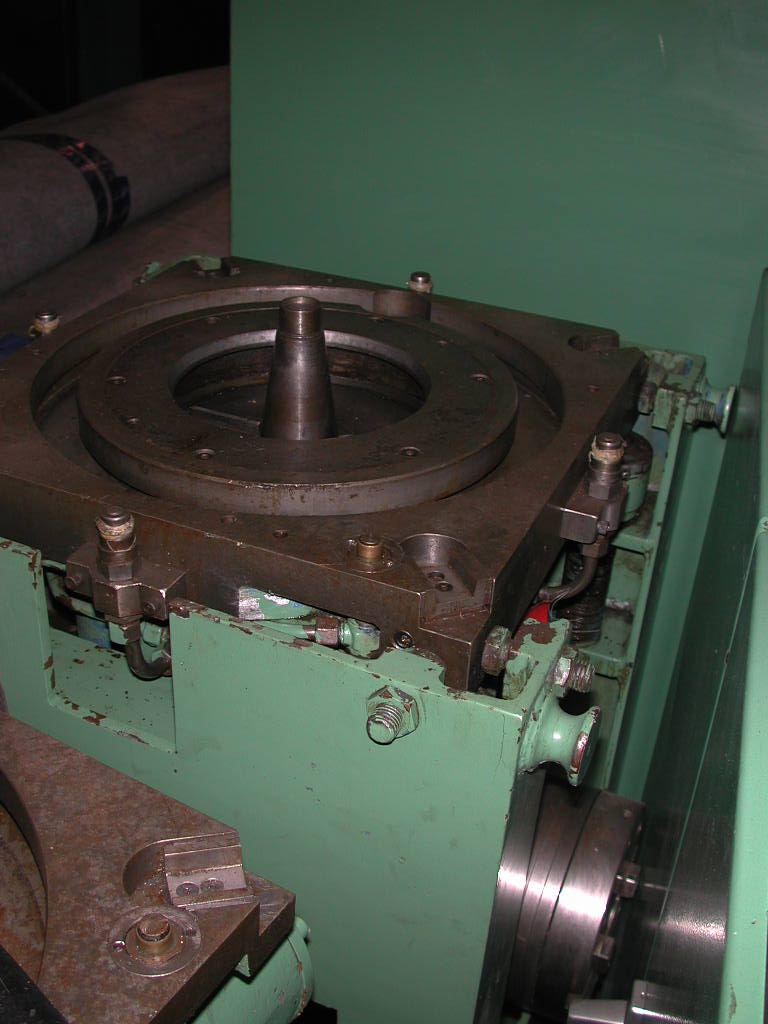

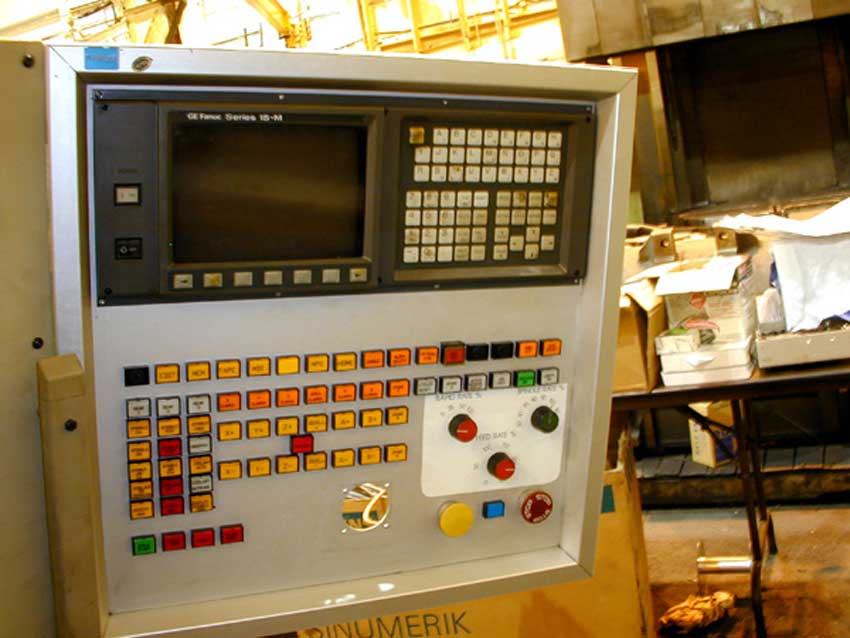

WALDRICH SIEGEN DOUBLE COLUMN BRIDGE TYPE VERTICAL MACHINING CENTER V/H CNC Type V/H-37 (IS) 200/200/175 x 300 (SINGLE TABLE) Serial No. 11.230 - Built in 1981 COMPLETE OVERHAUL BY WALDRICH SIEGEN GERMANY IN 1990 UPGRADED WITH A NEW ATC MAGAZINE & ARM TO CHANGE TOOLS IN BOTH THE HORIZONTAL & VERTICAL SPINDLES. Width between columns 2,000 mm (78.7") Distance from top of table to face of milling spindle 2,000 mm (78.7") Table working surface 1,750 x 3,000 mm (68.9 x 118") Clamping slots, 7 T-slots 22 mm (.866") Max. workpiece weight 37.5 t (82,670 lb) Milling Head Milling spindle speeds 16.7~3,000 rpm 1st step 16.7~500 rpm 2nd step 408~1,225 rpm 3rd step 1,000~3,000 rpm Torque at milling spindle from 10~100 rpm 2,000 Nm Tool taper with collet ISO 50 Cross section of ram 500 x 500 mm (19.7 x 19.7") Quill diameter 200 mm (7.87") Travels X-AXIS: Table 3,800 mm (149.6") Y-AXIS: Milling head cross 3,115 mm (122.6") Z-AXIS: Ram vertical 1,000 mm (39.4") W-AXIS: Quill vertical 500 mm (19.7") TOTAL TRAVEL (Z+W) = 59.05" Feeds Table 5~10,000 mm/min (0.197~393.7 ipm) Milling head 5~10,000 mm/min (0.197~393.7 ipm) Ram 5~5,000 mm/min (0.197~197 ipm) Quill 10 mm/min (.394 ipm) Rapid traverse Table 10,000 mm/min (393.7 ipm) Milling head 10,000 mm/min (393.7 ipm) Ram 5,000 mm/min (197 ipm) Quill 2,600 mm/min (102.4 ipm) Feed Powers Table longitudinal 40,000 N Milling head cross 40,000 N Ram, vertical 40,000 N When right angle attachments are used, the permissible feed forces are reduced to 25,000 N Drives Milling spindle drive DC Motor Speed range 167~3,000 rpm at constant torque of 2,000 Nm Speed range 10~167 rpm at constant output of 37 kw Table feed DC Servo Motor Speed range 2~3,737 rpm Output (100% ED) 3.15 kw at 1,000 rpm Torque 240 Nm max. Milling head feed DC Servo Motor 2~4,125 rpm Speed range 3.15 kw at 1,000 rpm Output (100% ED) Torque 240 Nm max. Ram feed DC Servo Motor 3~3,000 rpm Speed range 3.15 kw at 1,000 rpm Output (100% ED) Torque 240 Nm max. Quill feed 3-phase AC cage rotor main motor Speed 2,670 rpm Output (100% ED) 0.95 kw 3-phase AC fine feed motor Speed 11.2 rpm Transmission of the gear 127 i Rapid traverse speed 2,670 rpm Fine feed speed 11.2 rpm Angular head (RAA) Immersion depth 500 mm (19.7") Drop 290 mm (11.4") Tool taper with automatic collet clamping ISO 50 Milling spindle speed range 16.7~3,000 rpm Torque 650 Nm max. Angular head (RAA) Immersion depth 381 mm (15") Drop 365 mm (14.4") Swivel angle +/- 115 grad. Tool taper with automatic collet clamping ISO 50 Milling spindle speed range 16.7~3,000 rpm Torque 650 Nm max. Tool storage chain Quantity of tool stations 52 Max. tool diameter/adjacent pockets full 155 mm (6.1") Max. tool diameter/adjacent pockets empty 330 mm (13") Max. tool weight 55 kg (121 lb) Adjustment of chain Rapid traverse 12,700 mm/min (500 ipm) Fine feed 900 mm/min (35.4 ipm) Standard Equipment Fanuc 15 CNC control (6-Axis) Installed in 1998 Upgraded axis drives & electrical panels Installed in 1998 Angular drive gear box for the Y-Axis Replaced Ball screws (2 units) for the Z-Axis Replaced Hydrostatic racks on the X-Axis Replaced Inductosyn scales Hydraulic system 90 deg. Angle head Universal head with A-Axis - not Simultaneous Chip conveyors (2) Each side of table Main Dimensions: Overall length of machine 10,000 mm (393.7") Overall width of machine 5,800 mm (228.3") Overall height of machine 6,600 mm (259.8") Height above floor level 6,100 mm (240") *** The Width between columns can be extend to 3000 mm very easily *** SHIPPING INFORMATION: (1) 40' HIGH TOP OPEN TOP CONTAINER (3) 40' REGULAR OPEN TOP CONTAINER *** LAYOUT DRAWINGS AVAILABLE BY E-MAIL *** *** VIDEOTAPE AVAILABLE SHOWING THE MACHINE DISASSEMBLED ***
Photos
|
