Specifications

Categories > Boring Mills, Horizontal, Table Type, CNC
Ask for quotation
Stock ref. # 2184

Manufacturer TOSHIBA

Model BTD110R16

Year 2000

Spindle Dia. 4.3"

X-Axis 98.4"

Y-Axis 70.86"

Table Size 55" x 63"

RPM 3000

Motor 40 HP

Control TOSNUC 888

Price CALL US!

Other specifications

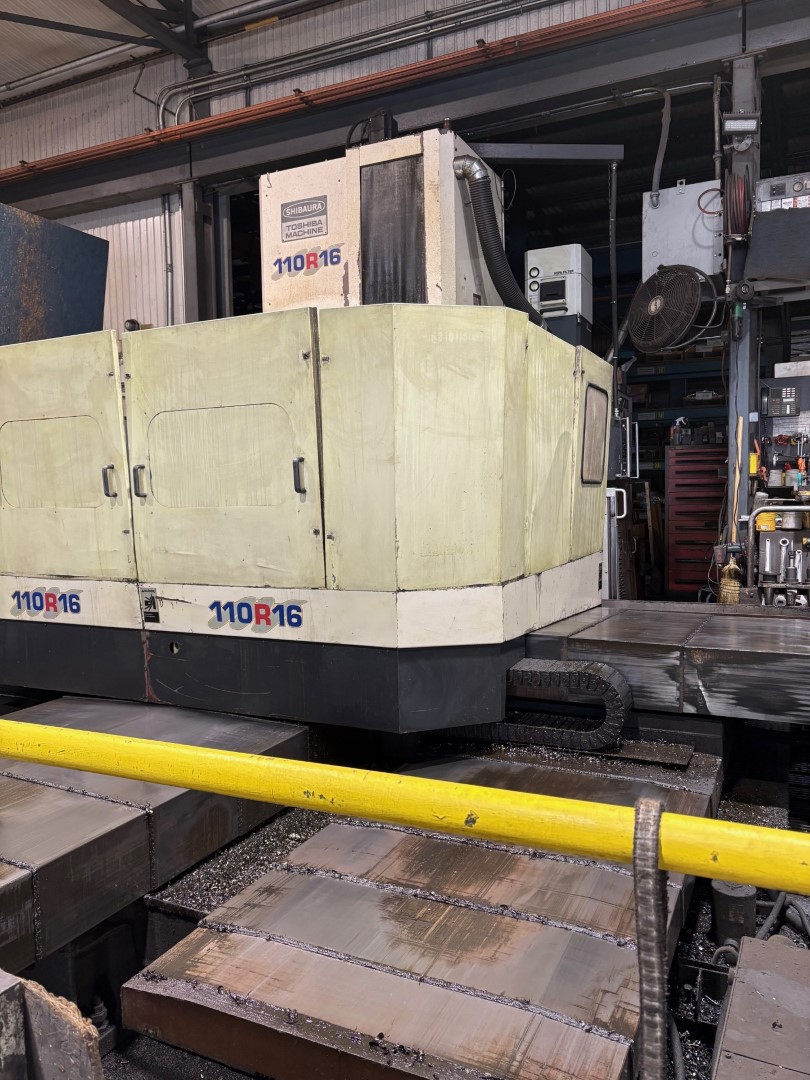

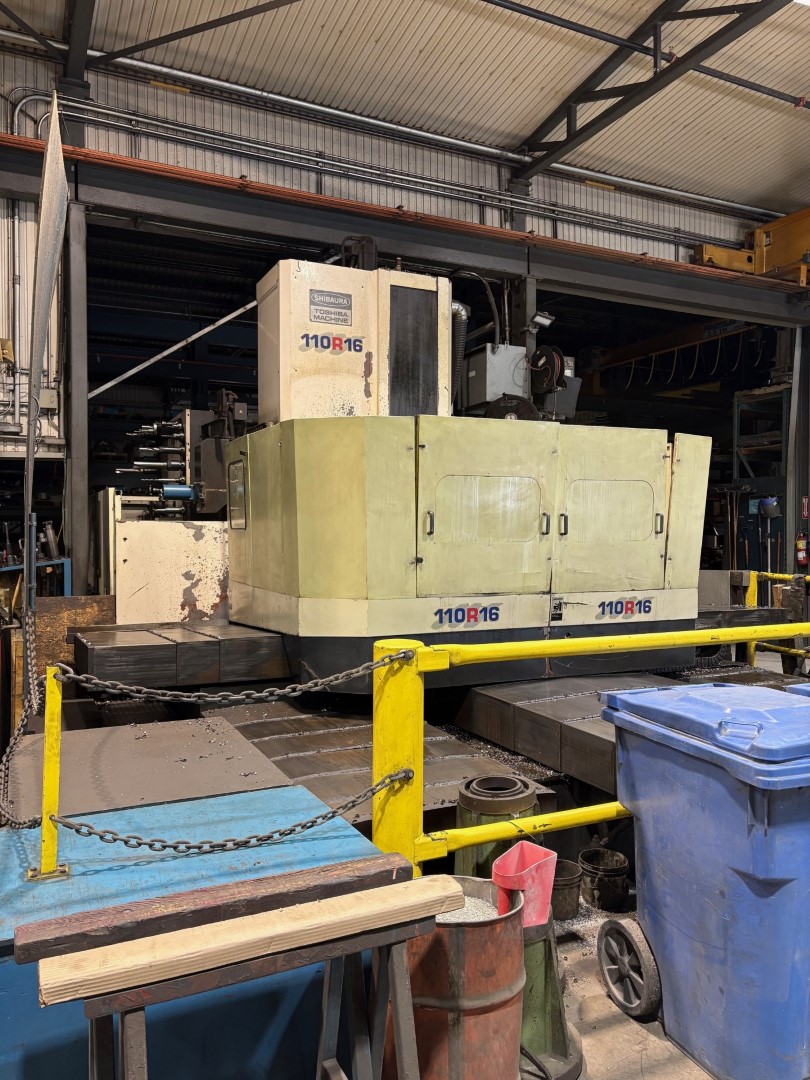

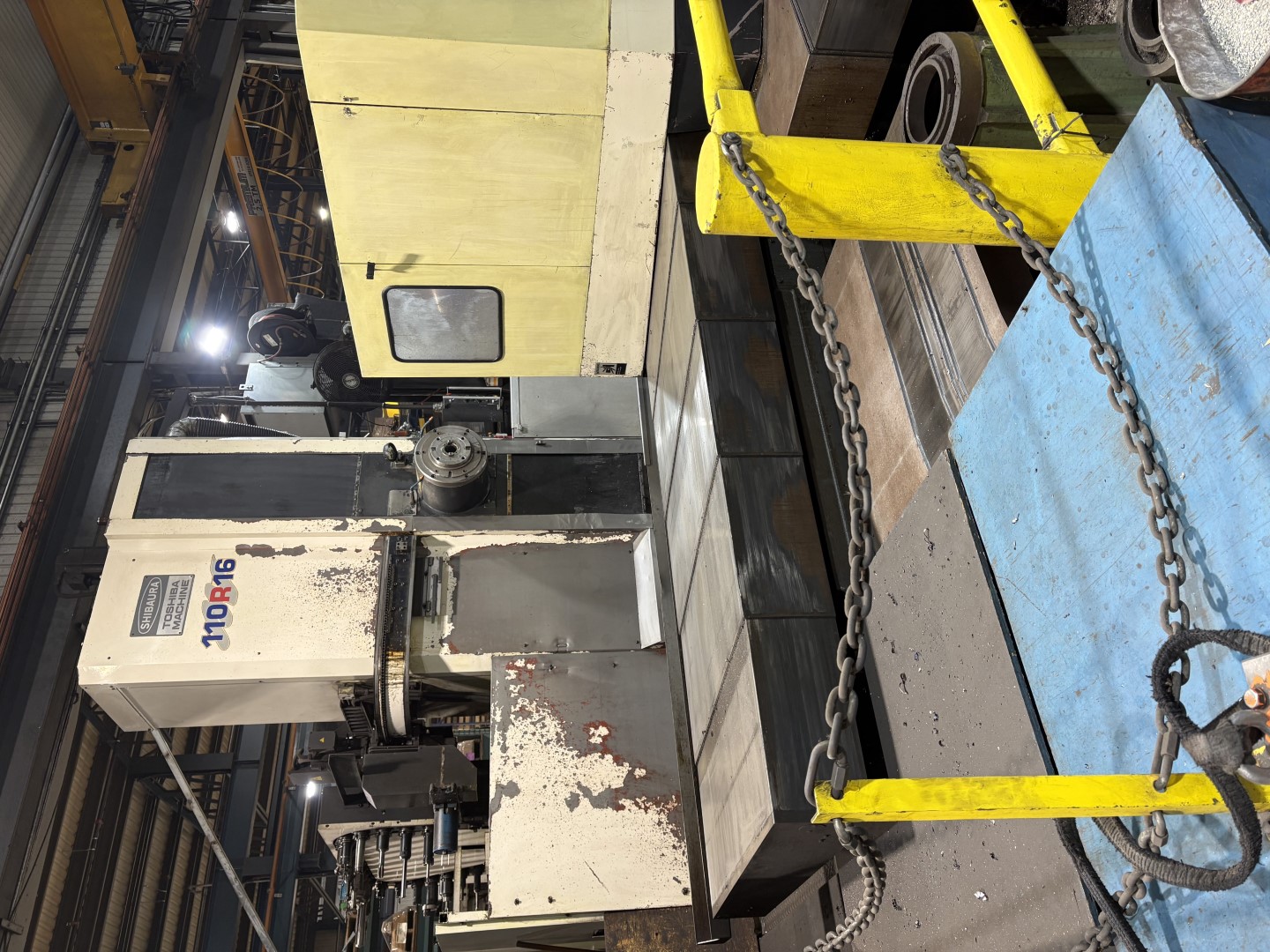

4.3" TOSHIBA BTD110R16 CNC TABLE HORIZONTAL BORING MILL, 2000

YEAR: 2000

Model: BTD110R16

Spindle Diameter .............. 4.33" 110 MM

Taper In Spindle .............. #50

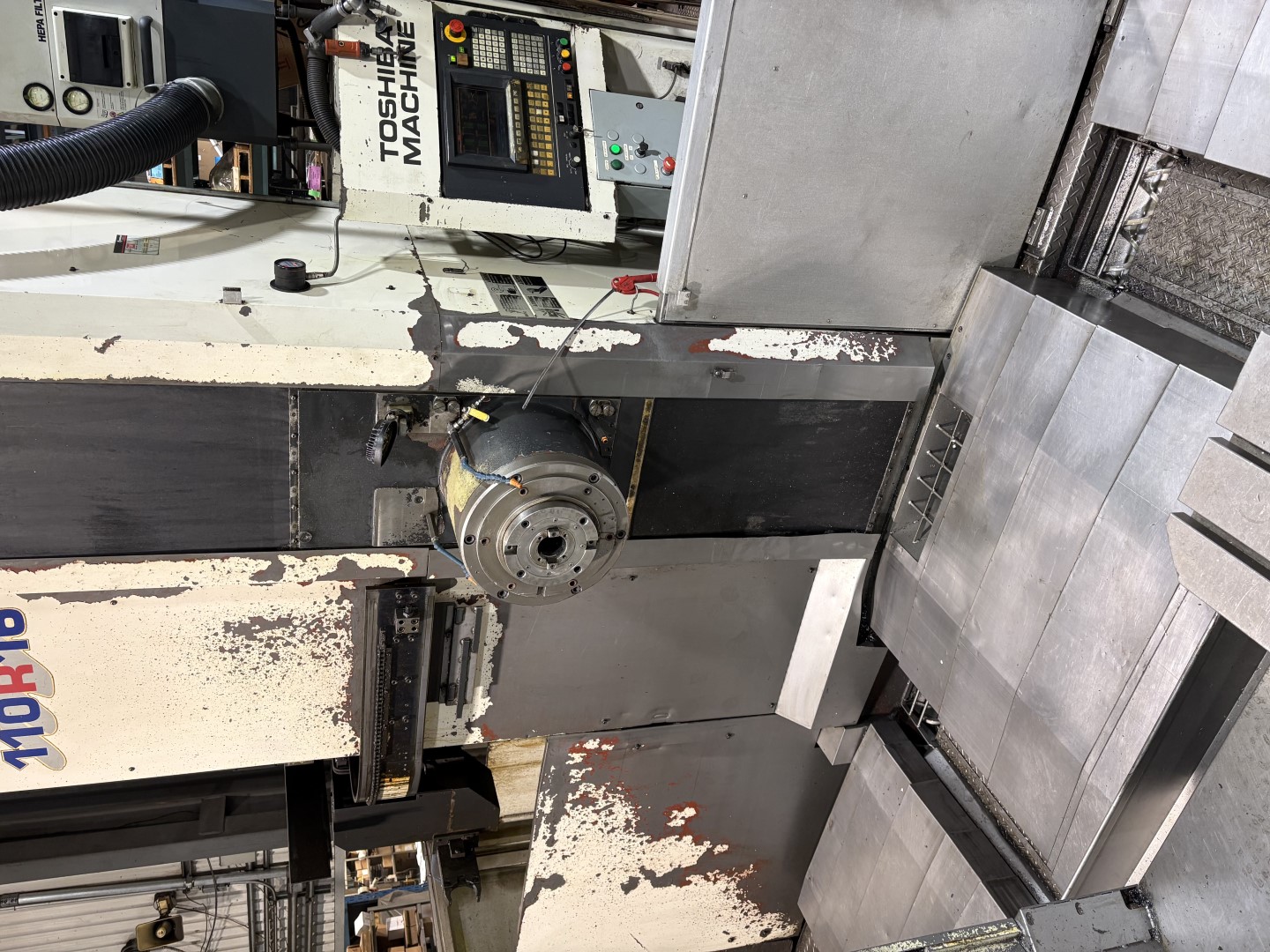

Milling Spindle Diameter ...... 8.86" 225 MM

Cross Travel Of Table X-Axis .. 98.42 2500 MM

Vertical Head Travel Y-Axis.... 70.86" 1800 MM

Spindle Travel, Z-Axis ........ 19.7" 500 MM

Saddle Travel W-Axis .......... 57" 1450 MM

Table Size (Built In Rotary) .. 55" x 63"

Table Index ................... 0.001 Degree

Feed Rates .................... 1-157 IPM

Rapid Traverse ................ 394 IPM

Table Load Capacity ........... 22,000 LBS

Spindle Speeds ..... 2-3000 RPM

Spindle Taper ...... ISO #50 CAT-50 V Flange

Equipped With:

Heidenhain feedback scales on all axis

Coolant Through Spindle (280 PSI)

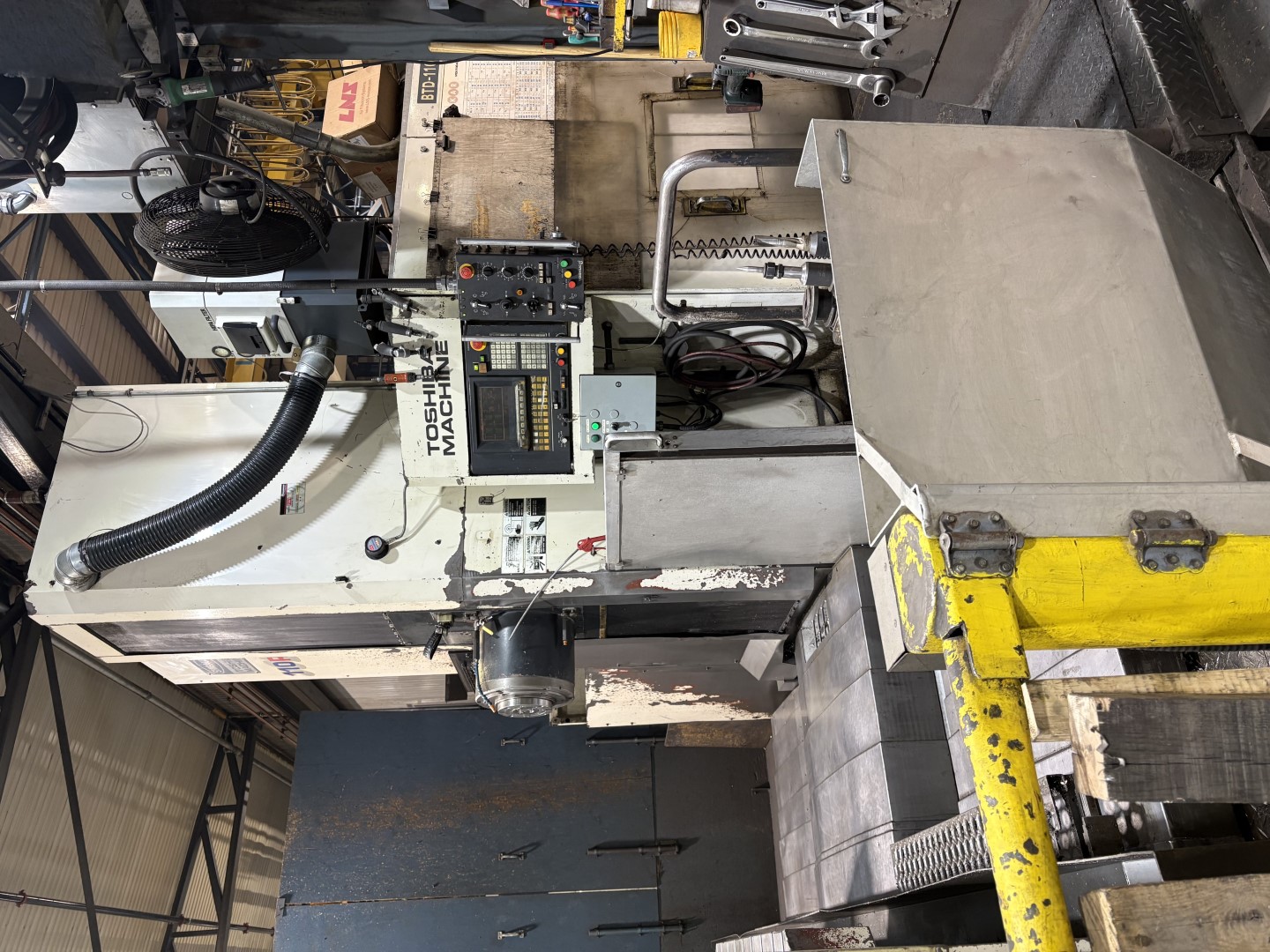

Tosnuc 888 CNC Control

55" X 63" Built-In B-Axis Rotary Table (B-AXIS ROTARY SCALE - INCLUDED)

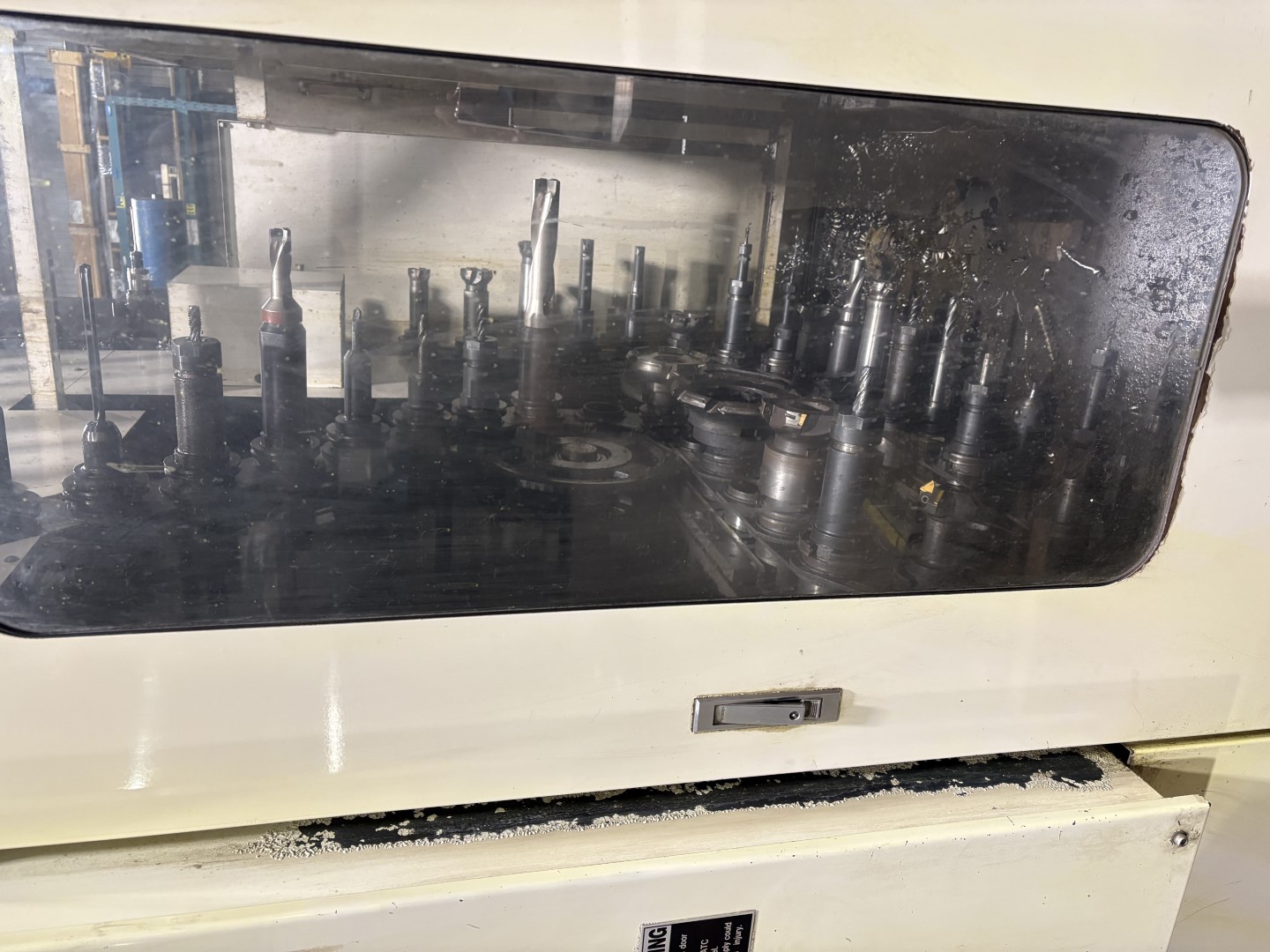

*** 60 Positon Automatic Tool Changer ***

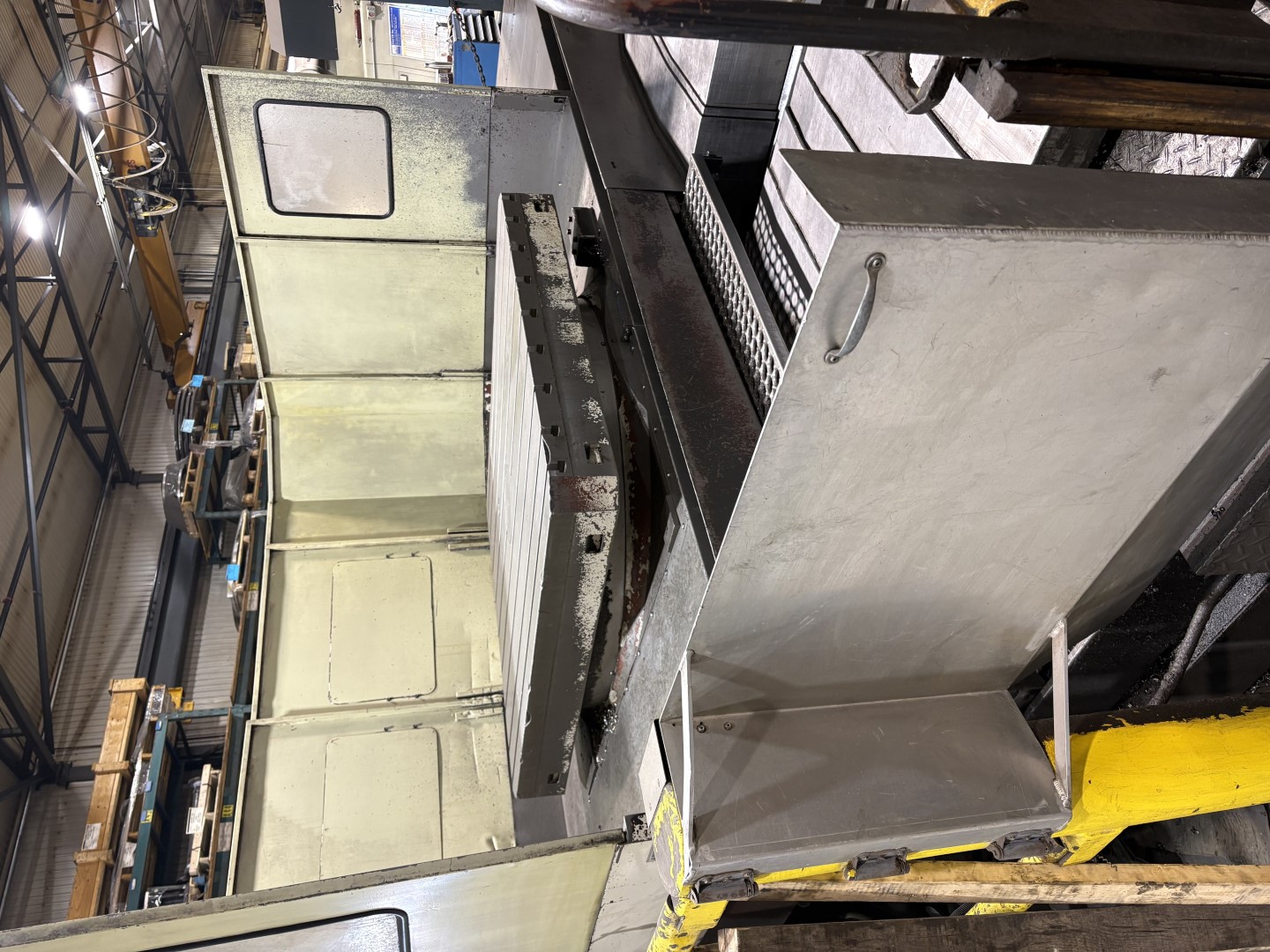

Chip & Splash Enclosure Around Table

Chip Conveyor

40 HP Spindle Drive Motor 220/3/60

Floor Space: 200.8" X 236.2" X 169.3" High

Machine Weight: 63,800 lbs.

Photos
