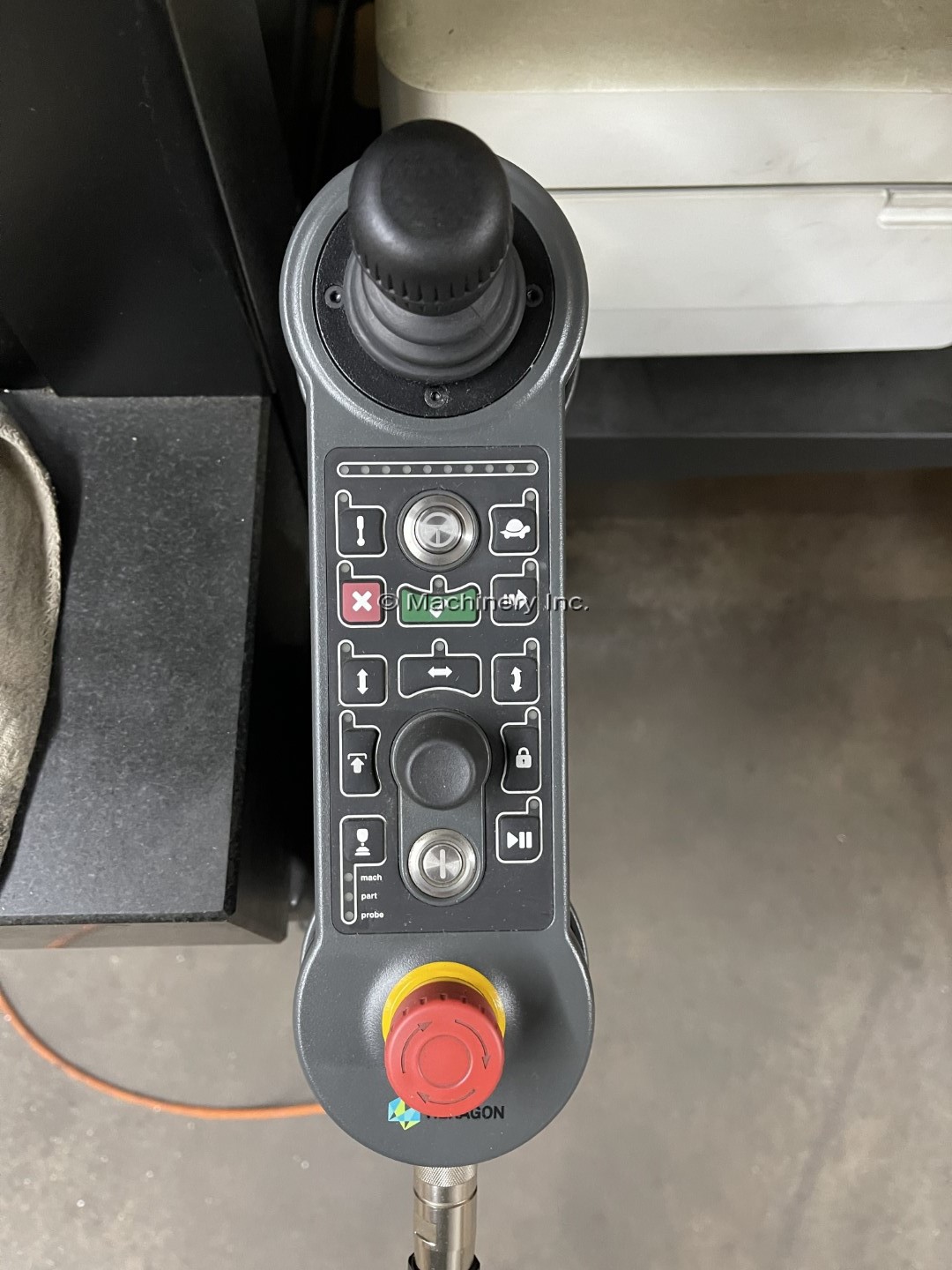

BROWN & SHARPE HEXAGON SF 4.5.4 CMM SHOP FLOOR, 2013/2021 (FACTORY REFURBISHED) MODEL: SF 4.5.4 CALIBRATION DATE: NOV./04/2025 REQUESTED DUE DATE: NOV./04/2028 WORK CAPACITY: MEASURING ENVELOPE: X-14" x Y-20.2" x Z-13.9" WORK CAPACITY: X-24" x Y-43.3" x Z-18" MAX. PART WEIGHT: 350 LBS MACHINE WEIGHT: 1386 LBS System 4.5.4 Shop Floor CMM Controller, H3C-T 600W, US 120V Workpiece Standard Thermal Sensor Next Jogbox Probe Heads & Sensors Manual Probe Head, HH-T, Tesastar Probe w/ Amp HDP-22 Styli Kit 3, M3 Computer & Software PC-DMIS CAD PC-DMIS Sheet Metal Screen 22" LED Computer, Lenovo P520, WIN10-IOT-ENT-LTSB 4.5.4 Shop Floor CMM The 4.5.4 SF CMM offers a robust dimensional inspection capability in a fully automated and economical CMM designed and built to excel in harsh manufacturing environments, shoulder-to-shoulder with machine tools. Linear bearings and heavy-duty components provide a highly reliable and low maintenance measurement solution. Furthermore, every attention to detail has been taken to provide a first in class user experience. Measuring Range 355mm (14) x 514mm (20.2) x 353mm (13.9) See the 4.5.4 Shop Floor CMM in action. Controller, H3C-T 600W, US 120V Controller electronics support touch-trigger capability and temperature compensation on the SF 4.5.4. The H3C-T is also compatible with the Next Jogbox (NJB) which comes standard with all Shop Floor CMMs. The H3C-T comes in a compact IP-32 rated electrical cabinet that is mounted to the back of the machine. Workpiece Standard Thermal Sensor Next Jogbox The Next Jogbox (NJB) is the first manual coordinate measuring machine (CMM) control interface to be designed based on extensive user experience research. Offering ergonomic design coupled with robust construction, it lets you take control of your CMM comfortably all day, every day. The Next Jogbox was developed for you, the user. A combination of extensive user research, iterative prototyping, extensive knowledge of manufacturing and carefully chosen components led Hexagon Manufacturing Intelligence to create the NJB in an effort to transform the user experience and significantly increase product durability in the field. Most importantly, the NJB can easily be added and installed to most Hexagon CMM systems as an upgrade. Please contact your local service department for a full list of supported machines. Manual Probe Head, HH-T, Tesastar Probe w/ Amp HDP-22 The HH-T is a manually adjustable probe head that can be rotated into an infinite number of non-repeatable positions. The built in compact touch trigger probe can be manually adjusted to allow for a wide range of probe combinations. The HH-T is the ideal tool for small and entry level machines. Styli Kit 3, M3 Includes: 1x Mounted probe Ψ 6.35 mm 1x Ball stylus Ψ 2 mm x L 21 mm, Steel 1x Ball stylus Ψ 3 mm x L 21 mm, Steel 1x Ball stylus Ψ 4 mm x L 21 mm, Steel 1x Extension L 10 mm, Steel 1x Extension L 20 mm, Steel 1x 5-way stylus center, Steel Screen 22" LED Computer, Lenovo P520, WIN10-IOT-ENT-LTSB Lenovo ThinkStation P520 or current model P ROCESSOR: Intel Xeon W-2123 Processor (8.25MB Cache, 3.60GHz) RAM: 16GB DDR4 2666MHz ECC RDIMM HD1: 256GB Solid State Drive, M.2, PCIe, Opal. HD2: 1TB Hard Drive, 7200RPM, 3.5", SATA3 GRAPHICS: Nvidia Quadro P620 2GB (miniDPx4) MOUSE:Lenovo USB Mouse OS: Windows 10 IoT Enterprise 2016 LTSB LAN:1 Gb Ethernet Adapter Plus 1 Dual-port Gb Ethernet Adapter (PCIe) PORTS:1 Serial Ports PC-DMIS CAD PC-DMIS CAD lets customers create inspection programs and evaluate measurement results taking full advantage of their CAD models. The software provides the tools needed to work with CAD files ranging from simple 2D drawings through complex 3D solid models. The PC-DMIS CAD allows the import and export of CAD data in the following formats: IGES/STEP/ DXF/ DWG/STL/VDAFS/XYZIJK/DMIS/DES. Auto Utilities include vector point, circle, cone, cylinder, sphere, line and plane.
