Specifications

Categories > Lathes, CNC
Ask for quotation
Stock ref. # 2239

Manufacturer HACO FAT

Model TUR630AMN/118

Year 2011

Swing 24.8"

Between Centers 118"

Capacity *

Motor *

RPM 1850

Control FANUC

Price CALL US!

Other specifications

24.8" X 118" HACO FAT TOOLMEX TUR630AMN/118 CNC LATHE, 2011 - IDEAL FOR PIPE MACHINING!!!

YEAR: 2011

Swing over bed 24.8" (630 mm)

Swing over saddle 14.57" (370 mm)

Max.weight between centers (without steadies) 2000 KG

Max. Weight in chuck only 600 KG

Number of spindle ranges 2

Top spindle speed ranges: I: 2 - 430, II: 200 - 1.850 RPM

Spindle Bore: TBC

Main drive motor: 18.5 KW

TAILSTOCK:

Quill diameter 3.94" (100 mm)

Quill taper MT 5

Quill stroke 7.87" (200 mm)

Wídth of bed 17" (433 mm)

EQUIPPED WITH:

FANUC CNC CONTROL

REAR CHUCK

VOLTAGE: 460 VOLTS

OVERALL DIMENSIONS:

LENGTH: 204.72" (5200 MM)

WIDTH: 98.43" (2500 MM)

HEIGHT: 82.68" (2100 MM)

WEIGHT: 11,880 LBS (5400 KG)

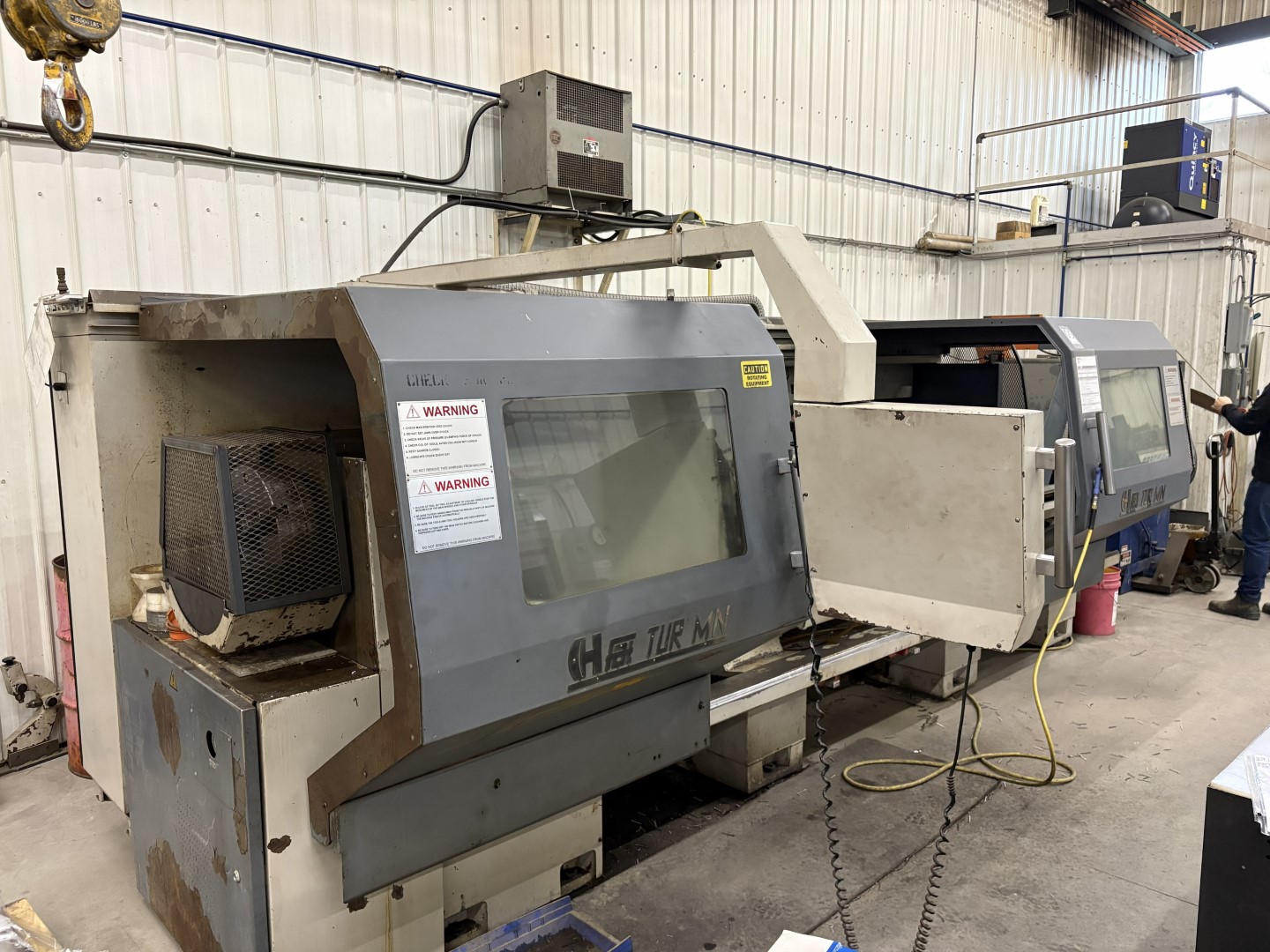

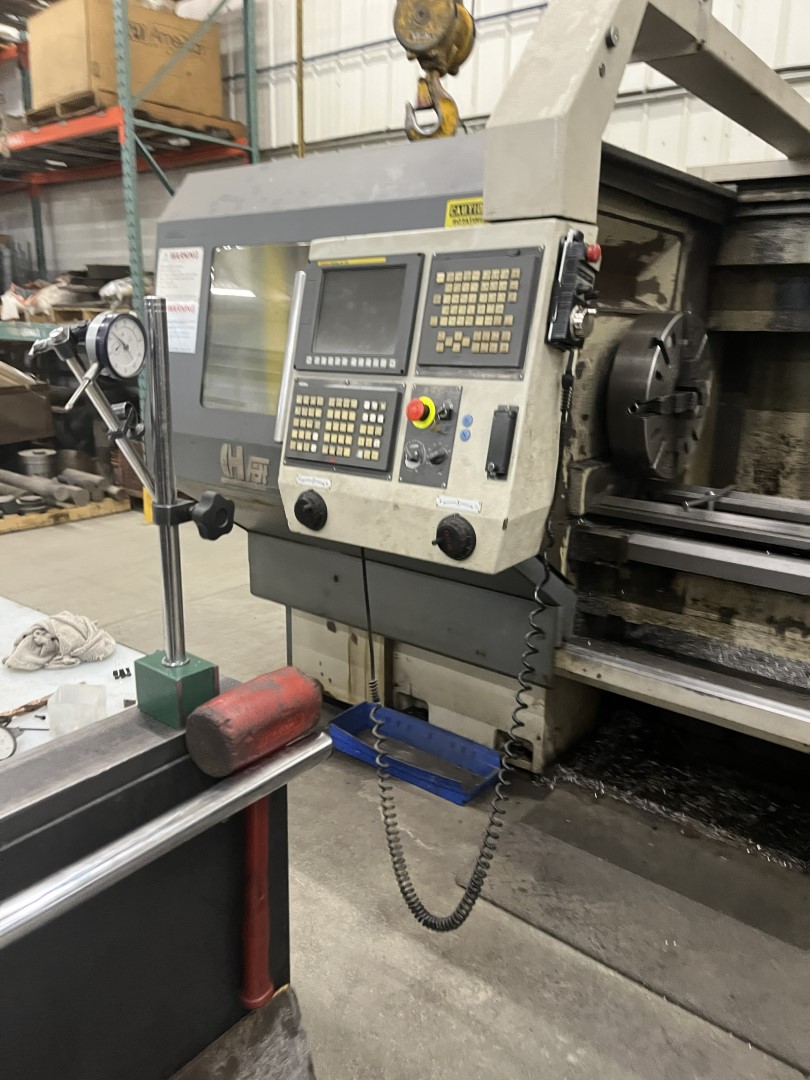

Photos
