Spécifications
|
Catégorie : Tours CNC - Centre d'usinage pour tourner |
Demande de soumission |
| Référence # 2166 |
|
|
Autres spécifications
NAKAMURA SC300L CNC LATHE WITH LIVE MILLING, 2018 Capacity SC-300 SC-300L Max. turning diameter 350mm 350mm (13.77") Max. turning length 600mm 1,100mm (43.30") Distance between center 713.5mm 1213.5mm (47.7") Bar capacity(mm) 71 80(op.) 89(op.) 71mm (2.795") Chuck size 10″254mm Axis travel SC-300 SC-300L Slide travel X 222.5mm 222.5mm Slide travel Z 635mm 1,135mm Spindle SC-300 SC-300L Spindle speed(min-1 ) 3,500 2,500 3,500 spindle motor Standard 22/18.5kW Option 30/22kW Turret SC-300 SC-300L Number of turrets 1 Type of turret head Dodecagonal Number of index positions 12 Driven tools（op.） SC-300 SC-300L Spindle speed 3,600min-1 Driven motor power 5.5/3.7kW Rotary system Individual rotation Number of driven-tool stations 12 Tailstock(op.） SC-300 SC-300L Quill diameter/Quill stroke 90mm/100mm Quill taper MT-5 （Rotating center） MT-4 （built-in center） Sub spindle（op.） SC-300 SC-300L Chuck size/Bar capacity 8″215mm/51mm Spindle speed 3,500min-1 Spindle motor 11/7.5kW Distance between spindle nose max/min max.810mm/min.310mm General SC-300 SC-300L Floor space （L×W×H）3,702mm×1,735mm ×1,950mm Machine weight 5,500 kg LOW HOURS ***VIDEO AVAILABLE***

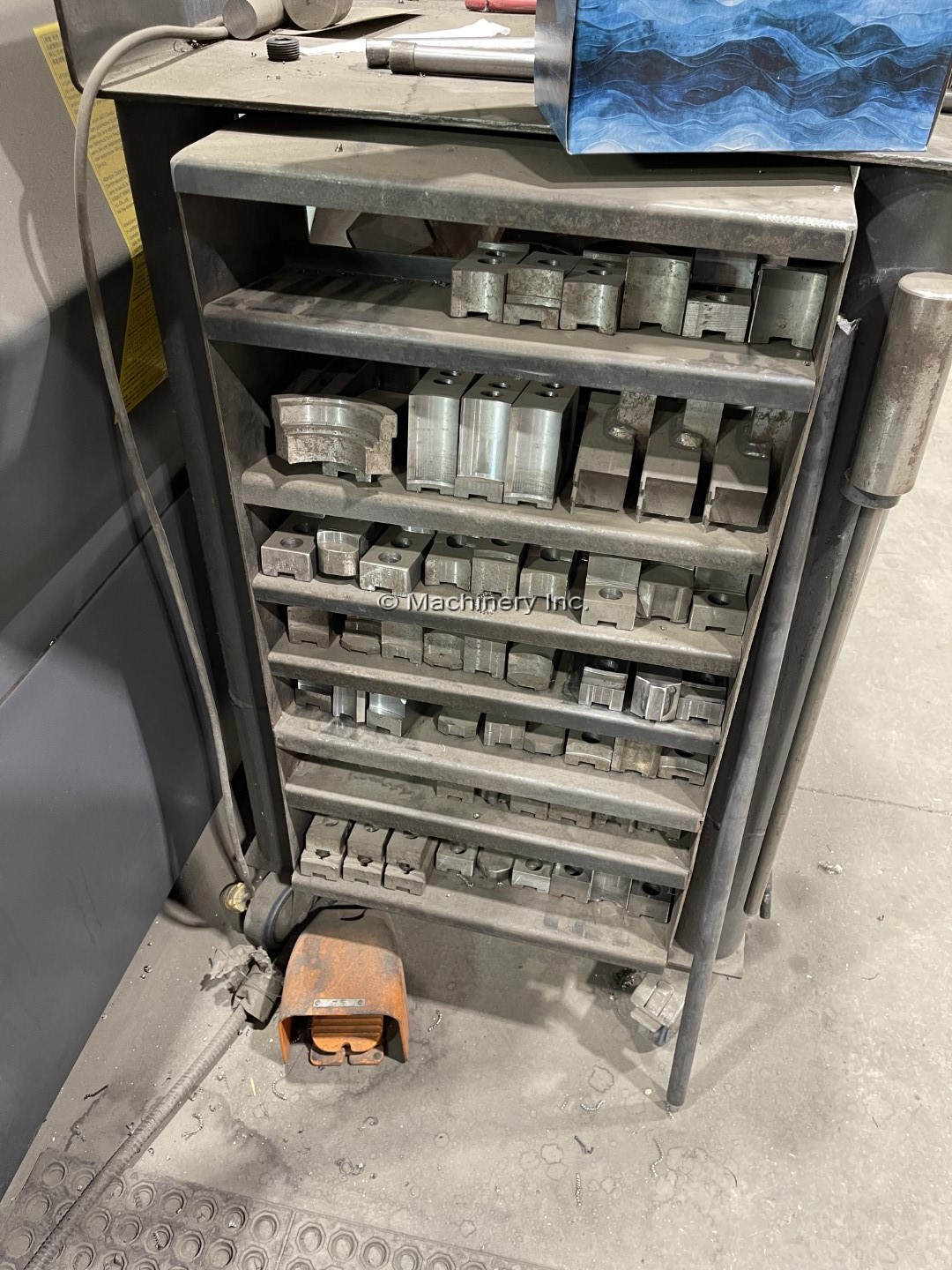

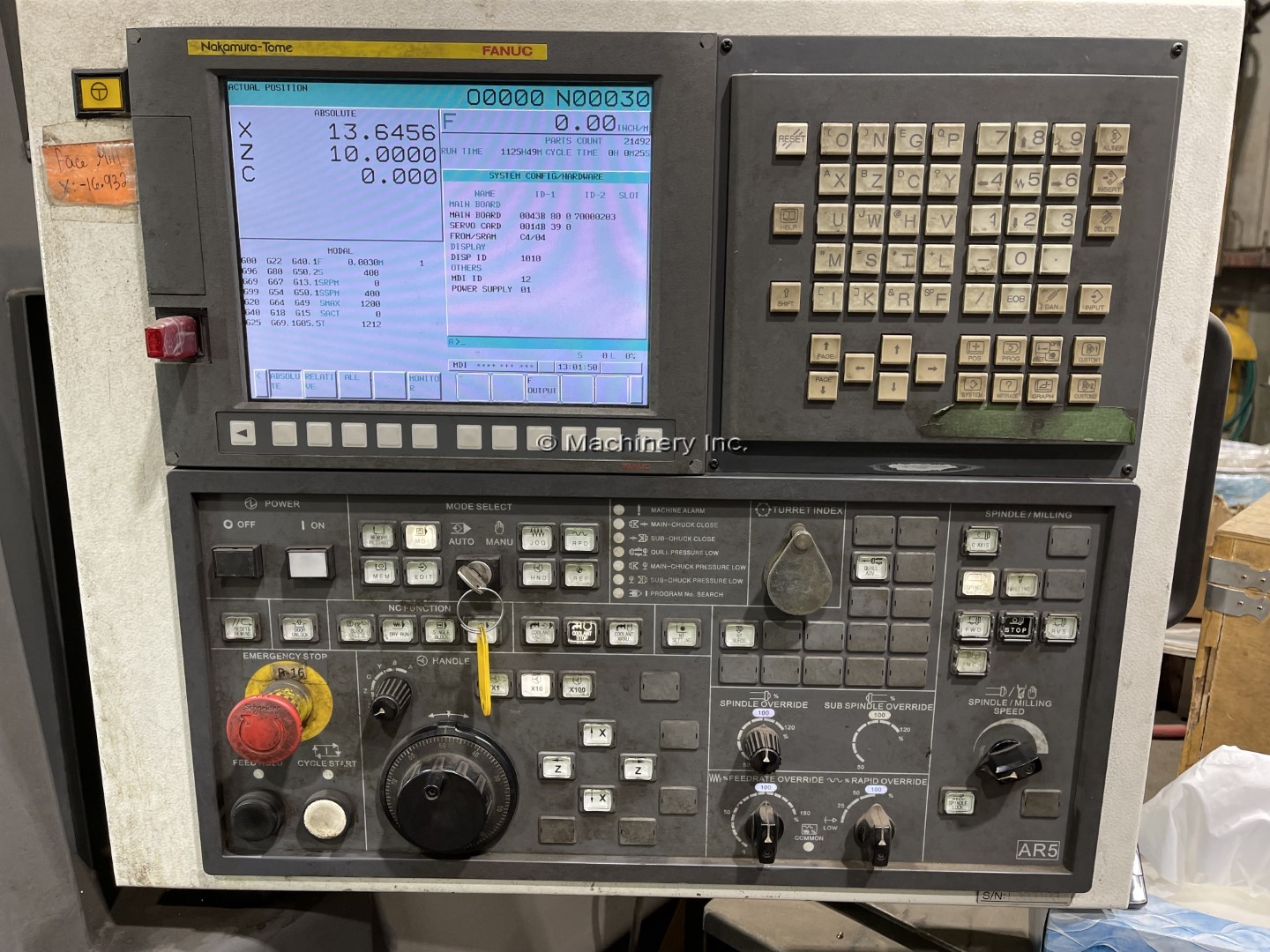

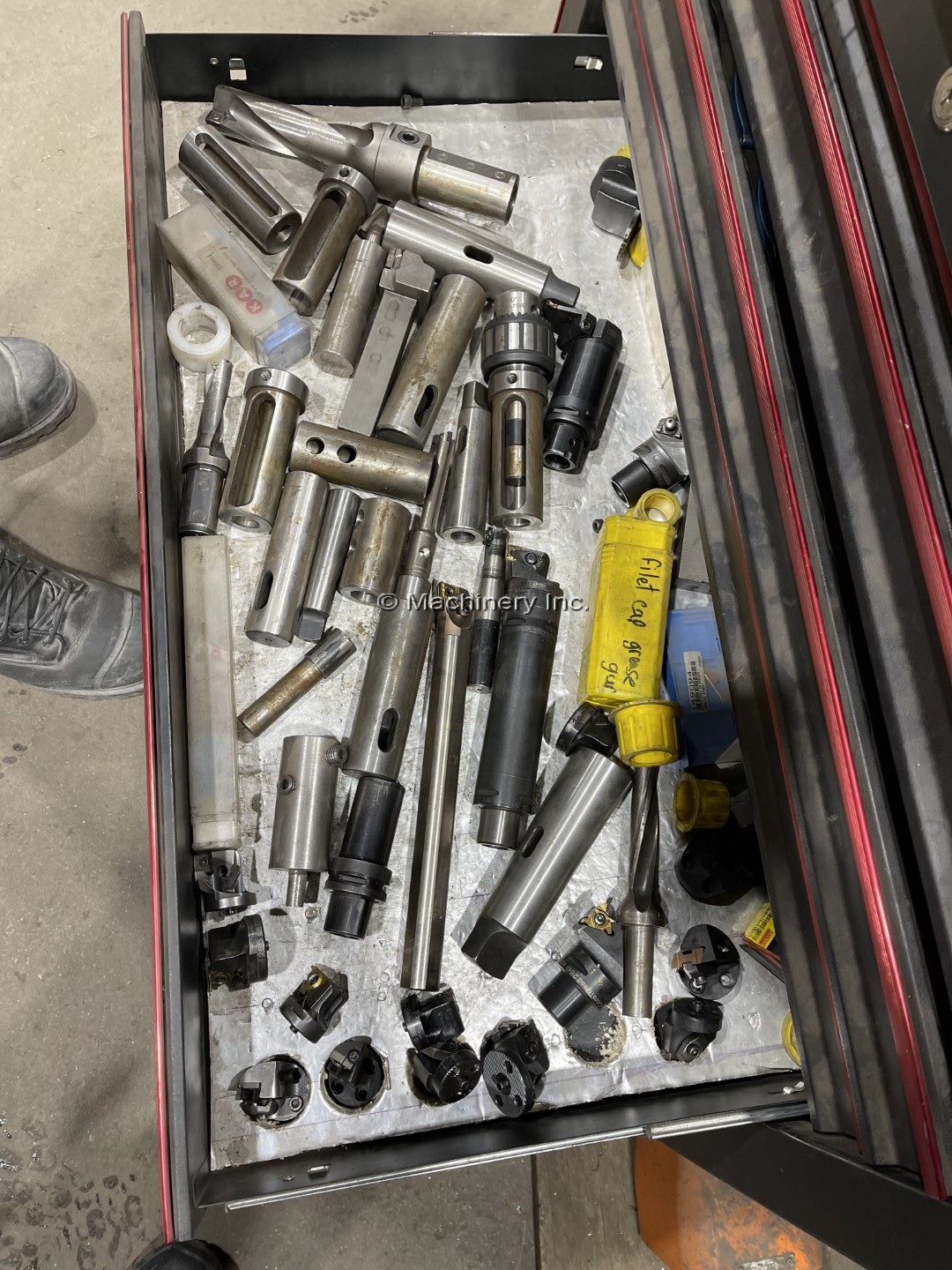

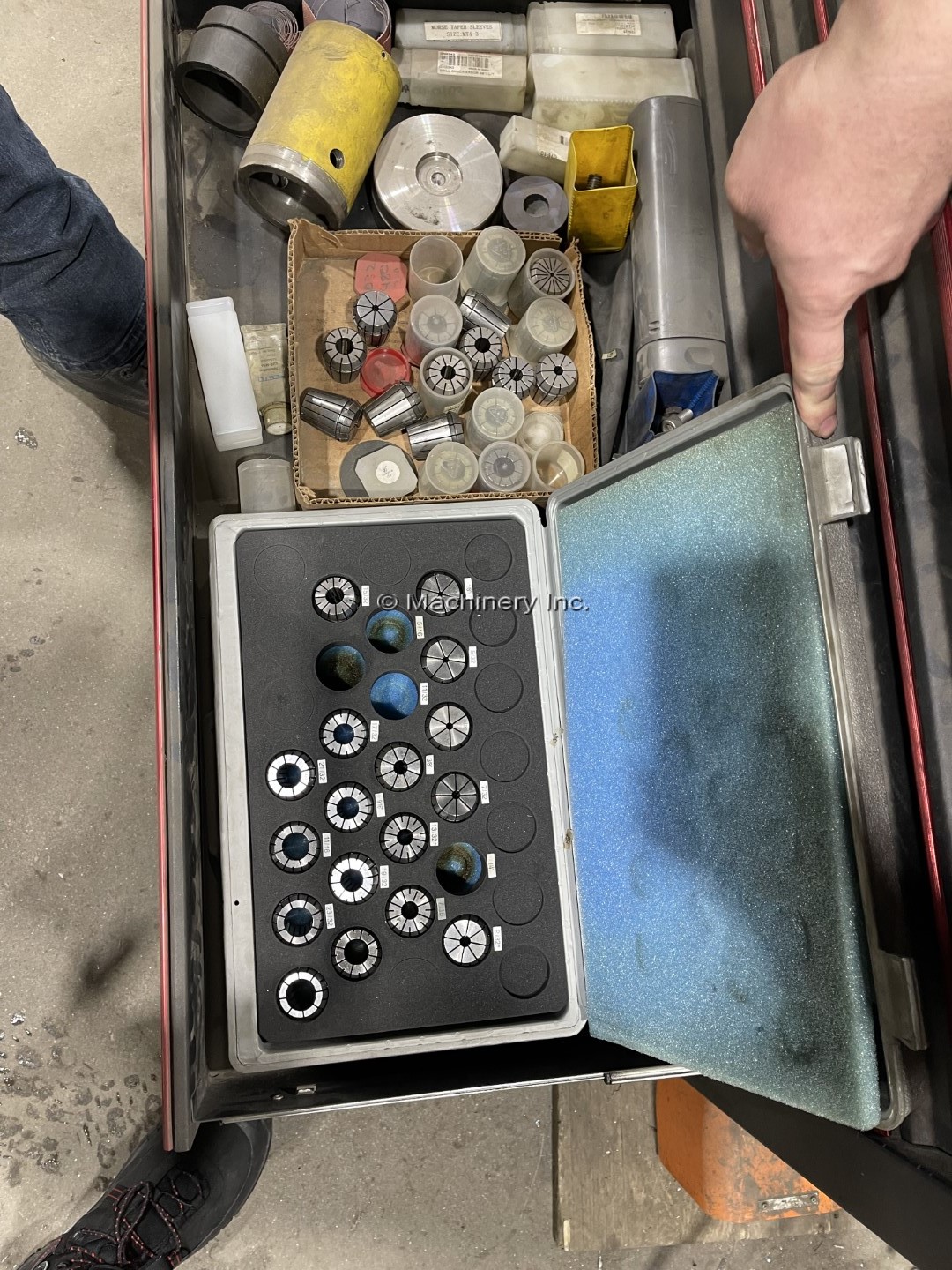

Photos de la machine
|
