Spécifications
|
Catégorie : Centres D'usinage Verticals |
Demande de soumission |
| Référence # 2218 |
|
|
Autres spécifications

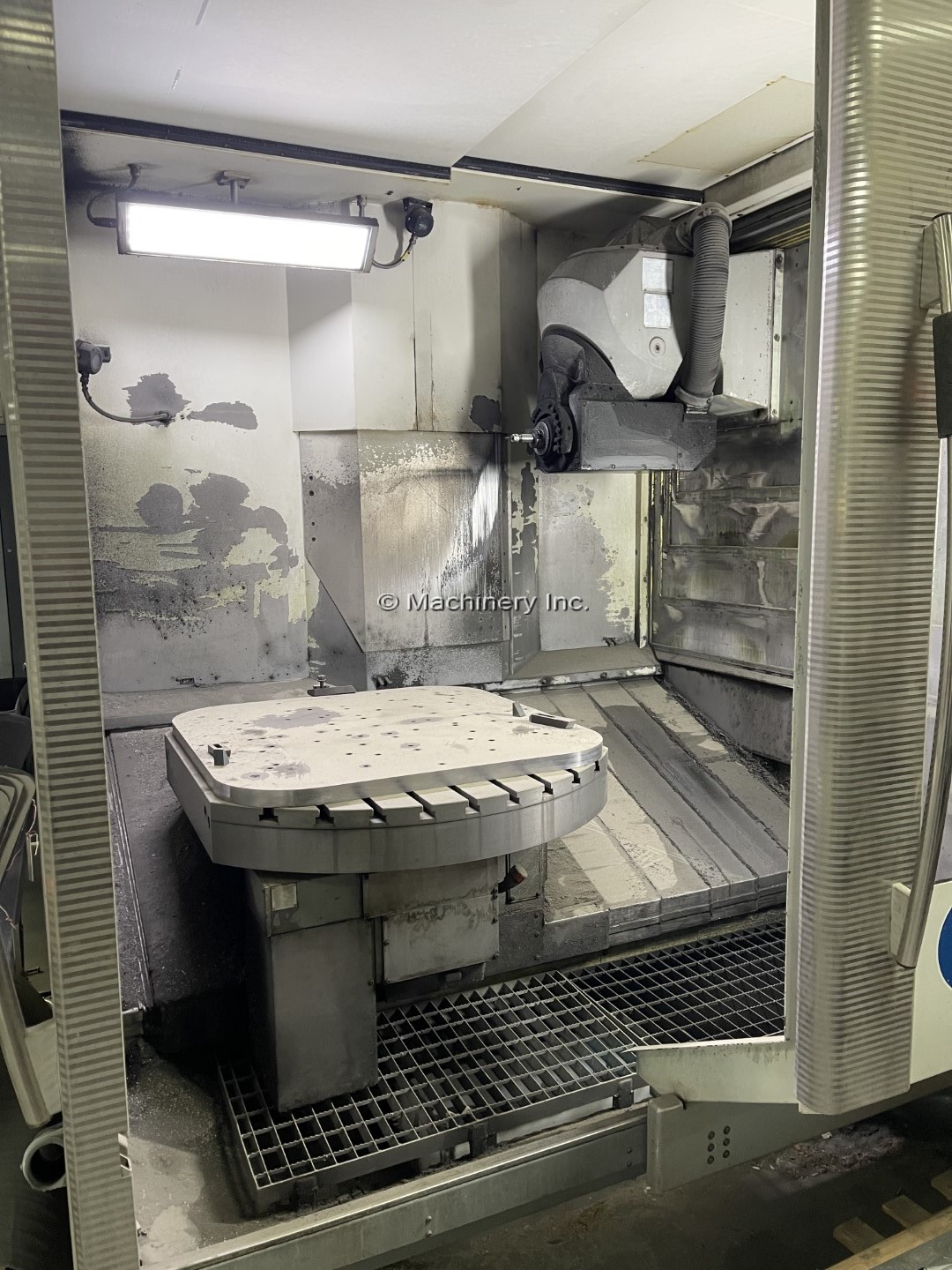

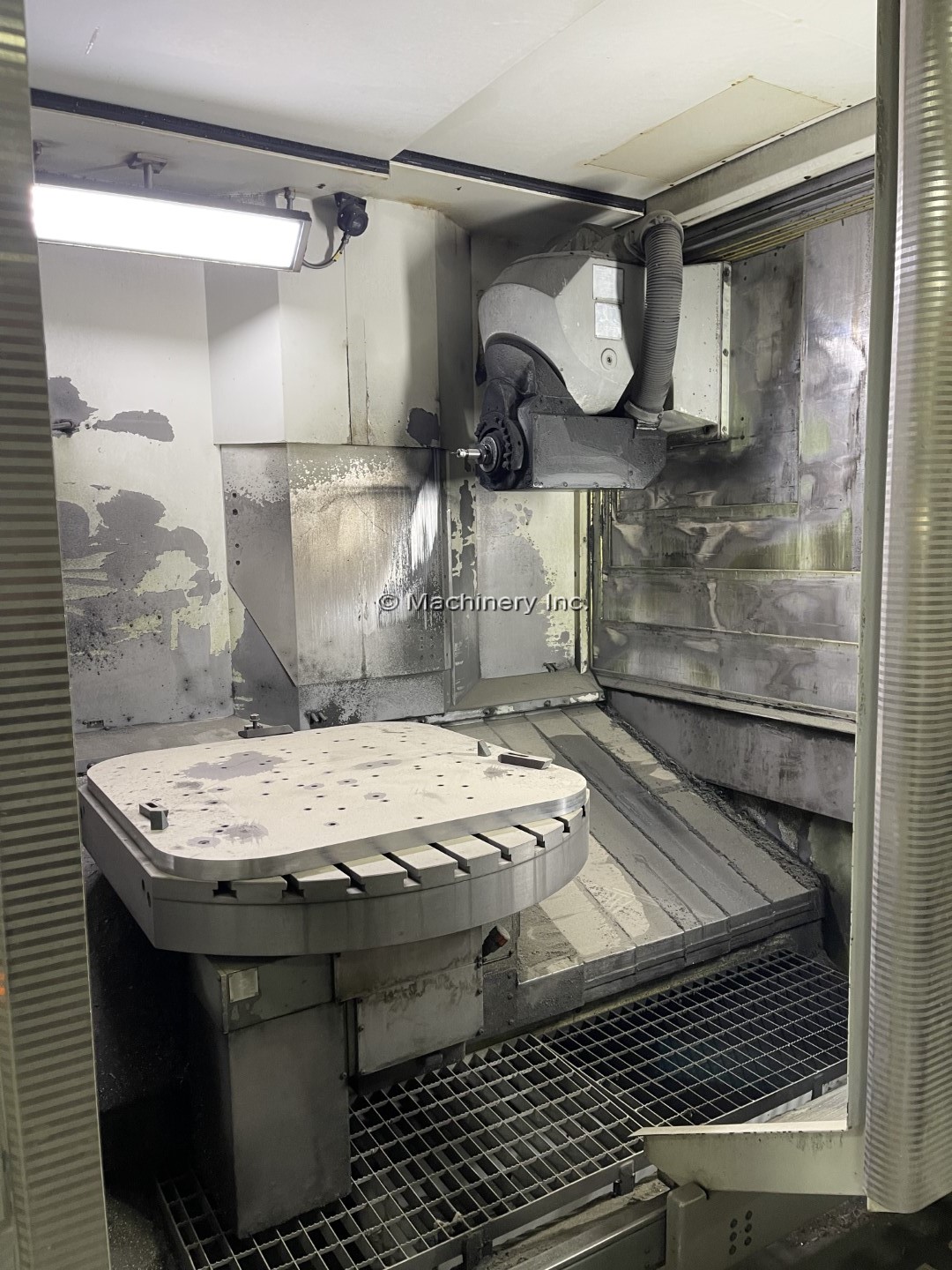

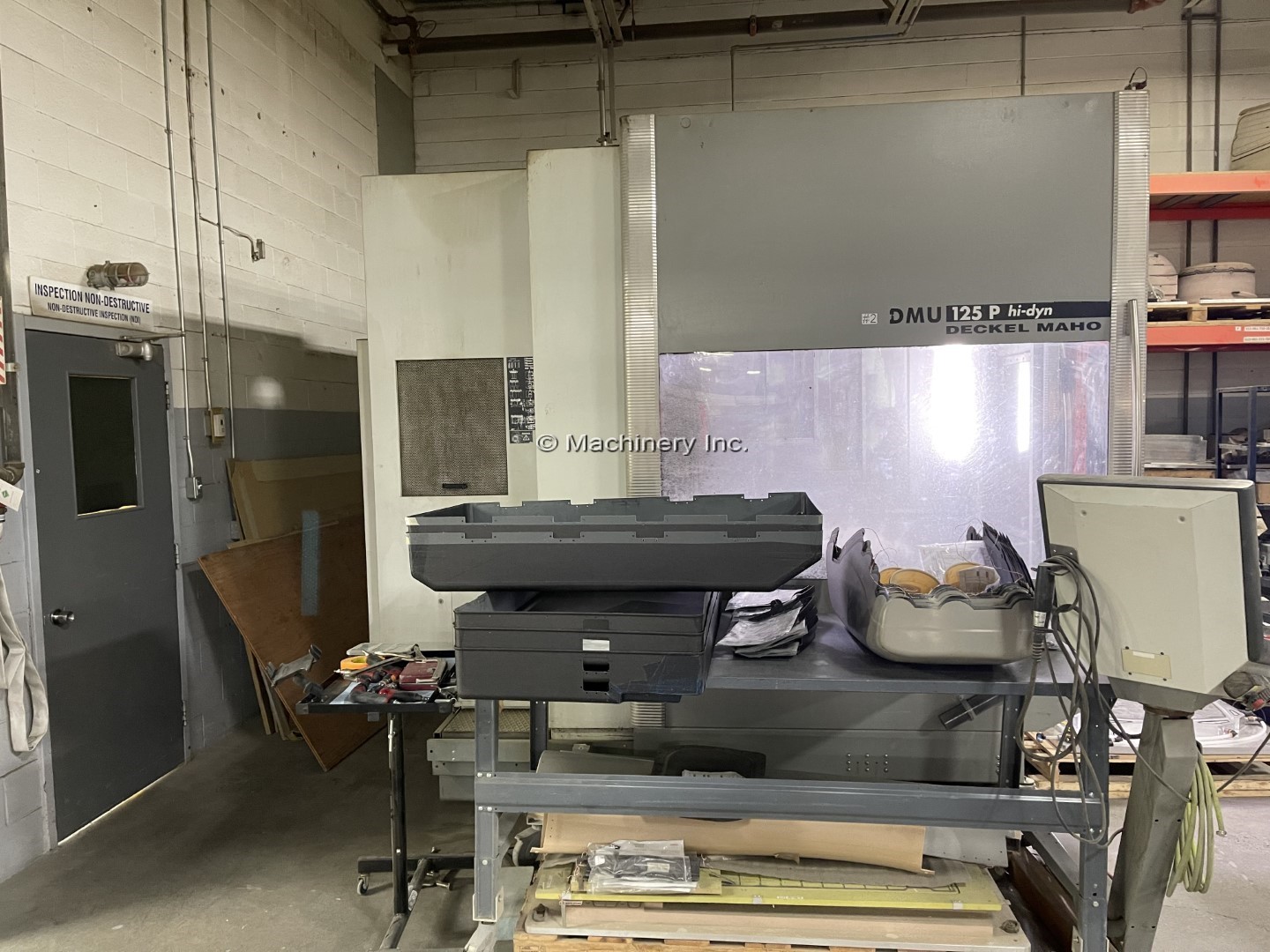

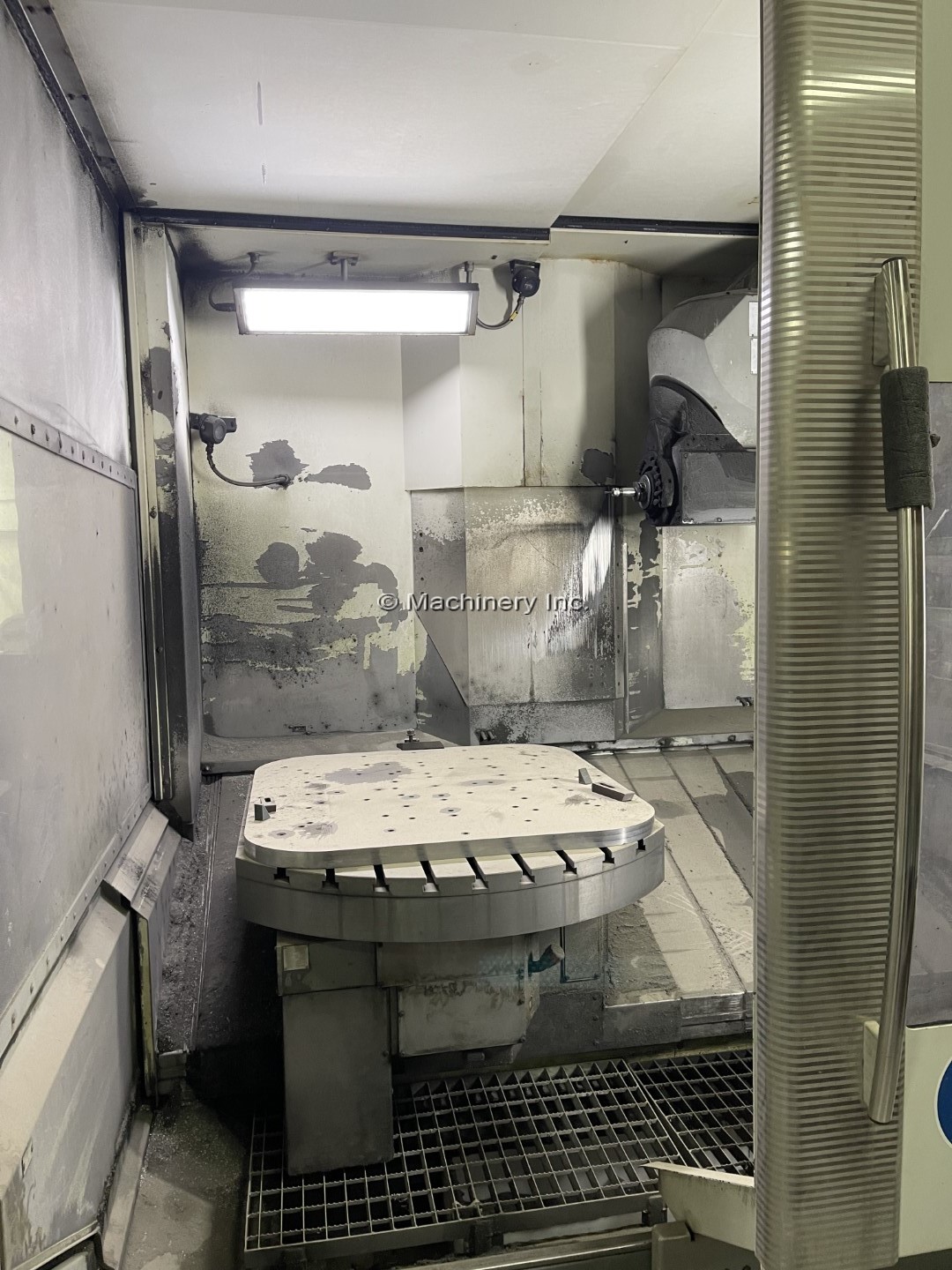

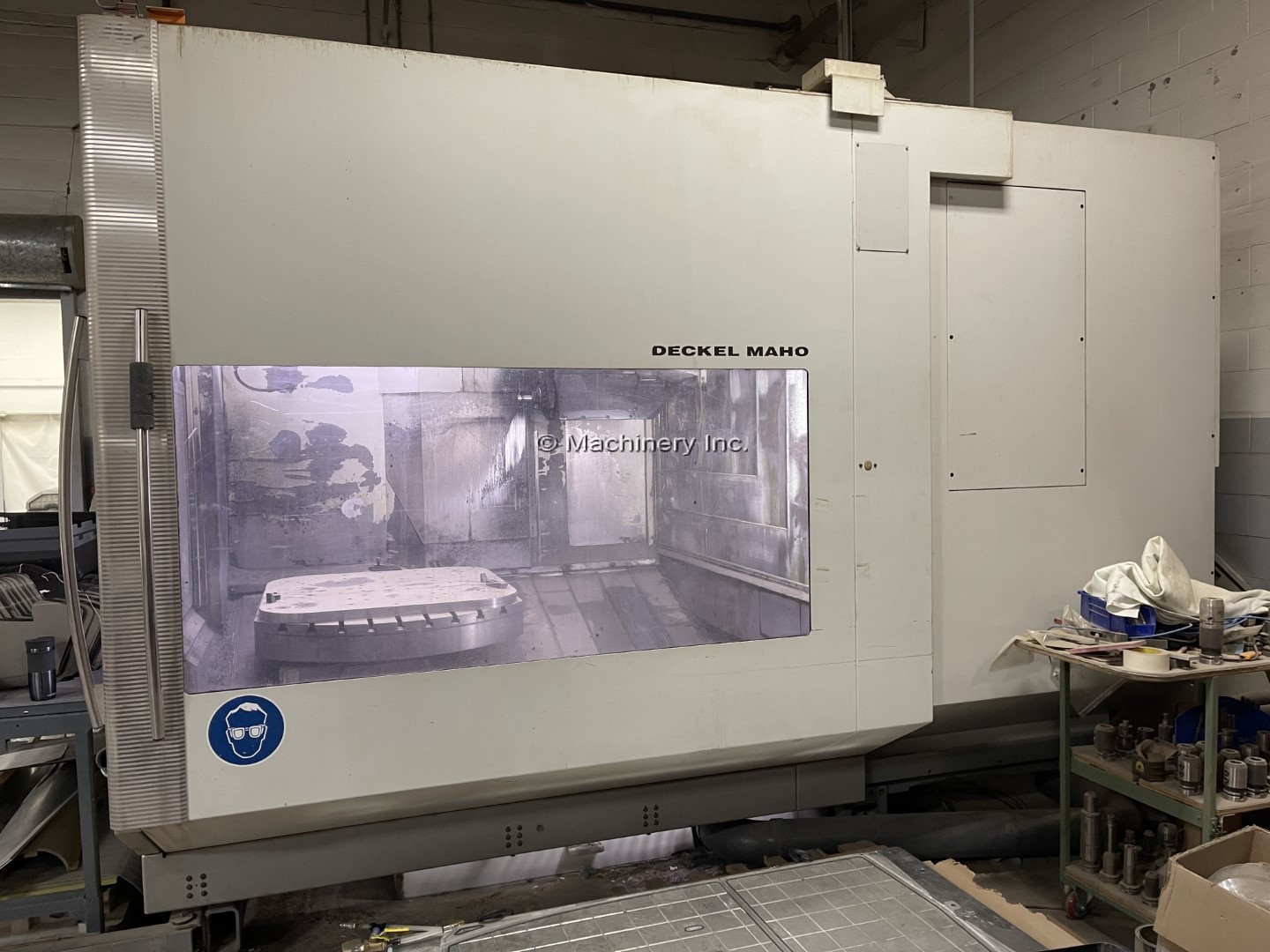

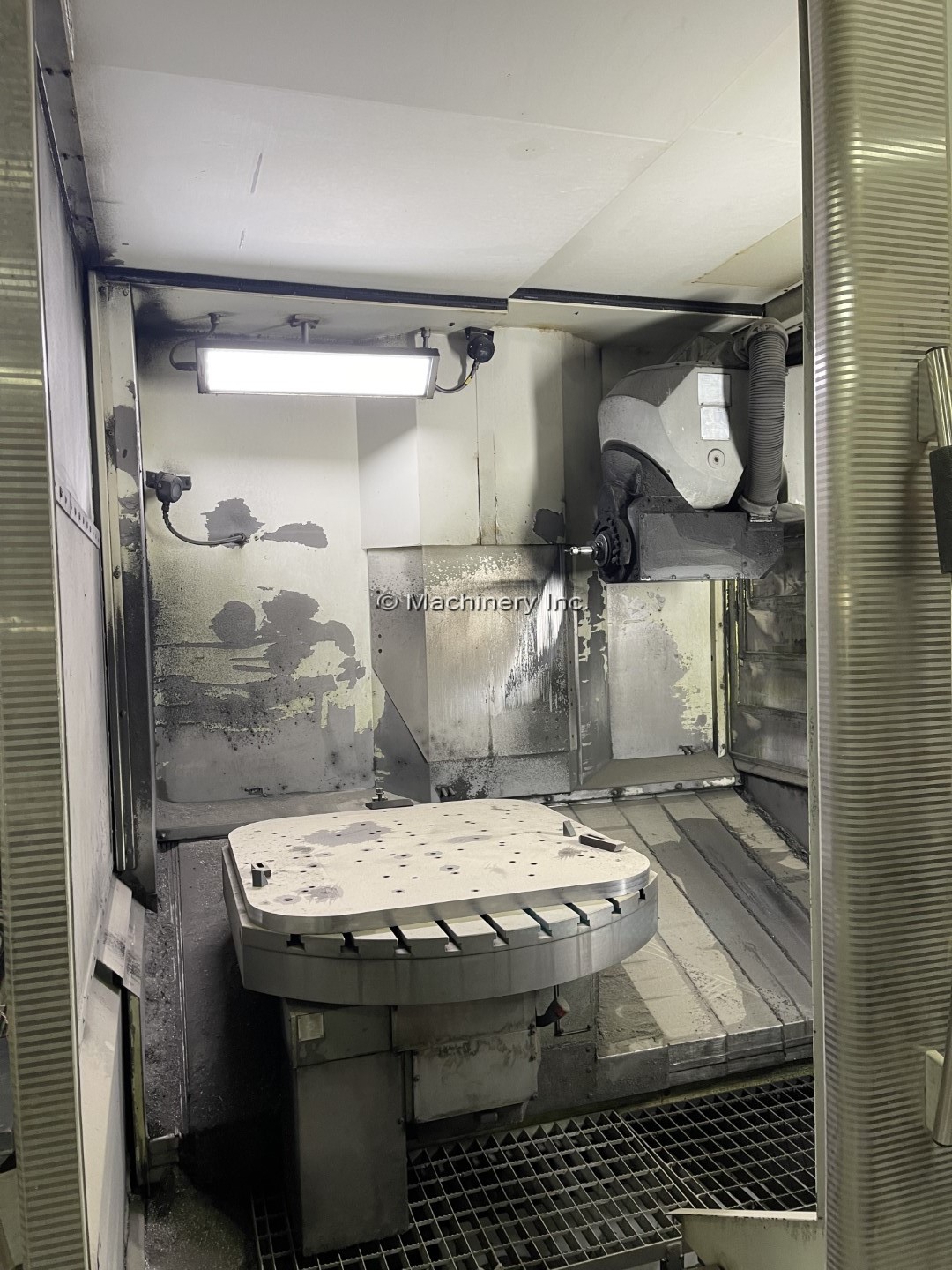

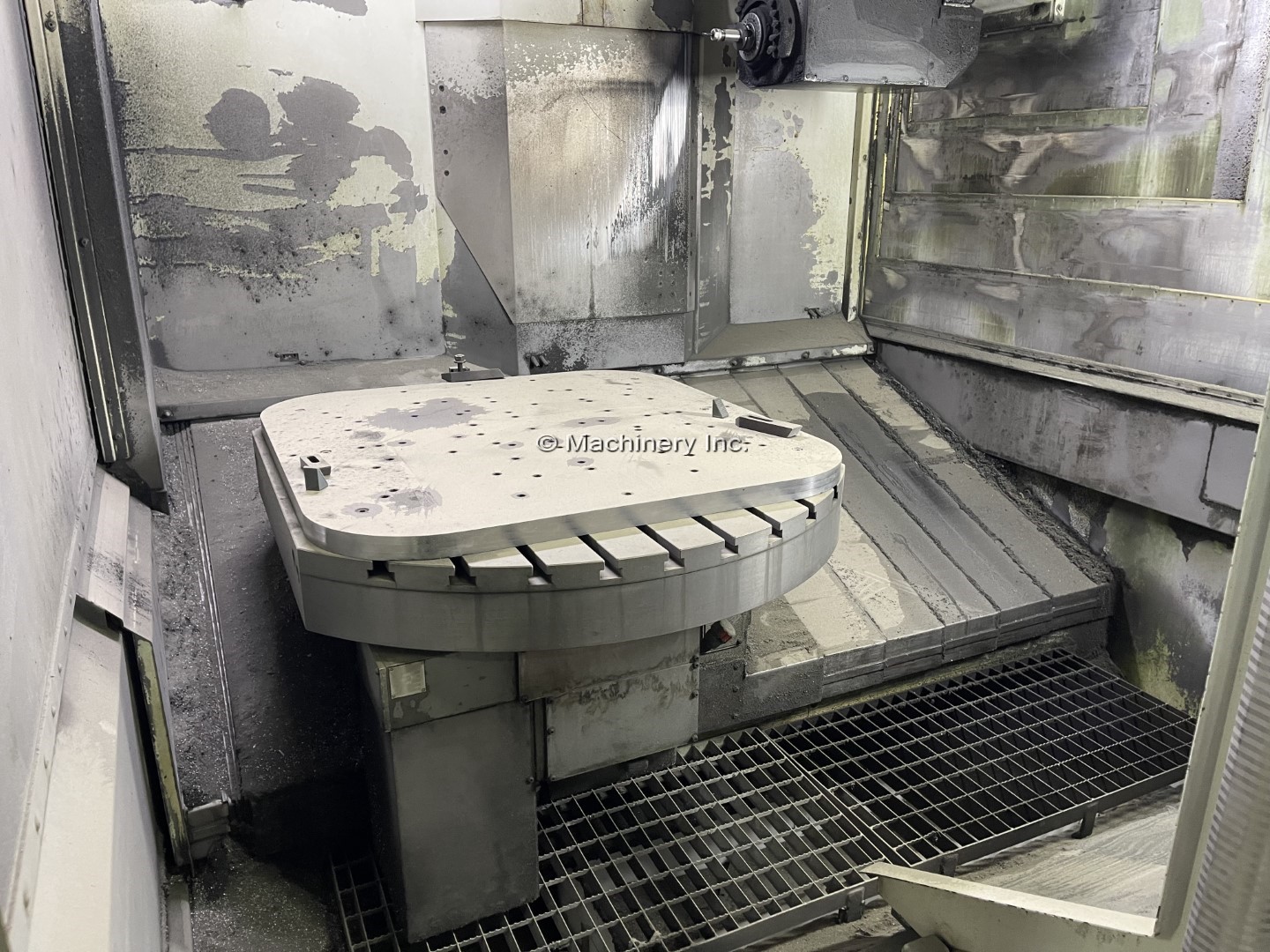

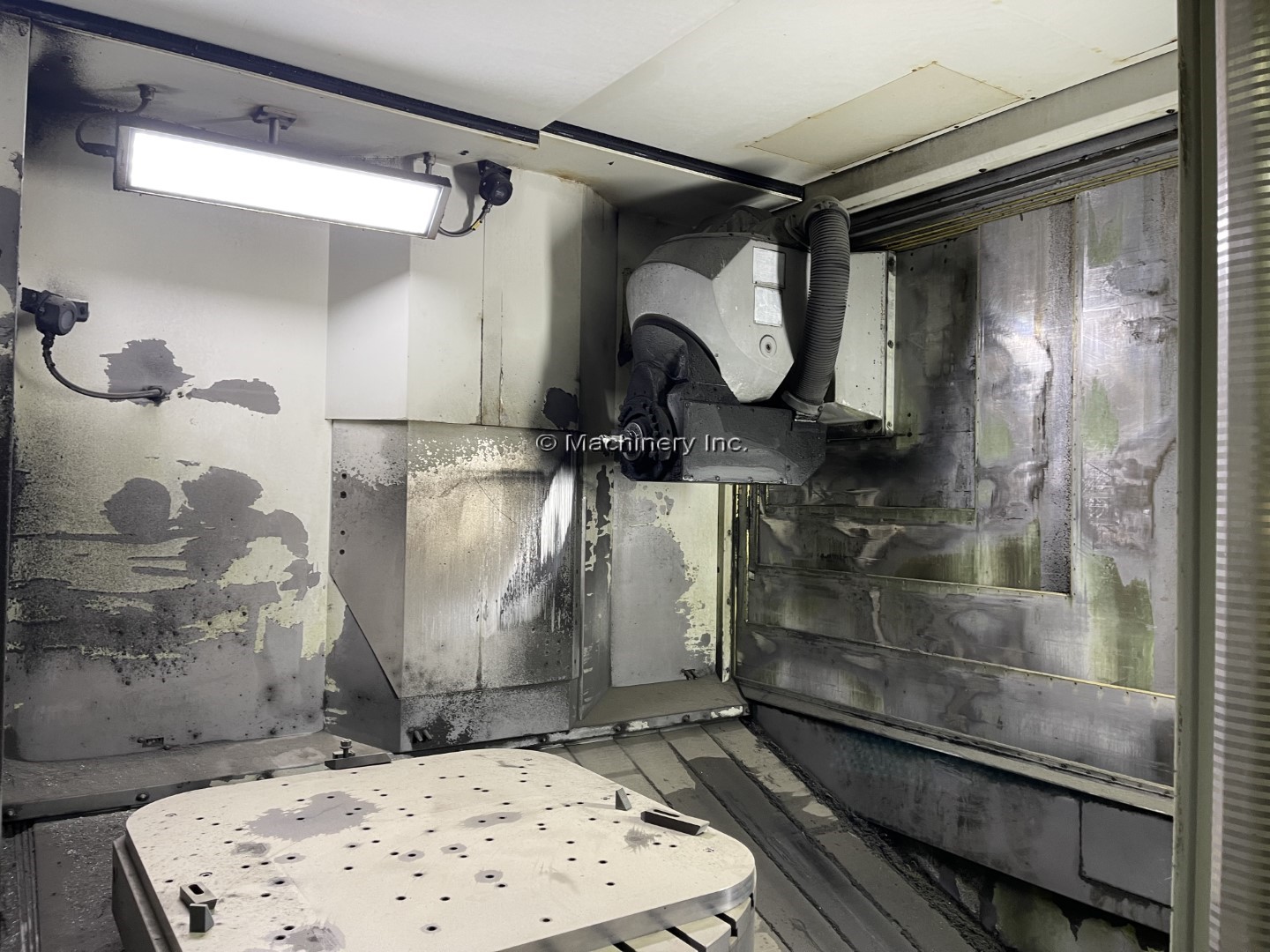

Used 2004 DMG DECKEL MAHO DMU125P hi-dyn 5-Axis CNC Universal Machining Center, 2004 -Spindle: Speed: 18000 RPM Taper: HSK63 -WORKING RANGE- X axis (longitudinal)................................ 49.21" (1,250 mm) Y axis (transverse).................................... 34.65" (880 mm) Z axis (vertical)...................................... 31.50" (800 mm) Maximum workpiece diameter 47.2" (1,200 mm) Maximum workpiece height 59.06" (1,500 mm) -NC SWIVEL ROTARY TABLE, has bearings on both sides- Clamping surface............................ 39.37" diameter (1,000 mm) Maximum table load................................ 2,205 lbs (1,000 kg) Rapid speed rotary axis........................................ 5.3 rpm Rapid speed swivel axis........................................ 5.6 rpm Rotation range...................... 360 x 0.001 degree (Full 4th axis) Swivel angles To spindle -45 degrees, from working spindle +30 degrees -AUTOMATIC UNIVERSAL MILLING HEAD- Automatic swivel from horizontal to vertical in approximately 4 seconds. The auto swivel head makes this machine 2 machines in one because both vertical and horizontal machining is possible with one workpiece clamping. Together with the NC Swivel Rotary table 5-Sided, full 5-Axis machining is possible with one workpiece clamping. Equipped with: HEIDENHAIN iTNC 530 - 3D HOURS: CUTTING HOURS: 46204
Photos de la machine
|
