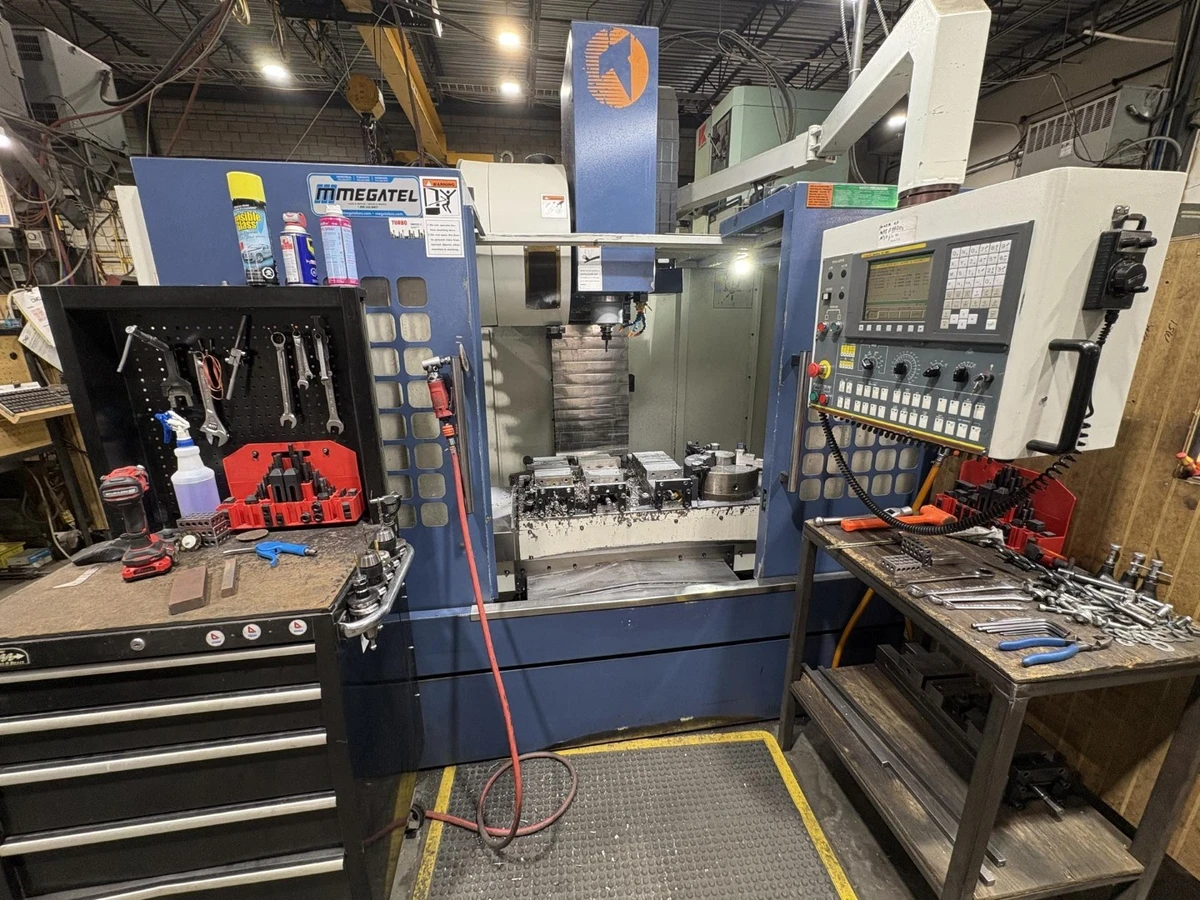

TAKUMI V10 CNC VERTICAL MACHINING CENTER, 2007
Have one to sell?
ConditionUsed
1 available
TAKUMI V10 CNC vertical machining center, 2007 model. Offers 40" x 26" x 24" travel, 10,000 RPM spindle, 21 ATC with BT#40 taper, and FANUC control. Ideal for precision tasks with 42" x 26" table and rapid 1,417 IPM traverse rate.
TAKUMI V10 CNC VERTICAL MACHINING CENTER, 2007
Table size: 42″ x 26″
X-axis travel: 40″
Y-axis travel: 26″
Z-axis travel: 24″
Distance from spindle nose to table surface: 6.3″ to 28.3″
Spindle Speed: 10,000 RPM
Spindle motor power:
Tool capacity: 24 + 1 ATC
Rapid traverse rate (X/Y/Z): 1,417 IPM (inches per minute)
Cutting feed rate: 0.04 393.7 IPM
Machine dimensions (W x D x H): 110.2″ x 89.8″ x 114.2″
Machine weight: 17,600 lbs
Equipped With:
21 + 1 Side-Mouth Tool Changer
BT#40 Taper Size
FANUC CNC CONTROL
TAKUMI V10 CNC vertical machining center, 2007 model. Offers 40" x 26" x 24" travel, 10,000 RPM spindle, 21 ATC with BT#40 taper, and FANUC control. Ideal for precision tasks with 42" x 26" table and rapid 1,417 IPM traverse rate.
Imperial
| X | 40" |
| Y | 26" |
| Z | 24" |
| RPM | 10,000 RPM |
| # ATC | 211 |
| Taper | BT#40 |
| Table-W | 26" |
| Table-L | 42" |
| # Axis | 3 |
| Control | CNC (FANUC) |
| Dimensions | 110.2 x 89.8 x 114.2 |
| Weight | 17,600 |
TAKUMI V10 CNC VERTICAL MACHINING CENTER, 2007
Table size: 42″ x 26″
X-axis travel: 40″
Y-axis travel: 26″
Z-axis travel: 24″
Distance from spindle nose to table surface: 6.3″ to 28.3″
Spindle Speed: 10,000 RPM
Spindle motor power:
Tool capacity: 24 + 1 ATC
Rapid traverse rate (X/Y/Z): 1,417 IPM (inches per minute)
Cutting feed rate: 0.04 393.7 IPM
Machine dimensions (W x D x H): 110.2″ x 89.8″ x 114.2″
Machine weight: 17,600 lbs
Equipped With:
21 + 1 Side-Mouth Tool Changer
BT#40 Taper Size
FANUC CNC CONTROL
